Name: Automotive Relay Tester 12V 24V Universal Relay Repair
SKU: 1005010264414529
Price: 11.57 GBP
Availability: InStock

Automotive Relay Tester 12V 24V Universal Relay Repair

£11.57

6 in stock

Wireless Function: No
Communication Interface: Others
High-concerned chemical: none
Use: Not Telecommunication
Electronic: No
Wireless Support: No
Is Batteries Included: no
Item Weight: 0.17kg
Item Height: 8cm
Item Width: 6cm
Item Length: 16cm
External Testing Certification: ce
Model Name: JFIND JF107
Brand Name: JFIND
Origin: Mainland China
Certification: RoHS,FCC,CE
Item Type: Battery Testers

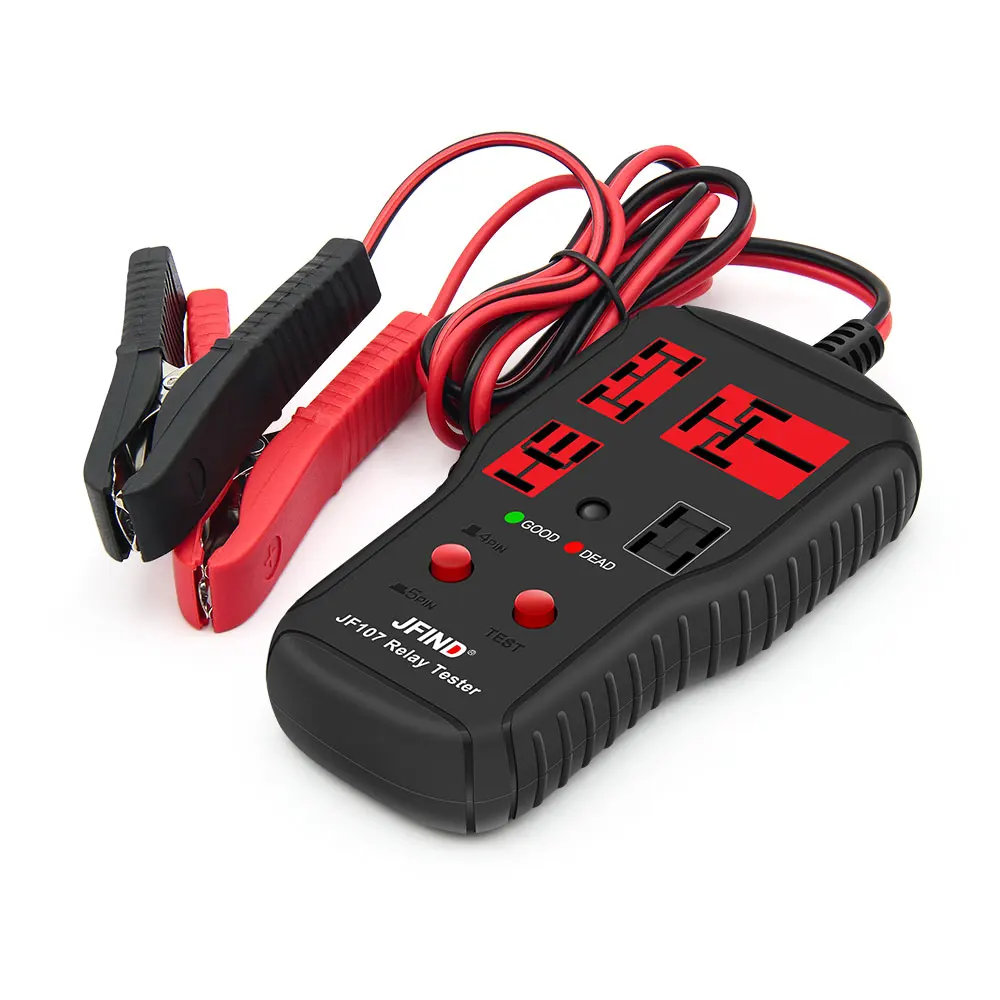

Automotive Relay Tester 12V 24V Universal Relay Repair Tool Tester for 4Pin

5Pin Voltage Battery Checker with LED JFIND JF107

Product Introduction:

The JF107 is an intelligent relay tester compatible with all 12V and 24V universal relays. Easy to operate, fast detection speed, and real-time display of test results.

Our Advantages

Can test 4 relays simultaneously, one click testing, easy to detect relay faults

Can support relays with larger PIN pin sizes

Wide compatibility:

The automatic voltage detection can cover over 20 common types of automotive relays, compatible with 12V/24V voltages and various pin arrangements (4-pin/5-pin), and is suitable for both household use and professional maintenance.

Attention:

1. The battery must be 12V-24V battery,or the tester is not working.
2. Choose 4pin or 5pin of tester depend on the PIN of the Relay.

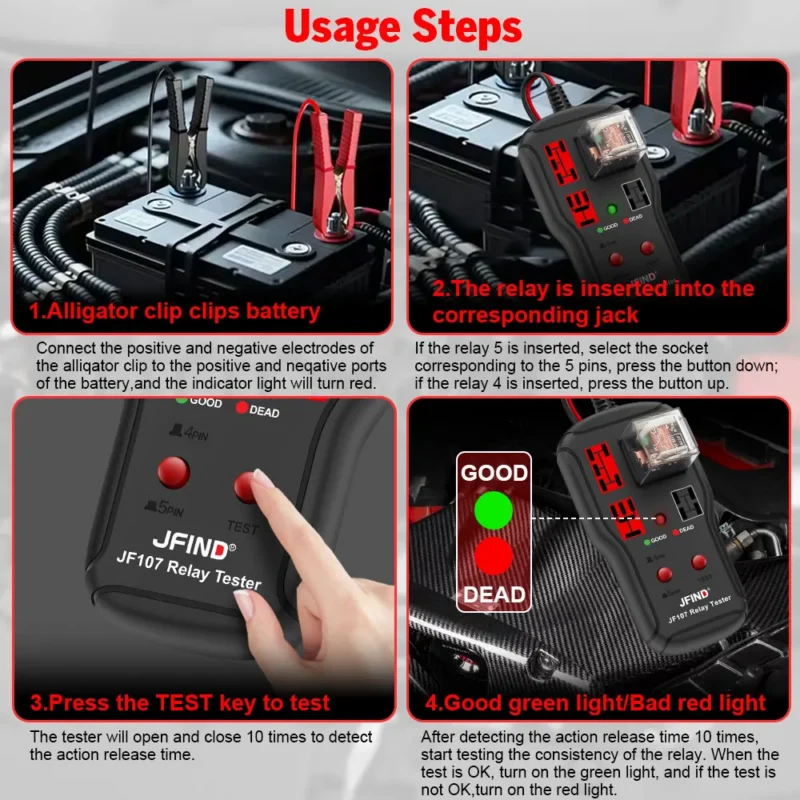

Usage Steps:

1.Alligator clip clips battery
Connect the positive and negative electrodes of the alligator clip to the positive and negative ports of the battery,and the indicator light will turn red.
2.The relay is inserted into the corresponding jack
If the relay 5 is inserted, select the socket corresponding to the 5 pins, press the button down; if the relay 4 is inserted, press the button up.
3.Press the TEST key to test
The tester will open and close 10 times to detect the action release time.
4.Good green light/Bad red light
After detecting the action release time 10 times, start testing the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK,turn on the red light.
