- PCBincluded: Yes
- Battery Included: no
- High-concerned chemical: none
- Application Scenarios: Industrial Grade
- Semi-finishedproduct: No
- Is Smart Device: no
- Measurement Range: 50-50000PPM/0-100%LEL
- Model Number: CGD05A
- With LCD Screen Or Not: Yes
- Gas Type: Combustible Gas
- DIY Supplies: Electrical
- Brand Name: MESTEK
- Origin: Mainland China

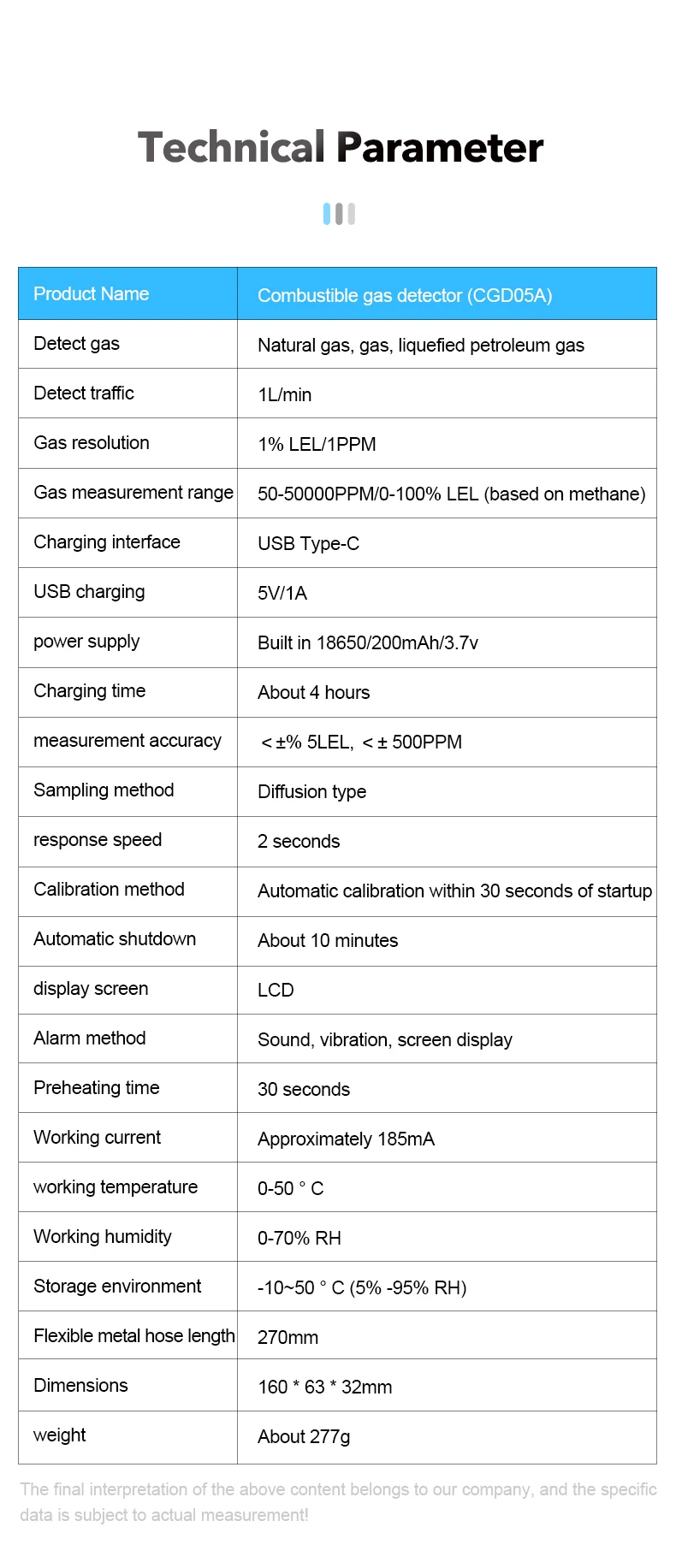

- Product Name: Combustible gas detector
- Detect gas: Natural gas, gas, liquefied petroleum gas
- Detect traffic: 1L/min
- Gas resolution: 1% LEL/1PPM

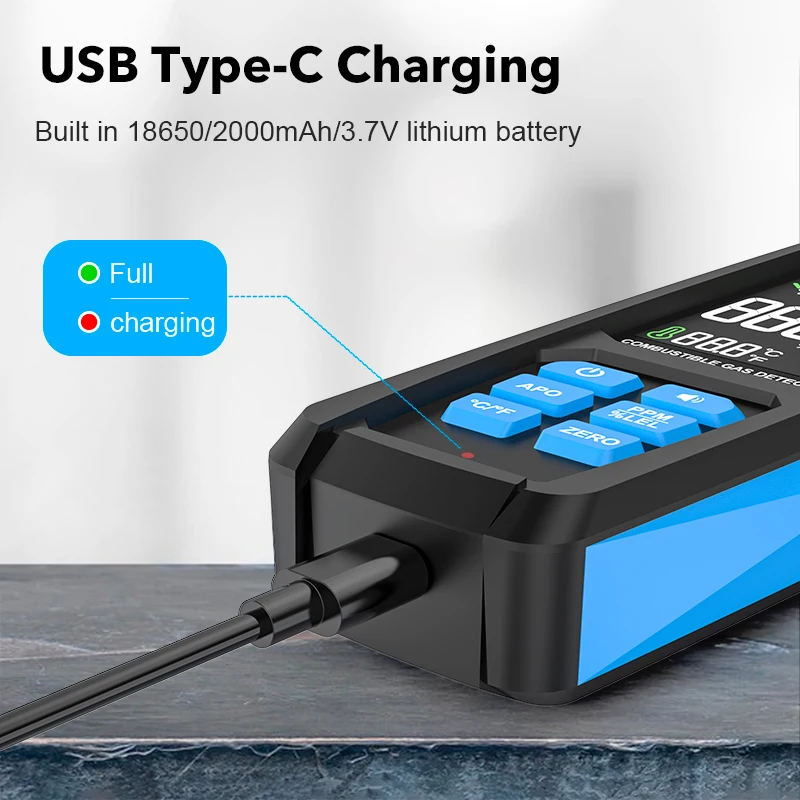

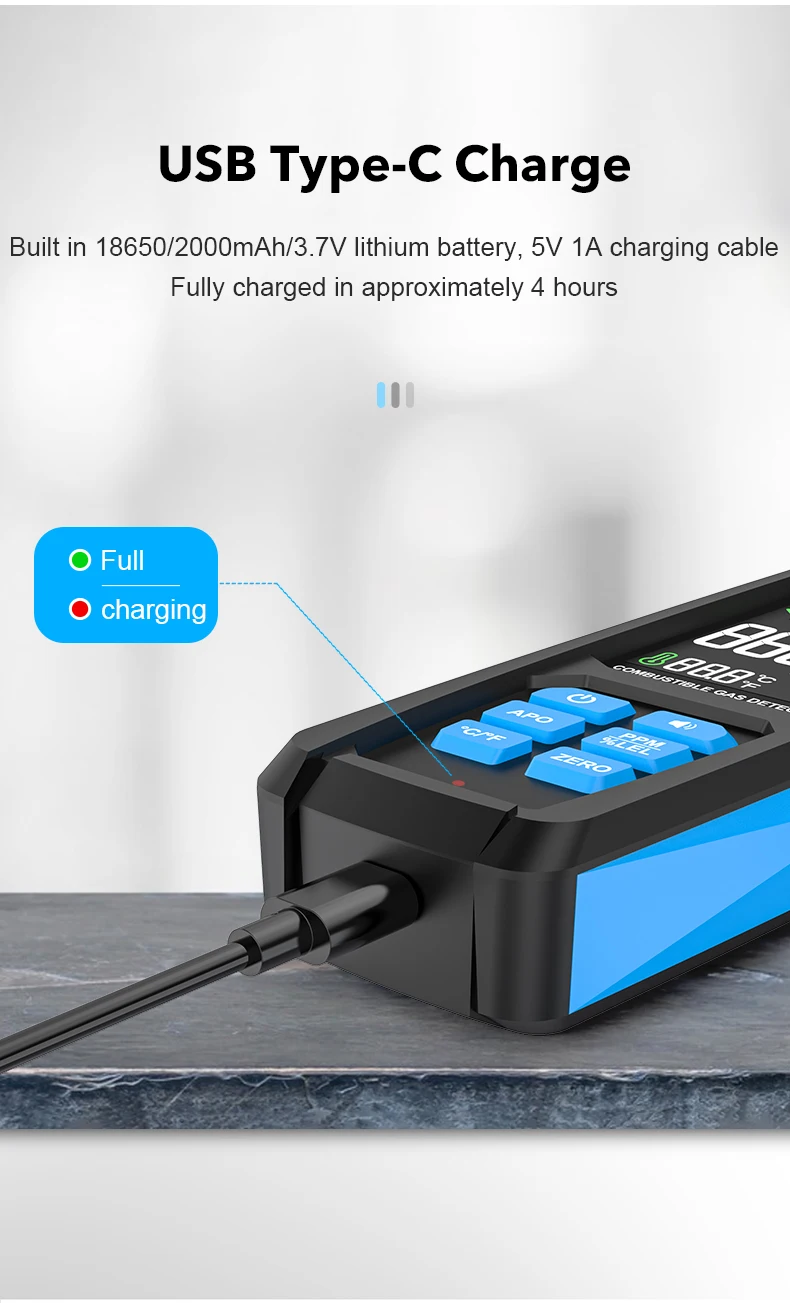

- Charging interface: USB Type-C
- USB charging: 5V/1A
- power supply: Built in 18650/200mAh/3.7v
- Charging time: About 4 hours
- measurement accuracy: < +% 5LEL, <+-500PPM
- Sampling method: Diffusion type
- response speed: 2 seconds
- Calibration method: Automatic calibration within 30 seconds of startup
- Automatic shutdown: About 10 minutes

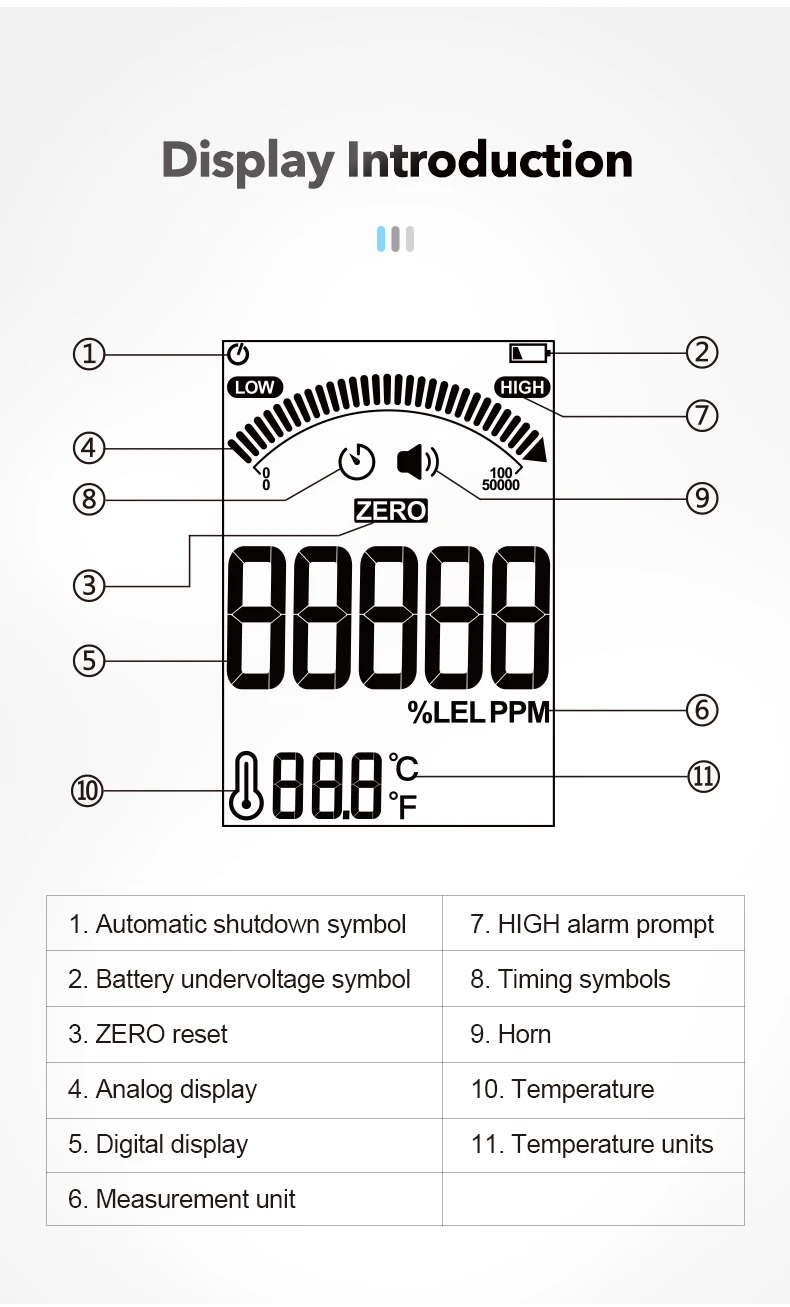

- display screen: LCD

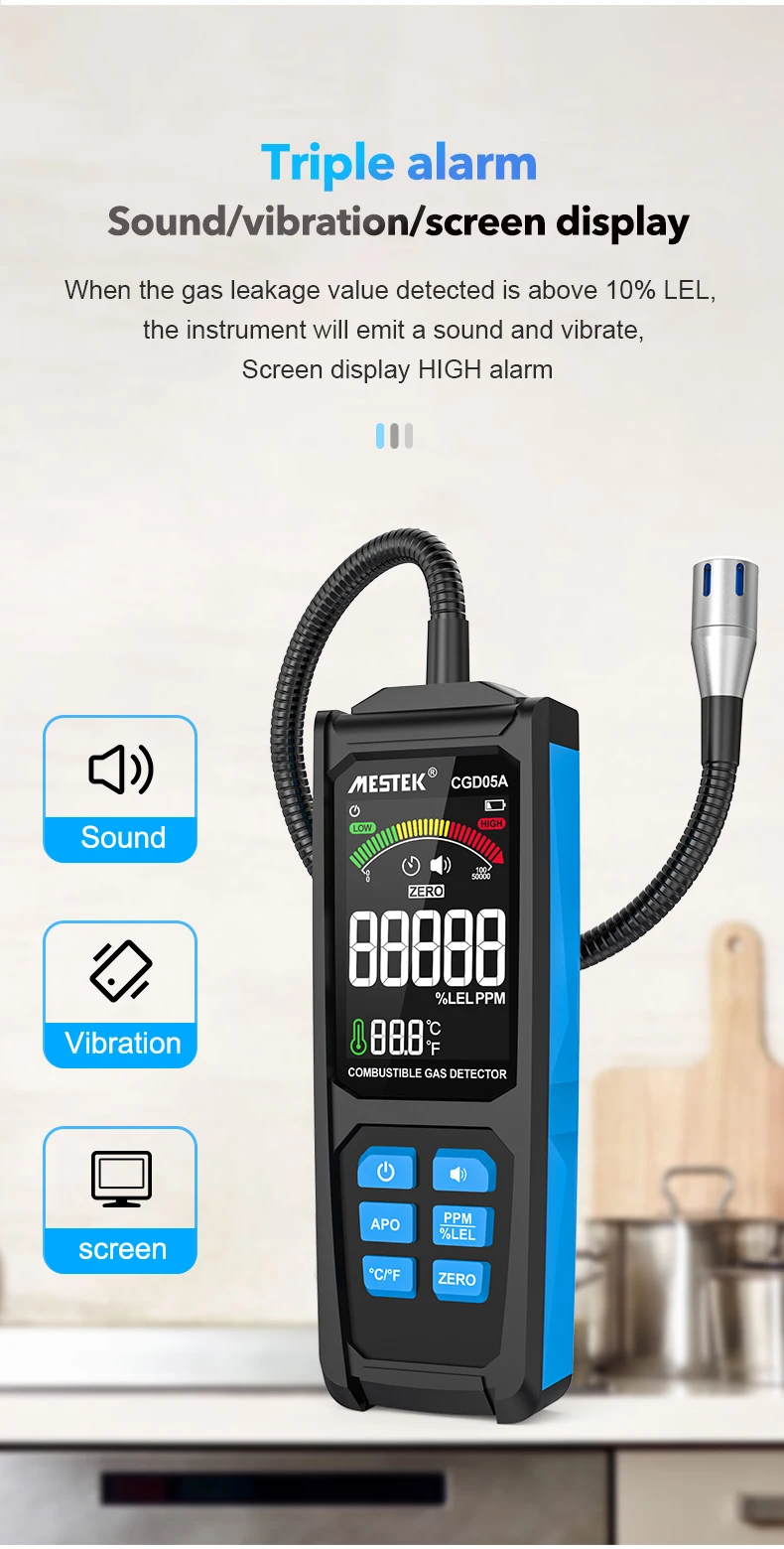

- Alarm method: Sound, vibration, screen display
- Preheating time: 30 seconds
- Working current: Approximately 185mA
- working temperature: 0-50°C
- Working humidity: 0-70% RH
- Storage environment: -10~50℃ (5% -95% RH)

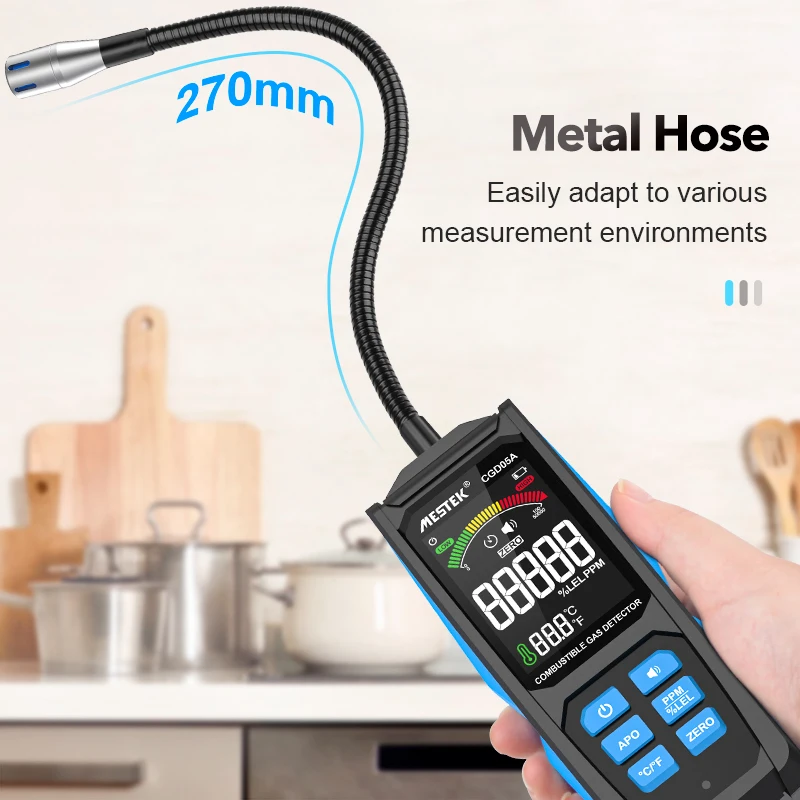

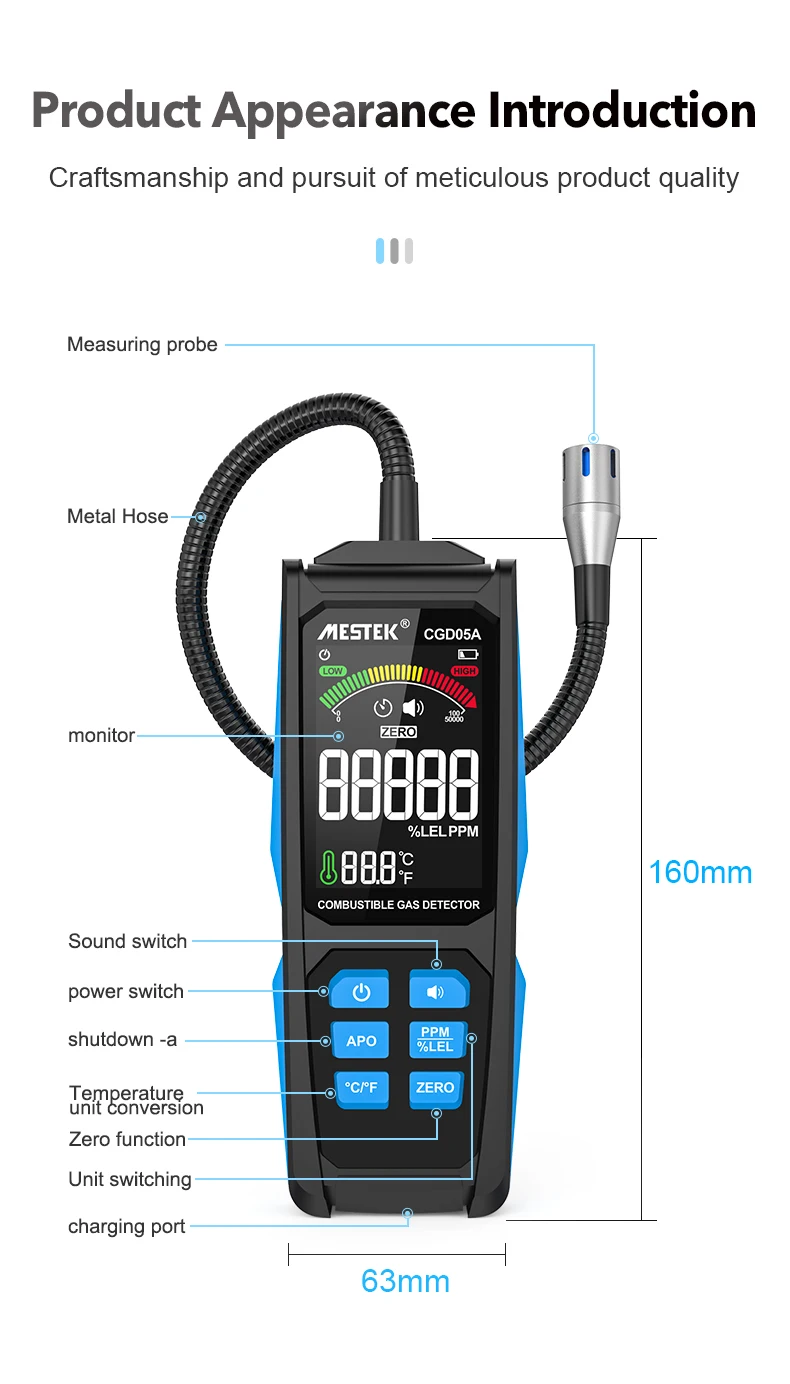

- Flexible metal hose length: 270mm
- Item 1: gas analyzer
- Item 2: combustible gas detector

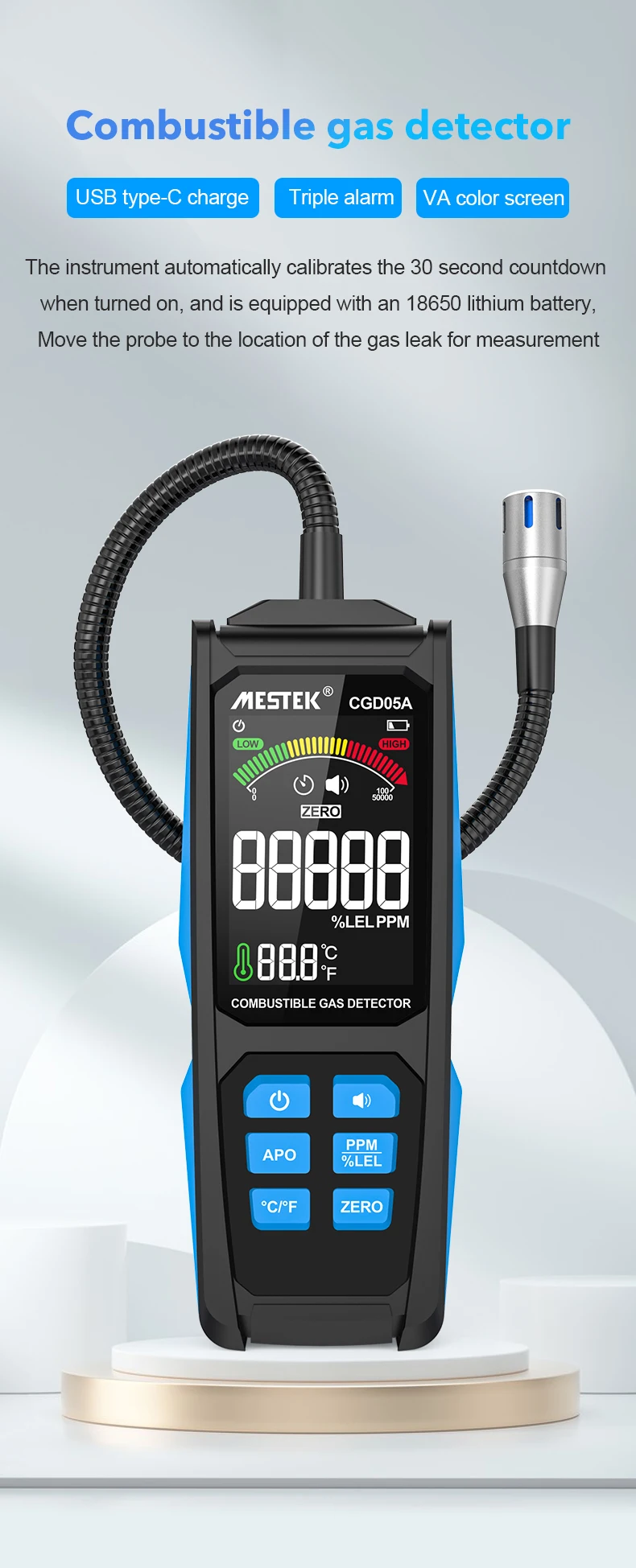

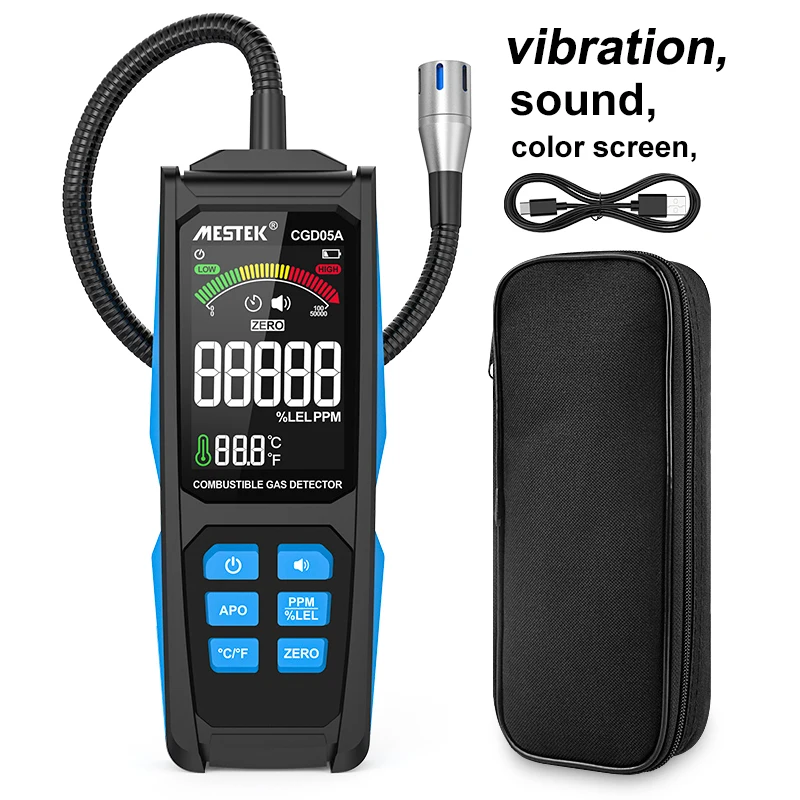

Combustible gas detector
*USB type-C charge
*Triple alarm

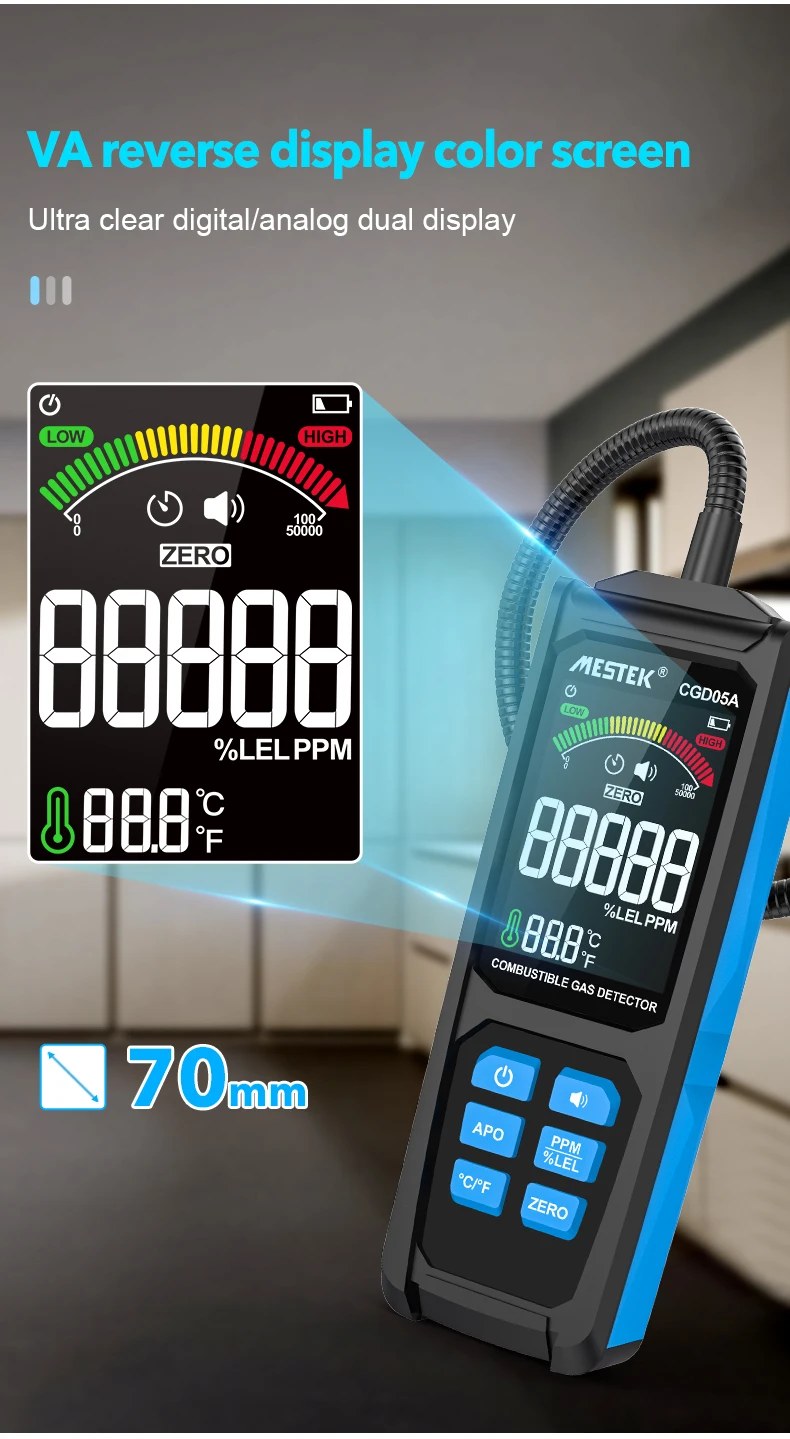

*VA color screen
The instrument automatically calibrates the 30 second countdown when turned on, and is equipped with an 18650 lithium battery,Move the probe to the location of the gas leak for measurement
Featured
Quickly detect leaked combustible gases and take strict precautions against safety hazards

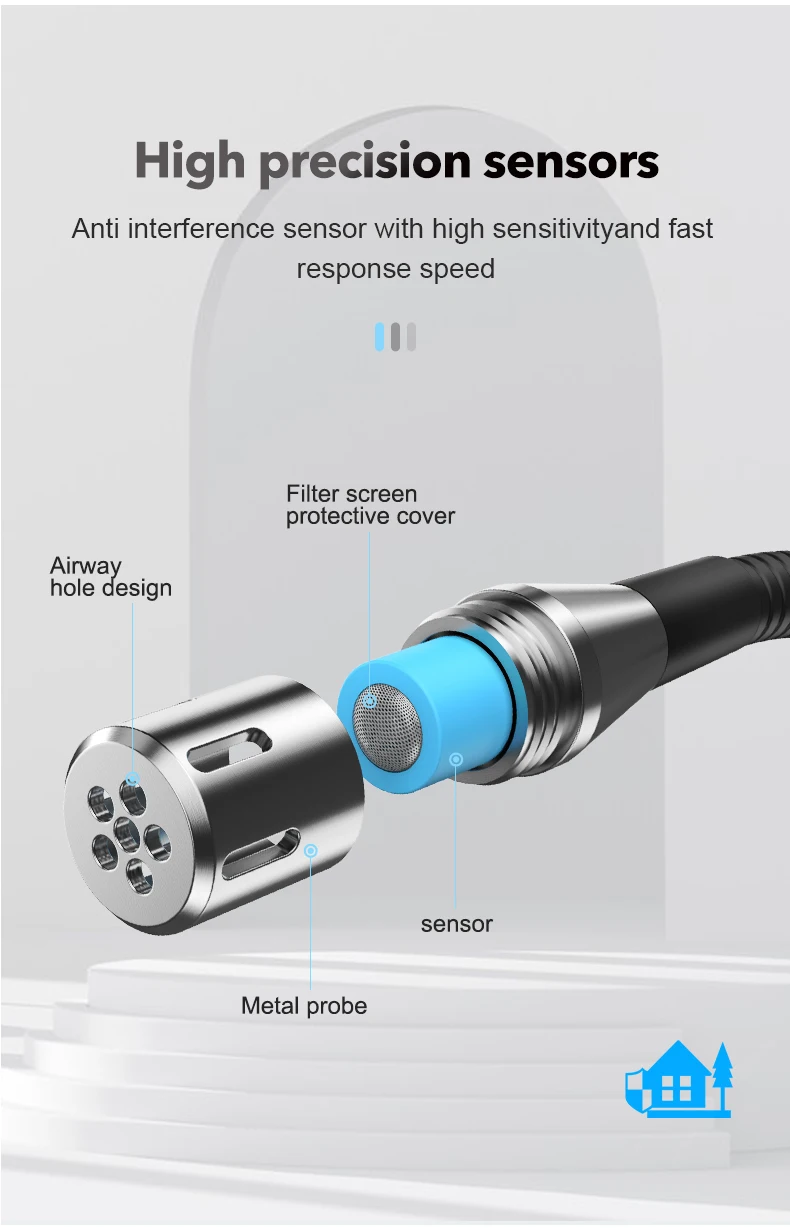

*Import sensor
*USB-C charging
*Fast response speed
*Triple alarm

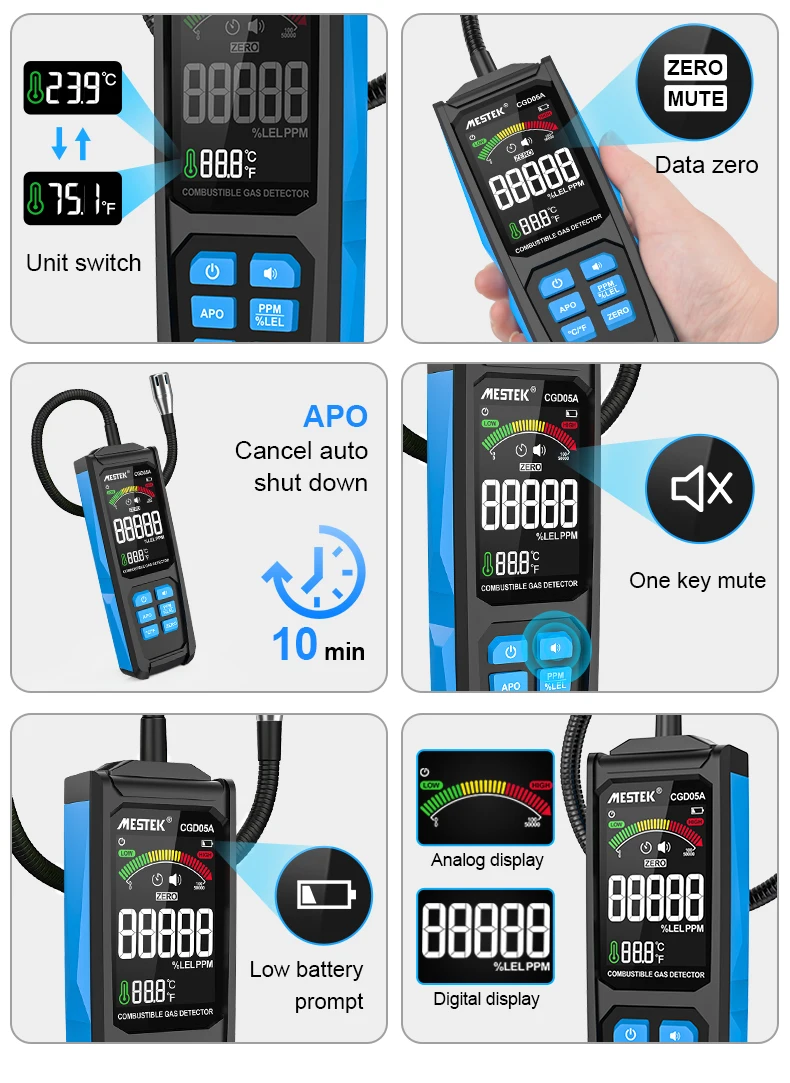

*Data zero function

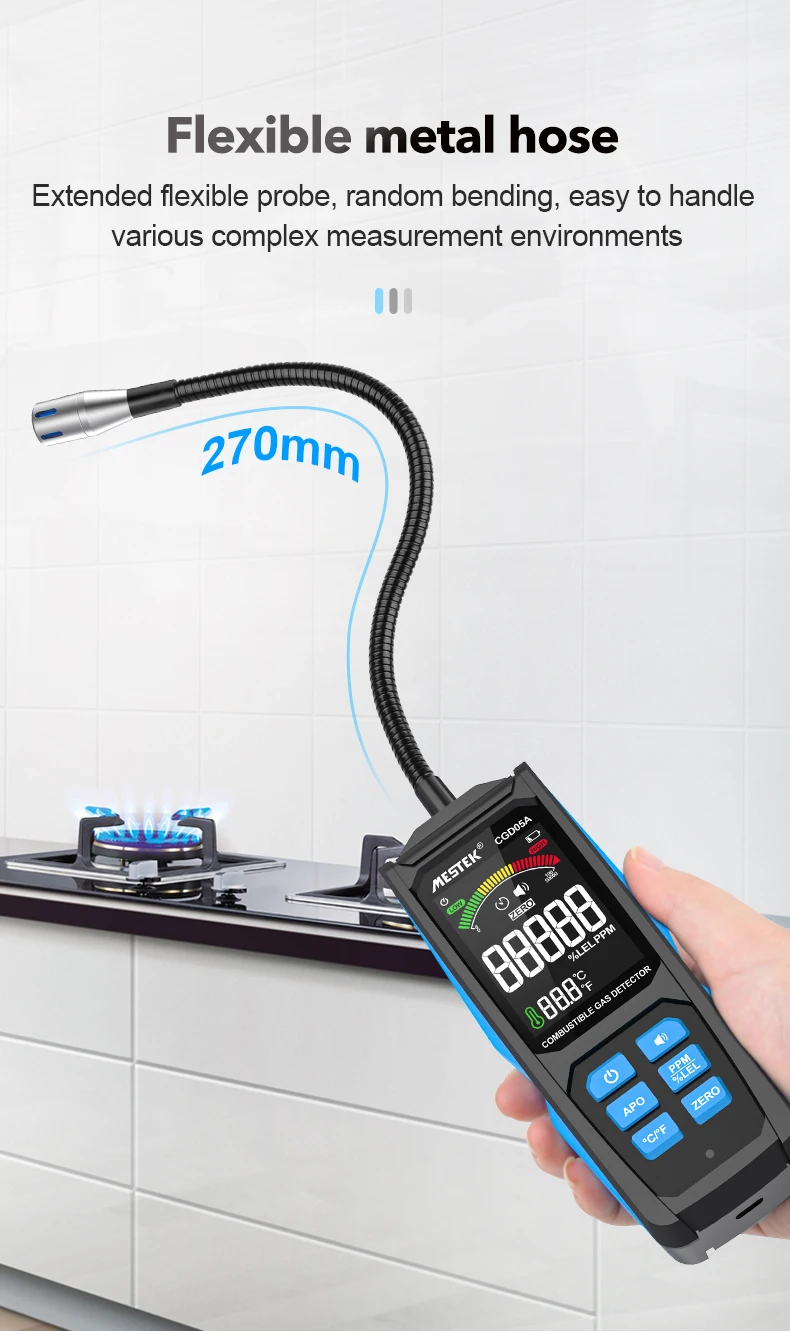

*Flexible metal hose

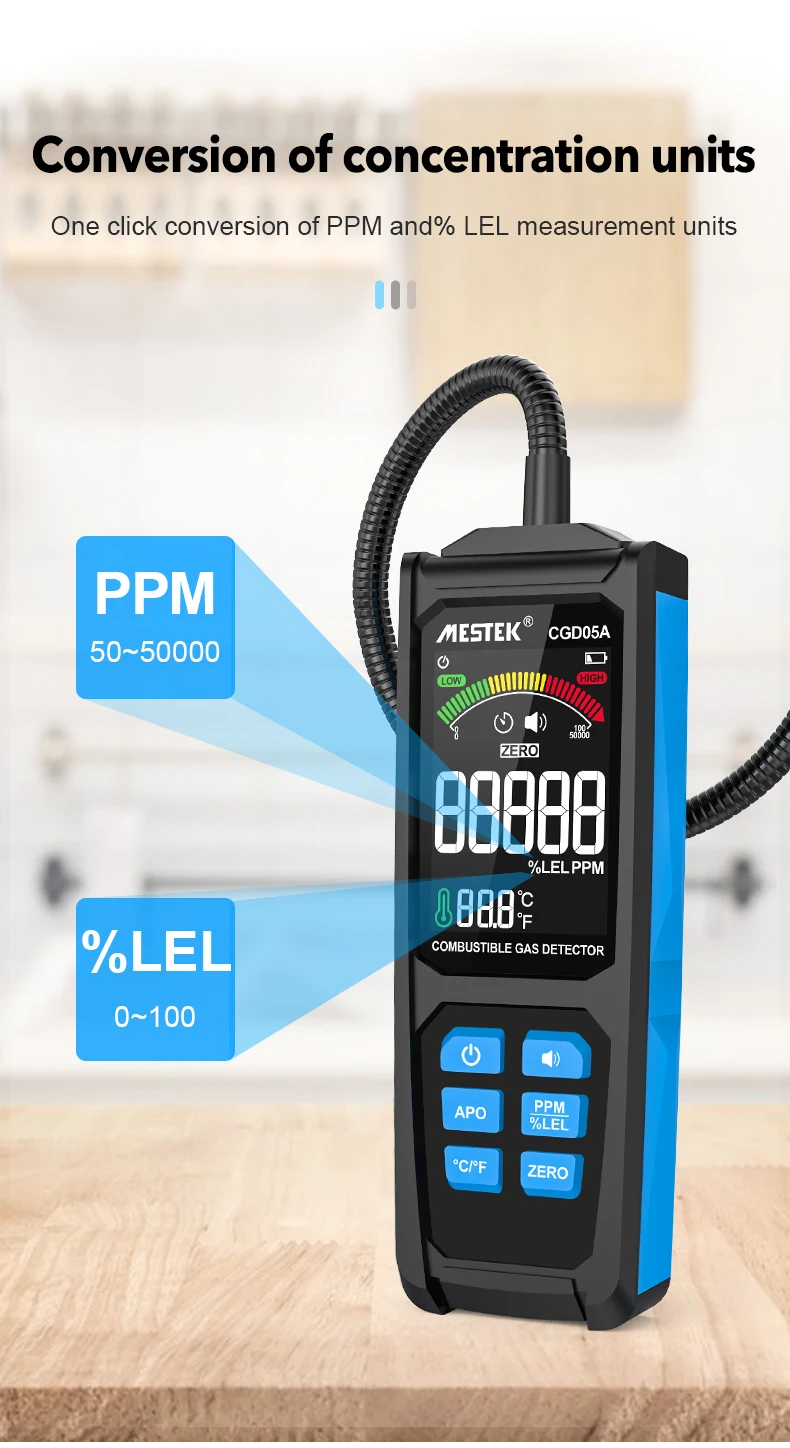

*Conversion of measurement units

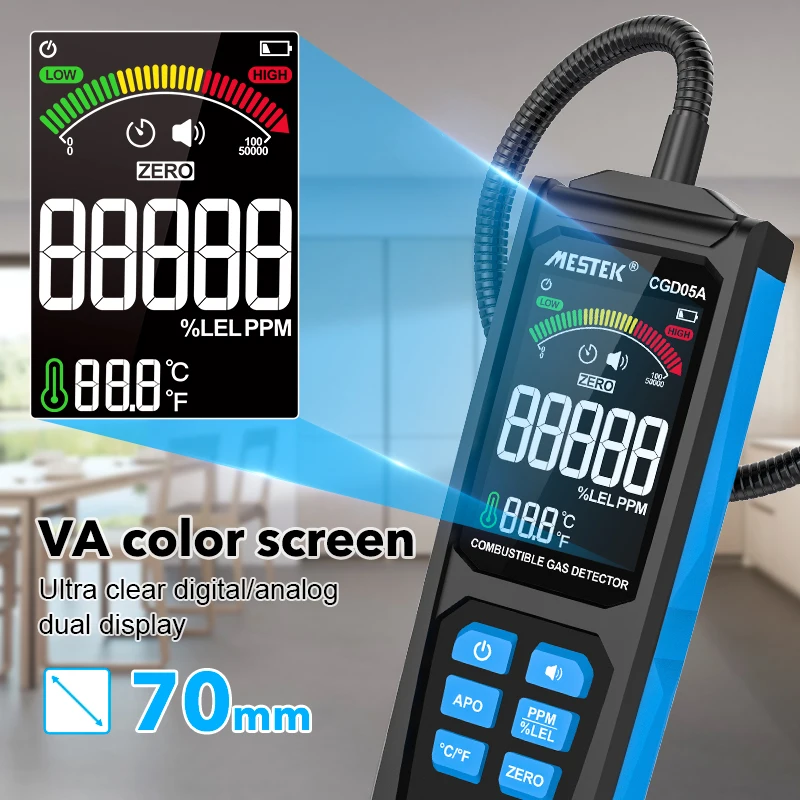

*VA color screen
*Temperature measurement

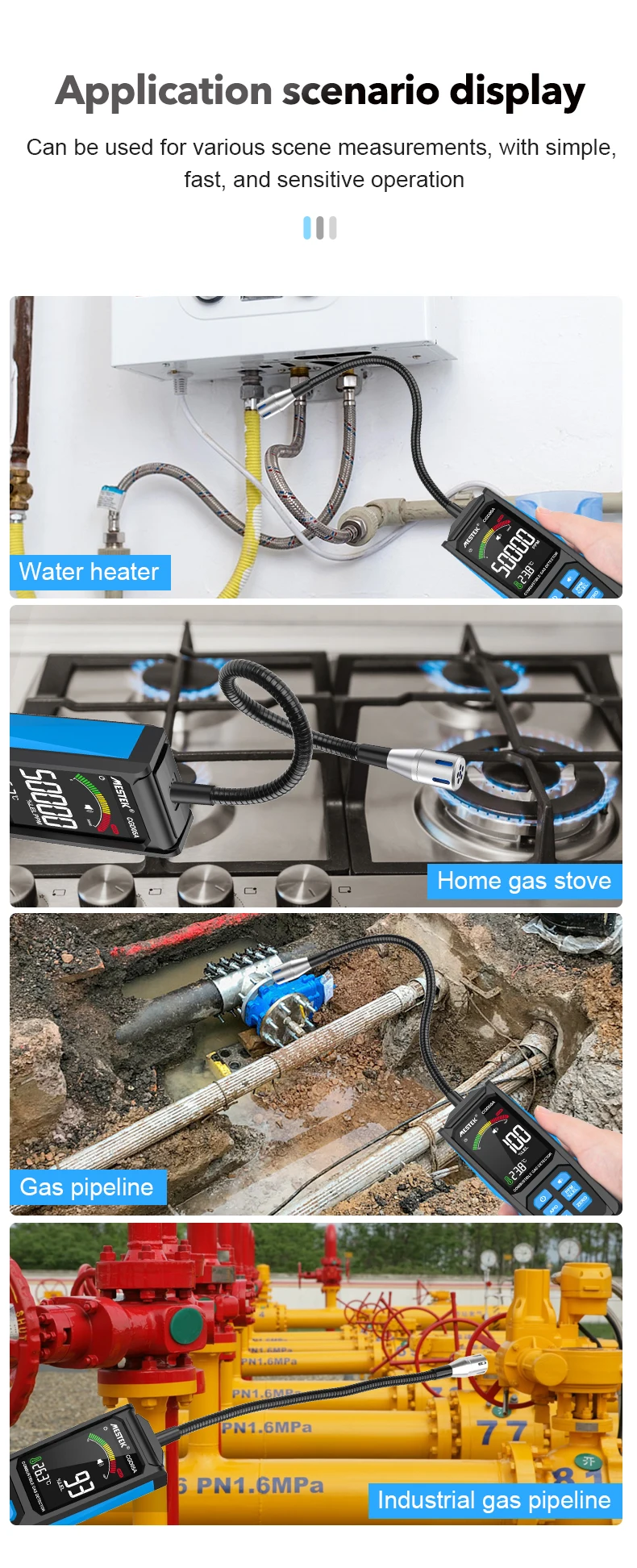

Product Scope of Application
The detector is suitable for gas pipeline leakag e detection,household gas prevention oil and gas extraction, tunnel and mine operations, chemical engineering, gold treatment, refiningldeal testing instruments for industries such as biochemical medicine.
Detected combustible gas
Detect various leaked combustible gases
*Methane/Natural Gas
*ethanol
*Alcohols
*propane
*benzene
*ethylene oxide
*hexane
*Butane
*ethylene
*LPG
