- Wireless Function: No
- High-concerned chemical: none
- Use: Not Telecommunication
- Electronic: No
- Wireless Support: No
- Is Batteries Included: no
- Item Weight: 0.6kg
- External Testing Certification: CCC
- Voltage: 12V
- Model Name: K205S
- Software Version: V2.3
- Hardware Version: V3.1
- Origin: Mainland China
KW205Sis new one. It is for GDI and gasoline injector.
K205S Item Feature:
This tester can diagnose GDI( Electromagnetic injector ) and Gasoline injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.
It used 12V vehicle battery as power supply.
it can set Plus Frequency ,PlusWidth and Number of Plus Times ,also it preset some test modes ,it can help you identify the injector good or not
It can work with any fuel pressure tester together.
By the way With the product, we have 2 fuel injector adapters. You can simply use a bottle of carburetor cleaner to check the quality of the fuel injector,
By the way With the product, we have 2 fuel injector adapters. You can simply use a bottle of carburetor cleaner to check the quality of the fuel injector,

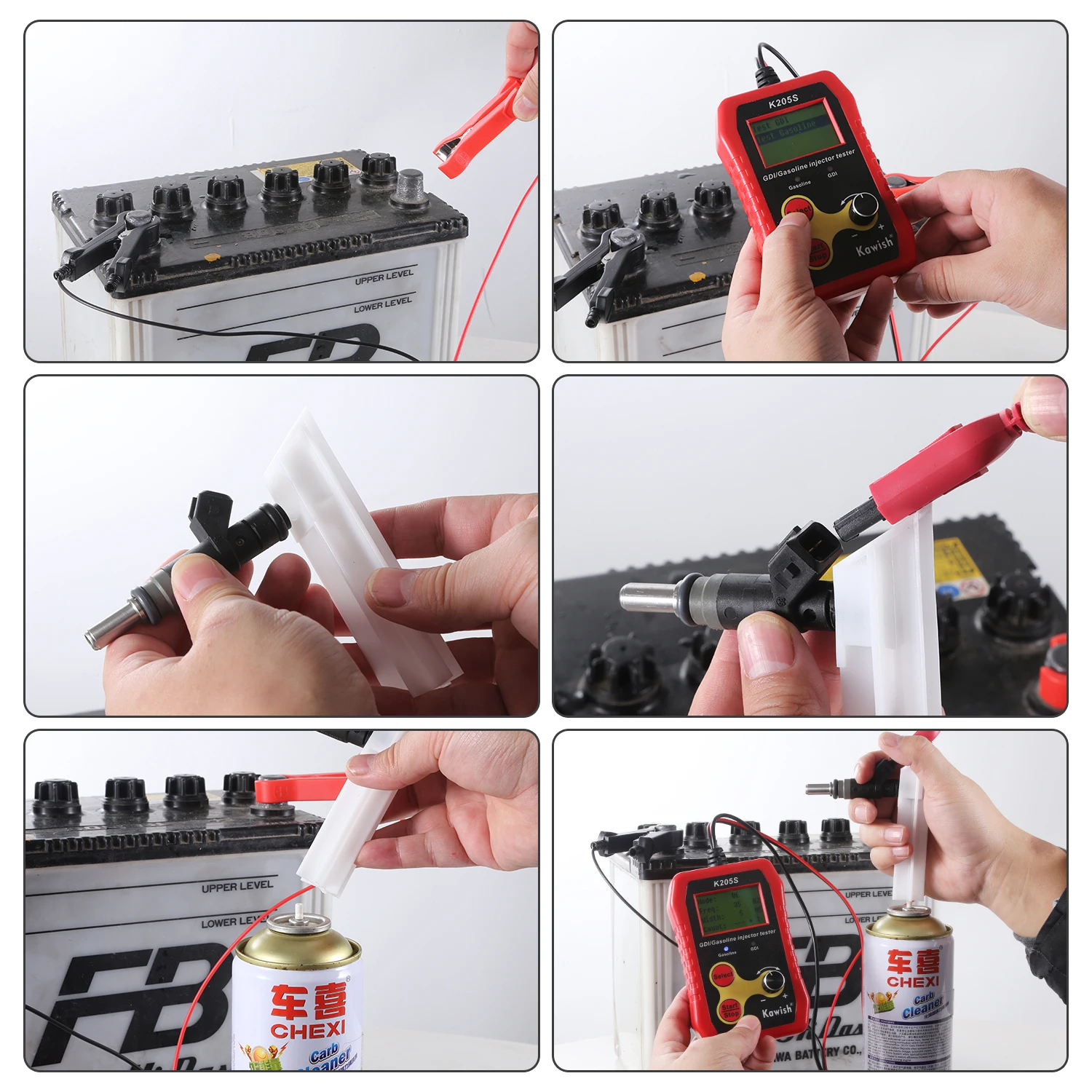

K205S Operation Instructions:
Turn off the vehicle’s engine
Connect Black / Red Clip to the Negative / Positive terminal of battery
Connect pulse output terminal to the fuel injector
Press the “SELECT” key to select the desired pulse mode,and use knob to turn up or down theFrequency or width
Press the “START”key, the tester will output pulse to the injector, and then the pulse signal
indicator will light as indication
K205S specification:
Power Supply: 12V vehicle battery
Operation Environment: 0 C – 40C, relative humidity < 80%
Storage Environment: -10 C – 50C, relative humidity < 85%
Size: 120x78x40mm (for main body only)
Package include:

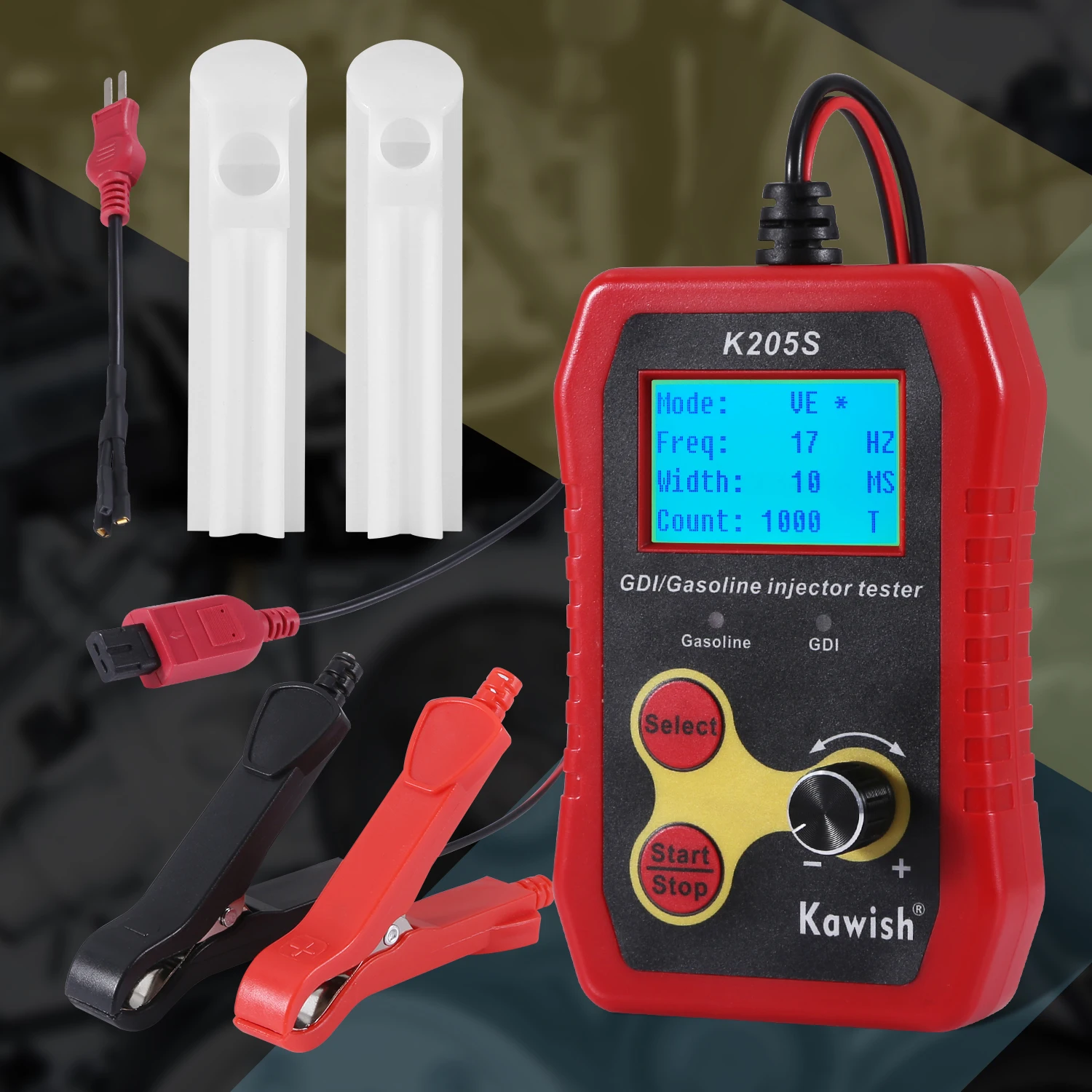

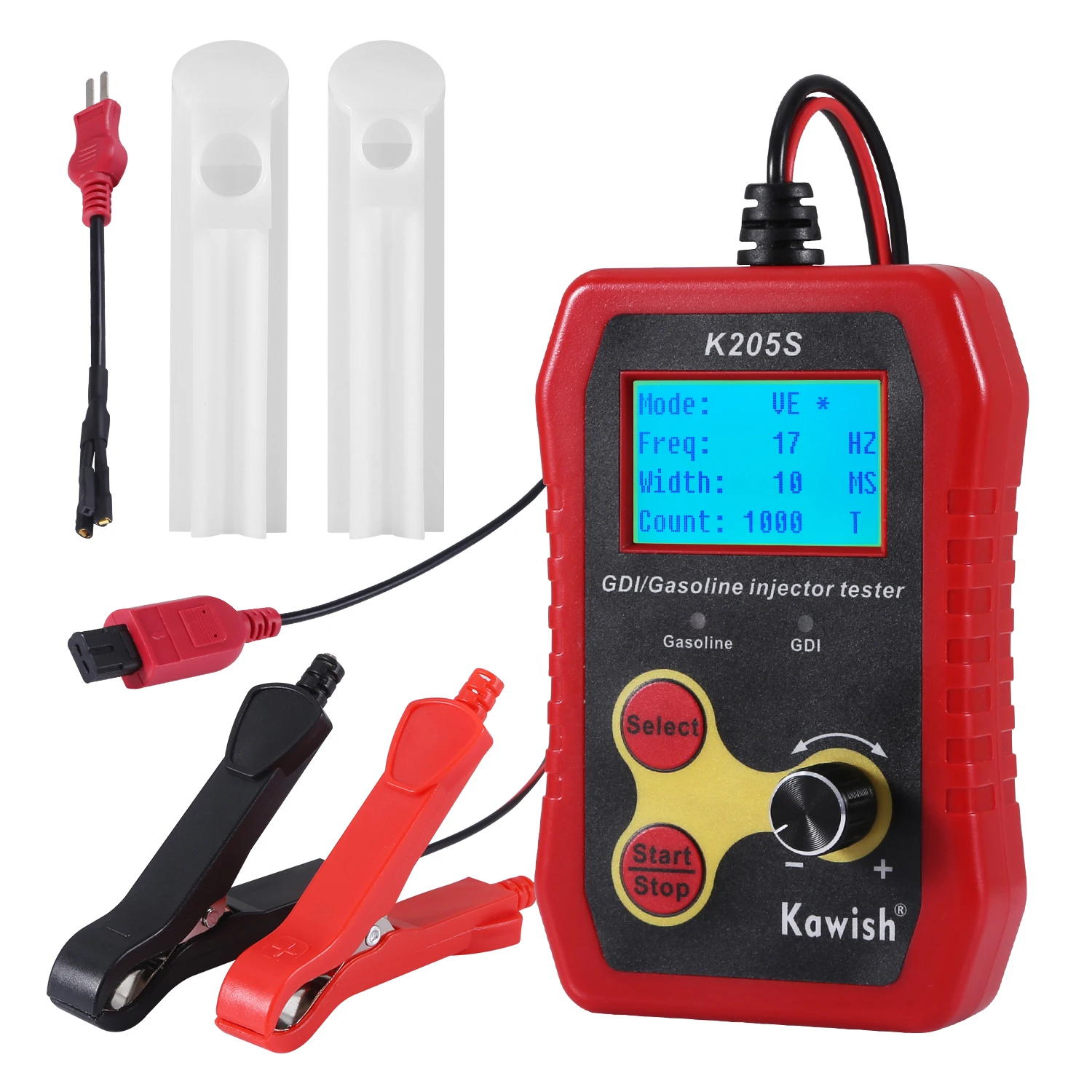

1. K205S injector tester
2. Fuel injector adapter(as see in the video)
3. Nozzle adapter cable
4. User manual

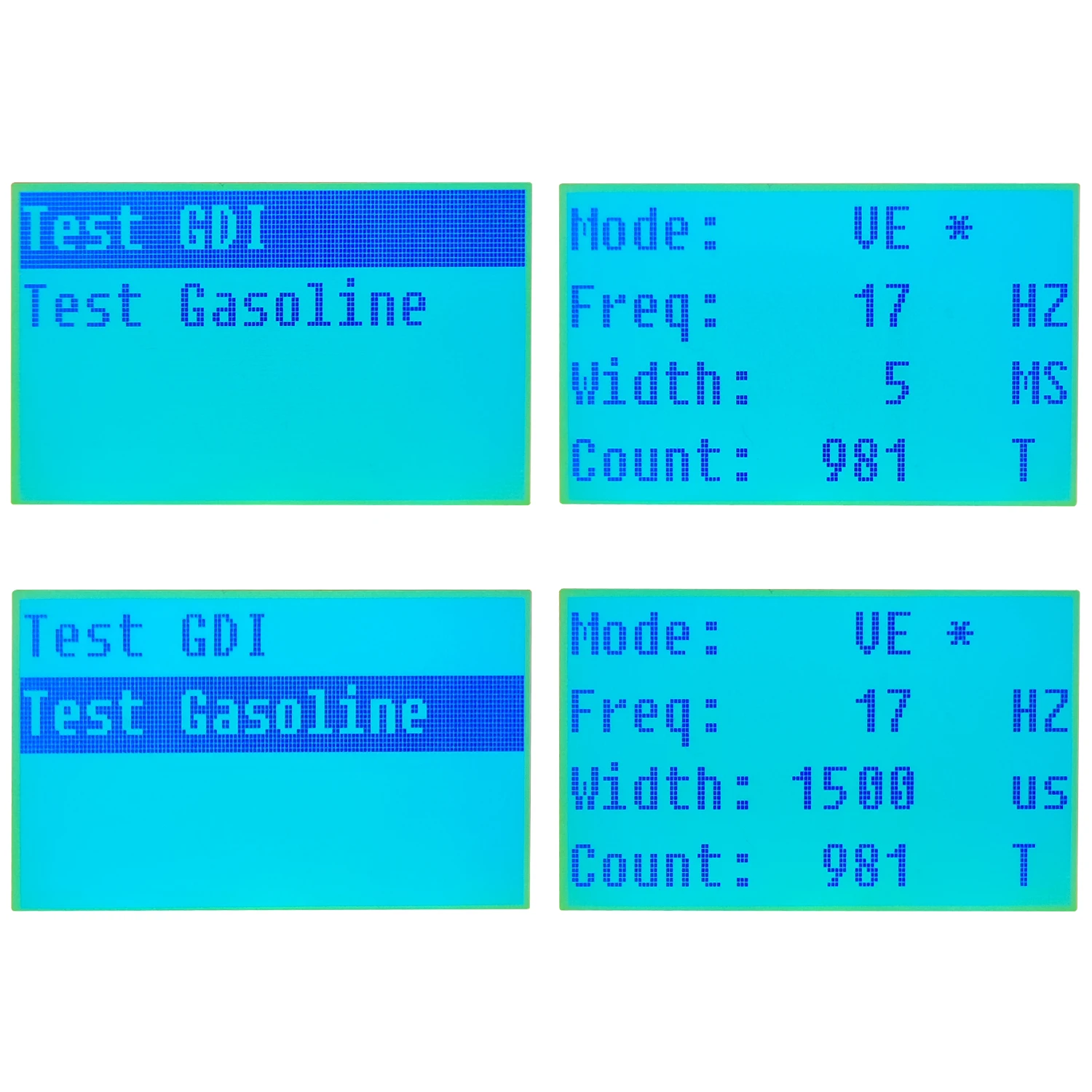

Lcd Menu
How to use it :
