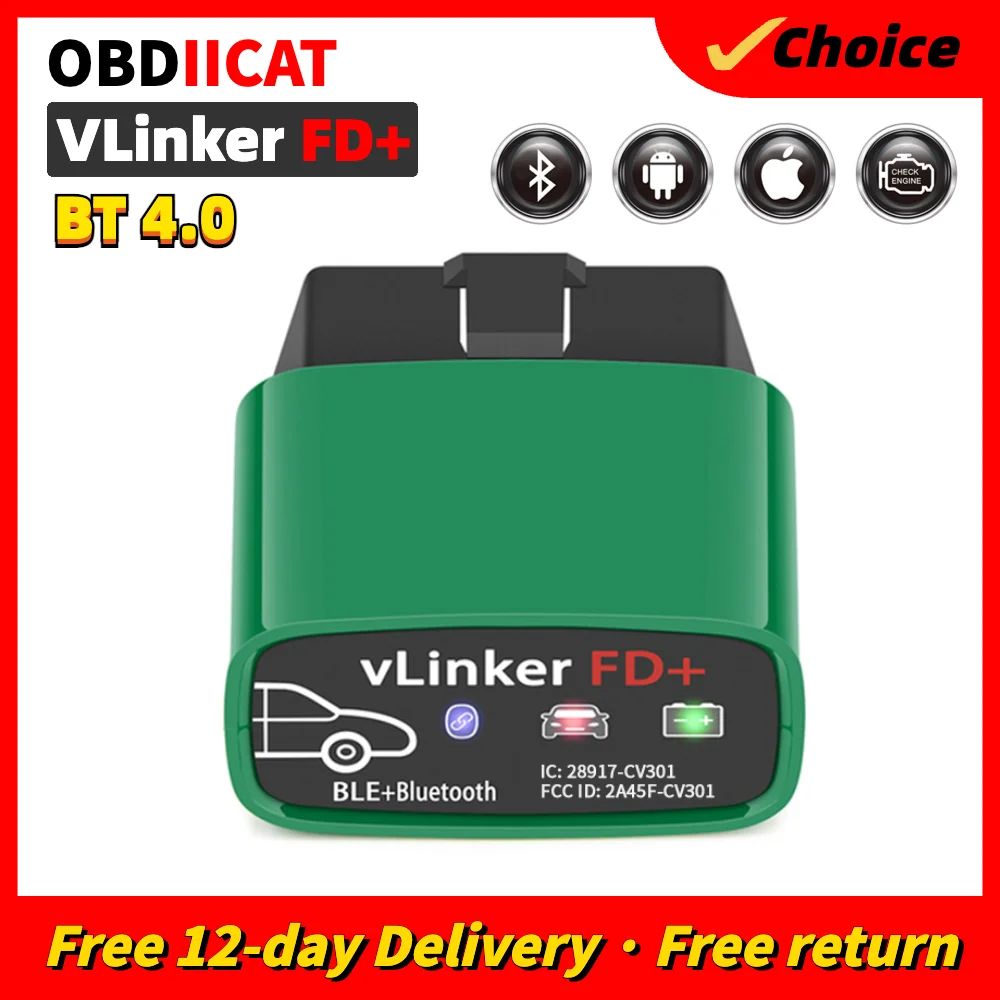

High Quality Vgate VLinker FD Car Diagnostic ELM 327

Purchase Notes：

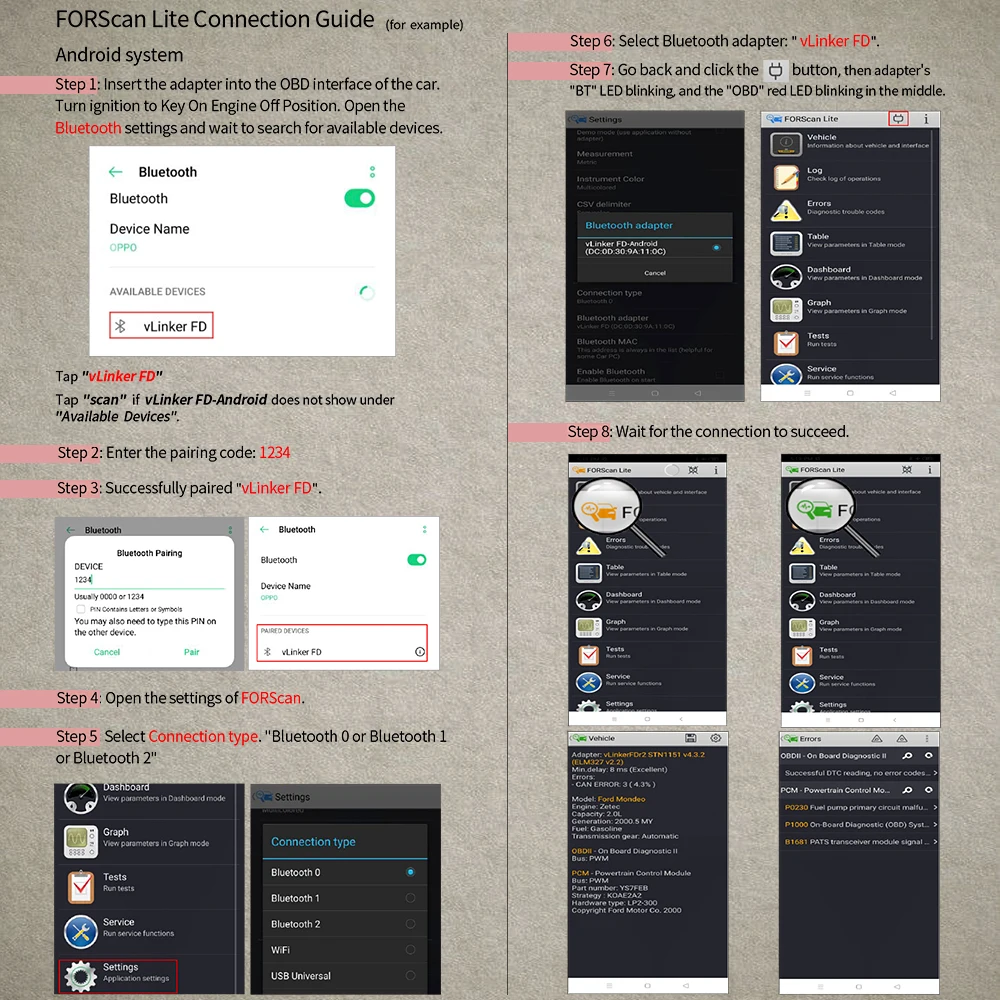

1.If you use Bluetooth 4.0 to Connected, please connect Bluetooth directly in the diagnostic APP

2.Vlinker FM+ also support other cars withOBD2 standard protocols

Vgate FD+ Professional Refresh Hidden Scanner Perfectly Compatible With FORscan

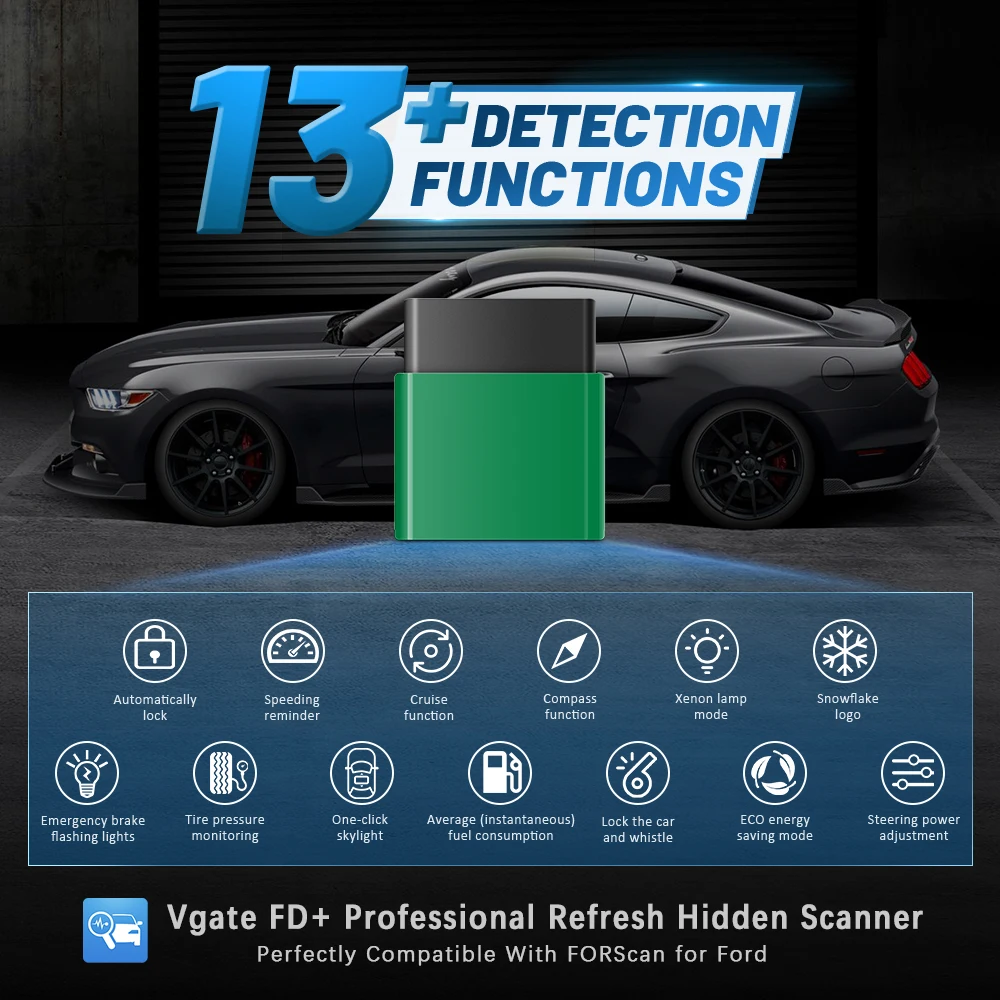

13+ DETECTION FUNCTION：

1. Automatically lock

2. Speeding reminder

3. Emergency brake flashing lights

4. Lock the car and whistle

5. Xenon lamp mode

6. One-click skylight

7. Tire pressure monitoring

8. Snowflake logo

9. Cruise function

10. Compass

11. Average (instantaneous) fuel consumption

12.ECO energy saving mode

13. Steering power adjustment

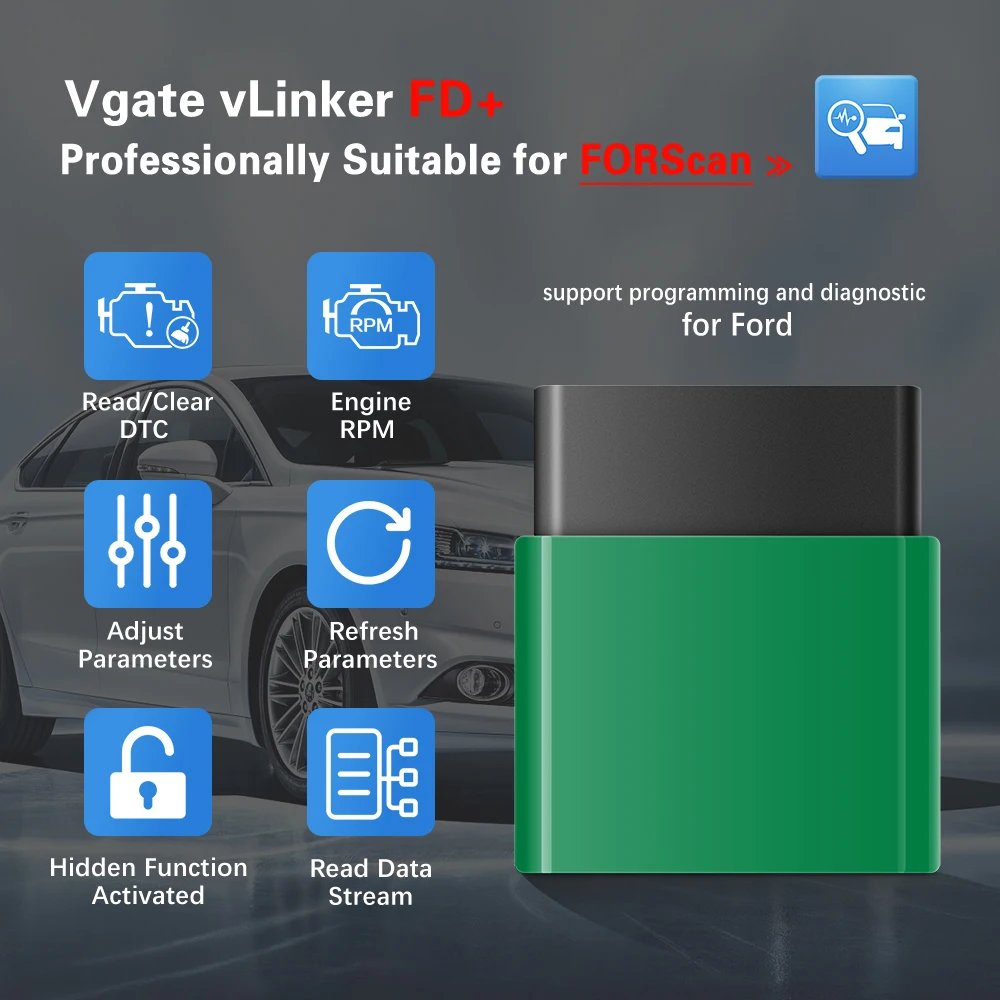

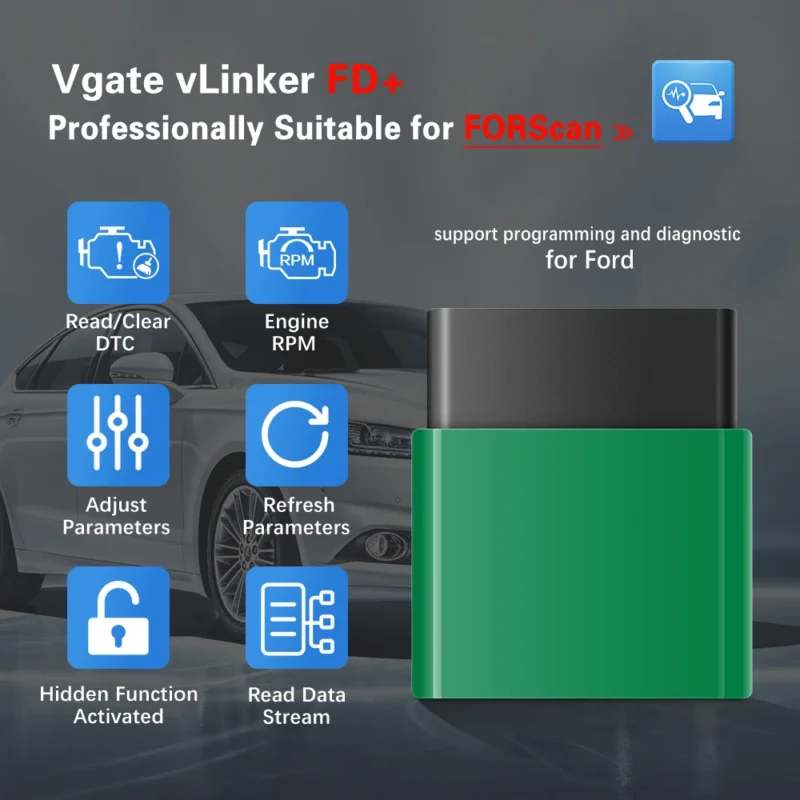

Vqate vlinker FD+ Professionally Suitable for Forscan:

Support Programming And Diagnostic

Read / Clear

EngineDTC

Adiust Parameters

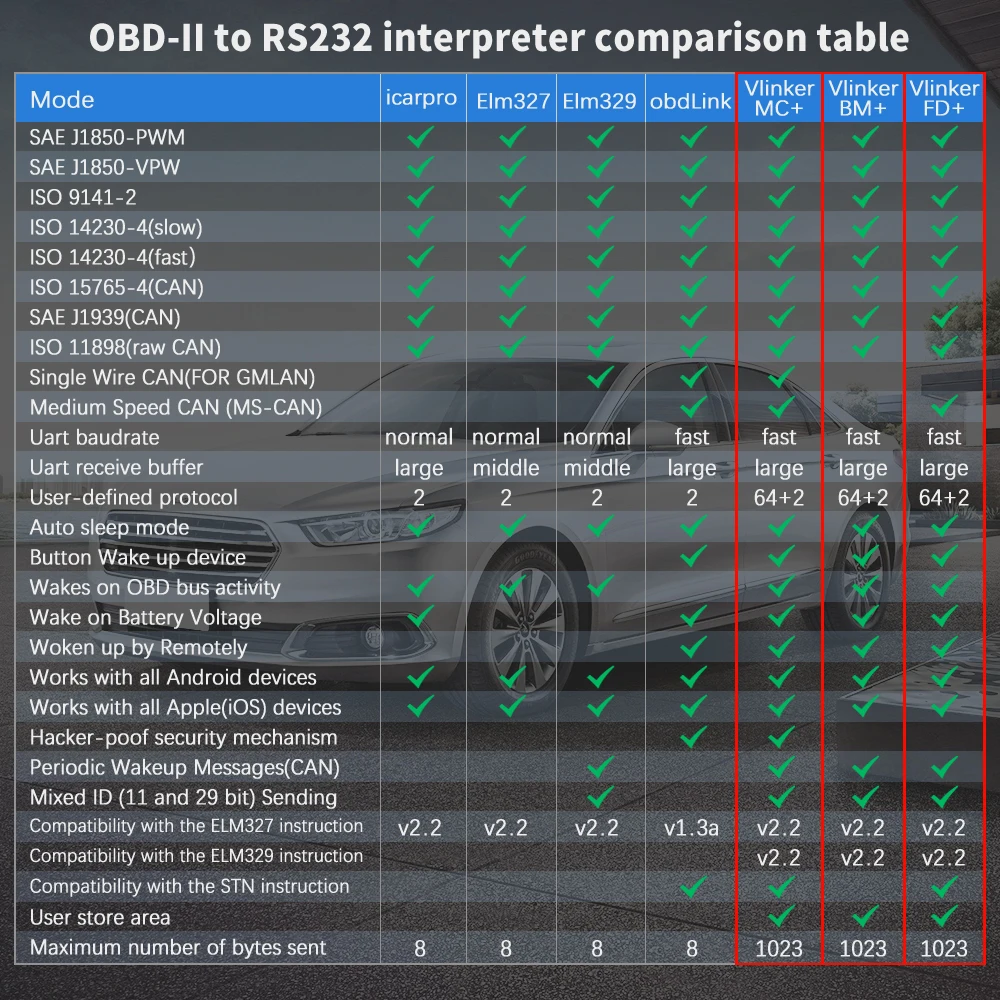

Support Protocols

Multiple protocols：

–15 ELM format protocols;

— 23 STN format protocols;

— Up to 64 user-defined protocols.

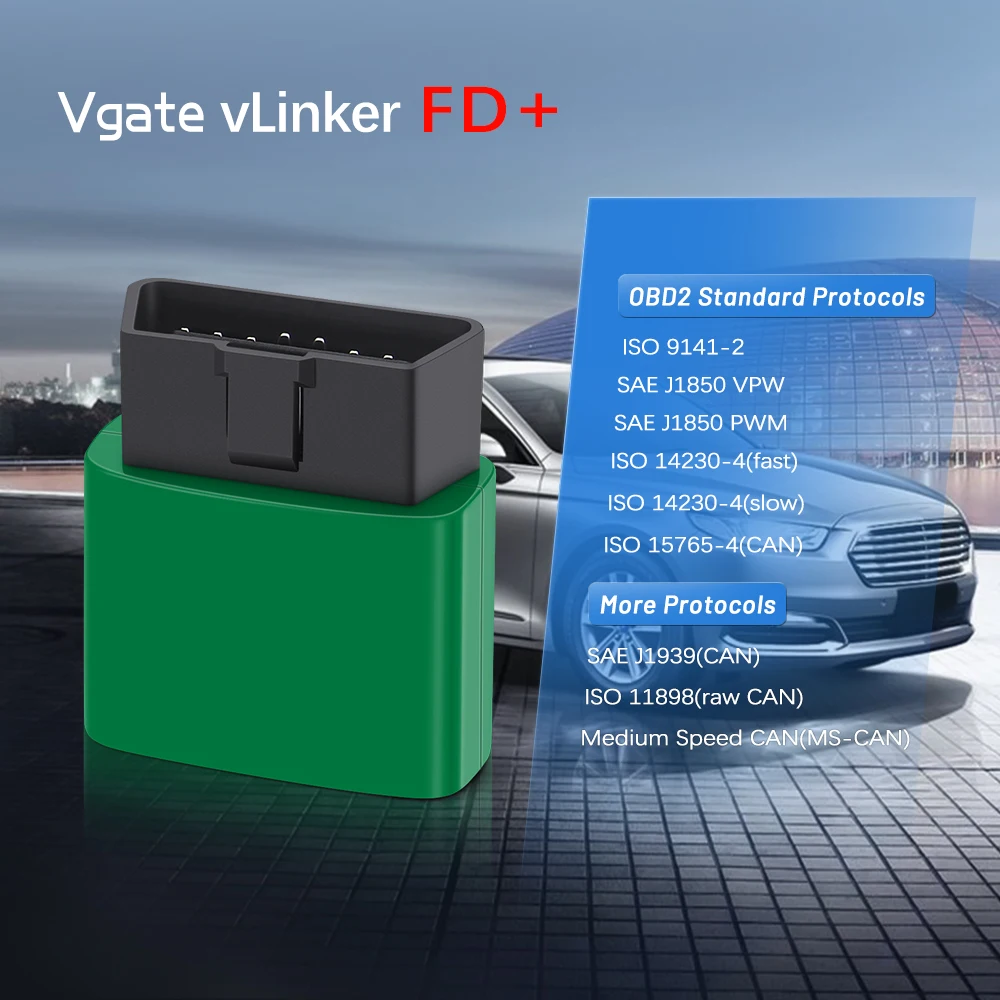

OBDII 5 standard protocols：

— SAE J1850 VPW

— SAE J1850 PWM

— ISO 9141-2

— ISO 14230-4

— ISO 15765-4 CAN

Additionalprotocols：

— SAE J1939 CAN

— ISO 11898 (raw CAN)

–Medium Speed（MS CAN）

Theseprotocolscover almost 99% of the OBDII Cars on the market

Rich instruction set, compatible with more APP software：

— Fully compatible with ELM’s AT command set;

— Fully compatible with STN’s ST command set;

–39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

— Compatible with ELM and STN power management solutions.

— Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

— Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

— Device sleep power consumption is less than 2 mA.

— OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

— UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

— 256-byte storage unit

— More than 100,000 erasable times

— Read and write operations on any unit in the storage area by using the VT command

— Mix ID Sending” mode of CAN protocol.

— Optional formatted send data according to protocol

— Multiple WM sequence settings

— Support AT command to manually set WM sequence

— Support for specifying a protocol or a full protocol-wide temporary WM sequence

— Support for a permanent link between a protocol and a private WM sequence

— Secure bootloader for easy firmware updates

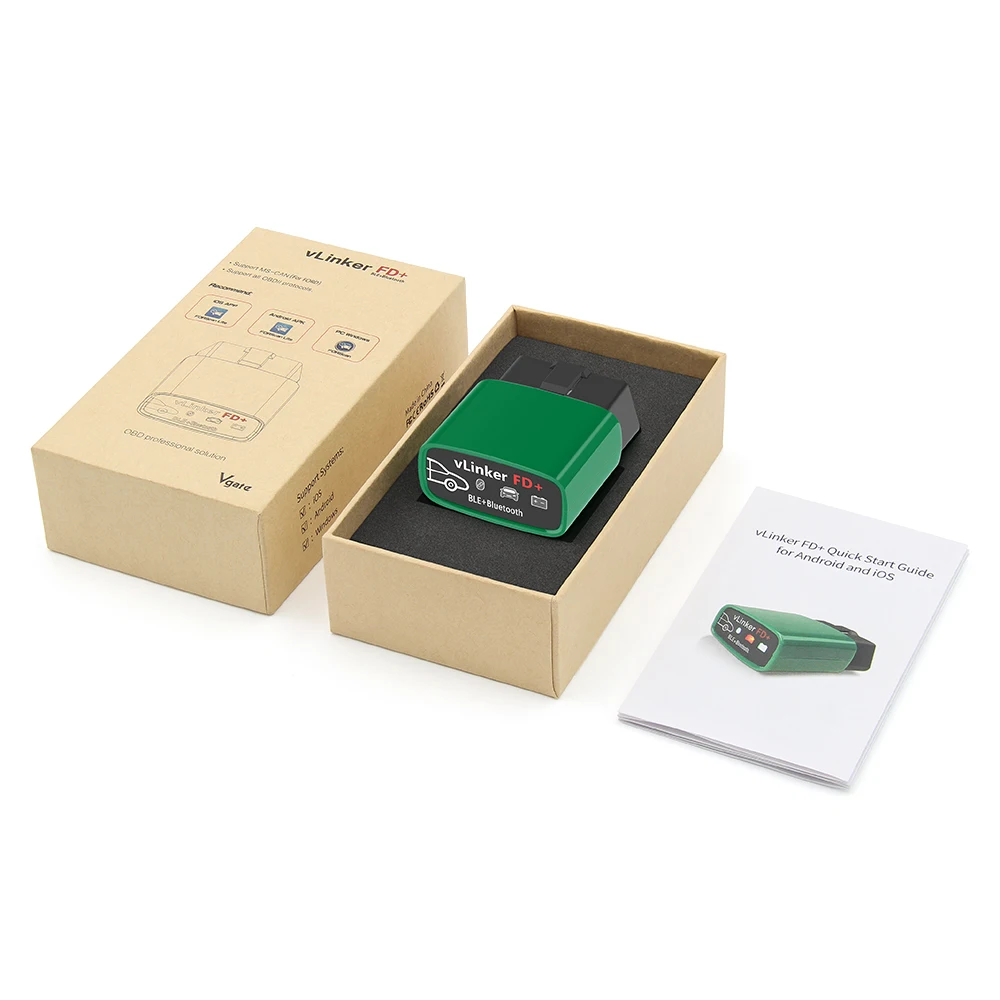

1 x Vgate vLinker BT3.0/BT4.0/WIFI

1 x User manual
