- Software Update: no
- High-concerned chemical: none
- Use: Not Telecommunication
- Electronic: No
- Wireless Support: No
- Is Batteries Included: no
- Item Weight: 0.5kg
- Item Height: 4inch
- Item Width: 6inch
- Item Length: 4inch
- External Testing Certification: ce
- Voltage: 12V
- Model Name: ACFOBD FULL SET
- Software Version: ACFOBD FULL SET V2.5.2.0
- Hardware Version: ACFOBD FULL SET V2.5.2.0
- Brand Name: ThinkElk
- Origin: Mainland China
- Material: PLASTIC
- Certification: CE
- Item Type: Car Diagnostic Cables and Connectors
- Power (W): W
- CAR LIST: for For Fiat/Alfa Romeo/Lancia/Chrysler/Dodge/Ram/Jeep
- ECM FUNCTIONS: ECM Part Number Self Diagnostics Idle Adjustment Timing Adjustment Active Test clears the A/F Base SL map learned by the ECU Idle Air Volume Learn Cylinder Power Test Live Graph Speed Test Address Watch Log Analyser
- ABS FUNCTIONS: ABS Part Number Data Display Self Diagnostics Steering Angle Sensor Reset Active Test Log Analyser Data Replay
- SRS FUNCTIONS: SRS Part Number Self Diagnostics reads and resets SRS error codes
- OBD2 OBDII FUNCTIONS: Data Display Data Logging Self Diagnostics Fuel System Status Monitor Status Log Analyser

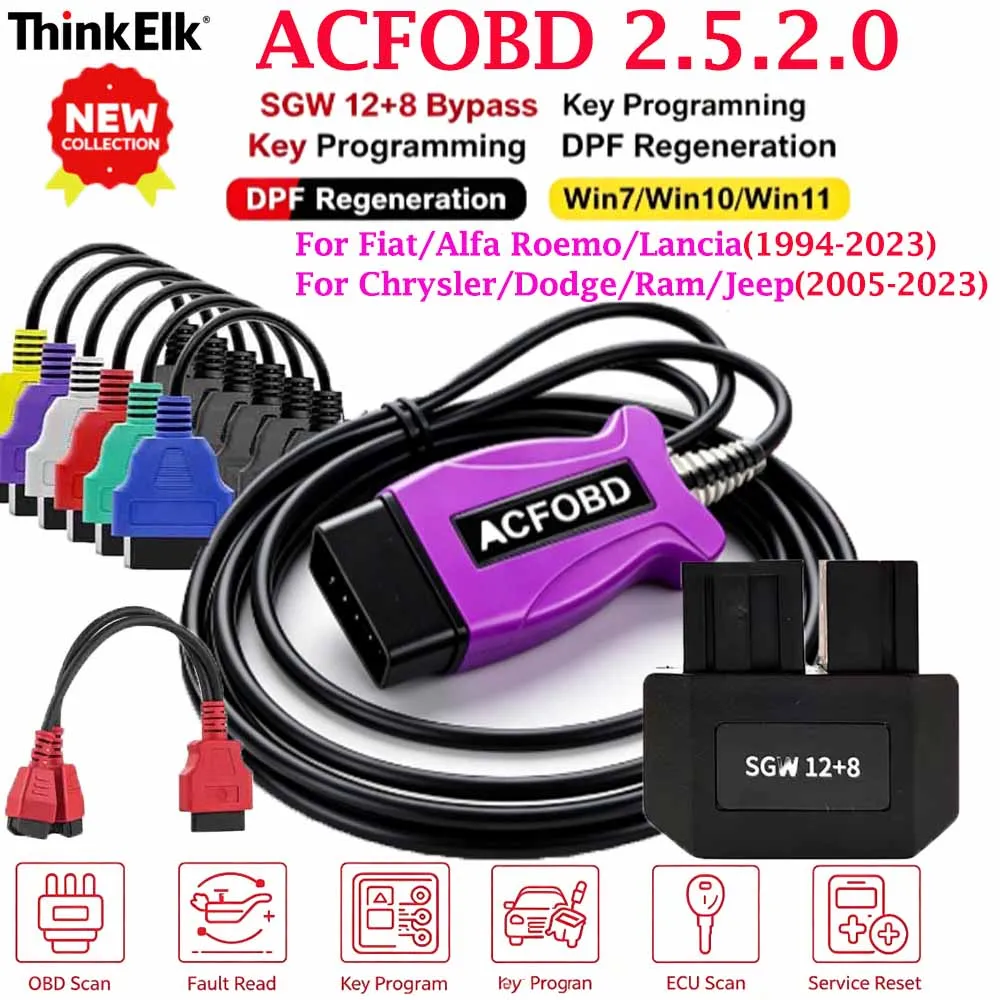

ITCARDIAG ACFOBD OBD2 Scanner Version 2.5.2.0 & Lonsdor SGW FCA 12+8 for Chrysler / Dodge / Ram / Jeep vehicles Much Languages
Five Key Highlights:
1. Built-in 12 languages including English, German, Spanish, French, Italian etc.
2.Latest ACFOBD V2.5.2.0 Optimized Version, compatible with Win7/Win10/Win11 ,32&64-bit systems

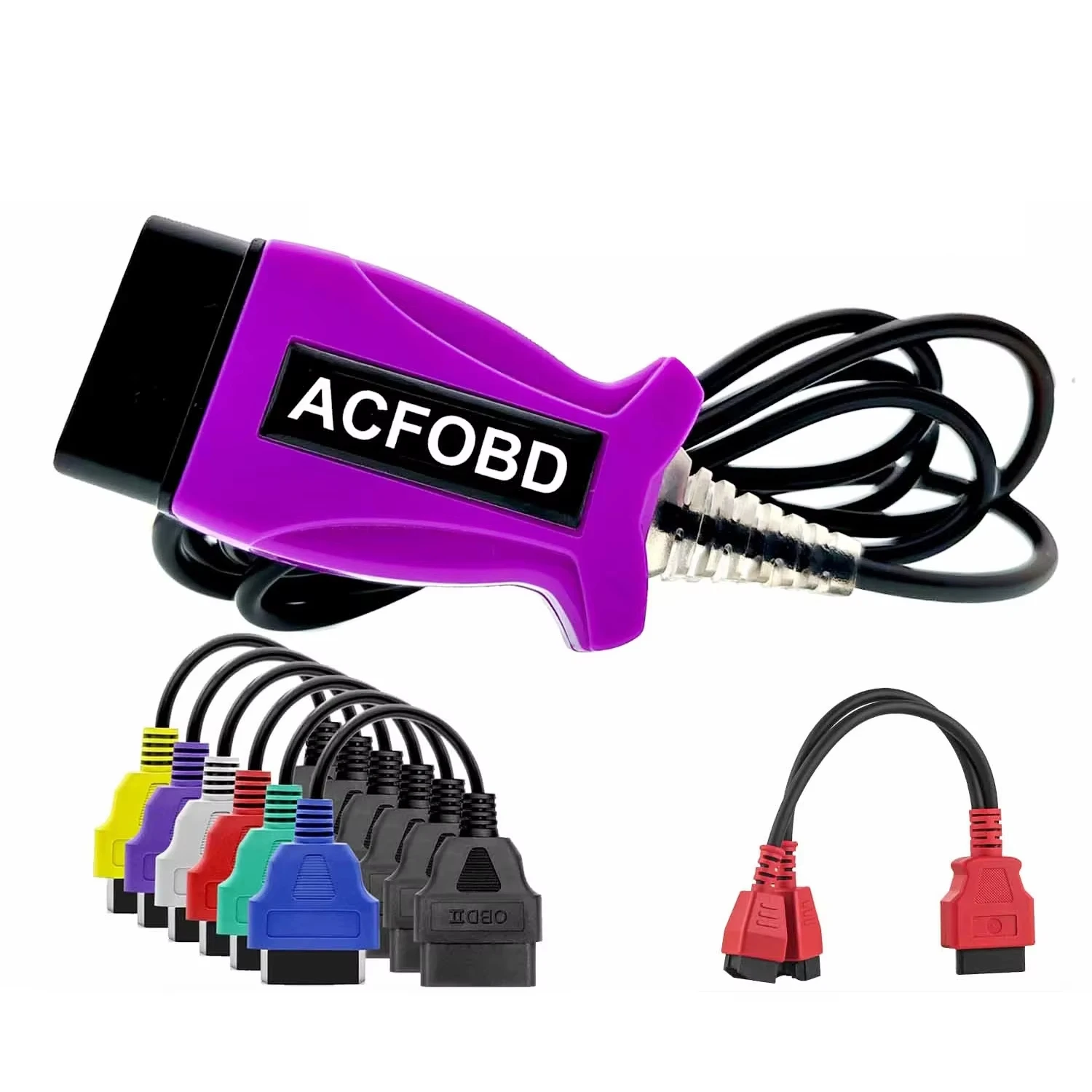

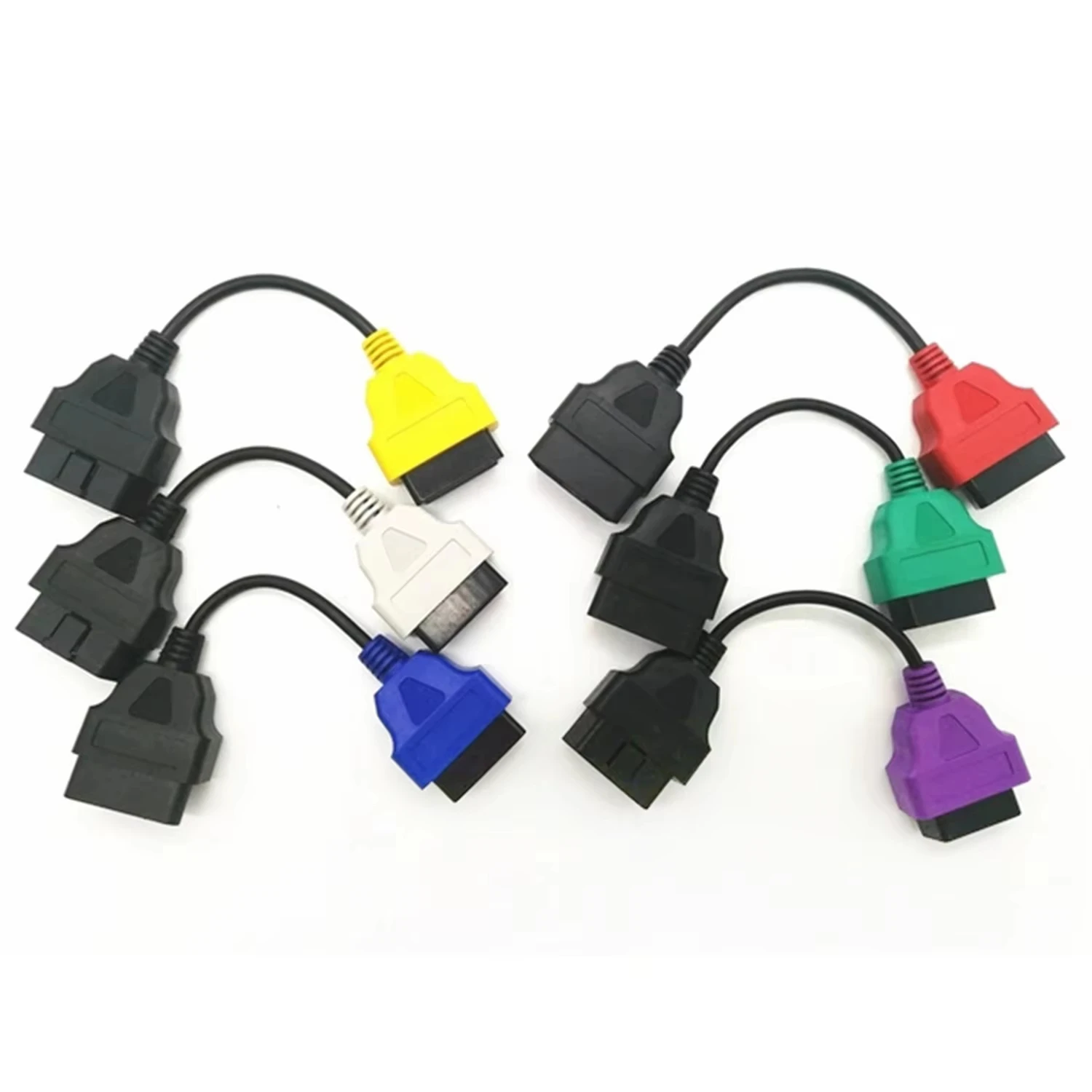

3.Complete Full Set Accessories,Comes with 6pcs multi-color dedicated diagnostic cables + special wire harness + SGW gateway module
4.Works for 1994-2023 Fiat/Alfa Romeo/Lancia & 2005-2023 FOR Chrysler/Dodge/Ram/Jeep
5.Supports full-system ECU diagnosis, auto key programming, DPF regeneration, fault code read & erase, oil service reset, mileage adjustment, ABS/SRS/transmission testing

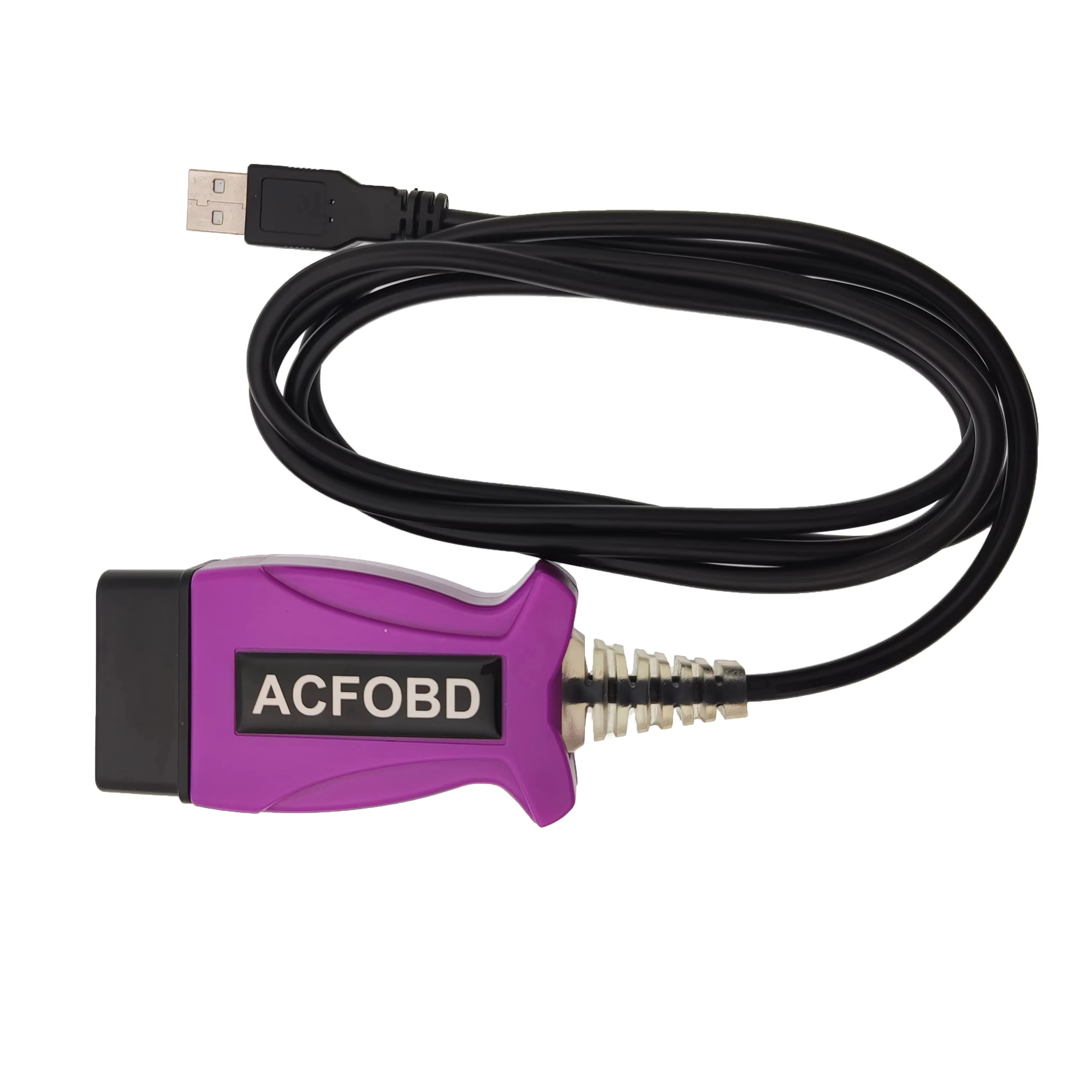

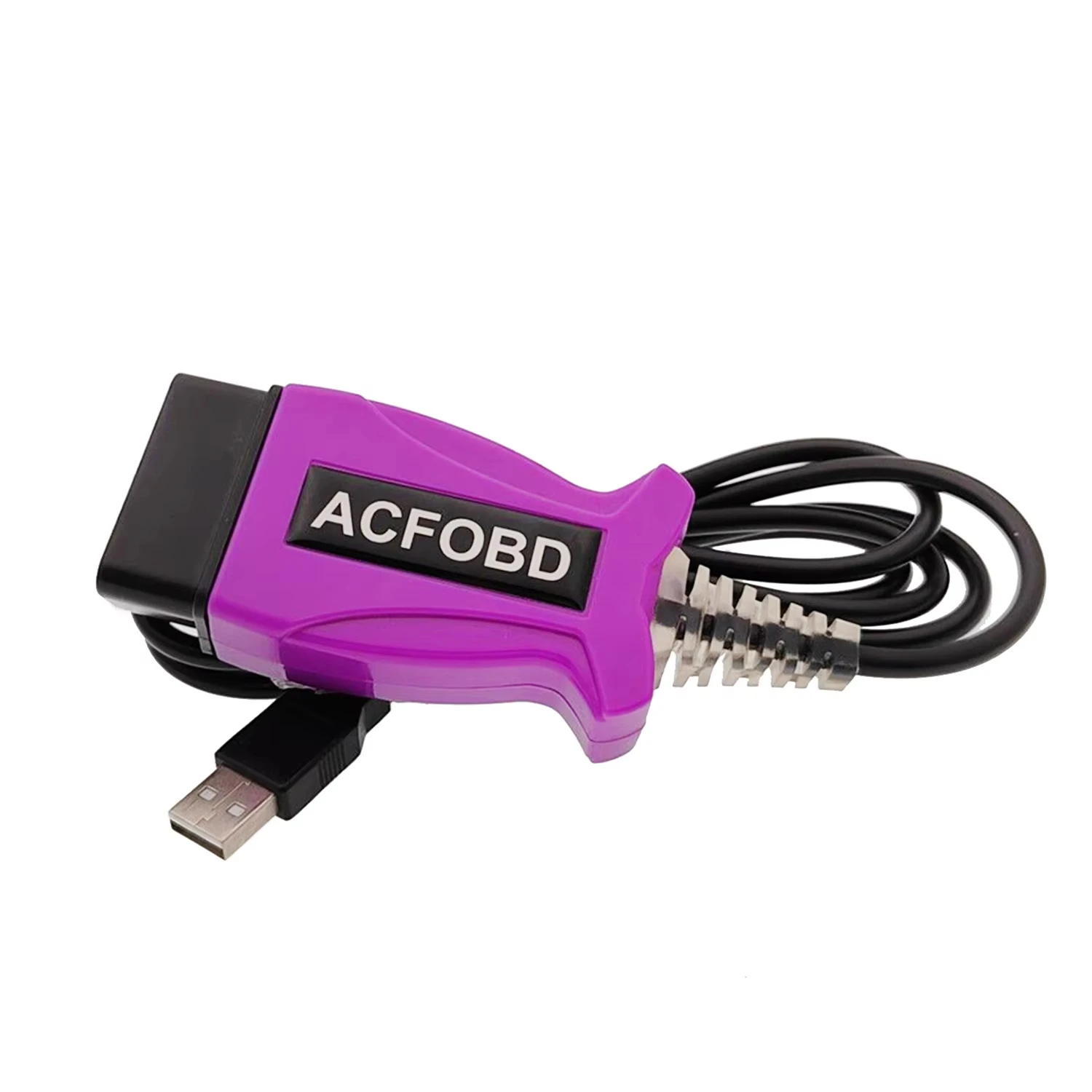

ACFOBDis a Cable for the diagnostics of the vehicles producedby 1994 – 2023 for Fiat / Alfa Romeo / Lancia, and 2005 – 2023 for Chrysler / Dodge / Ram / Jeep vehicles are supportedcars are supported. Although This tool is primarily targeted for car owners, it provides many of the features of the professional scanners.
ACFOBDnatively supports the Electronic Control Units (ECU) installed on the FCA group vehicles. The native support differs ACFOBD from the OBDII / EOBD diagnostic applications providing a limited access to the engine and transmission modules and sometimes to the ABS.
Languages:English,Czech,German,Spanish, French, Italian,Polish,portugues,russina,Hungary,turkish
New Update:
Software Version:
ACFOBD 2.3.8update toACFOBD 2.5.2.0
Support Car Coverage:
1994 – 2021for Fiat / Alfa Romeo / Lancia update to1994 – 2023 for Fiat / Alfa Romeo / Lancia
2005 – 2021 for Chrysler / Dodge / Ram / Jeep update to2005 – 2023 for Chrysler / Dodge / Ram / Jeep
Support System:
win7, win10update towin7, win10, win11
Keygen License:
ACFOBD 2.3.8 without keygen,ACFOBD 2.5.2.0 with keygen
The ACFOBD features include:
*monitoring various dynamic parameters of body, dash, code, engine, gearbox, ABS, climate control, etc. and graphical presentation as adjustable plots
*reading of static data: ECU id, system status, fault codes with probable causes and environment information where applicable
*clearing fault codes, monitoring the system for the appearance of new faults
*active diagnostics and configuration procedures for various equipment controlled by the ECUs. Service light reset, engine oil change, DPF regeneration and many more.
*electronic key and RF remote control programming
*adjustment of the car configuration with the ability to activate the newly installed equipment in the Body computer configuration, the Proxy alignment.

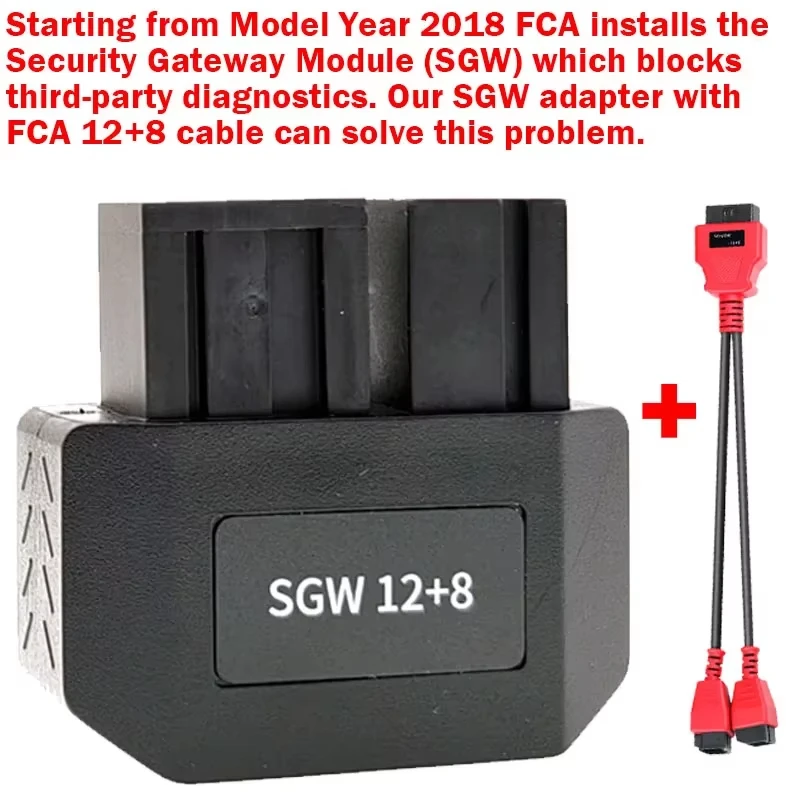

Note:Starting from Model Year 2018 (for Fiat 500L from MY2017) FCA installs the Security Gateway Module (SGW) which blocks third-party diagnostics. ACFOBD has no software solution yet, as a workaround please use a hardware SGW bypass module.
Owners for Alfa Romeo Giulia/Stelvio, Fiat 500X/Toro/Jeep Renegade/Compass MP , make sure that the bypass supports the second high-speed CAN bus, the one that is connected to the pins 12 and 13 of the car OBD port.
An additional adapter or set of adapters:
An additional adapter or set of adapters may be needed depending on the car model/production year and the OBD interface used.
At the selection screen Software displays the type of the adapter to plug into the car OBD socket and the OBD interface to connect to the selected control module. Also the app displays the “Connect adapter…” message before connecting to the control module.
The following cars require “grey” adapter : for Alfa Romeo Giulia/Stelvio, Fiat 500E(2020+)/500X/Argo/Chronos/Toro, Jeep Renegade/Compass (MP), and RAM Pro Master (2022+)
The following cars require “yellow” adapter :for Alfa Romeo Giulietta/Mito, Fiat 500/500E/500L/Panda 2012+/Punto EVO/Grande Punto, Fiat Professional Ducato (types 250 and 290)/Doblo (type 152, 263), RAM Pro Master (before 2022)/Pro Master City.

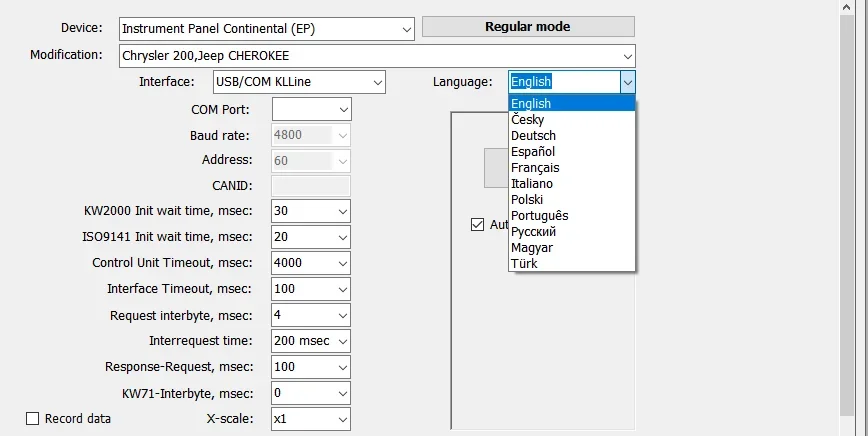

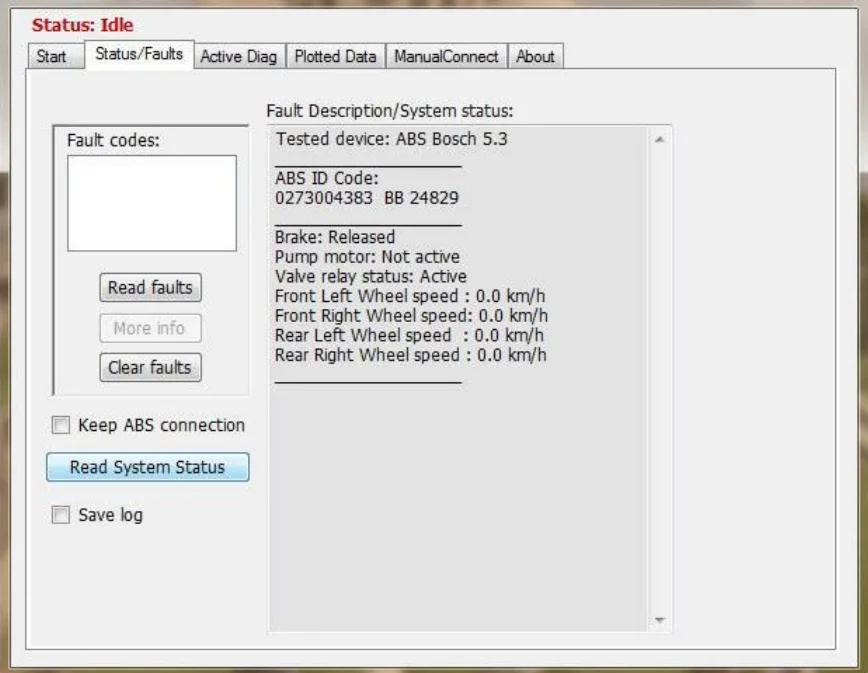

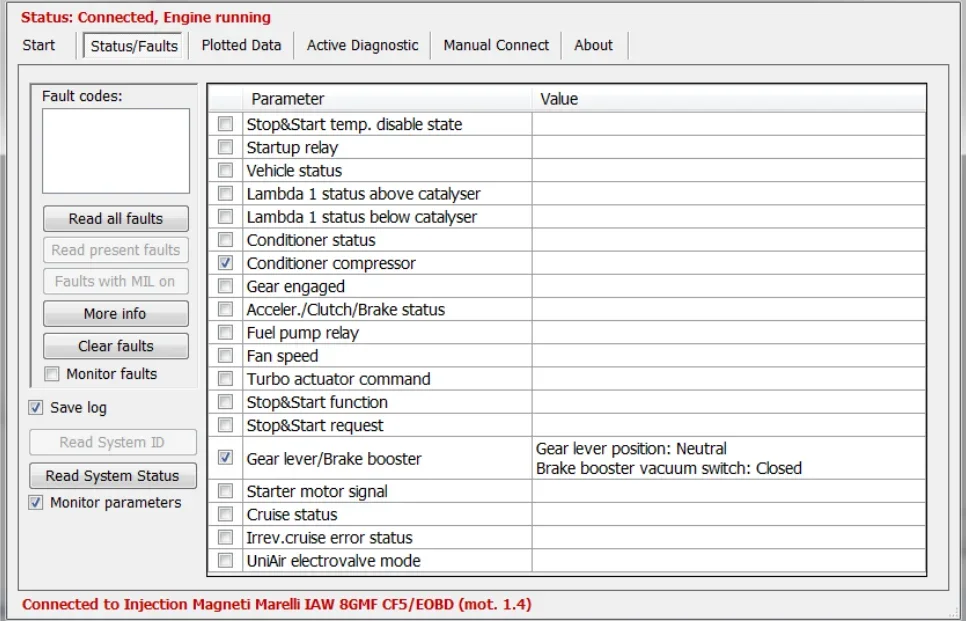

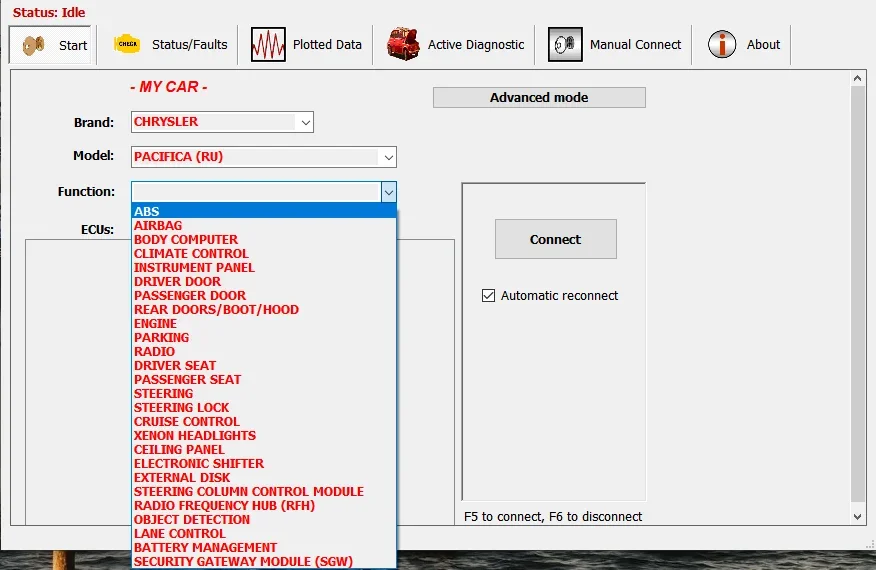

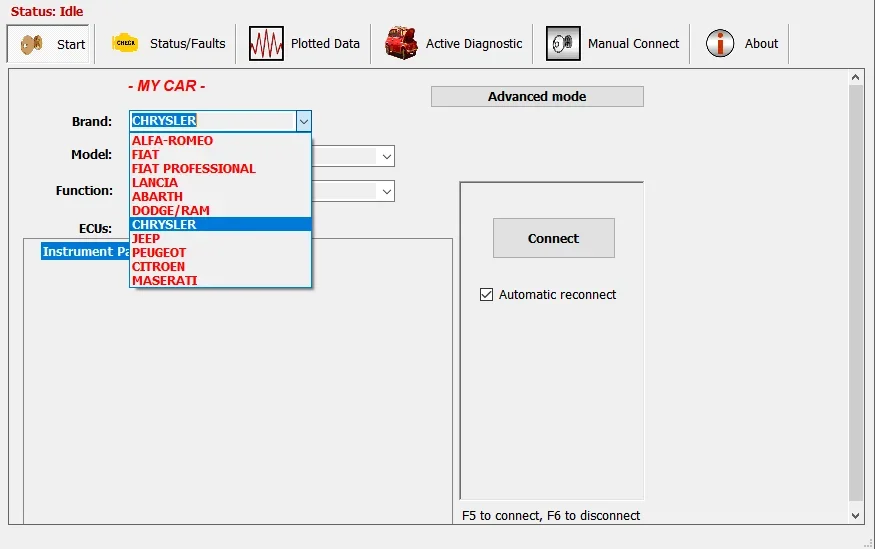

Software display:
Car list:
A-BARTH 500 2007+
A-BARTH BRAVO 1995-01
AB–ARTH GRANDE PUNTO 2005-18
ABARTH PUNTO EVO/2012 2005-18
A-BARTH STILO (Type 192) 2001-07
A-LFA ROMEO 145 1994-2000
A-LFA ROMEO 146 1995-2000
A-LFA ROMEO 147 2000-10
AL-FA ROMEO 155 1992-98
A-LFA ROMEO 156 1997-07
A-LFA ROMEO 159 2005-11
AL-FA ROMEO 164 1987-98
AL-FA ROMEO 166 1996-07
A-LFA ROMEO BRERA/SPIDER 2005-10
A-LFA ROMEO COMPETIZIONE 4C 2013+
AL-FA ROMEO GIULIA 2015+
A-LFA ROMEO GIULIETTA 2010-20
AL-FA ROMEO GT (937) 2003-10
A-LFA ROMEO GTV (916) 1995-05
A-LFA ROMEO MITO 2008-18
A-LFA ROMEO SPIDER (916) 1995-06
A-LFA ROMEO STELVIO 2016+
CH-RYSLER 200 (UF) 2015-17
CH-RYSLER 300 (LX) 2005 +
CH-RYSLER ASPEN (HG) 2007-09
CH-RYSLER CHRYSLER 200 (JS) 2010-14
CH-RYSLER CHRYSLER SEBRING (JS) 2007-09
CH-RYSLER GRAND VOYAGER/TOWN&COUNTRY (RT) 2008+
CH-RYSLER PACIFICA (RU) 2016 +
CH-RYSLER PT CRUISER (PT) 2006-10
CH-RYSLER YPSILON (NY) 2011+
CIT-ROEN EVASION/C7 2002-14
CIT-ROEN JUMPER/RELAY (230/244/250/X290) 1993+
DO-DGE AVENGER (JS) 2010-14
DO-DGE CALIBER (PM) 2007-12
DO-DGE CHALLENGER (LA) 2015+
DOD-GE CHALLENGER (LC) 2008-14
DOD-GE CHARGER (LD) 2011+
DO-DGE DAKOTA (ND) 2005-12
DO-DGE DART (PF) 2012-17
DO-DGE DURANGO (HB) 2004-09
DO-DGE DURANGO (WD) 2011+
DO-DGE FORZA (BK) 2013+
DO-DGE GRAND CARAVAN (RT) 2008+
D-ODGE JOURNEY (JC) 2008+
DO–DGE MAGNUM (LX) 2005-09
DODGE NEON (PD) 2015+
DO-DGE NITRO (KA) 2007-12
DO-DGE VIPER (ZD) 2013+
DODGE VISION (DV) 2015-18
FI-AT 500 2007+
F-IAT 500E 2013-19
F—IAT 500L 2012+
FI-AT 500X 2015+
FI-AT ARGO/CHRONOS 2017+
FIA-T BARCHETTA (Type 183) 1995-05
FIA-T BRAVO (Type 198) 2007-16
FIA-T BRAVO/BRAVA(Type 182) 1995-01
FI-AT COUPE’ (Type 175) 1993-2000
FI-AT CROMA (Type 154) 1985-96
FI-AT CROMA (Type 194) 2005-10
FI-AT DOBLO’ (Type 119/Type 152) 2000-10
FIA-T DOBLO’/DOBLO’ FACELIFT 2015 (Type 263) 2010+
FI-AT DUCATO (Type 230) 1981-93
FIAT DUCATO (Type 244) 1993-06
FI-AT DUCATO (Type 250) 2006-14
FI-AT DUCATO (Type X290) 2014+
FI-AT FIORINO/QUBO 2008+
F-IAT FREEMONT 2011+
FI-AT GRAND SIENA 2012+
FI-AT GRANDE PUNTO (Type 199) 2005-18
FI-AT IDEA (Type 350) 2003-18
FI-AT LINEA (Type 323) 2007-18
F–AT MAREA (Type 185) 1996-07
F-IAT MOBI 2016+
FI–AT MULTIPLA (Type 186) 1998-13
FIAT OTTIMO 2014-16
F-IAT PALIO/PALIO RESTYLE ’01/PALIO RESTYLE 2 ’04/PALIO FACELIFT ’07/ALBEA/PERLA/SIENA/WEEKEND 1996-19
F-IAT PANDA (Type 141) 1980-03
F-IAT PANDA (Type 169) 2003-12
FI-AT PANDA (Type 319) 2011+
FIA-T PUNTO (Type 176) 1993-99
FIA-T PUNTO (Type 188) 1999-13
FI-AT PUNTO EVO 2009+
FI-AT SEDICI (Type 189) 2005-14
FI–AT SEICENTO (Type 187) 1997-10
FI-AT STILO (Type 192) 2001-10
FI-AT STRADA (Type 278) 1996+
FI-AT STRADA/RAM750 2015+
FI-AT TEMPRA (Type 159) 1990-2000
FI-AT TIPO (Type 160) 1988-95
F-IAT TIPO/EGEA 2015+
FI-AT TORO 2016+
FI-AT ULYSSE 1994-14
FI-AT UNO (Type 146) 1983-03
F-IAT UNO (Type 195) 2004-09
FI-AT UNO NOVO (Type 327) 2010-15
FI-AT UNO NOVO FACELIFT (Type 327) 2015+
FIA-T VIAGGIO 2012-16
JEE-P CHEROKEE (KK) 2008-13
JEE-P CHEROKEE (KL) 2014+
JE-EP COMMANDER (XK) 2006-10
J-EEP COMPASS (MP) 2017+
JE-EP COMPASS/PATRIOT/LIBERTY (MK) 2007-17
JE-EP GLADIATOR (JT) 2019+
JE-EP GRAND CHEROKEE (WK) 2005-10
JE-EP GRAND CHEROKEE (WK2) 2011+
JE-EP LIBERTY (KK) 2008-15
JE-EP LIBERTY/CHEROKEE (KJ) 2006-07
JE-EP RENEGADE 2014+
JE–EP WRANGLER (JK/J8) 2008-17
JEEP WRANGLER (JL) 2018+
LAN-CIA DEDRA (Type 835) 1989-99
LA-NCIA DELTA (Type 111) 1993-99
LA-NCIA DELTA (Type 181) 2008-14
LA-NCIA KAPPA (Type 838) 1994-2000
LA-NCIA LANCIA FLAVIA (JS) 2010-14
LA–NCIA LANCIA THEMA (LX) 2011 +
LA-NCIA LYBRA (Type 839) 1998-05
L-ANCIA MUSA (Type 350) 2004-12
LA-NCIA PHEDRA (Type 179) 1994-14
LA-NCIA THEMA (Type 834) 1984-94
LA–NCIA THESIS (Type 841) 2001-09
LA-NCIA VOYAGER (RT) 2011+
LA-NCIA Y (Type 840) 1985-95
LA-NCIA YPSILON (Type 843) 1995+
LA-NCIA YPSILON (Type 846) 2011+
LA-NCIA ZETA (Type 220) 1994-14
MAS-ERATI (M156) QUATTROPORTE, (M157) GHIBLI, (M161) LEVANTE 2017+
PEU-GEOT 806/807 1994-14
PEU-GEOT BOXER (230/244/250/X290) 1993+
R-AM 1500 (DS) 2009+
R-AM 1500 (DT) 2019+
R-AM 1500 (DX) 2010+
R-AM 2500 (DJ) 2010+
R-AM 2500/3500 (DR) 2006-10
R-AM 3500 (D2) 2010+
R-AM 3500 (DD) 2011+
R-AM 4500 (DP) 2011+
R-AM 5500 (DF) 2017+
R-AM PRO MASTER (VF) 2014+
R-AM PRO MASTER CITY (VM) 2015+
VOLKS-WAGEN ROUTAN (RM) 2009-14
——

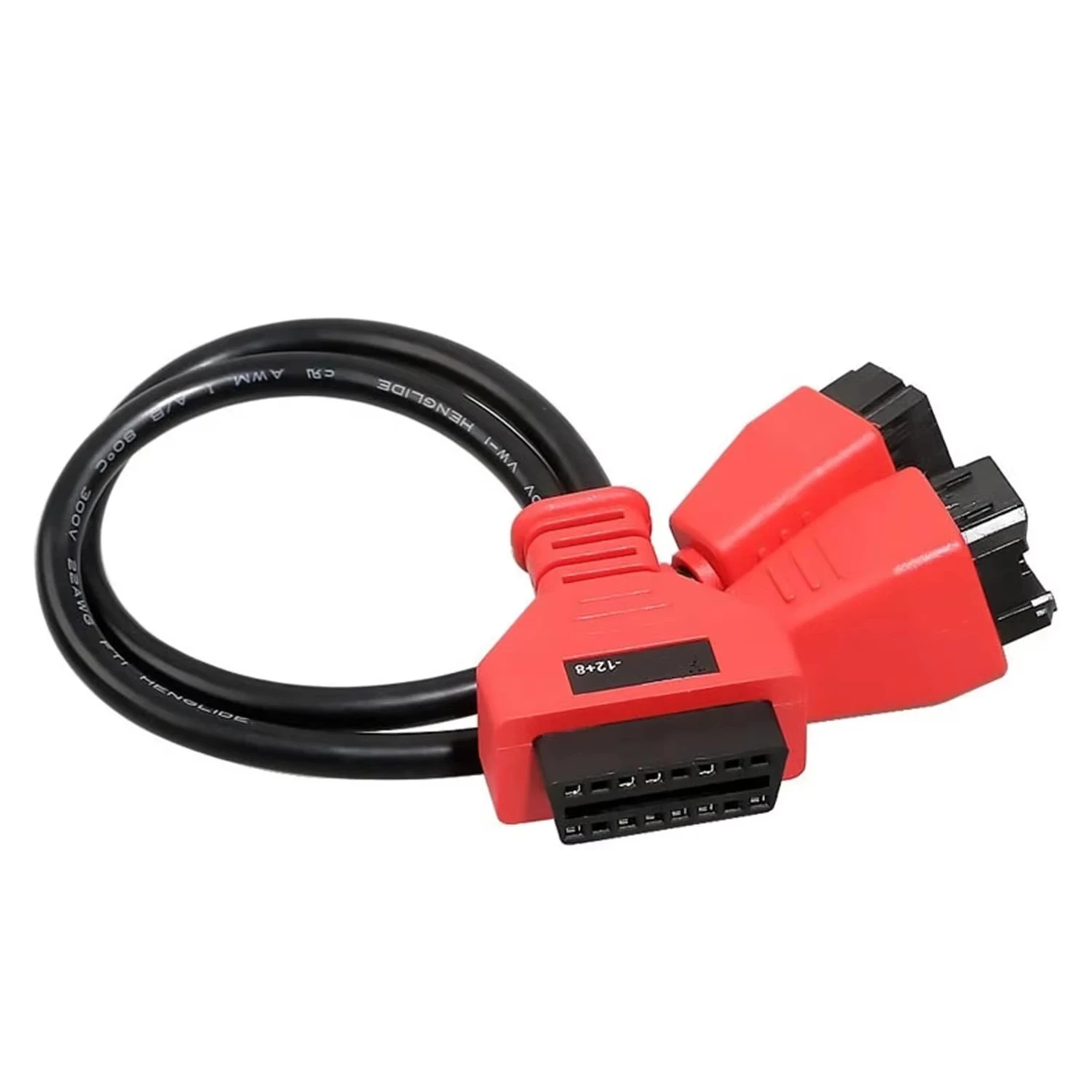

Lonsdor SGW 12+8 Specialized Adapter for Key programmer /Diagnostic tool
Highlights:
-
Support Key programmer/Diagnostic tool
-
Not limited to Lonsdor products.
Supported Makes:
for CHRYSLER (2018-),
for DODGE (2018-),
for RAM (2018-)
for JEEP (2018-)
for FIAT (2018-)
for ALFA-ROME0 (2018-)
for LANCIA (2018-),
for MASERATI (2018-)
With built-in Security Gateway Module-SGW:
Easy-to-go
Easier& faster connection
Save time, save bucks
NOTES:
1. SGW 12+8 adapter is compatible with common 12+8 wiring harness for FCA vehicles in the market.
2. Not available for 2021+ models with SGW integrated into BCM.
3. The SGW module is often located in the side kick panel, passenger side near the glove box, or behind the radio, FYI.
