- High-concerned chemical: none
- Use: Not Telecommunication
- Electronic: No
- Wireless Support: No
- Is Batteries Included: no
- Item Weight: 0.6kg
- Item Height: 2.8inch
- Item Width: 8inch
- Item Length: 20inch
- External Testing Certification: CCC
- Voltage: 30V
- Model Name: KW308
- Software Version: V3.5
- Hardware Version: V2.3
- Origin: Mainland China
- Item Type: Engine Analyzer
- Power (W): 3W
KW105 24V to 12V Heavy Duty Truck Adapter for X431 for Truck
Converter Heavy Duty Vehicles,And OBD Breakout box Function

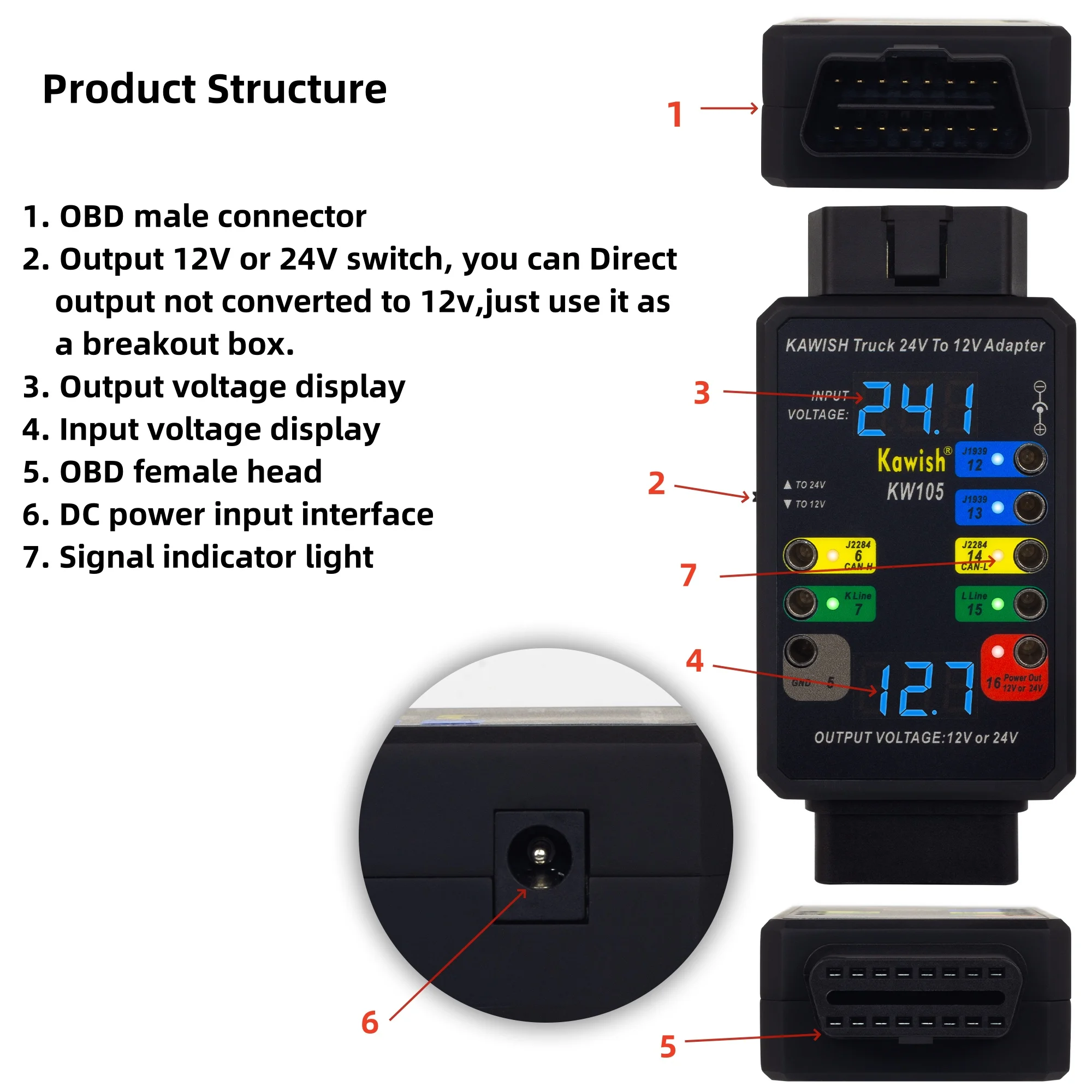

KW105 is a simple, powerful, portable OBD 24V to 12V adpater and signal Detector , which have 8Led lights detect OBD signal.
KW105 truck 24V to 12V adapter have four functions :
1, KW105 can convert heavy truck diagnostic interface from 24v to 12v, used for X431 easydiag 3.0, easydiag 2.0, Golo Carcare 3, ICARSCAN golo technician box, ThinkCar diagnostic Bluetooth head for truck diagnosis.
2, KW105 also can convert the truck 24v K-Line communication protocol to 12v K-Line, so that the launch vehicle equipment can be used, and the launch 12v diagnostic head will not be burned.
3, KW105 Break out of pins 5, 6, 7, 12, 13, 14, 15 to 4mm copper pillar connector from the OBD interface.
4, KW105 has signal indicator lights for the signals on pins 5, 6, 7, 12, 13, 14, and 15, which can monitor whether there is a signal for the protocol on these pins
