- Semi-finishedproduct: No
- Battery Included: no
- High-concerned chemical: none
- Weight: 368g
- Dimensions: 250*85*45mm
- Operating Temperature: 0~40C
- Measuring Inductance Range: clamp meter
- Measuring Capacitance Range: 0~60mF
- Measuring Resistance Range: 0~60MΩ
- Measuring Voltage Range: DC:0~1000V AC:0~750V
- Measuring Current Range: AC/DC:1000A
- Display Type: Digital Only
- Model Number: CM86B
- DIY Supplies: Electrical
- Brand Name: MESTEK
- Origin: Mainland China
- Certification: CE
- Auto range: Yes
- The highest input voltage of COM/INPUT terminal: AC 750V/DC1000V
- working height: Maximum 2000m
- show: LCD
- maximum display value: 5999
- Overrange display: 0L or -0L
- sampling time: About 3 times / second
- power supply: 3×1.5V AAA batteries
- Operating temperature: 0°C~40°C
- Storage temperature: -10°C~50°C
- Jaw size: 42mm
- iFlex flexible clamp length: 1.8m
- iFlex Flexible Clamp Dimensions: 7.5mm
- item 1: clamp meter
- item 2: 1000A
- item 3: DC Current Clamp Meter
- iFlex flexible clamp: not standad,It is not standard,issue when selected
- CM83A: 600A AC CURRENT
- CM83E: 600A DC AC CURRENT
- CM86B: 1000A DC AC CURRENT
Selling points
● The CM83A only support testing AC current.
● CM83E/CM86B can measure DC Current.
● CM83E/CM86B can clear data to zero
● CM83E/CM86B supports testing with temperature probe.（send temperature probe）

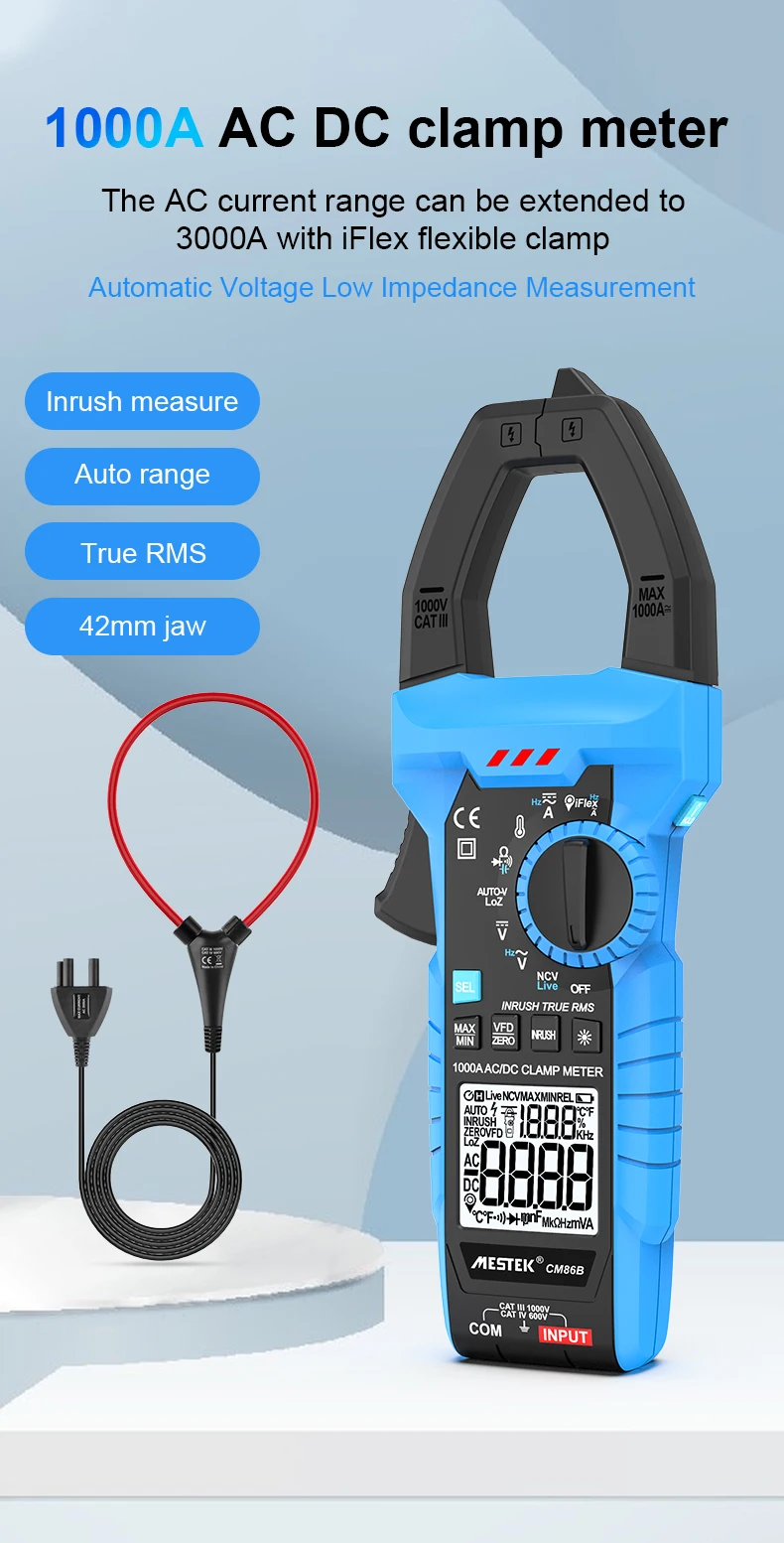

1000A AC DC clamp meter
Automatic Voltage Low Impedance Measurement
-Inrush measure
-Auto range
-True RMS
-42mm jaw

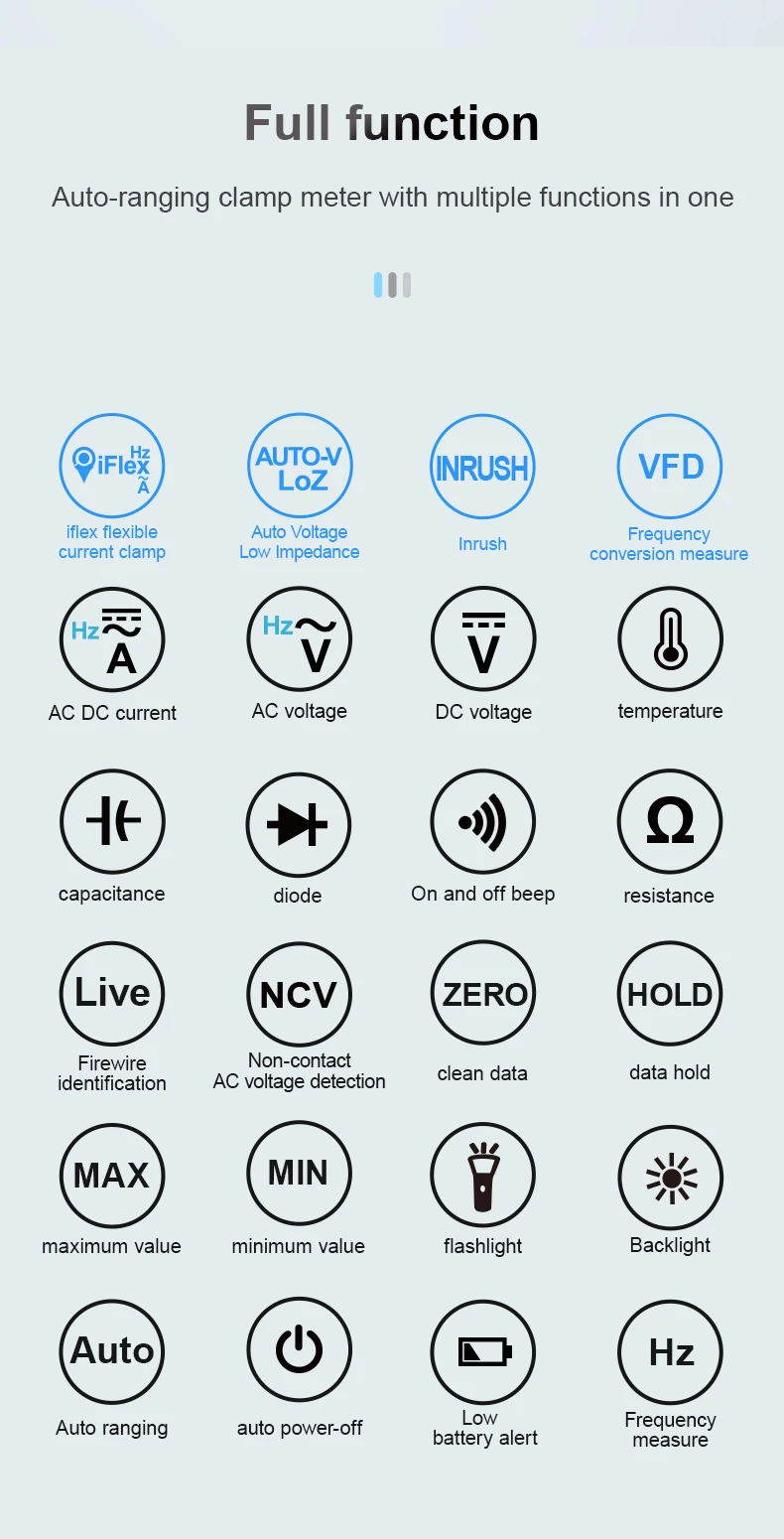

Full function
Auto-ranging clamp meter with multiple functions in one

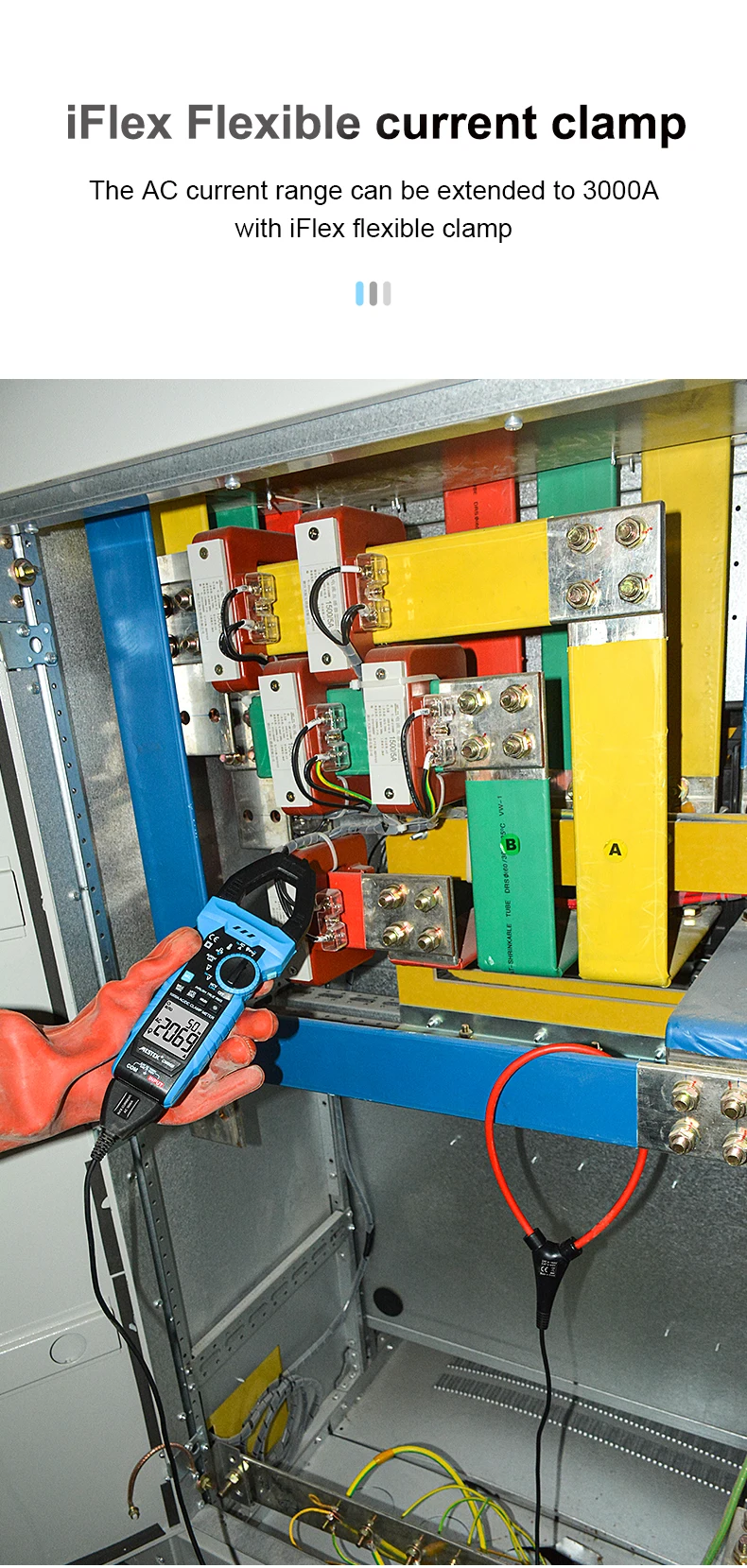

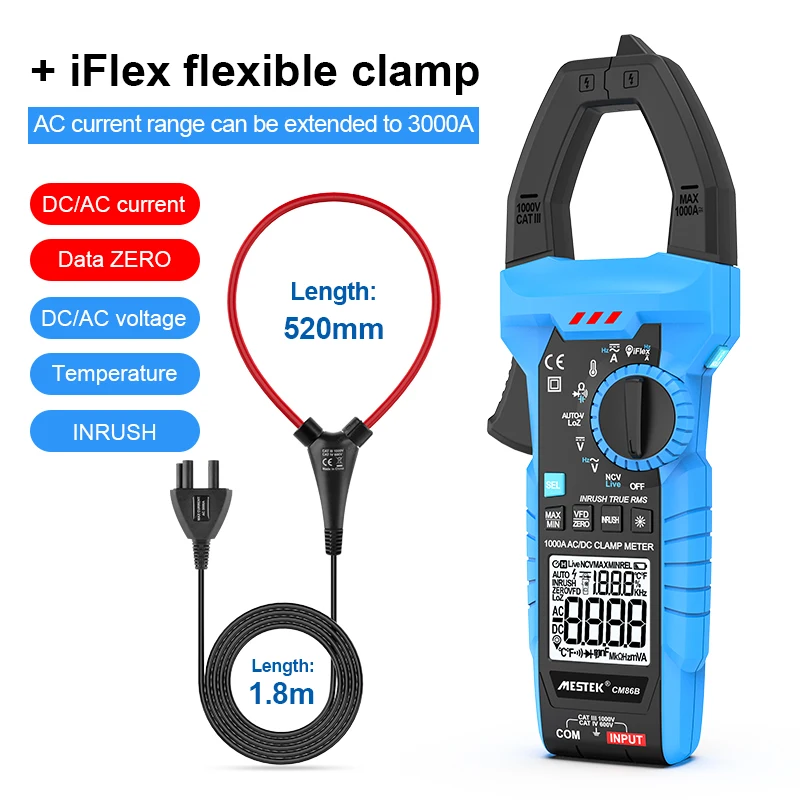

-iflex flexible current clamp(send after you choose)
-Auto Voltage Low Impedance ,Inrush -Frequency conversion measure,AC DC current ,AC/DC voltage,temperature ,capacitance -diode,on and off beep -resistance,Fire wire identification,NCV,clean data,data hold,maximum value,minimum value flashlight,Backlight,Auto ranging,auto power-off ,Low battery alert,Frequency measure
Multipurpose display
Widely used in electric power/communication / railway/construction/oil field/metering/scientific research and teaching/industrial and mining enterprises,etc.

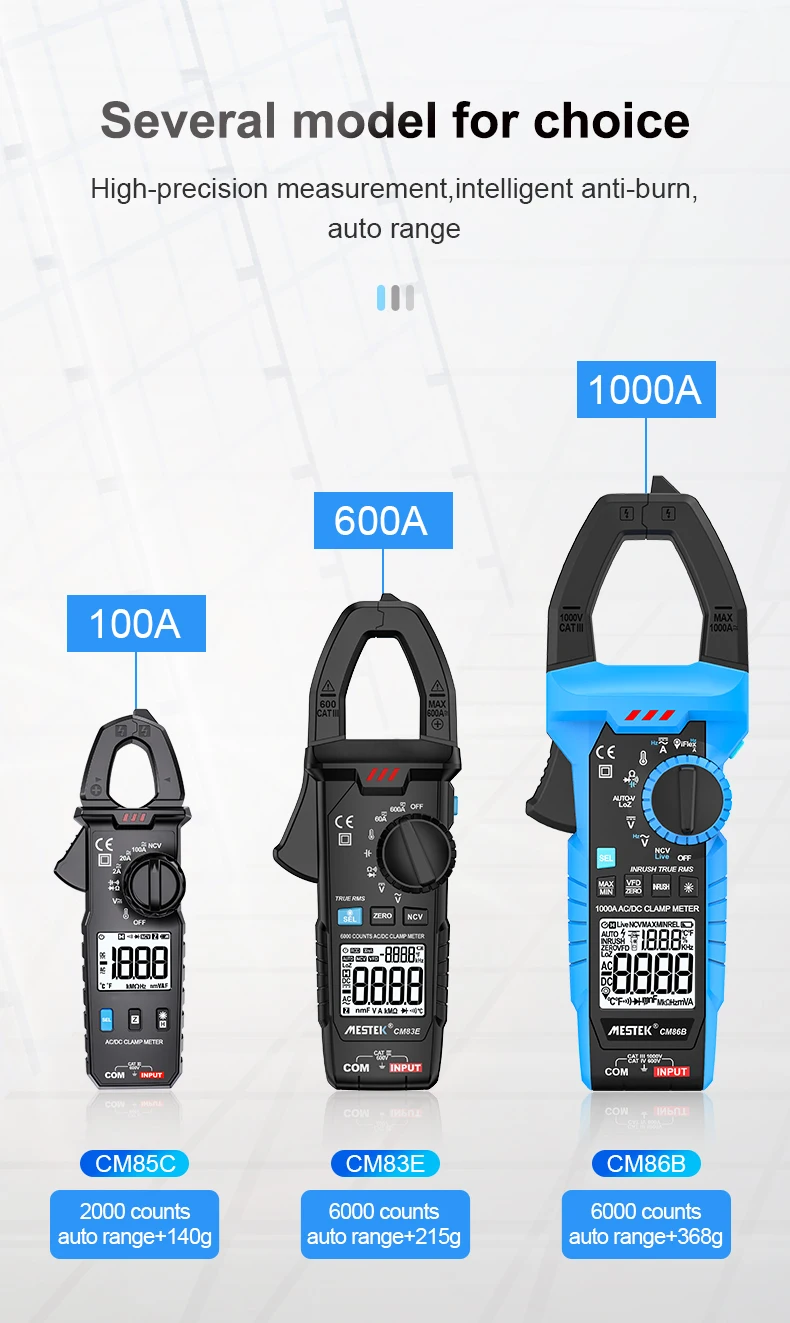

Several model for choice
High-precision measurement,intelligent anti-burn,auto range

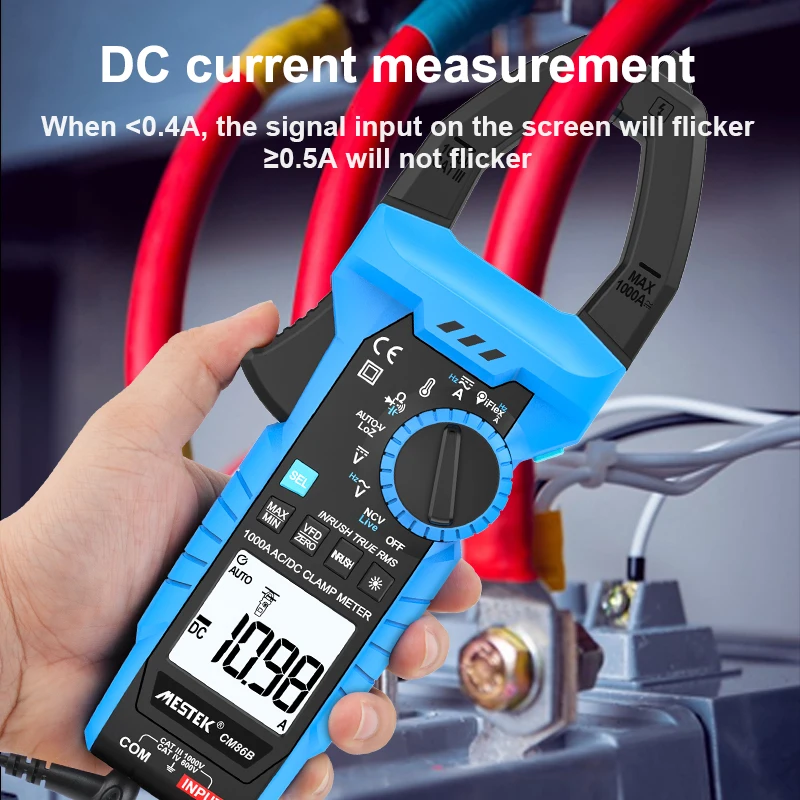

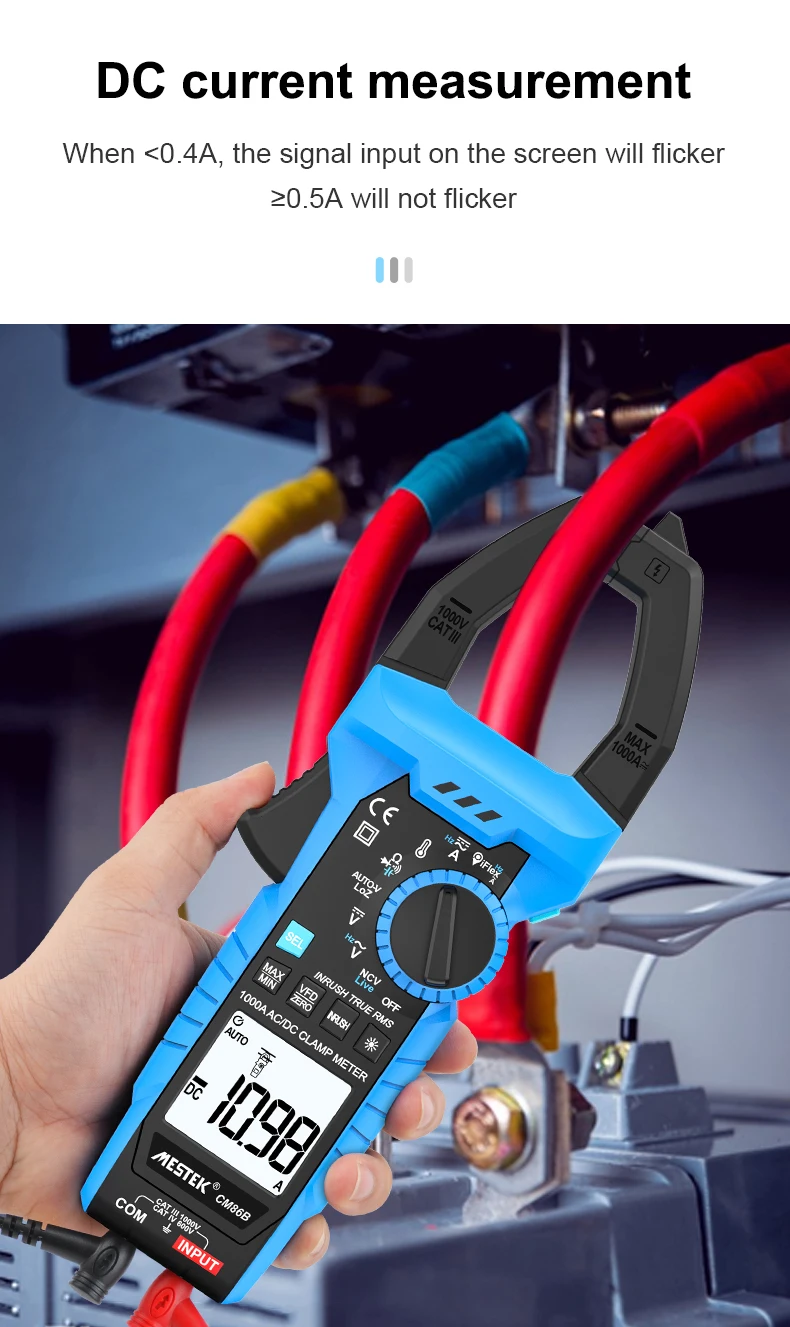

DC current measurement
When <0.4A, the signal input on the screen will flicker ≥0.5A will not flicker

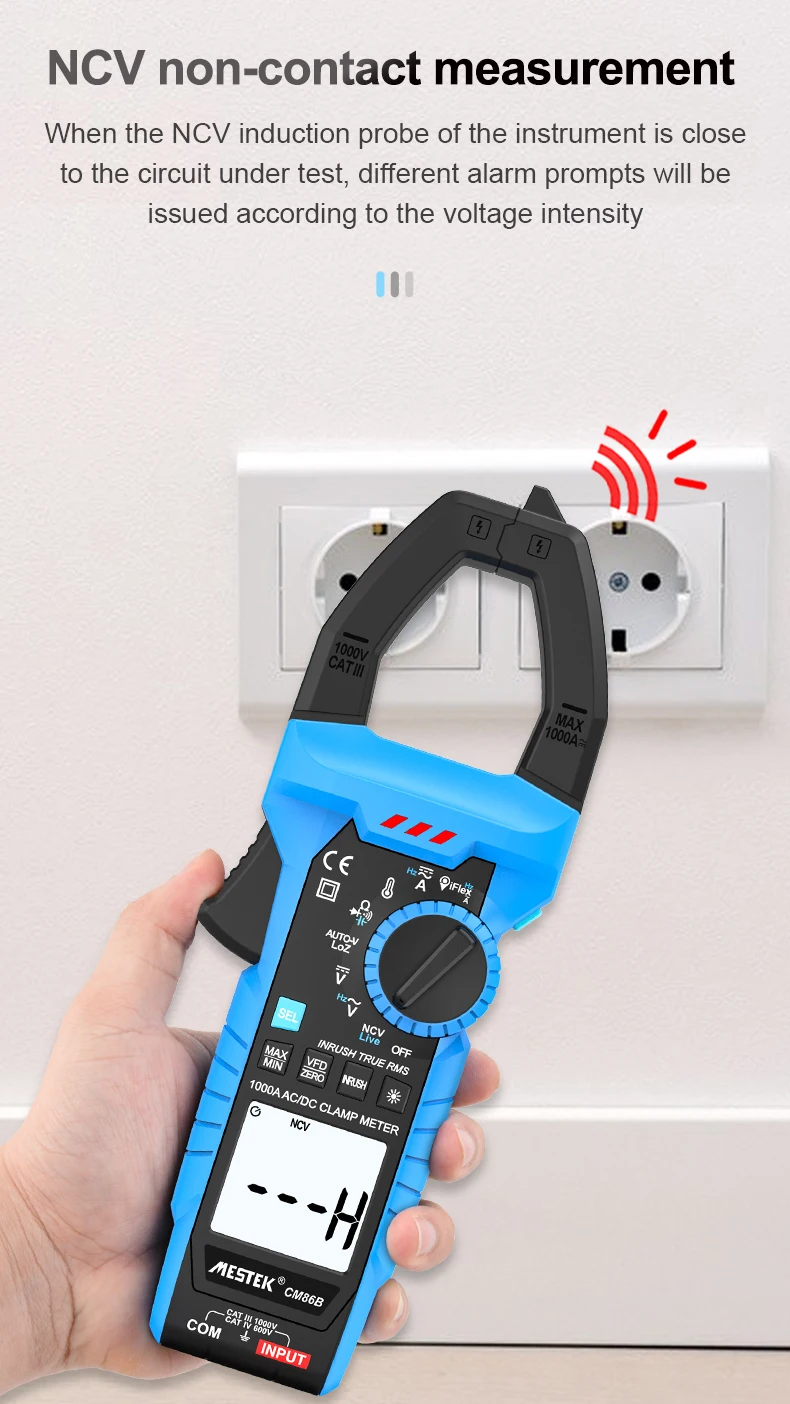

NCV non-contact measurement
When the NCV induction probe of the instrument is close to the circuit under test, different alarm prompts will be issued according to the voltage intensity

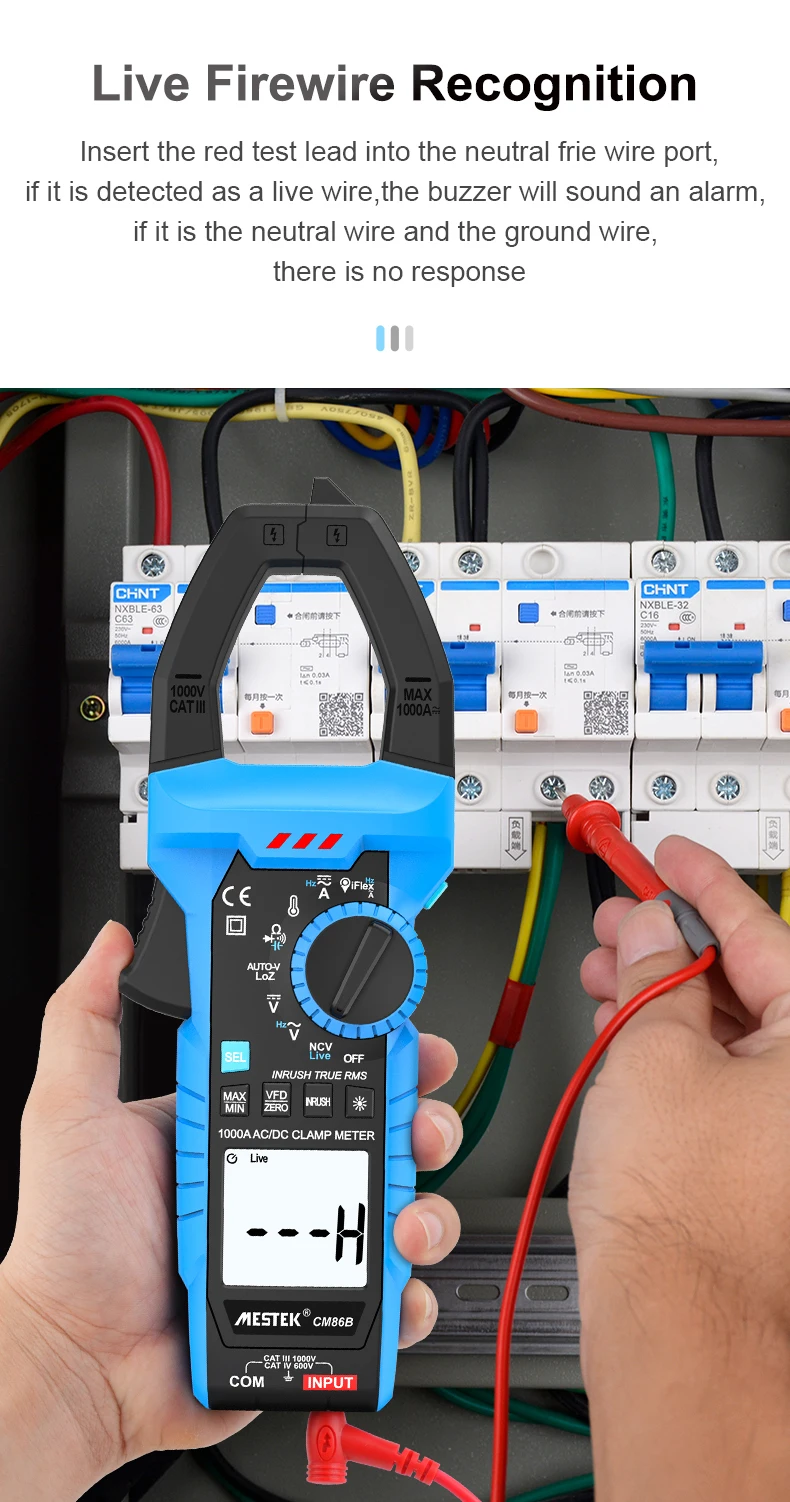

Live Firewire Recognition
Insert the red test lead into the neutral frie wire port,if it is detected as a live wire,the buzzer will sound an alarm,if it is the neutral wire and the ground wire,there is no response

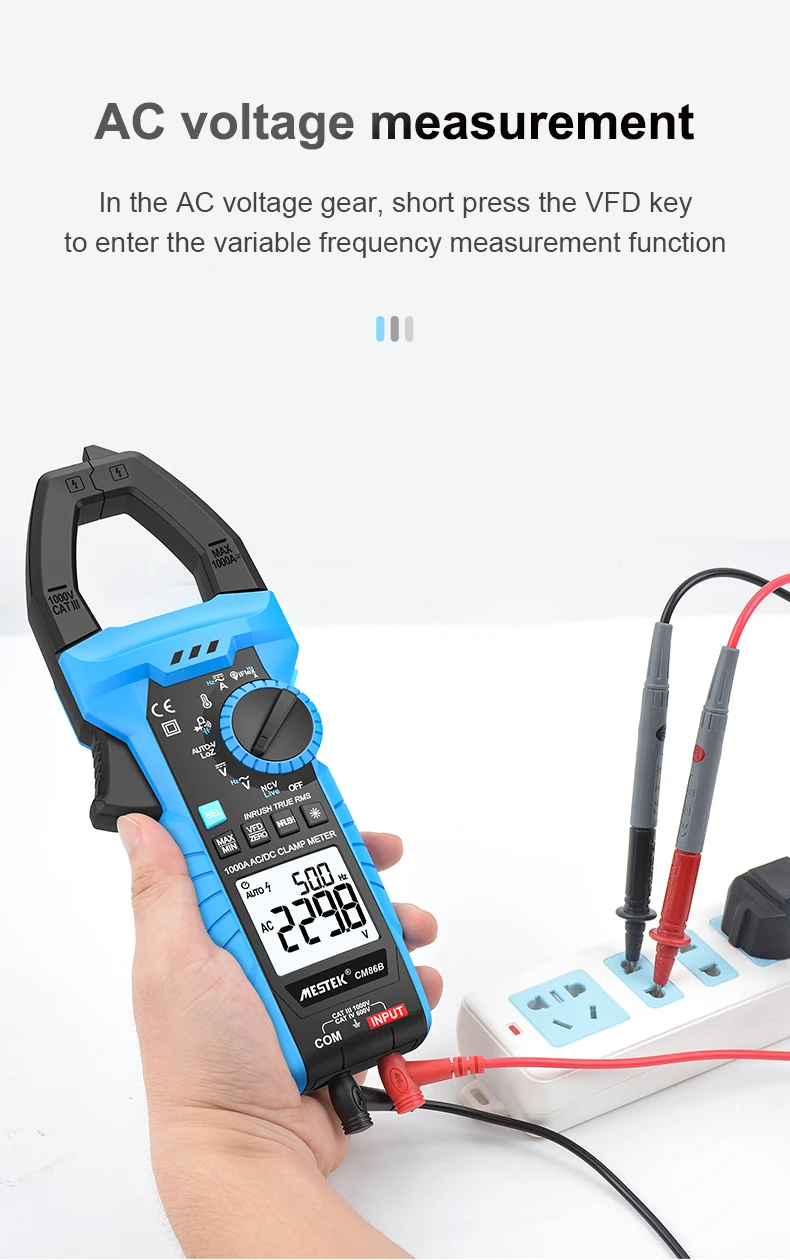

AC voltage measurement
In the AC voltage gear, short press the VFD key to enter the variable frequency measurement function

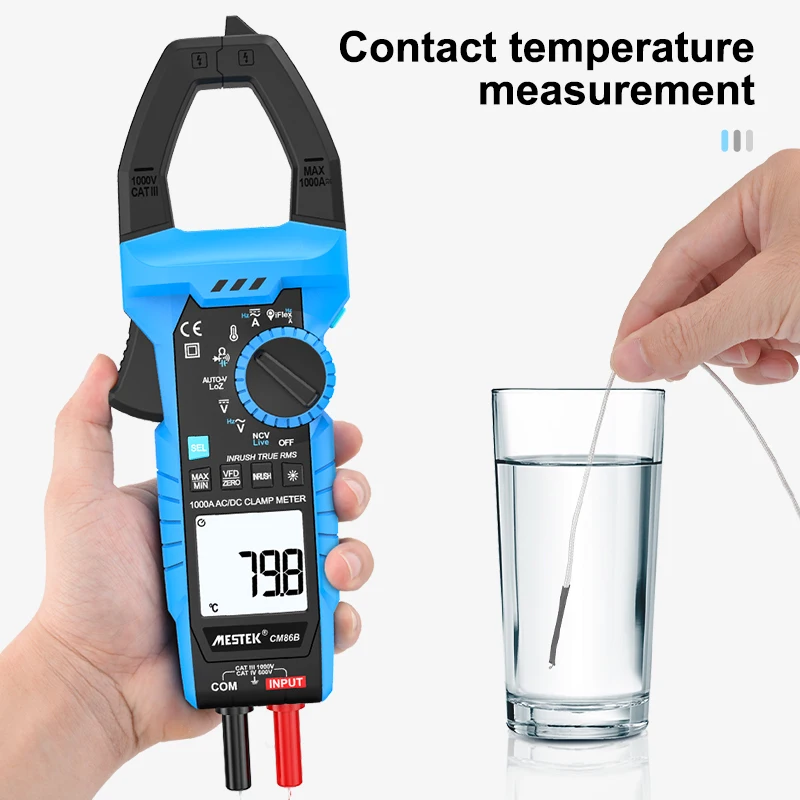

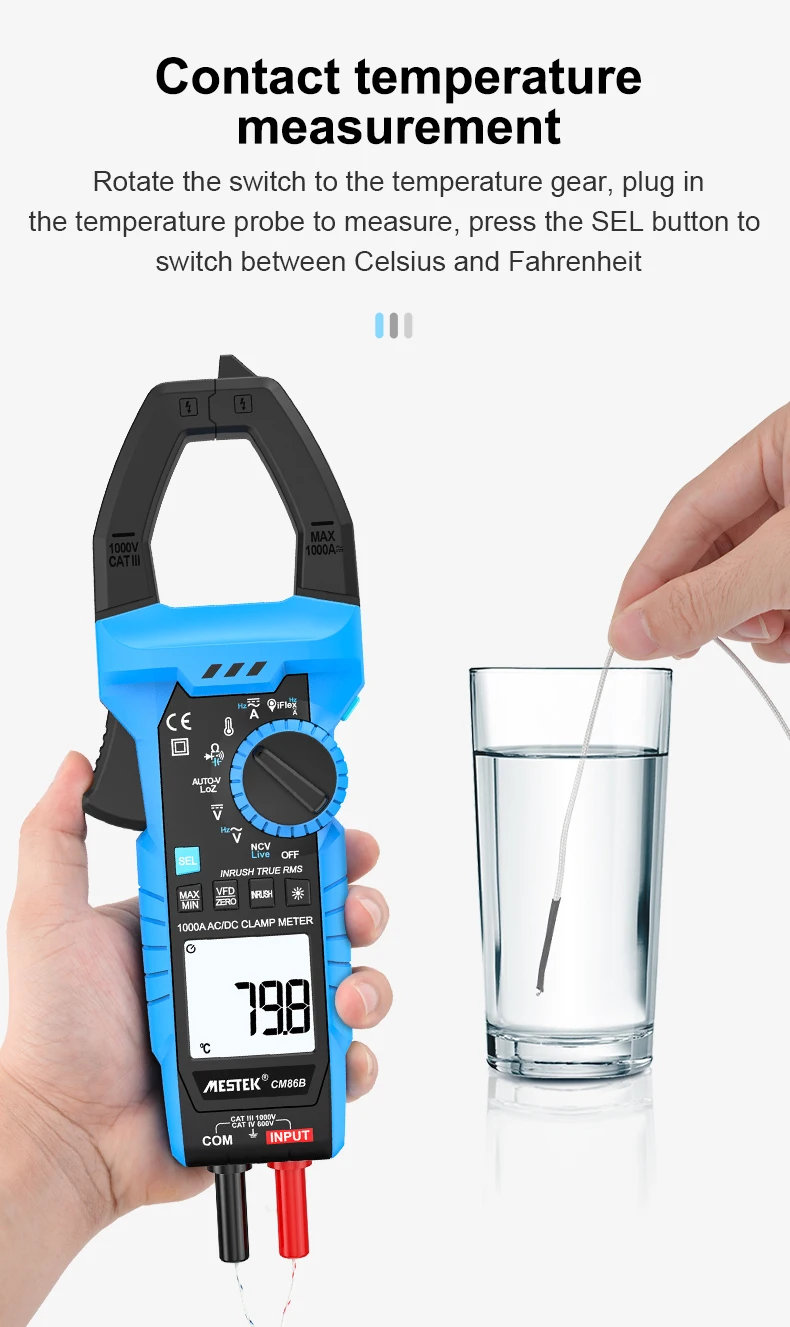

Contact temperature measurement
Rotate the switch to the temperature gear, plug in the temperature probe to measure, press the SEL button to switch between Celsius and Fahrenheit

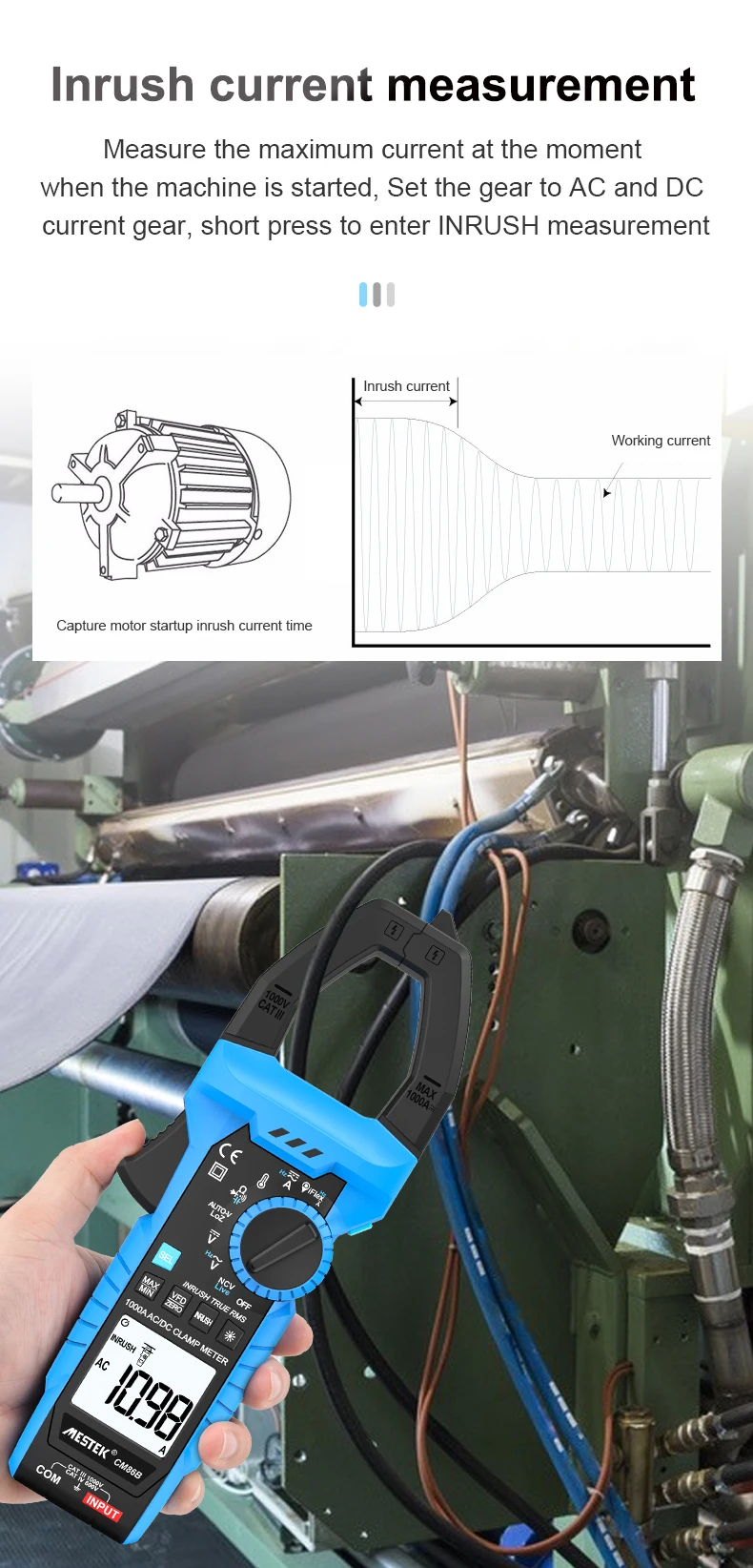

Inrush current measurement
Measure the maximum current at the moment when the machine is started, Set the gear to AC and DC current gear, short press to enter INRUSH measurement

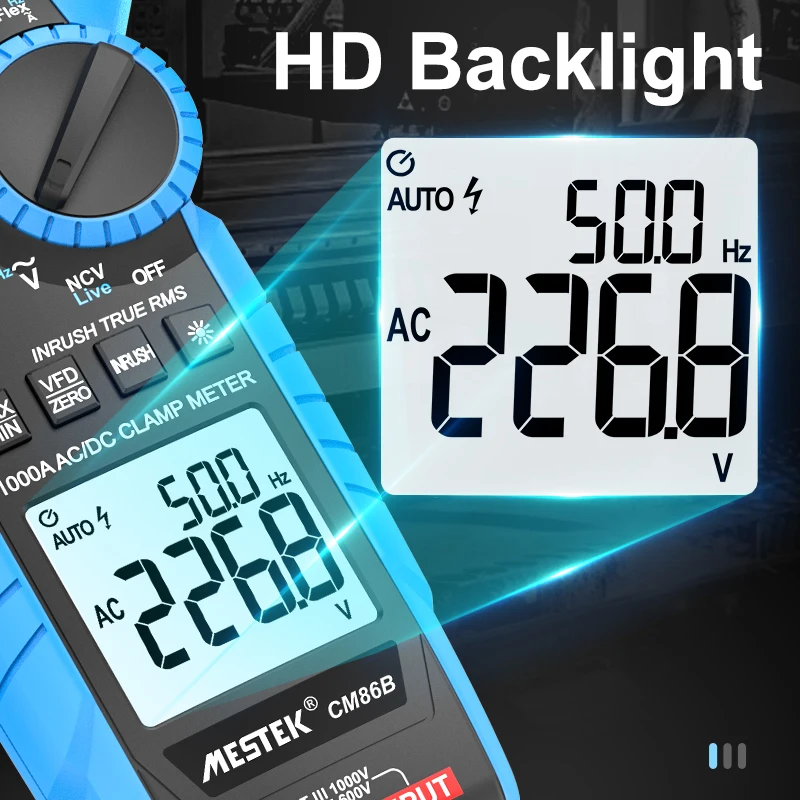

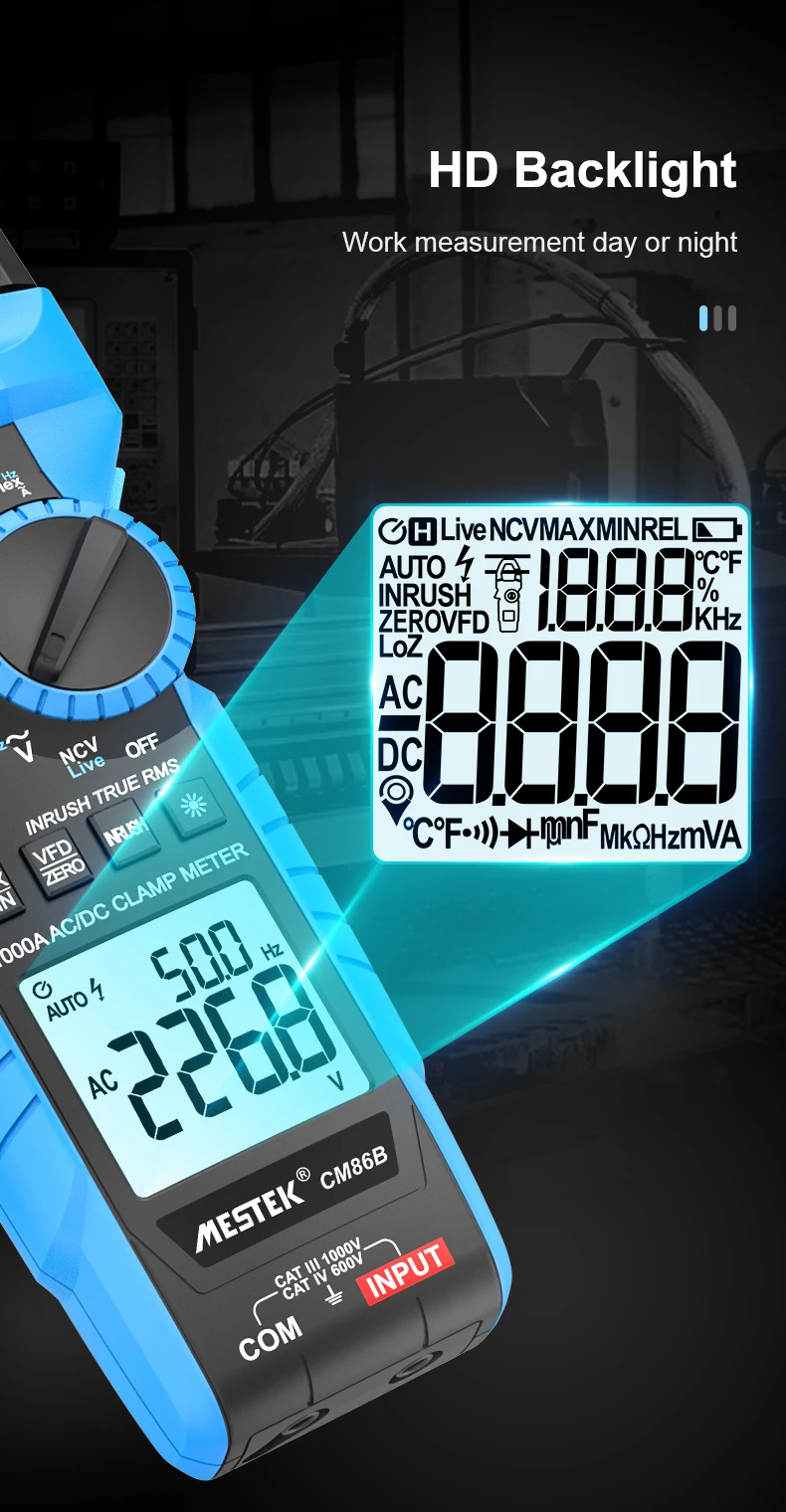

HD Backlight
Work measurement day or night

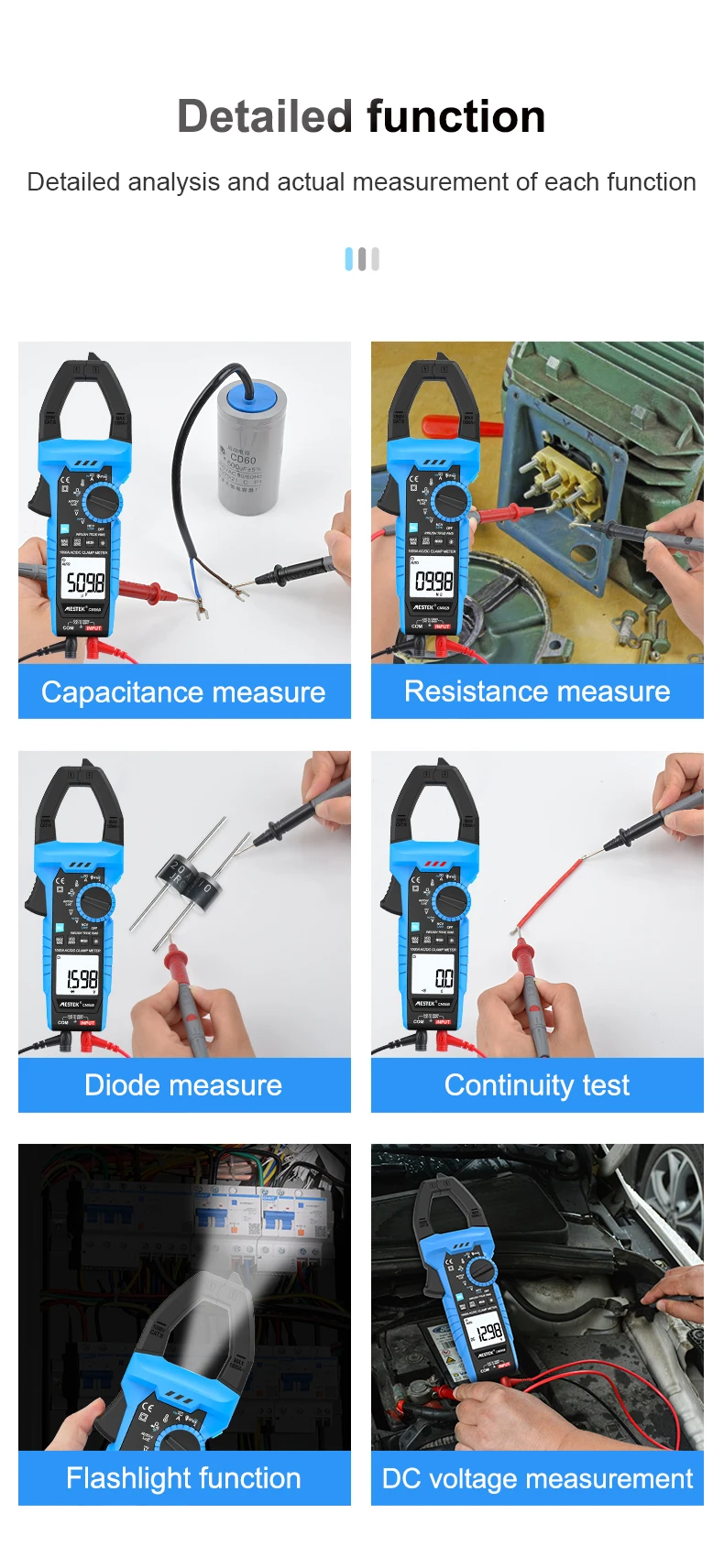

Detailed function
Detailed analysis and actual measurement of each function
-Capacitance measure
-Resistance measure
-Diode measure
-Continuity test
-Flashlight function
-DC voltage measurement

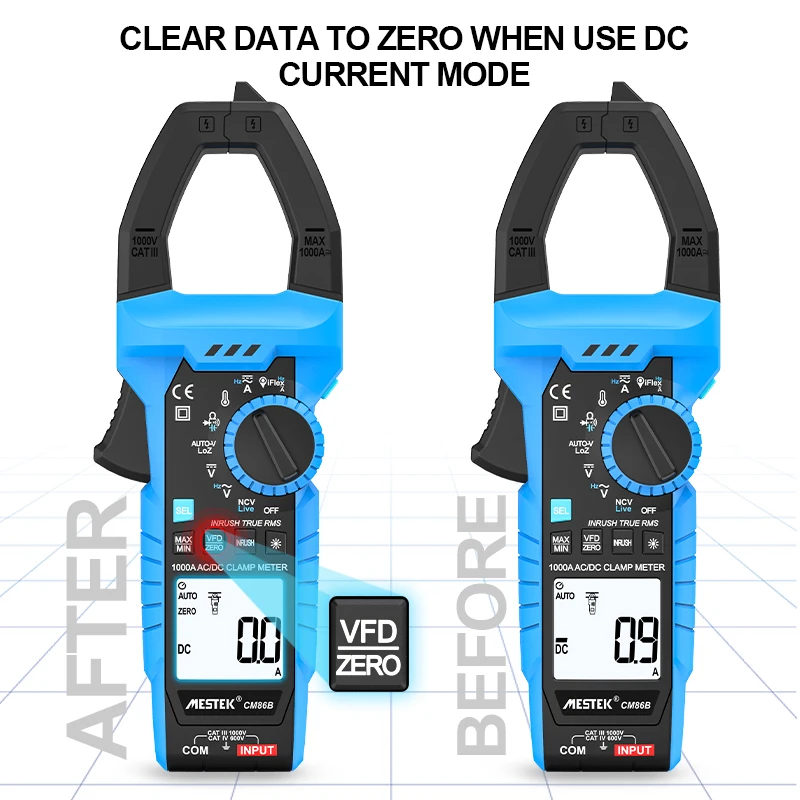

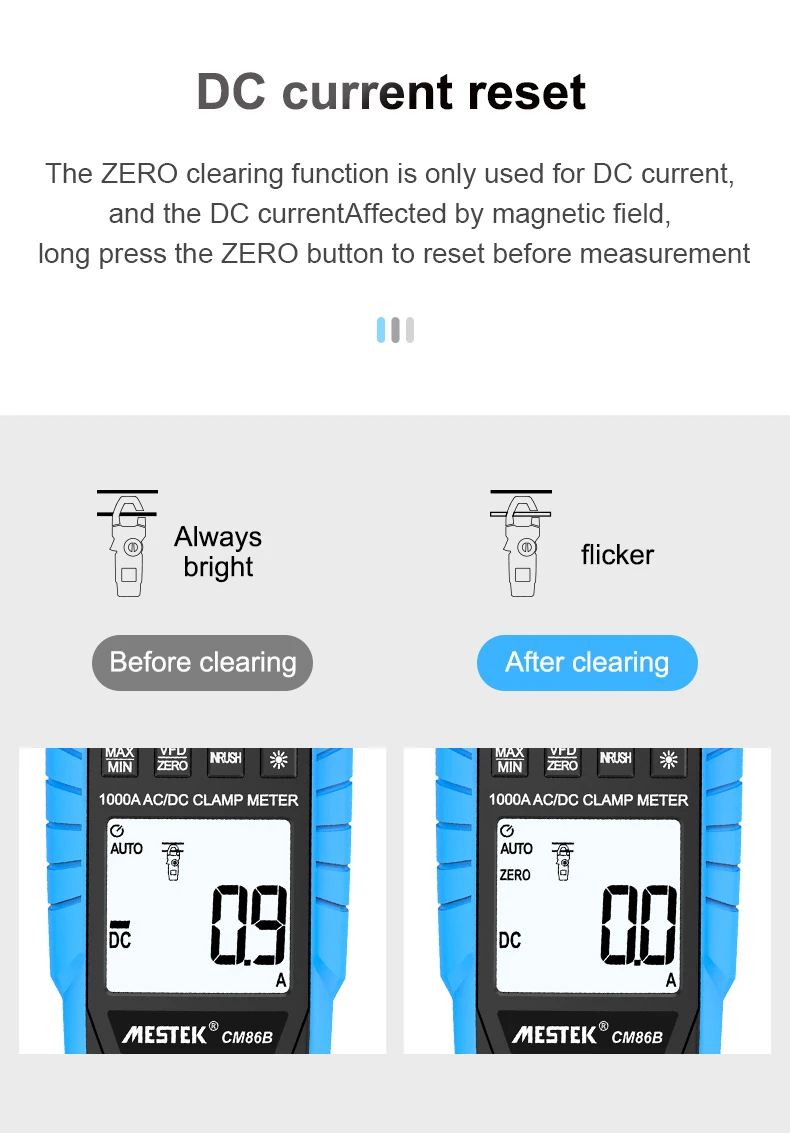

DC current clear to zero
The ZERO clearing function is only used for DC current,and the DC currentAffected by magnetic field,long press the ZERO button to reset before measurement

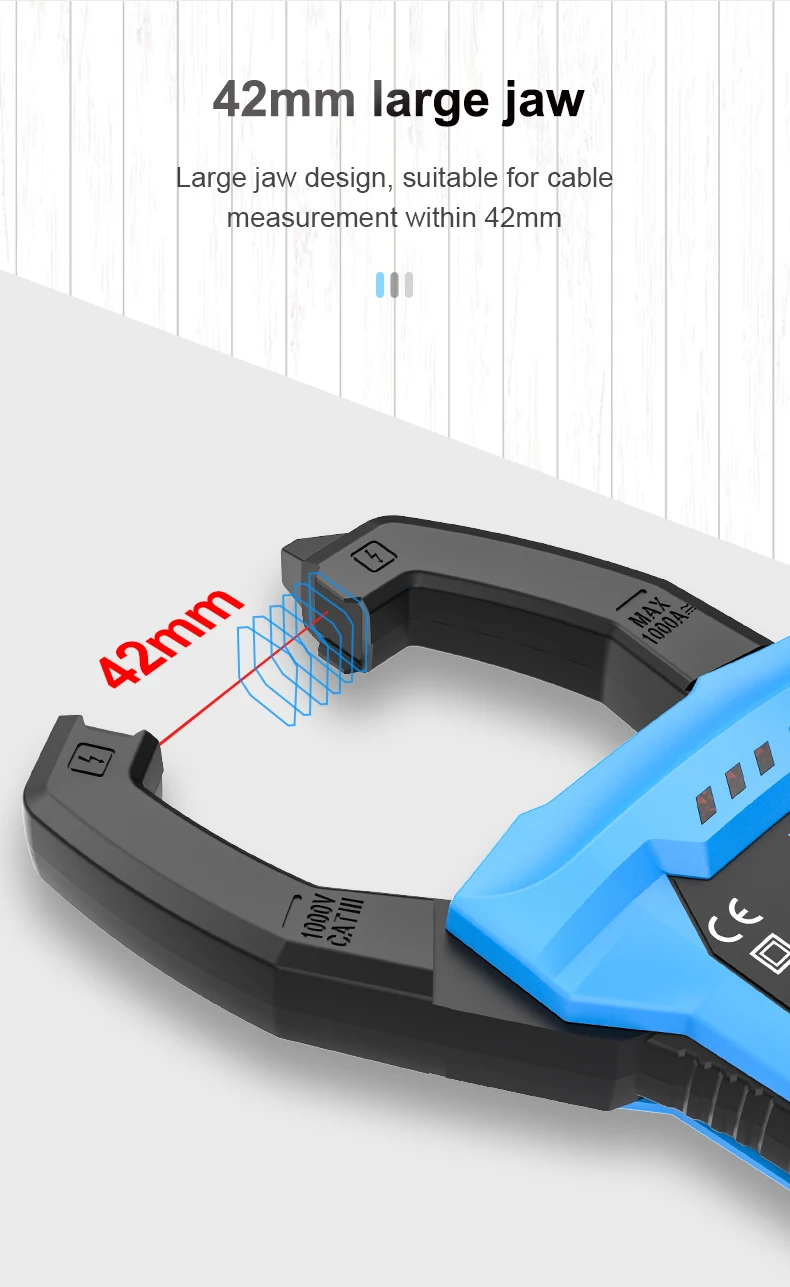

42mm large jaw
Large jaw design, suitable for cable measurement within 42mm

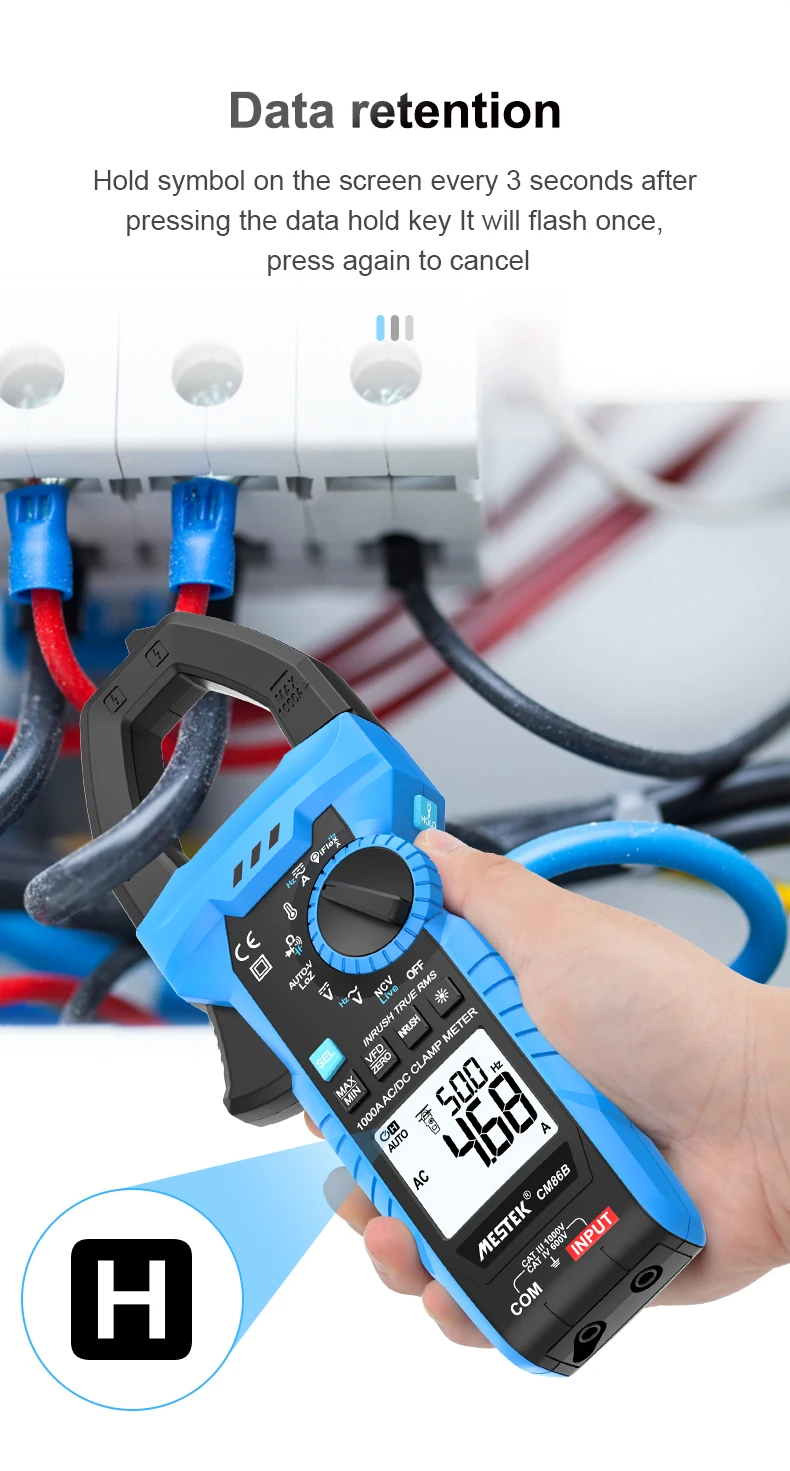

Data retention
Hold symbol on the screen every 3 seconds after pressing the data hold key It will flash once,press again to cancel
