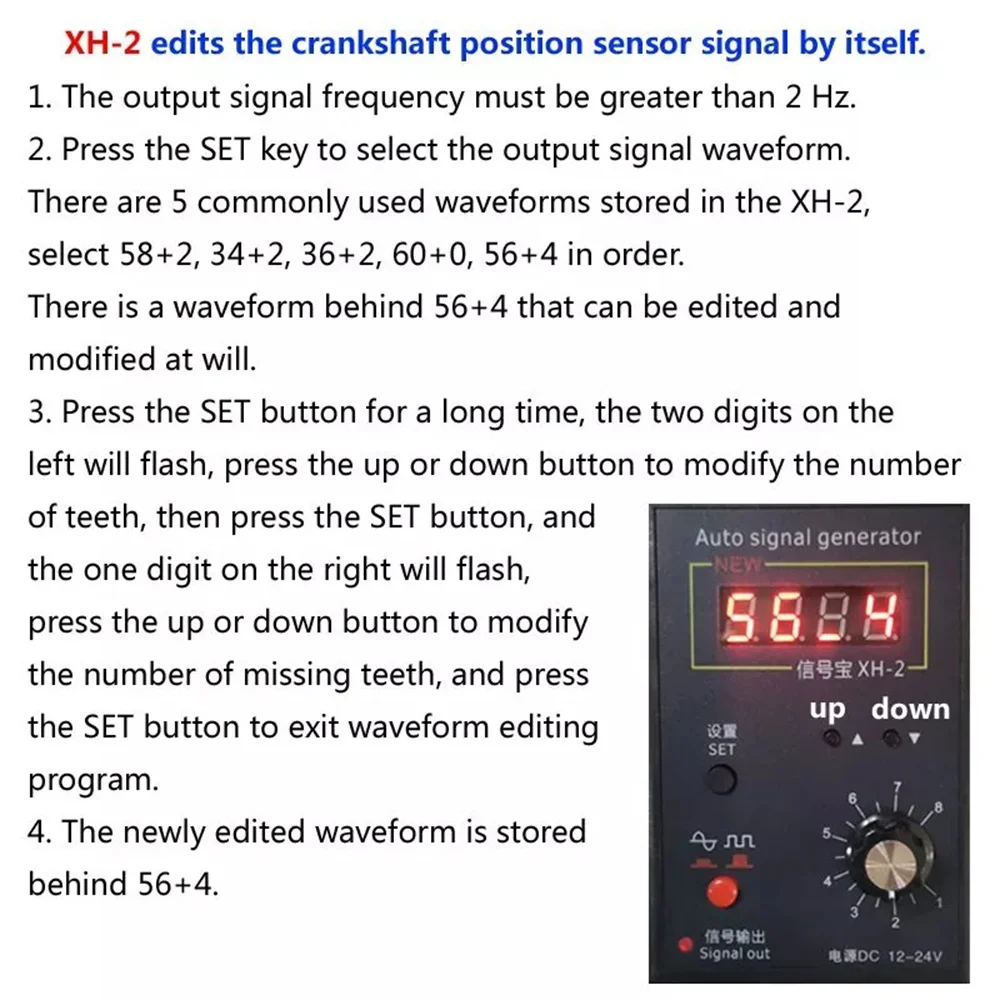

Crankshaft position sensor signal simulation output: including 9 types of gear missing teeth signal: 58+2(60-2), 58+1, 57+2, 57+1, 37+1, 36+2, 35+1, 34+2, 22+1.

One type of standard 60+0 signal simulation output.

Magnetoelectric signal or Hall signal output. Output amplitude/Peake volt equals to power supply input, can be adjusted by adding potentiometer.

Use 60+0 signal to simulate vehicle speed sensor signal output. Camshaft sensor signal simulation.

Use 60+0 signal to drive odometer or test odometer. Use it to drive car motor PC board or speed meter.

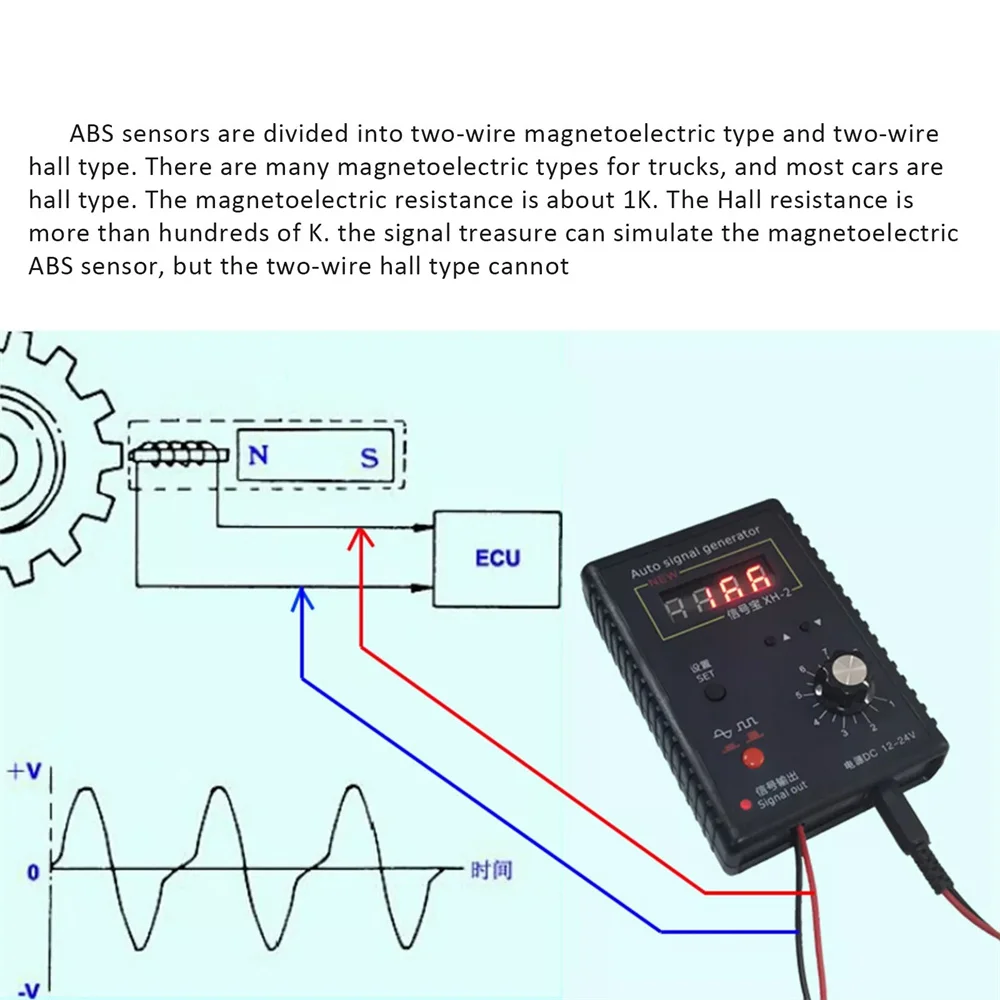

ABS sensor, optical sensor signal simulation. Use it to analyze and inspect sensor error, car ECU and meters error.

Output Parameters:

All types of signal have been embedded inside the signal generator, and can be displayed in LED screen for selection reference, no need to download software.

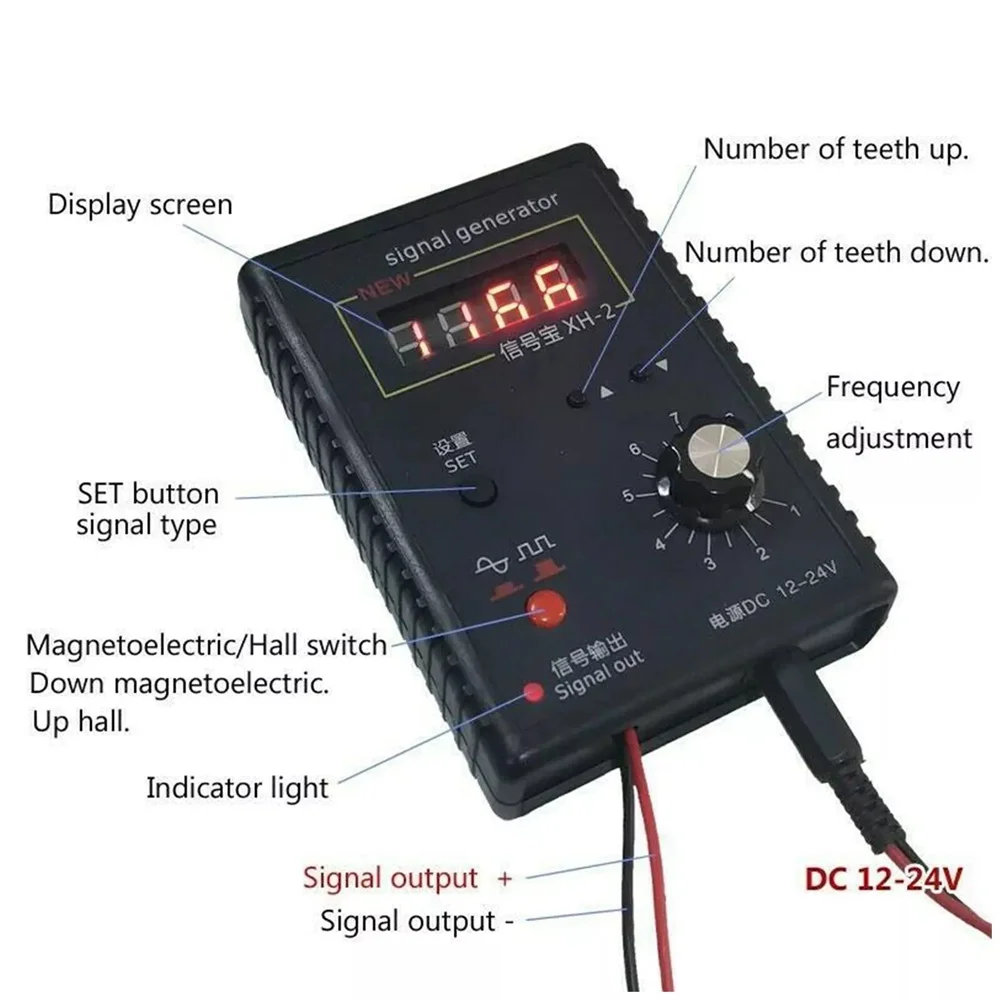

One button switch between magnetoelectric signal and Hall signal, convenient to use.

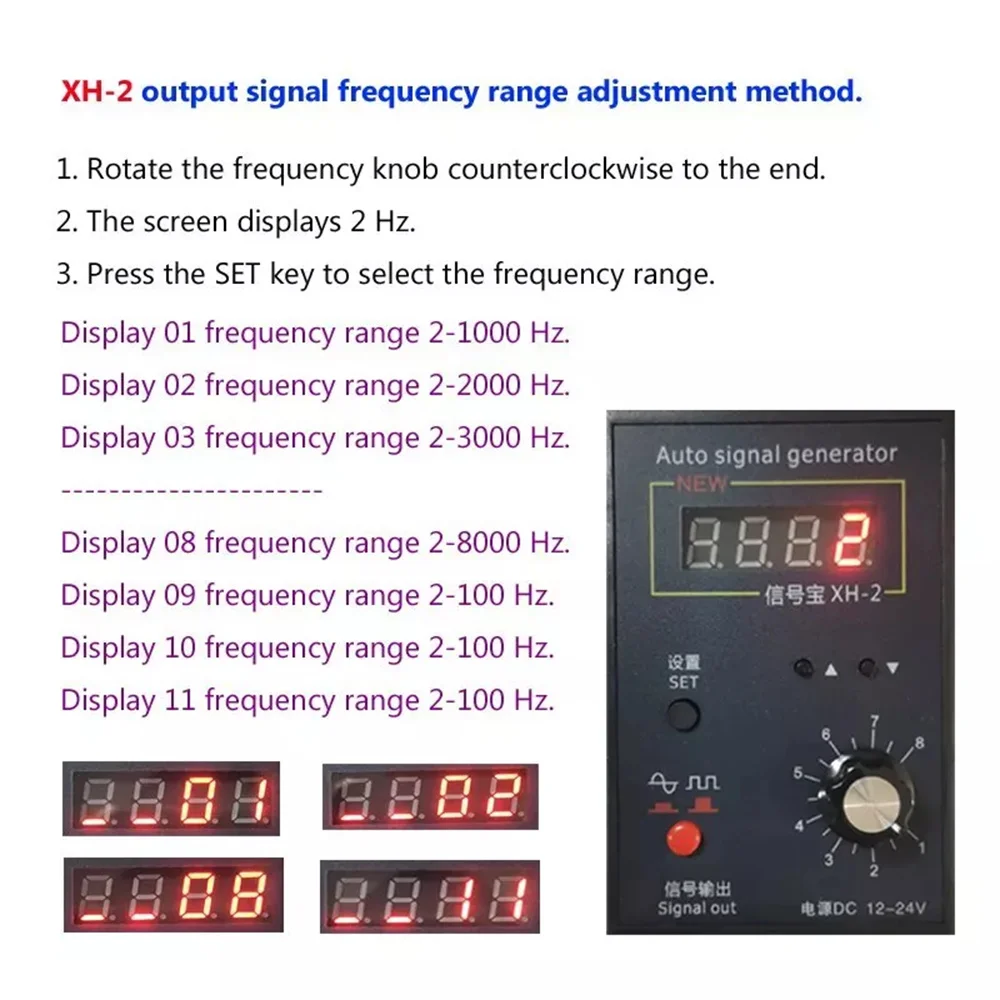

9 ranges of frequency selection, accurate frequency output.

01 refers to 2Hz-1KHz frequency range.

02 refers to 2Hz-2KHz frequency range.

03 refers to 2Hz-3KHz frequency range.

04 refers to 2Hz-4KHz frequency range.

05 refers to 2Hz-5KHz frequency range.

06 refers to 2Hz-6KHz frequency range.

07 refers to 2Hz-7KHz frequency range.

08 refers to 2Hz-8KHz frequency range.

09 refers to 2Hz-100Hz frequency range.

Colour:Black

Material:Plastic

Package Contents:

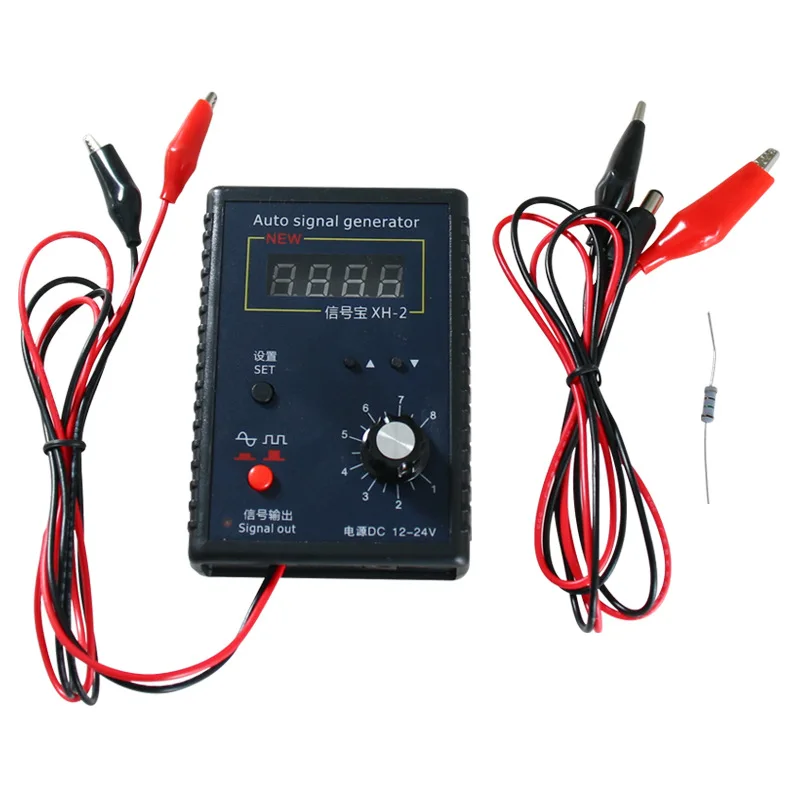

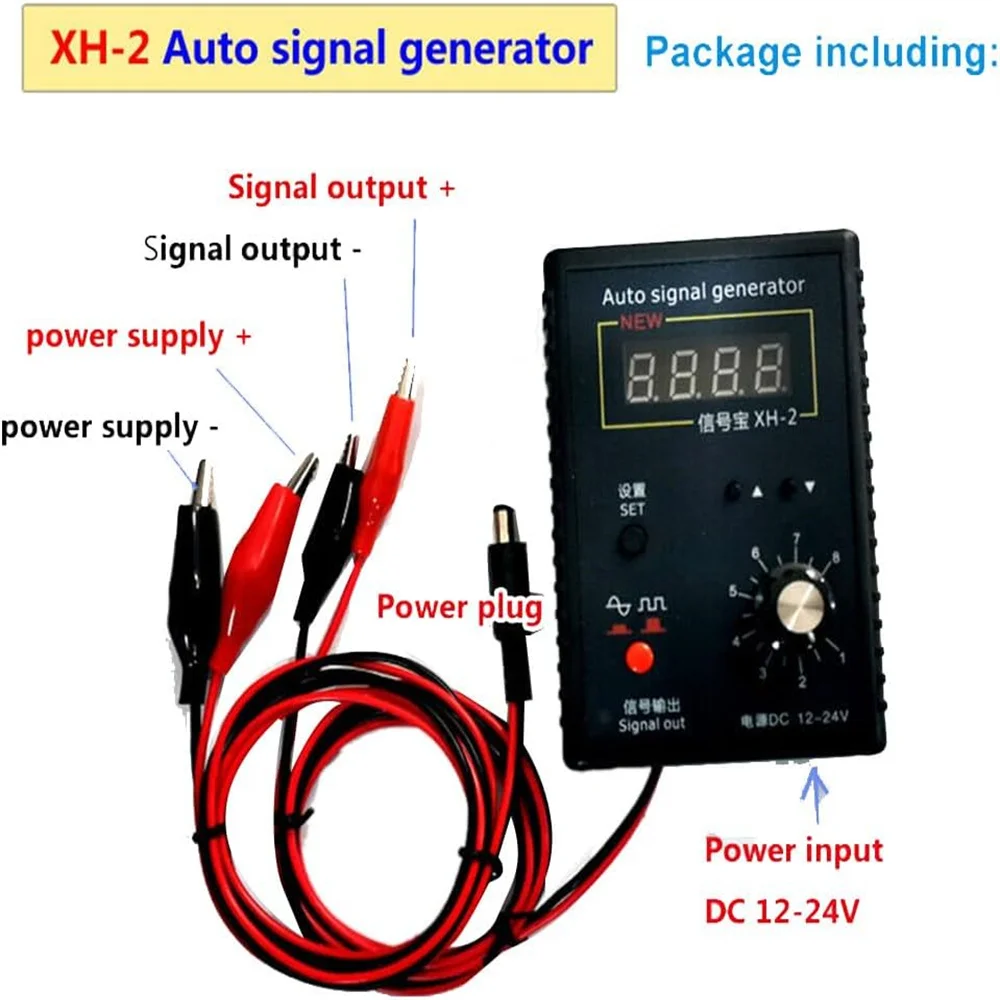

1 * Signal generator

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
