- High-concerned chemical: none
- Use: Not Telecommunication
- Electronic: No
- Wireless Support: No
- Is Batteries Included: no
- Item Weight: 0.42kg
- Brand Name: kawish
- Origin: Mainland China

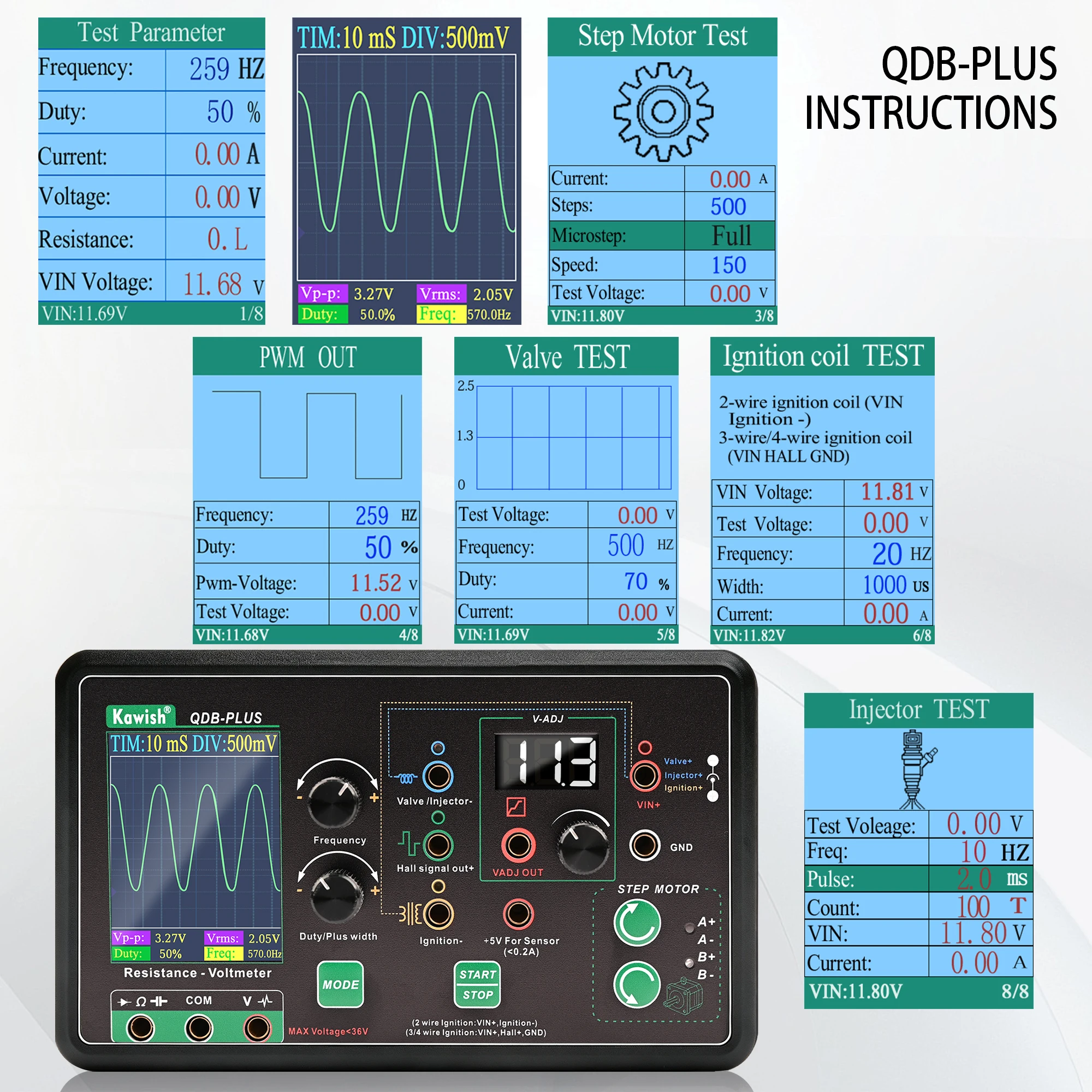

Upgrade of QDB-4A QDB-5A Auto Diagnostic Tool with Oscilloscope PWM Generator Multimeter for Stepper Motor Solenoid Valve Tester
Large screen, and more Easy to operate

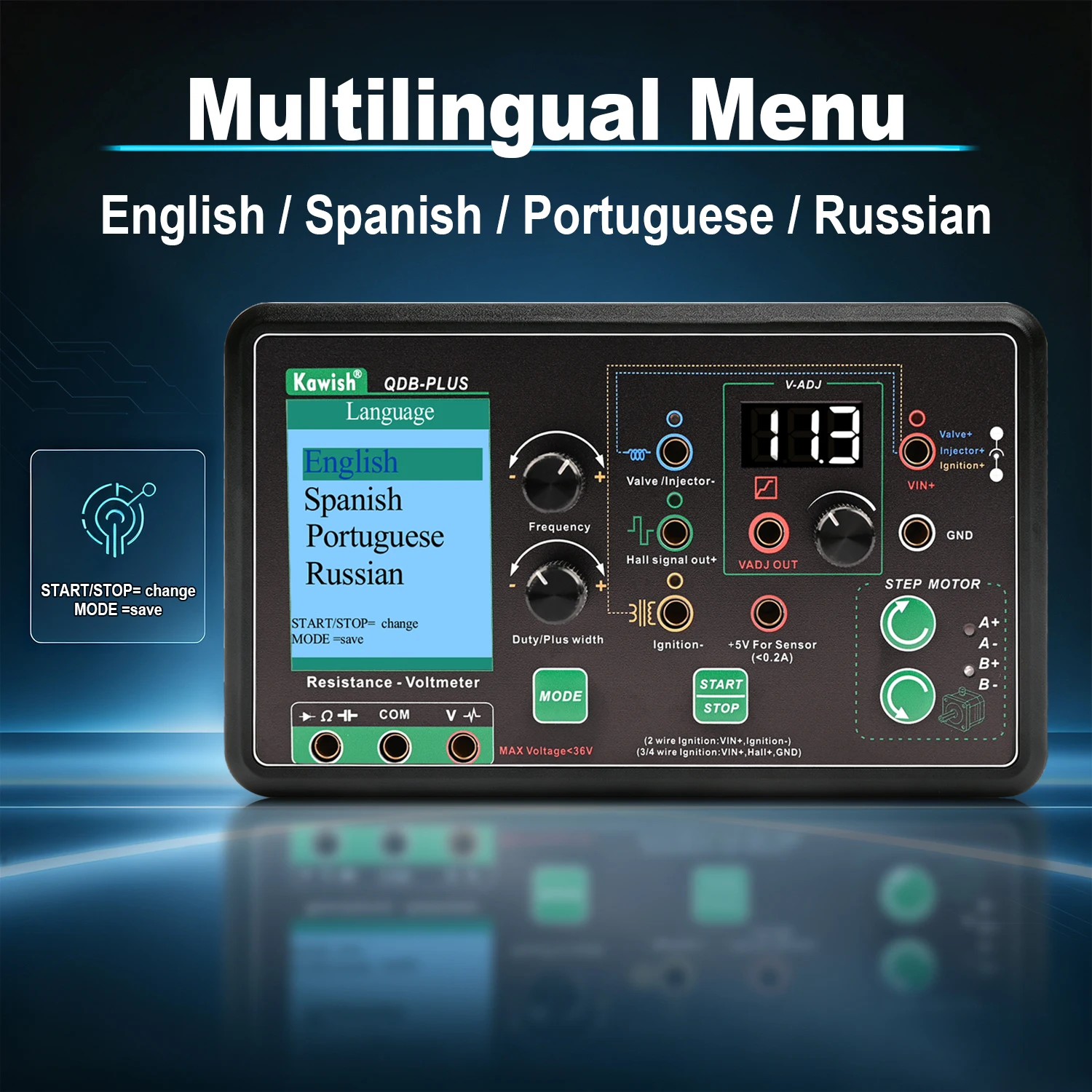

1. Mutilingual Menu(English/Spanish/Portuguese/Russian
2. Add Oscilloscope function

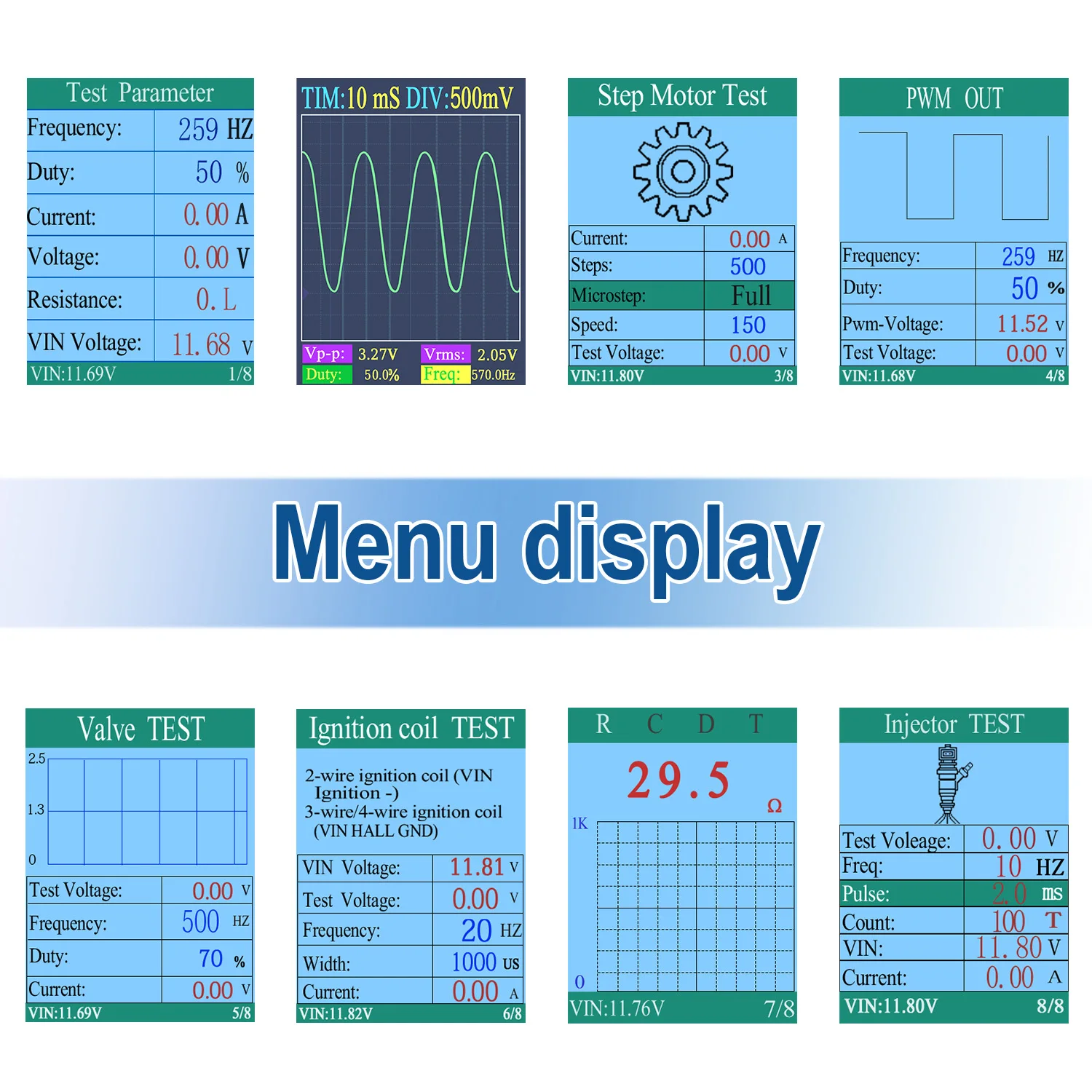

Product Main Functions:

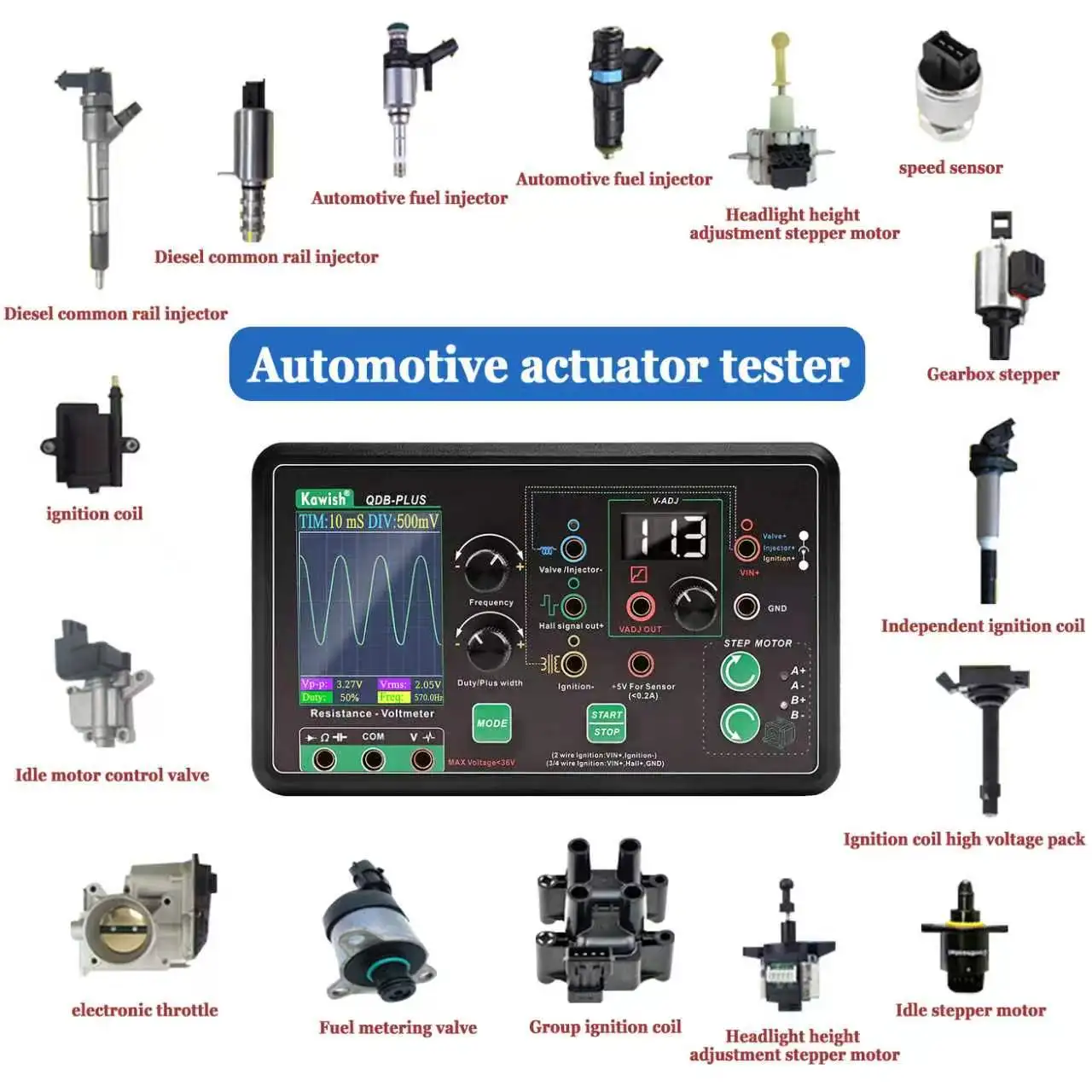

1.Drive test ignition coil:including independent ignition,coil type,Module Type.
2.Drive test fuel injector:including gasoline-powered car 12V fuel injector,diesel vehicle 12V 24V fuel injector.
3.Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.
4.Drive and test motors controlled by various duty ratios,urea pump motors,etc.
5.Drive and test idle stepping motors,instrument stepping motors,headlight follow-up steering stepping motor and so on.

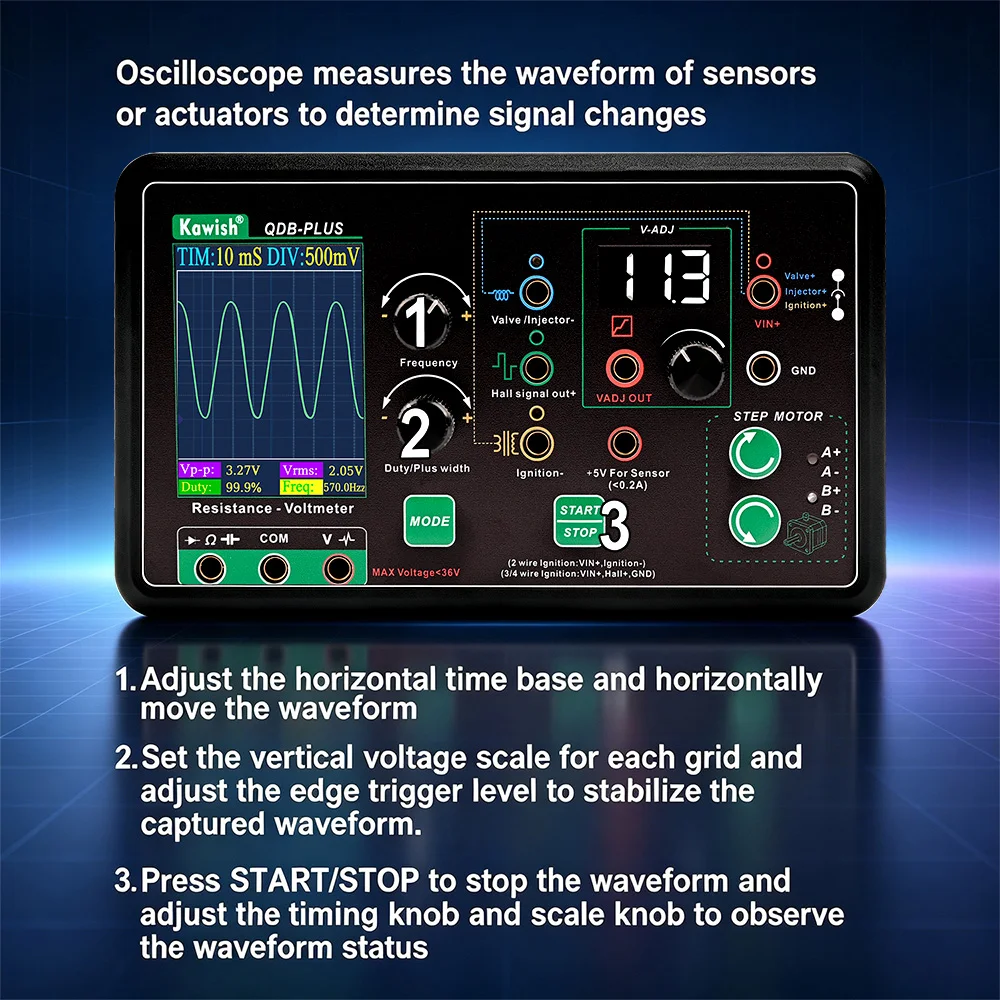

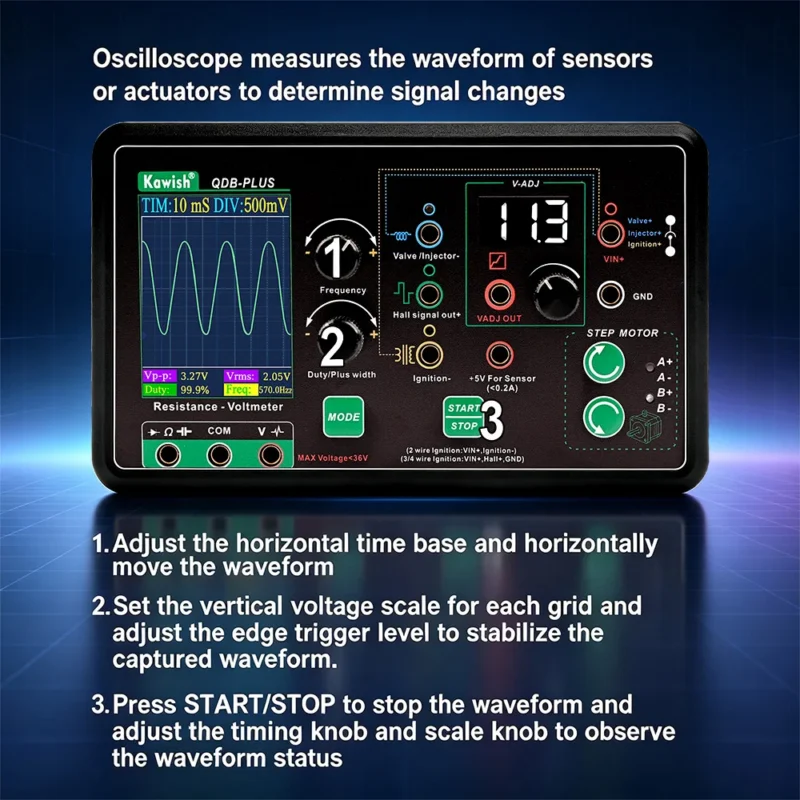

6.Oscilloscope function
7.Working Current Measurent
8.Diode Measurent
9.Capacitor Measurent
10.Hall signal with adjustable output frequency,amplitude and duty ratio.Used to simulate various duty cycle sensors,such as air conditioning pressure sensor(duty cycle type), air flowmeter(duty cycle type),etc.
11.Power supply voltage range:12V-24V,with reverse connection protection,overcurrent protection.
12.Electromagnetic coil driving current range:0-3.5A
13.Output frequency range:1HZ-100KHZ
14.Duty cycle adjustment:1%-100%
15.Adjustable voltage:1.25V-11.5V
Product Specification:
Model:QDB-PLUS
Power In:DC 8-28V
Power Out:0-2.5A
VADJ Out:0-1.5a
DMM:DC 0-30V/0-1M
PWM:1-100KHz/0-100%
Step Motor:Max 15A
Product SIze:17×9.8×2.8cm
Product Weight:About 175g
1 set Weight:About 0.39kg
Packing :Packing in colorful box

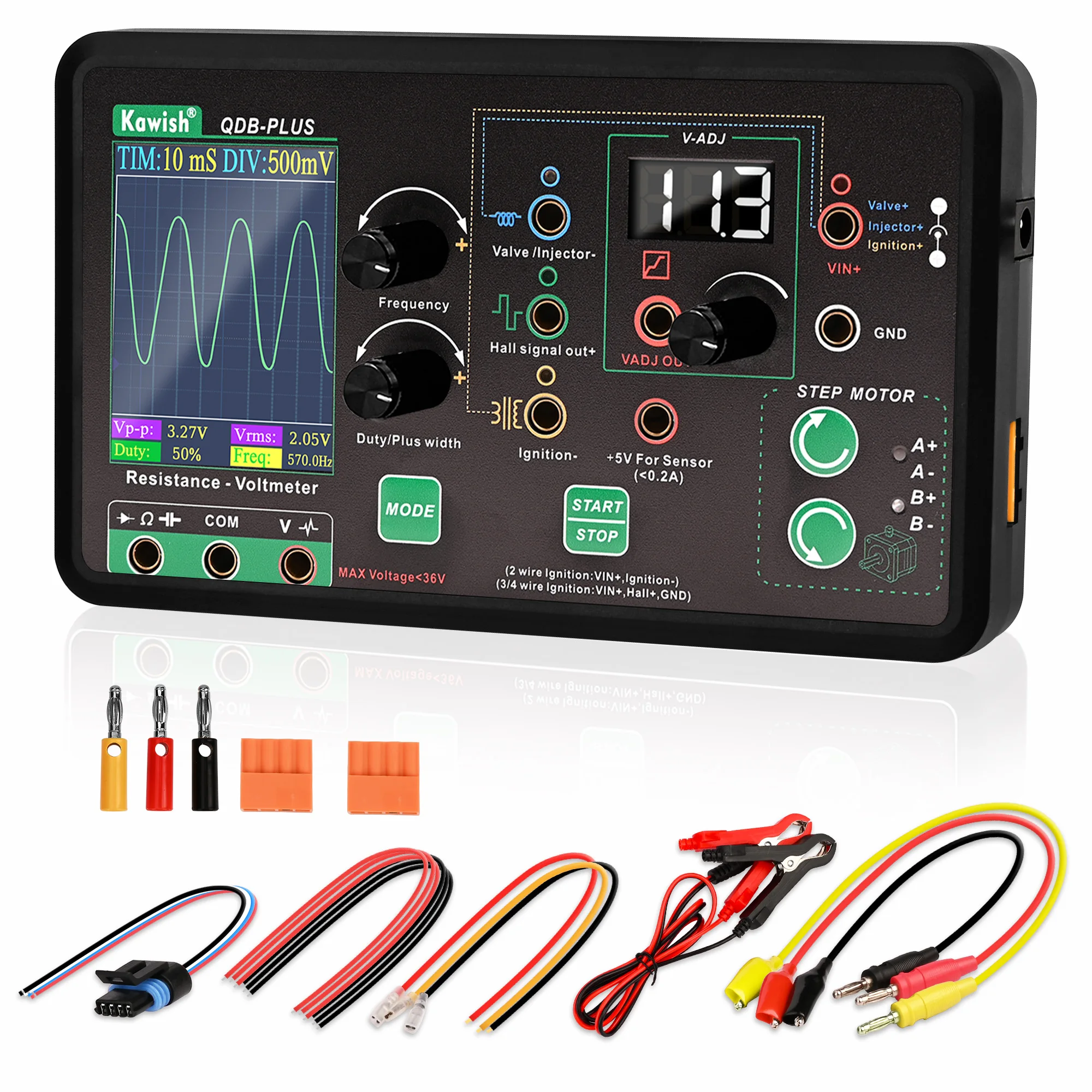

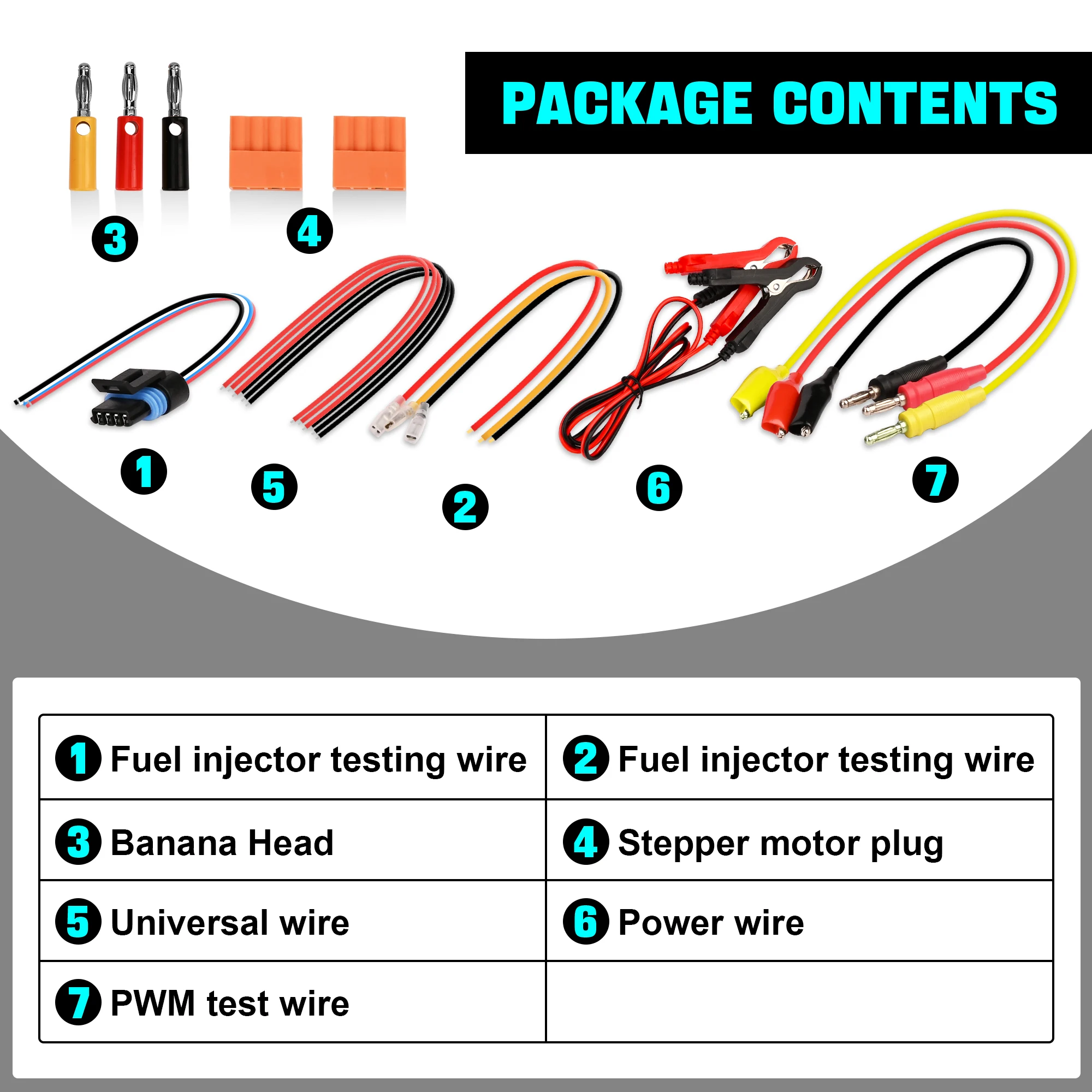

Package Including:
1 x QDB -PLUS
1x power cable
3x test connect cables
4xsingle plugs
1xIdle speed stepper motor plug
1xStepper motor welding cable
