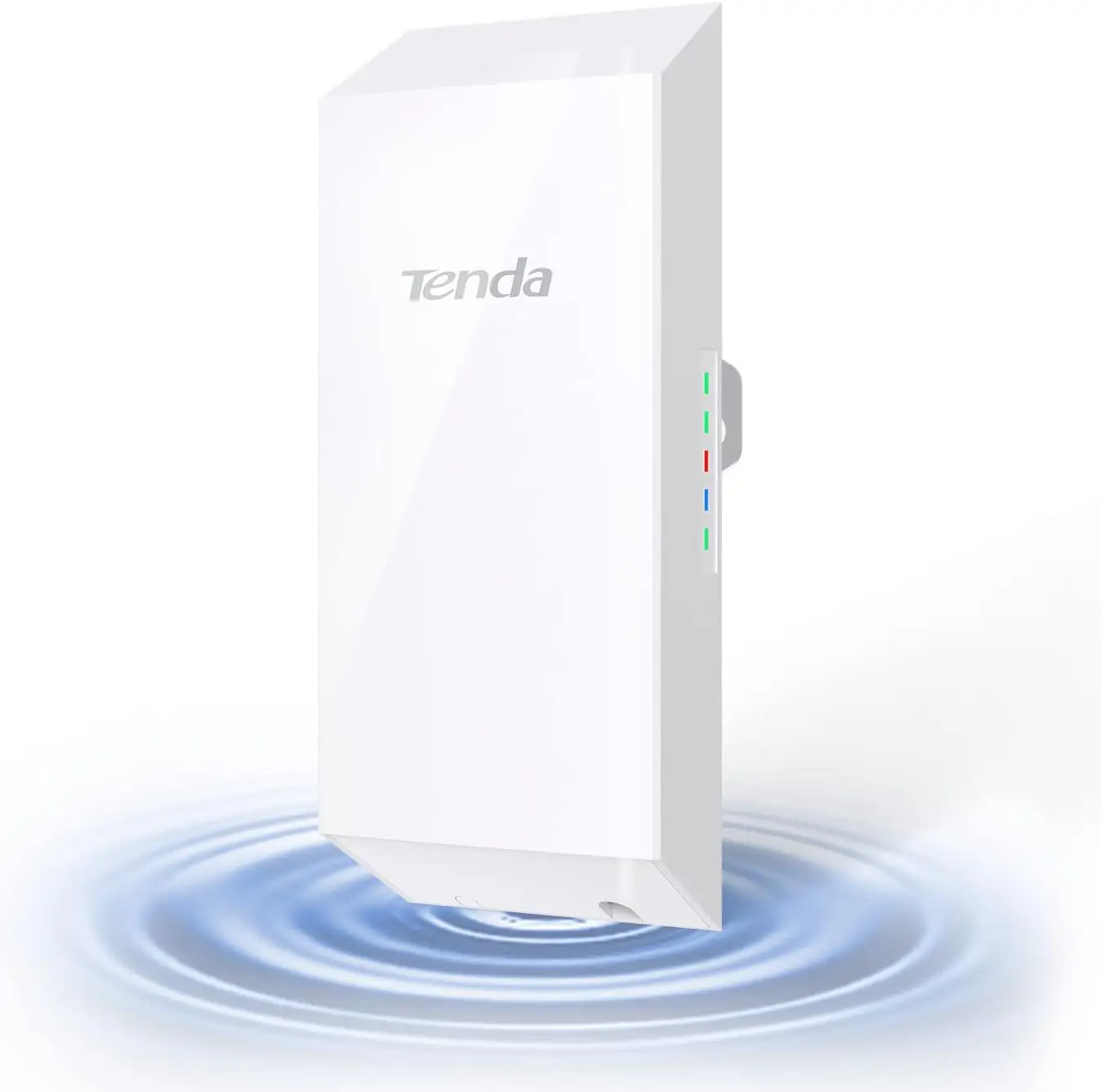

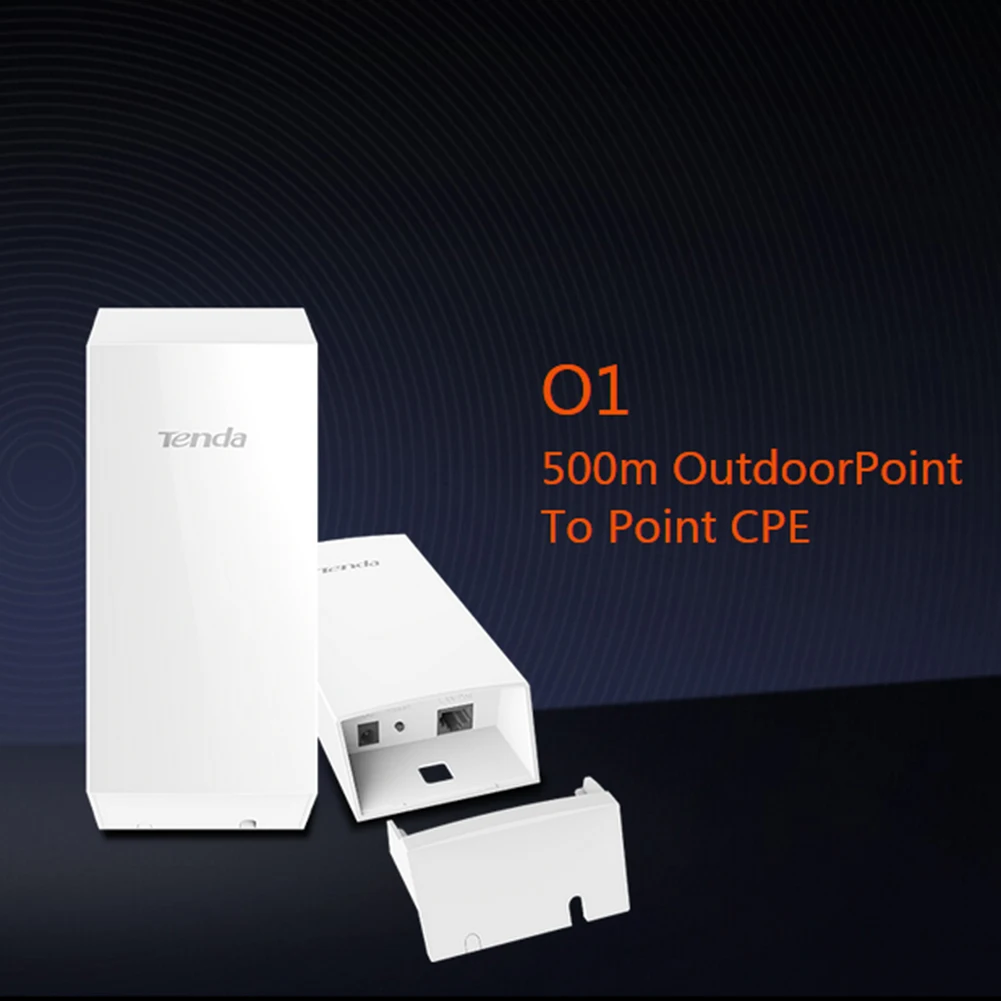

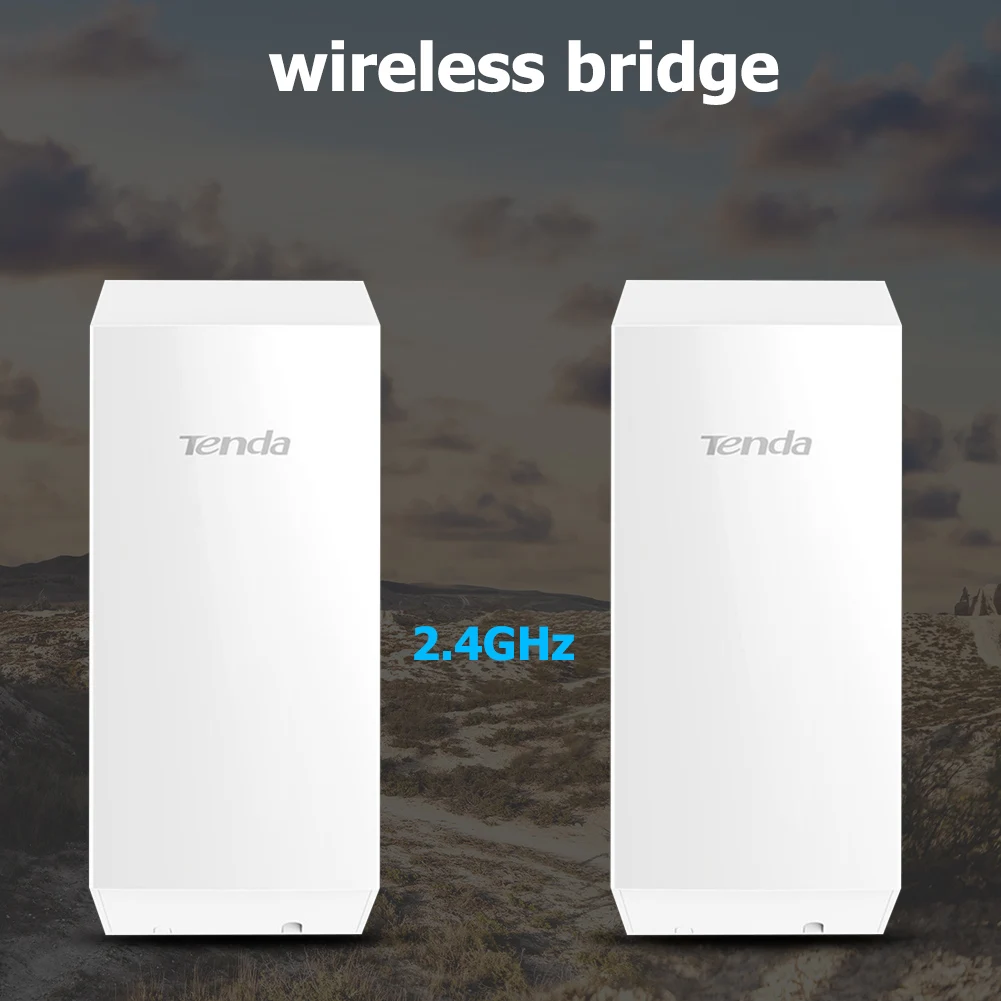

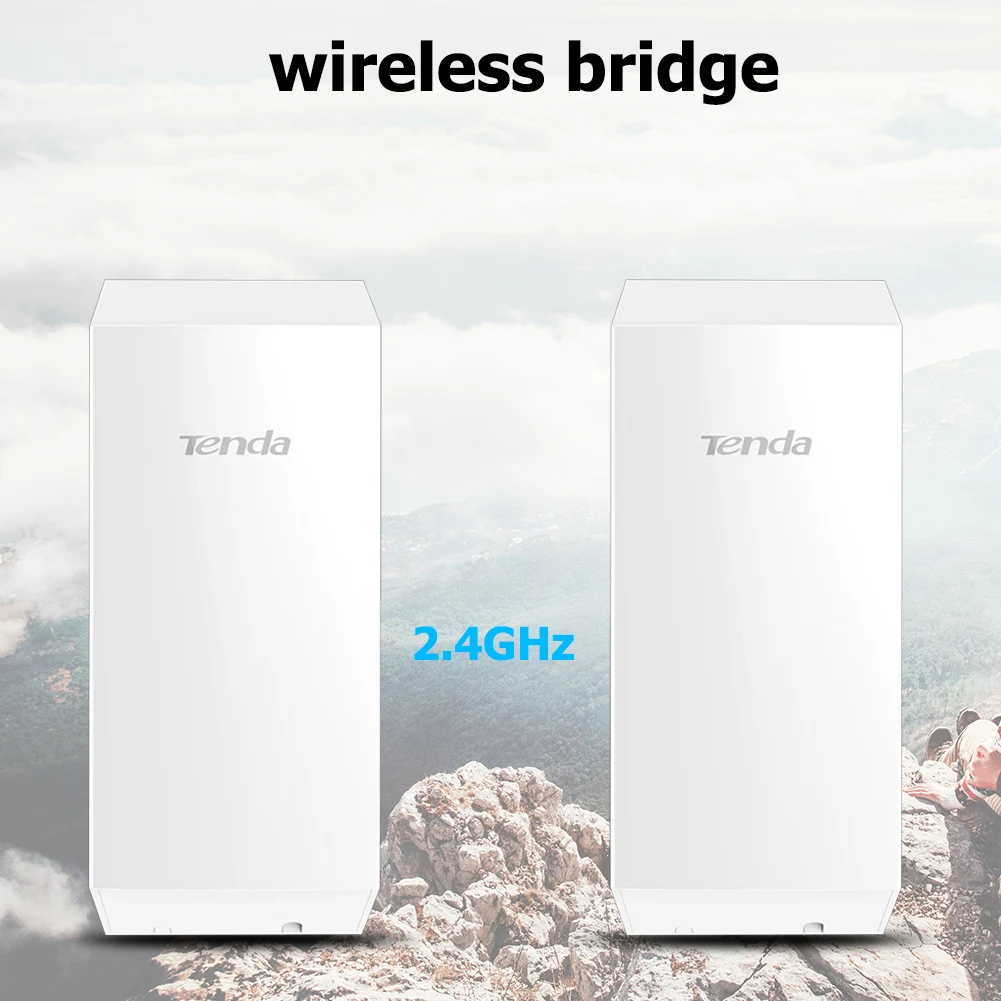

Tenda O1 300Mbps Wireless Bridge AP Security 2.4GHz 8dBi Outdoor Point to Point for Elevator Monitoring Video Surveillance Transmission
Outdoor wireless network bridge designed for video surveillance of elevators, crane towers, communities, factories, orchards, scenic spots and other scenes; the equipment works in the 2.4GHz frequency band, adopts 11n technology, and can provide up to 300Mbps wireless data transmission rate; built-in 8dBi high Gain directional antenna with stronger signal penetration. Based on pole-mounted design, it can be directly installed on walls and columnar objects. It is beautiful and elegant; it adopts industrial-grade high-grade waterproof and dust-proof plastic shell, which can work in all kinds of wind, rain and snow. And other outdoor environments.
1. For video surveillance application scenarios, transparent bridge technology is adopted to allow the wireless bridge interface to forward all data packets, which mainly solves the problem that some NVRs cannot activate cameras and NVRs cannot manage IPC across network segments;

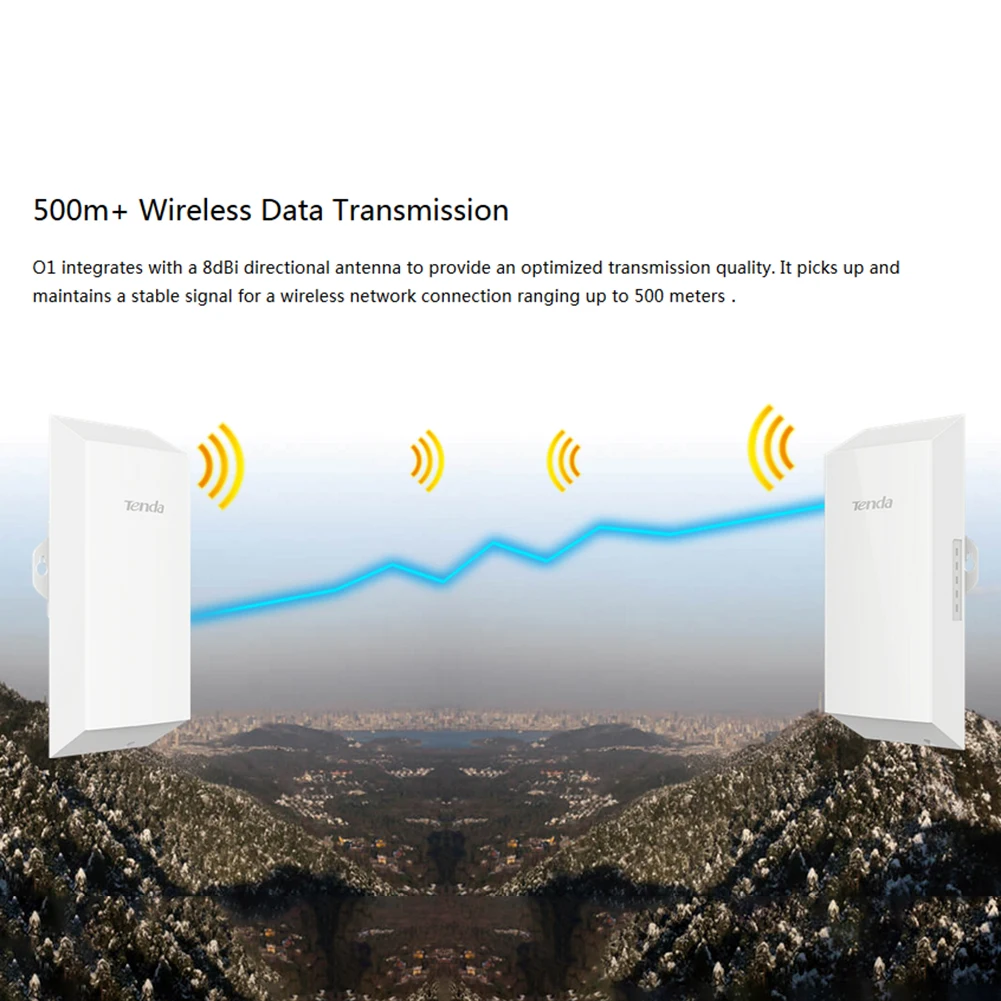

2. Built-in 8dbi high-gain directional antenna, the horizontal coverage angle is 60 degrees, the vertical angle is 30 degrees, the wireless transmission energy is more concentrated, and the transmission distance in the strong interference environment can reach 500 meters;

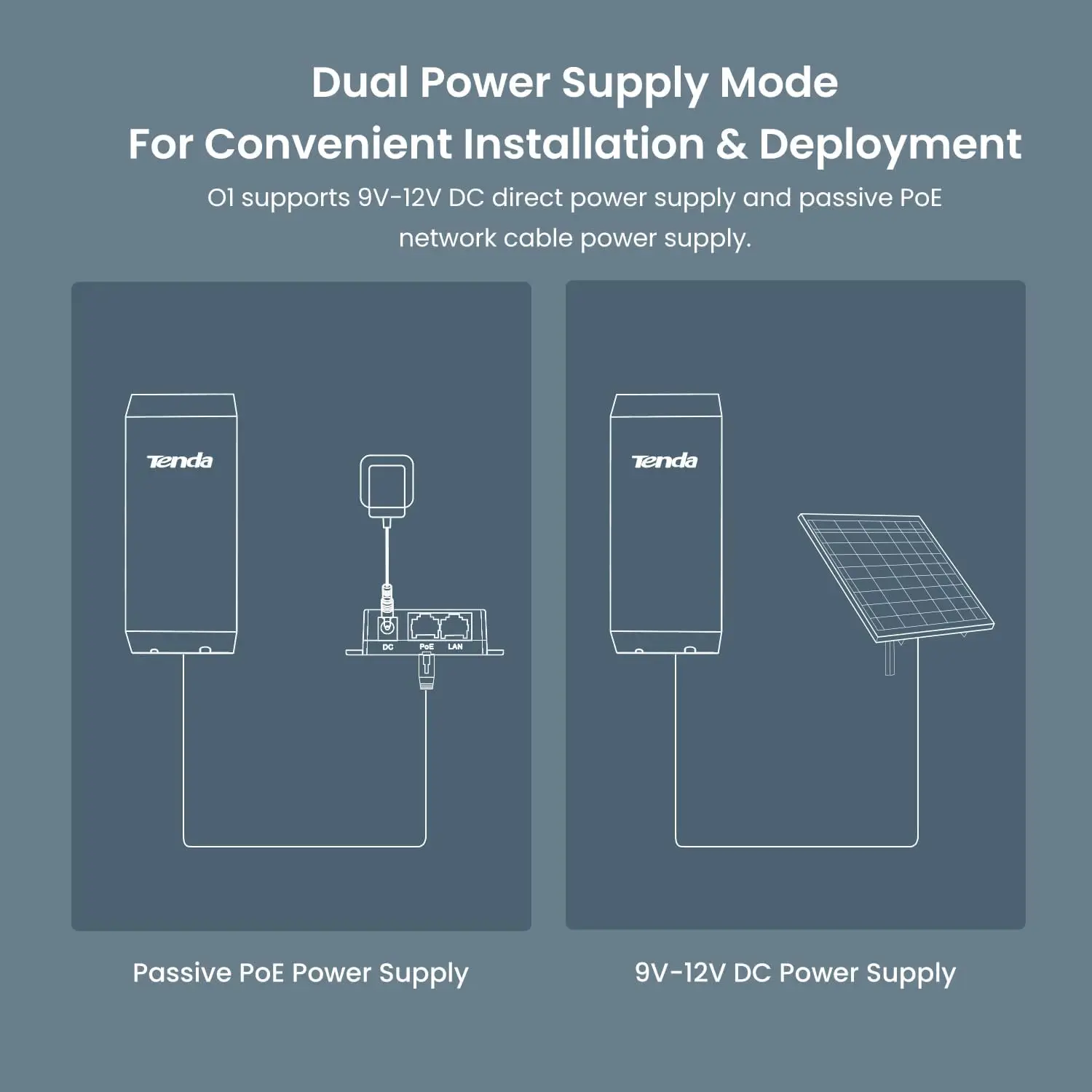

3. Support 9V-12V DC direct power supply and passive PoE network cable power supply. When the bridge is installed far away from the power socket, passive PoE network cable can be used for power supply. When the bridge is installed away from the power socket or the camera power supply line When the device is near, use DC direct power supply;

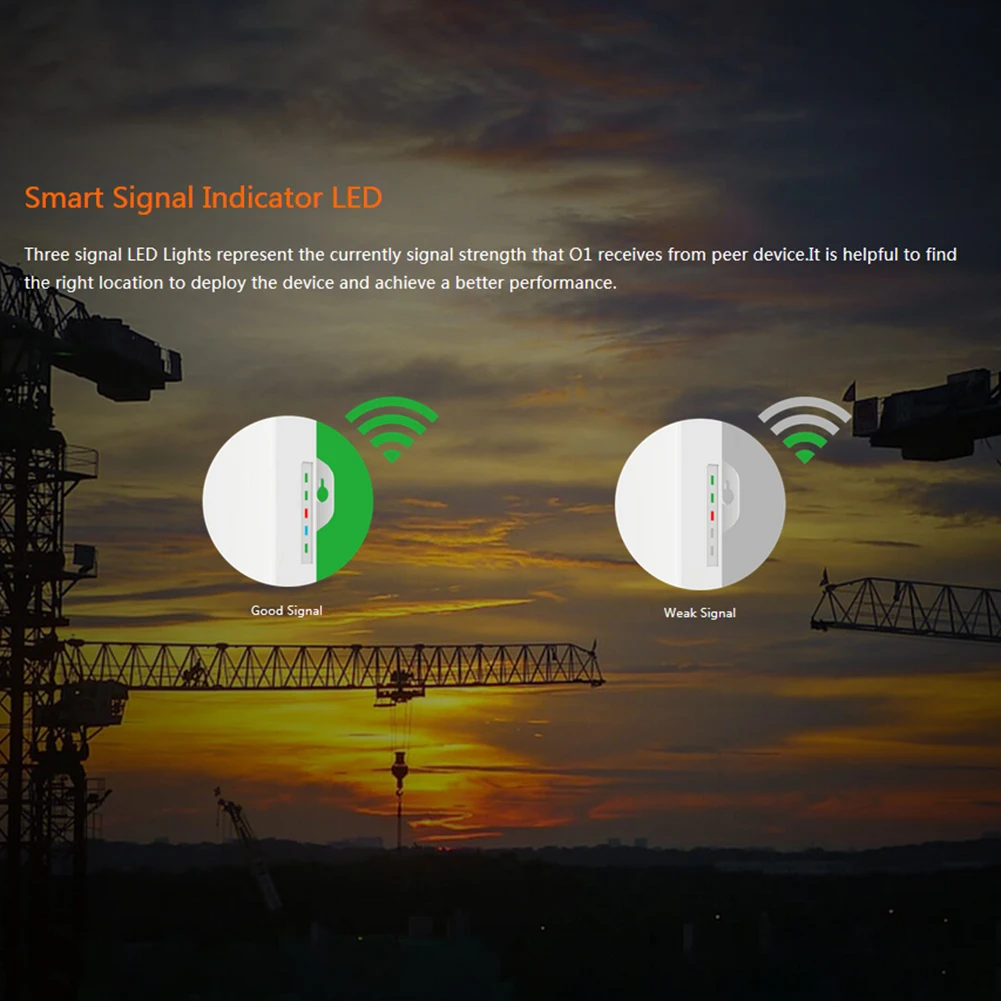

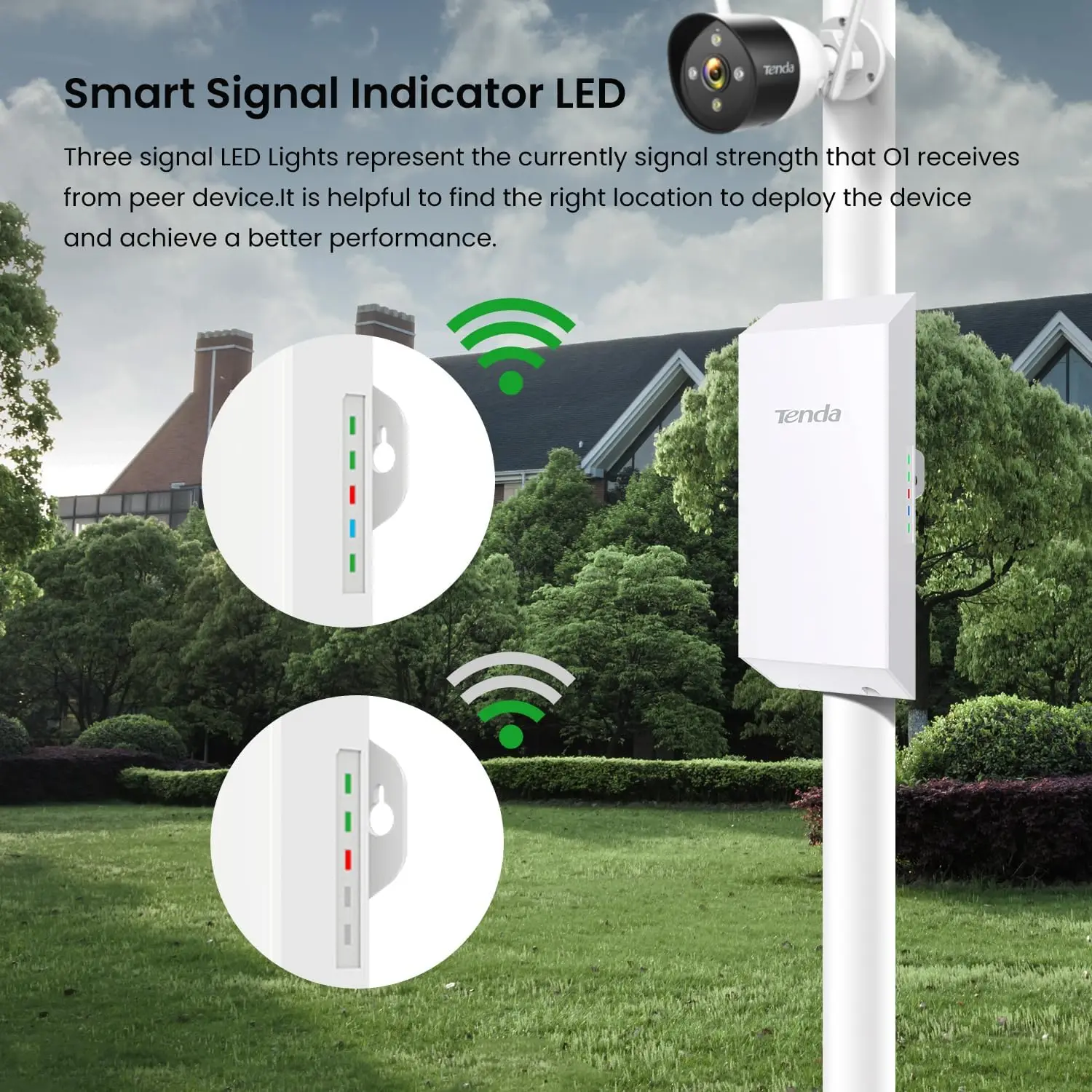

4. Multi-level signal strength indicator design is adopted, and different colors are used to display the signal strength of the current bridging peer device. When installing the equipment, you can find the best installation position and direction according to the on and off status of the signal indicator;

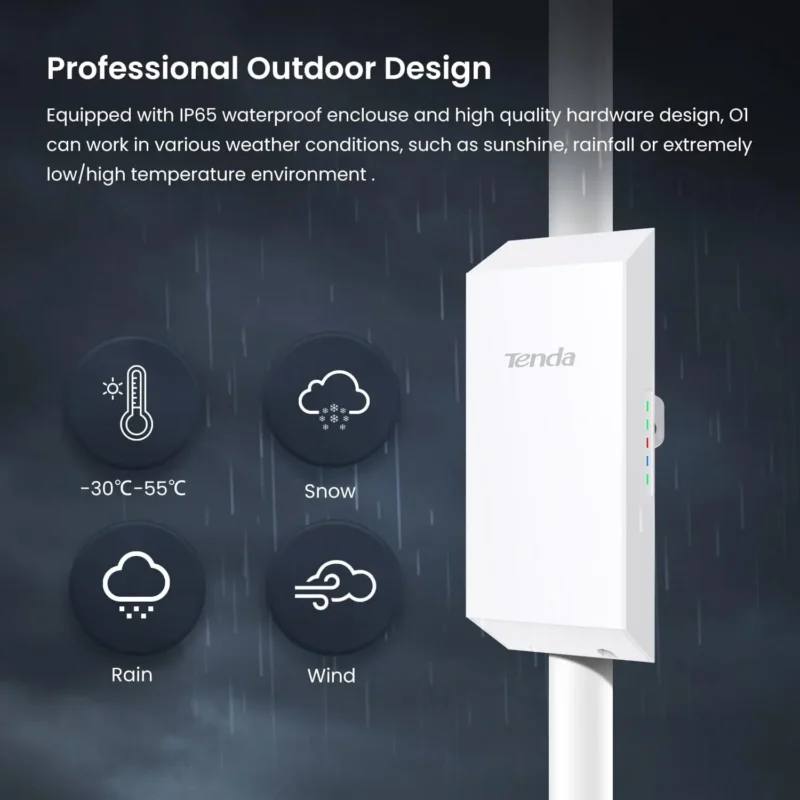

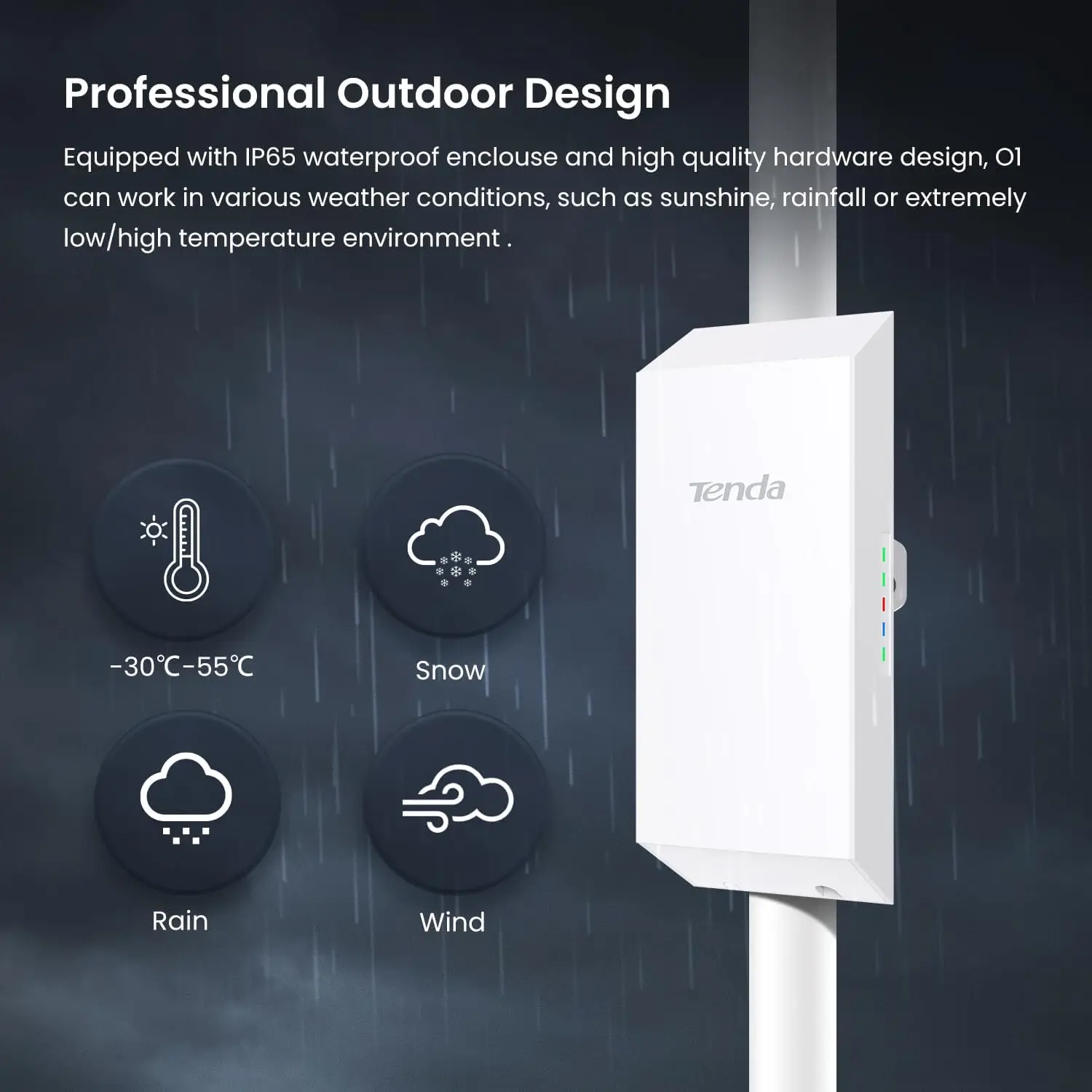

5. Adopting high protection grade shell design, dustproof and waterproof grade up to IP65; high specification electronic materials, outdoor working temperature range -30℃ to 55℃, suitable for various severe outdoor environments such as wind, rain and snow;

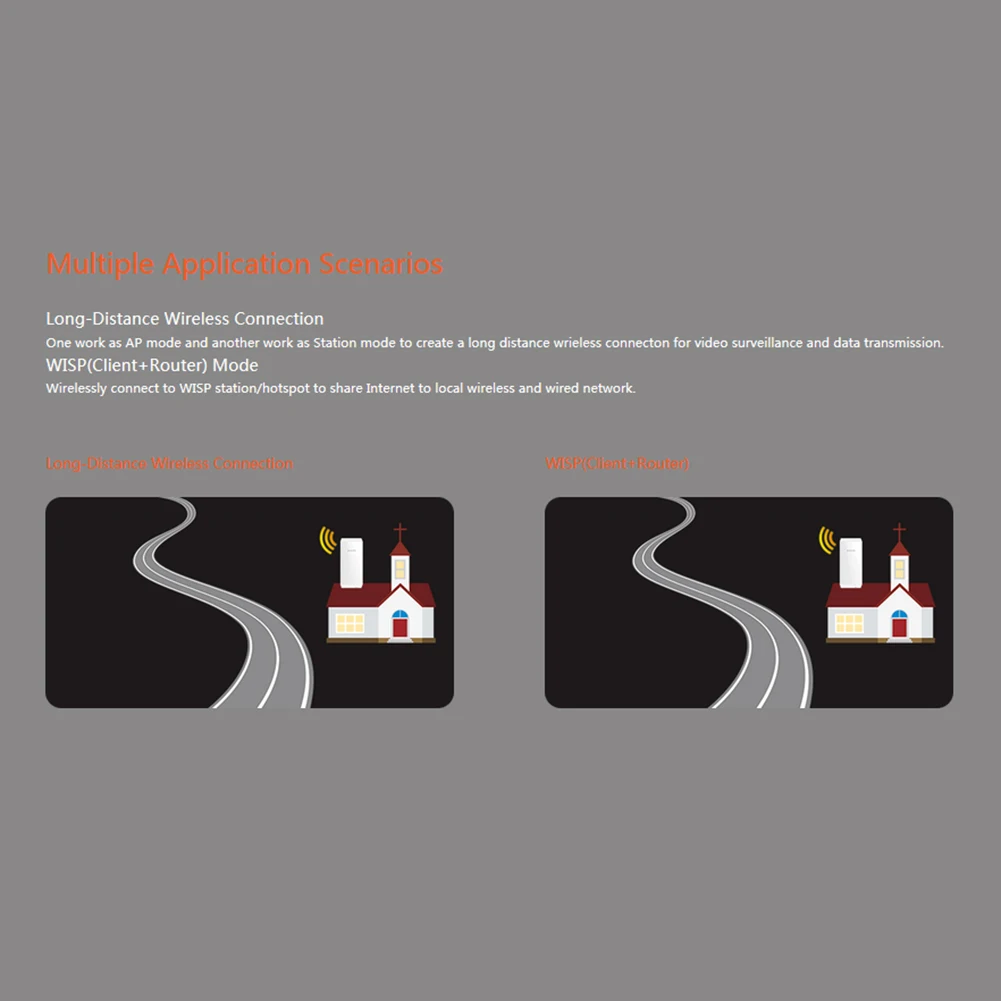

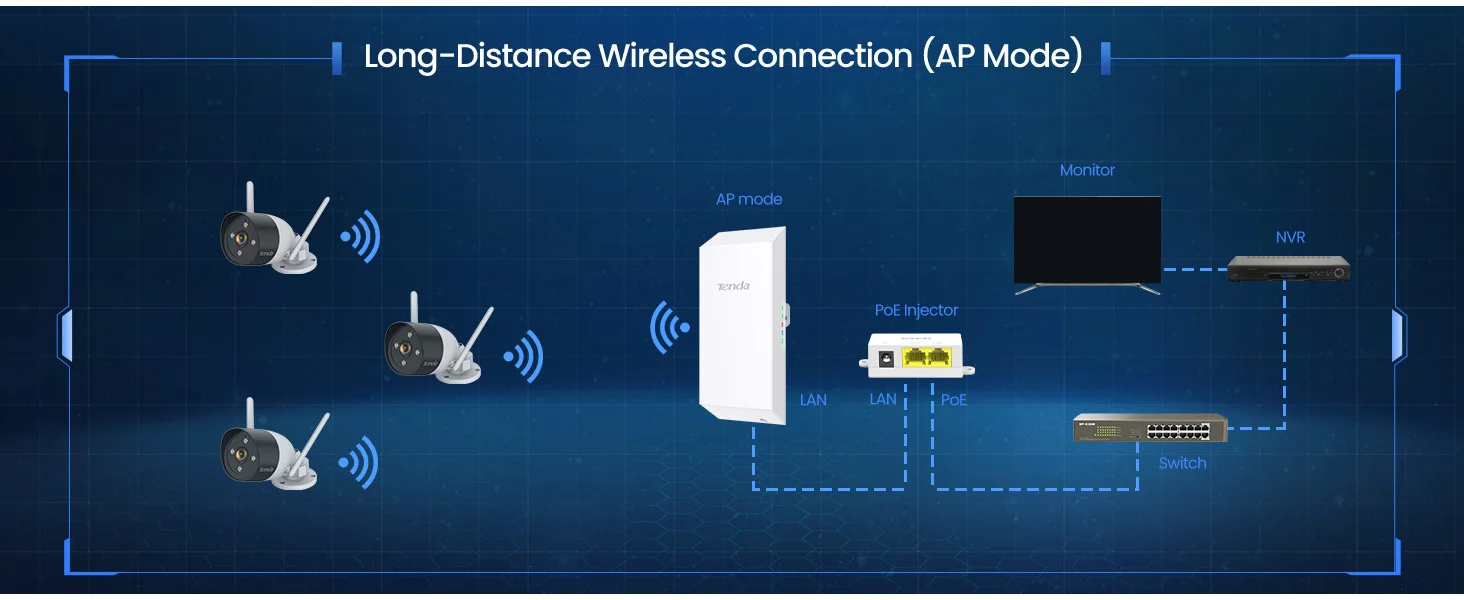

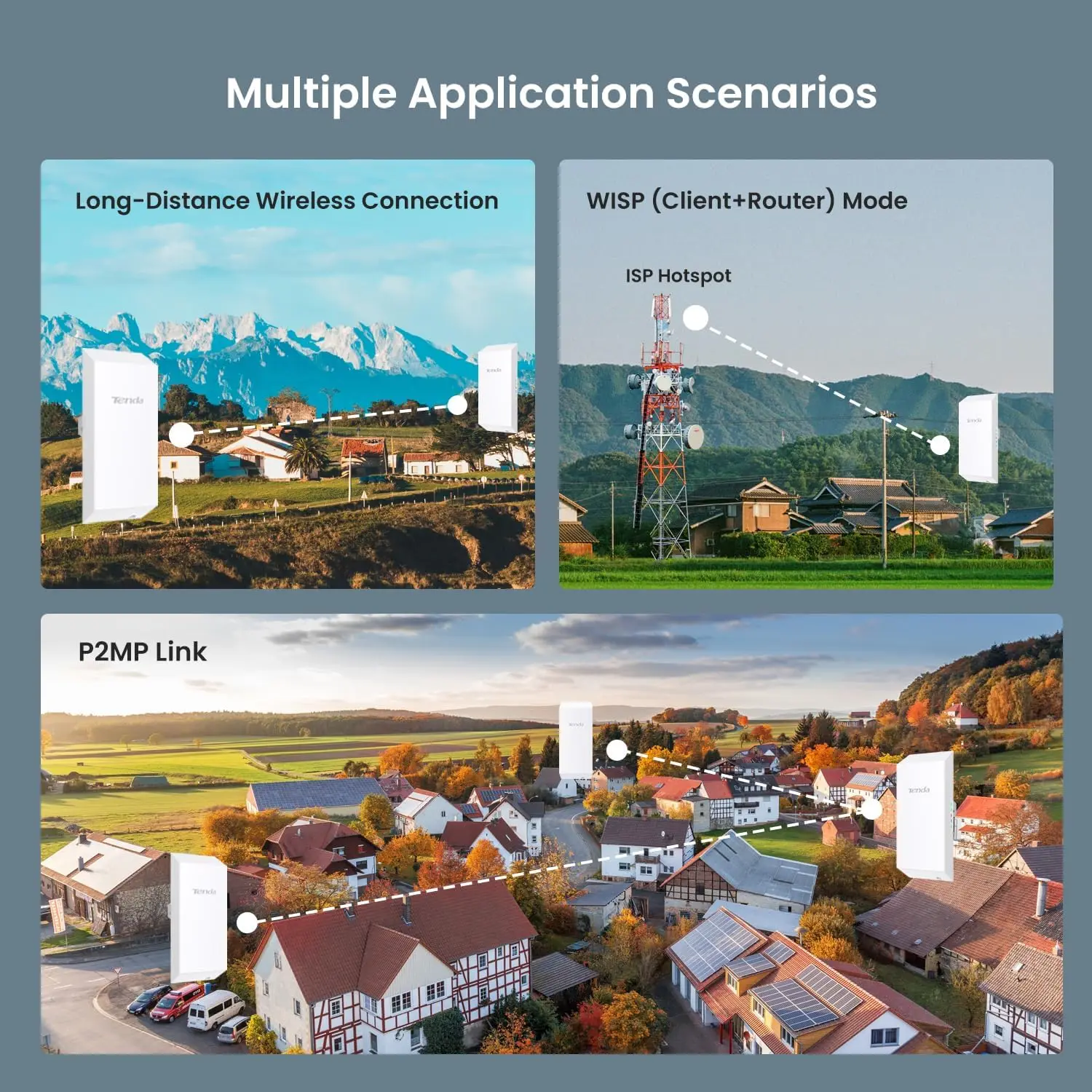

6. Support AP, client, wireless WAN working mode, can be used for long-distance point-to-point data transmission, video monitoring, wireless connection to ISP signal tower.
No.2674657054
Working frequency band: 2.4GHz
Maximum access rate: 300Mbps

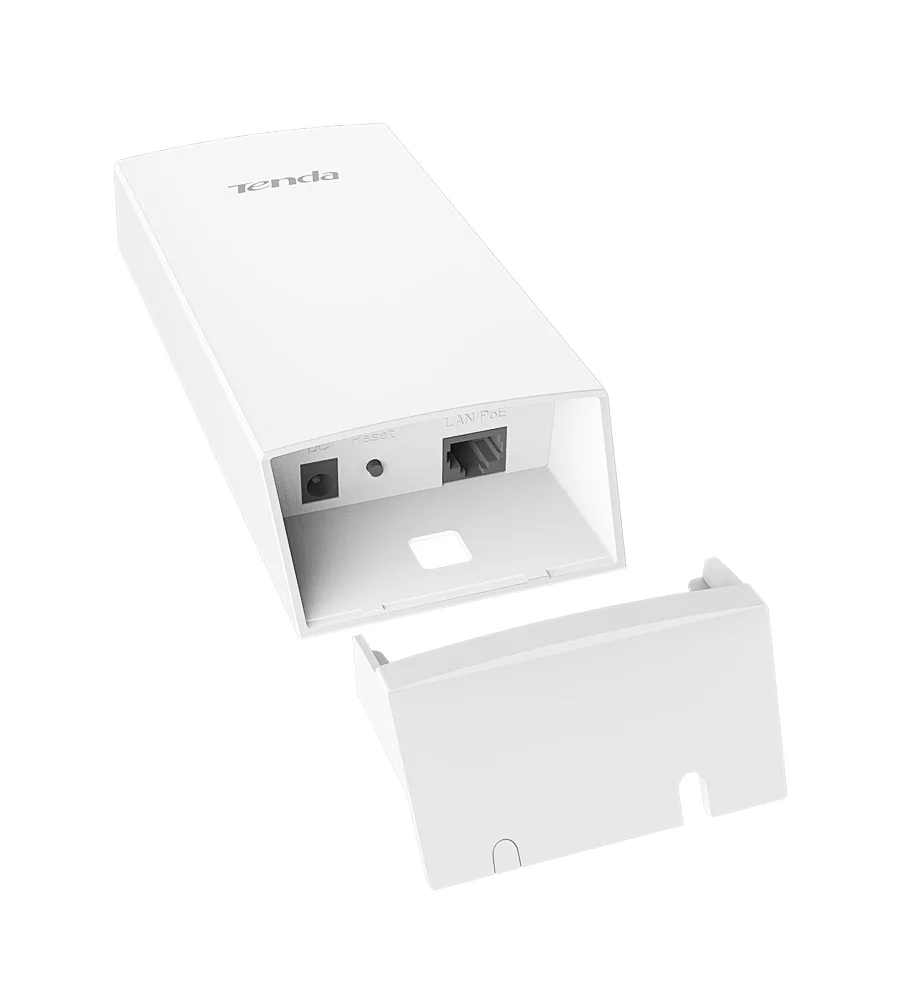

Ethernet interface: 1 10/100Mbps LAN port
LED lights: 1 PoE/LAN, 1 WiFi, 3 signal strength indicators LED1, LED2, LED3
Antenna gain: 8dbi directional antenna
Antenna angle: horizontal angle 60 degrees, vertical angle 30 degrees
Whole machine power consumption: 2.8W
Dustproof and waterproof grade: IP65
Input voltage range: 9V-12V
Power supply mode: DC power supply or passive PoE power supply
11b 1Mbps transmit power: 20dB
11n MCS7 transmit power: 17dBm
11b 1Mbps receiving sensitivity: -92dBm
11n MCS7 receiving sensitivity: -72dBm
Working mode: AP, client, wireless WAN
Transparent bridge: support
Diagnostic tools: support ping, Traceroute, signal scanning, Ping watchdog

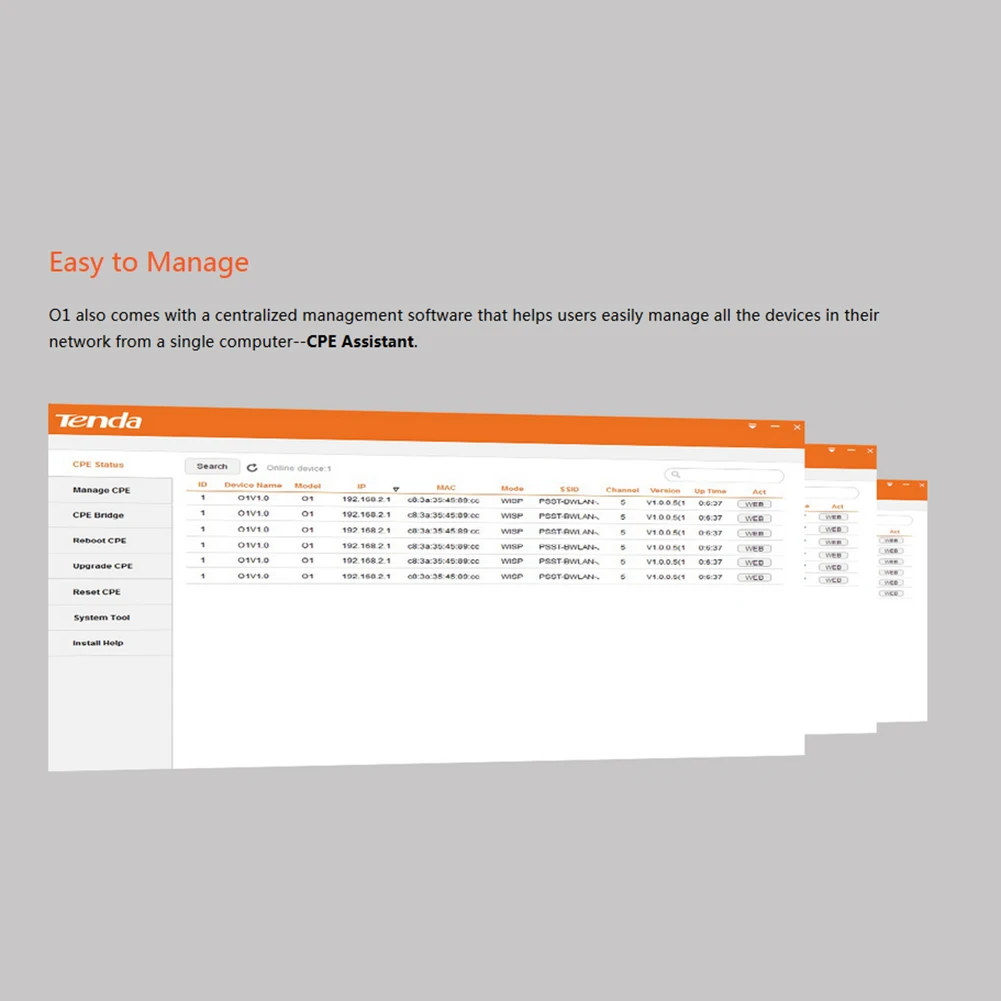

Device management: support
Software upgrade: support
Device restoration to factory settings: support
Configuration backup: support
Configuration restore: support
Log function: system log view
Wireless standard: IEEE 802.11b/g/n
WPA2-PSK encryption: AES/TKIP
WPA-PSK encryption: AES/TKIP
WEP encryption: support 64/128 bit encryption
Wireless access control: support filtering based on for MAC address
Adjustable transmit power: support
Client access restriction: Support wireless client RSSI threshold setting
Default login IP: 192.168.2.1
Working temperature: -30℃ to 55℃
Working humidity: 10%-90%RH (non-condensing)
Storage temperature: -30℃ to 70℃
Storage humidity: 10%-90%RH (non-condensing)

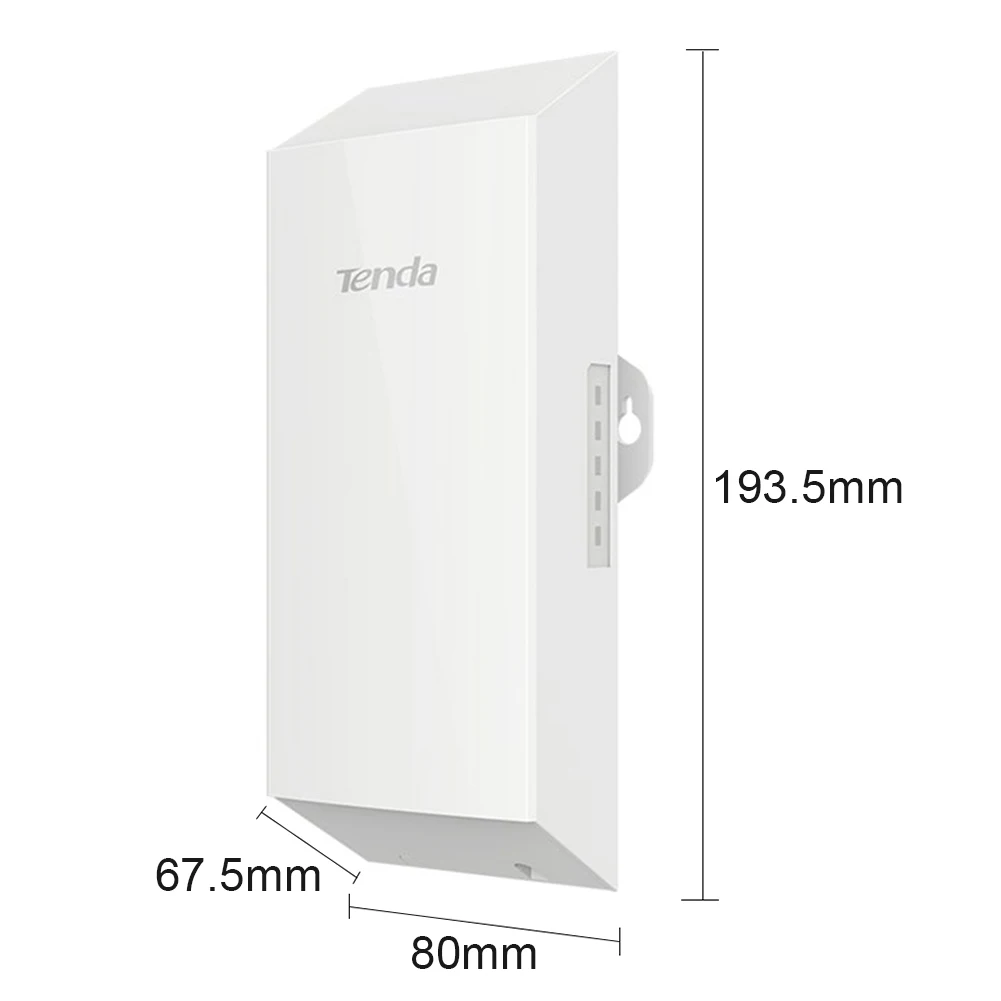

Product size: 194*80*68mm/7.64*3.15*2.7in
Application: monitoring video transmission in elevators/crane towers/communities/factories/scenic areas and other scenes

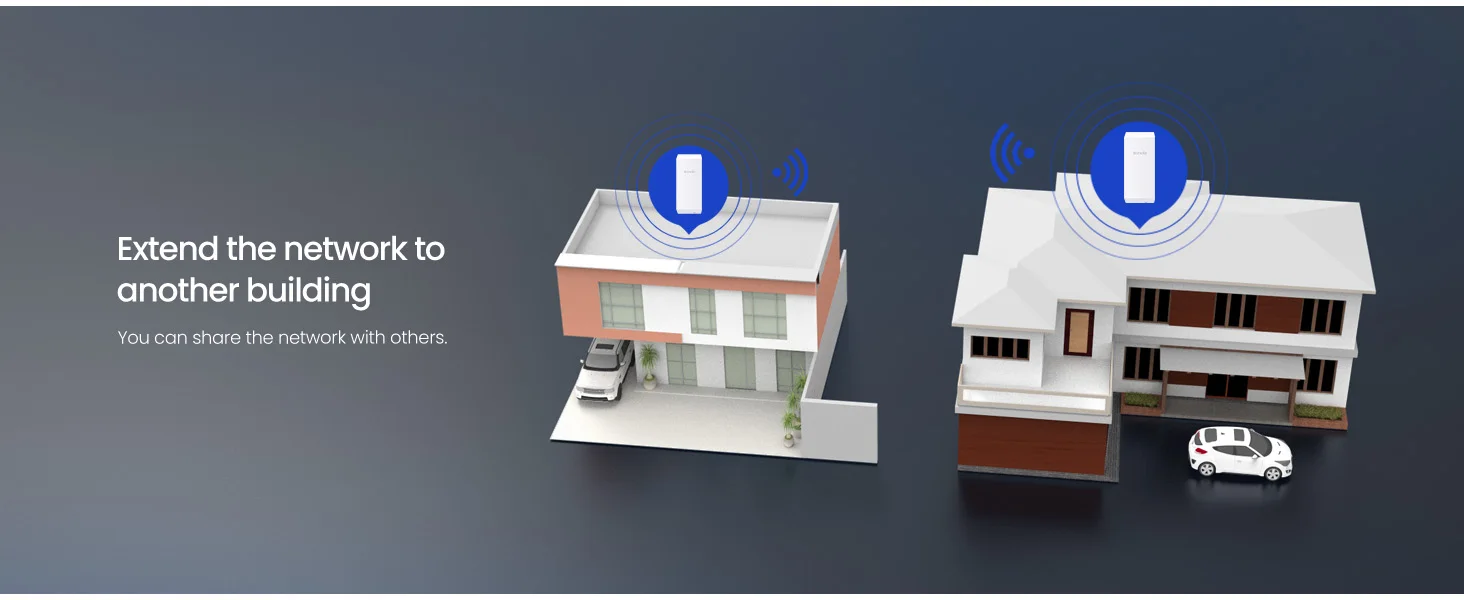

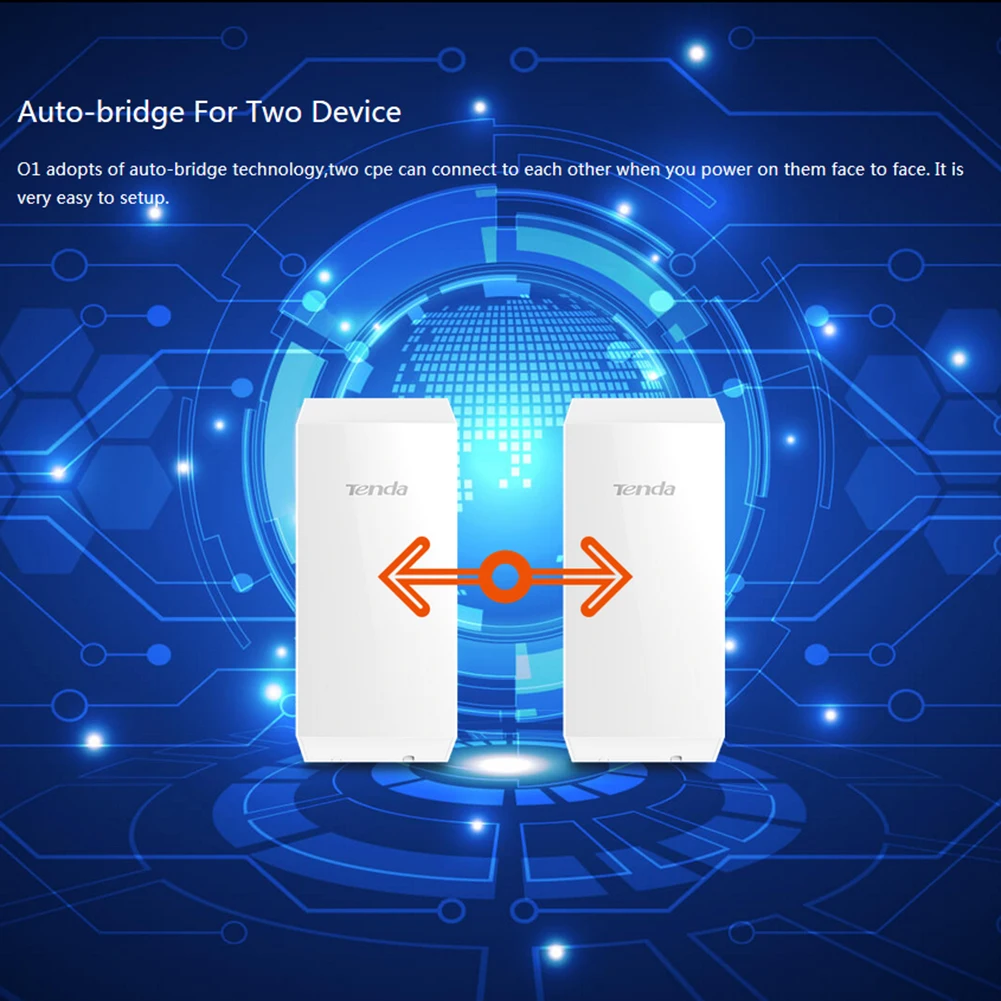

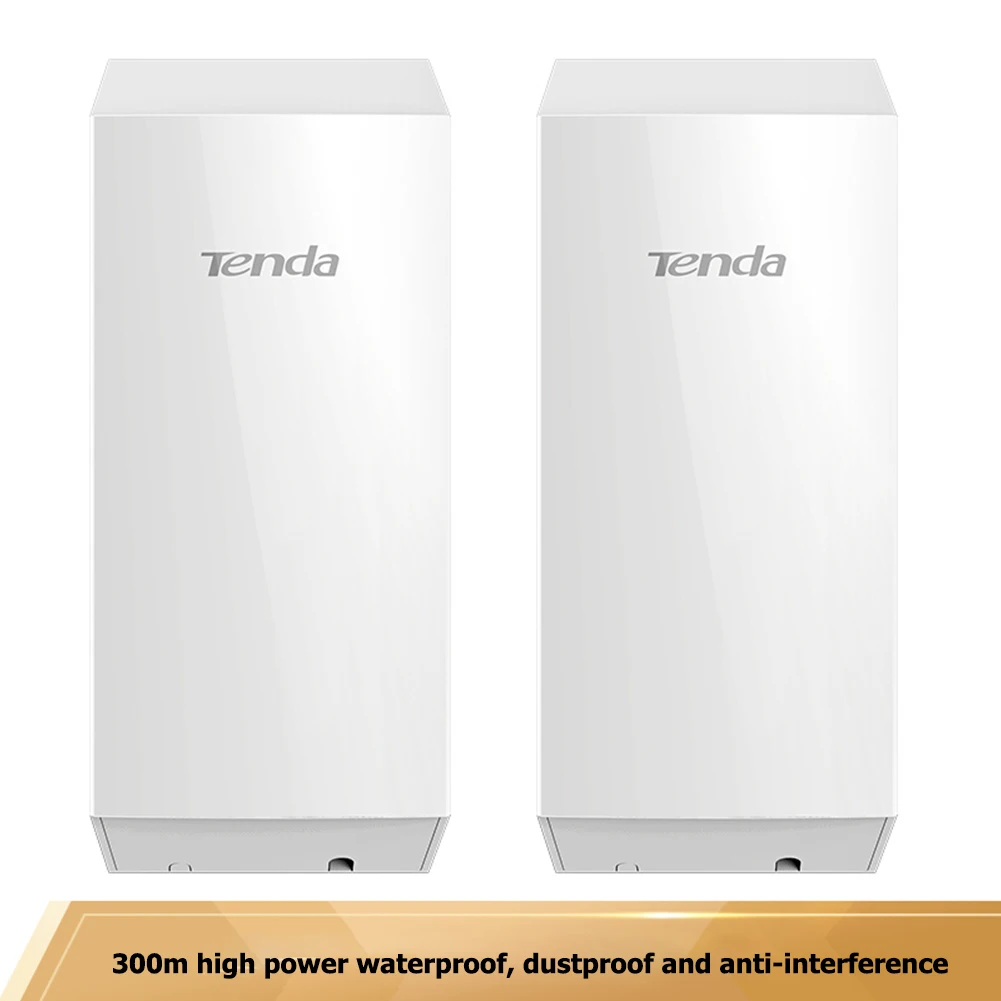

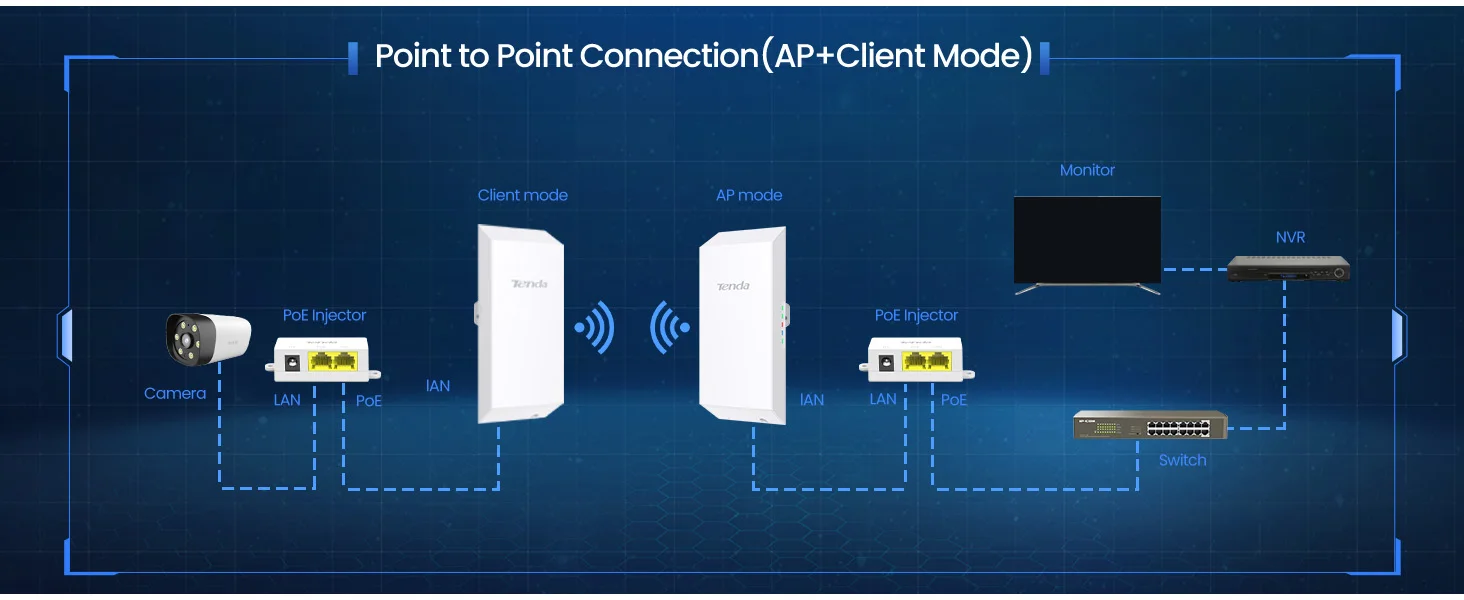

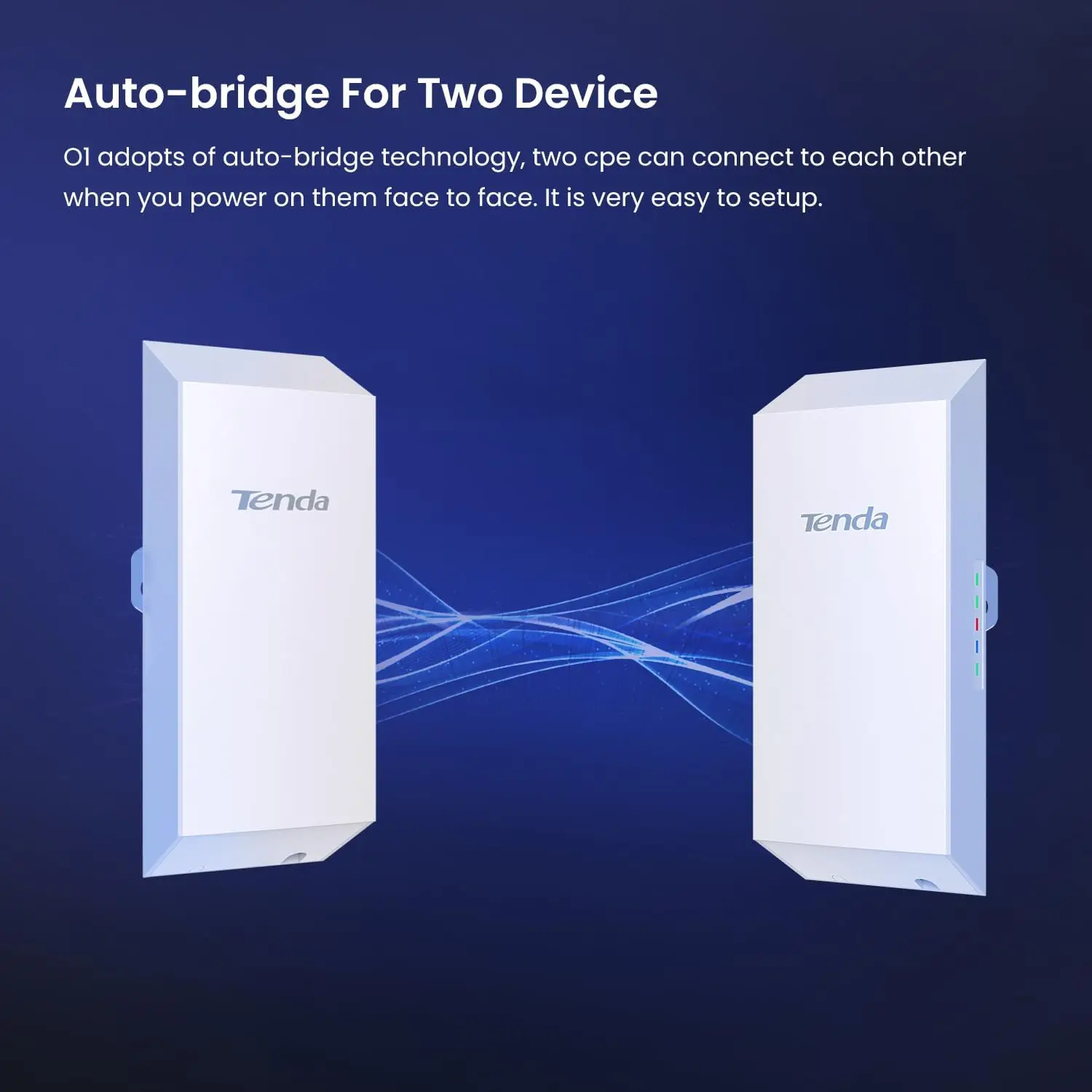

1. This product is a point-to-point wireless bridge. Generally, 2 of them are required to achieve point-to-point wireless bridging.

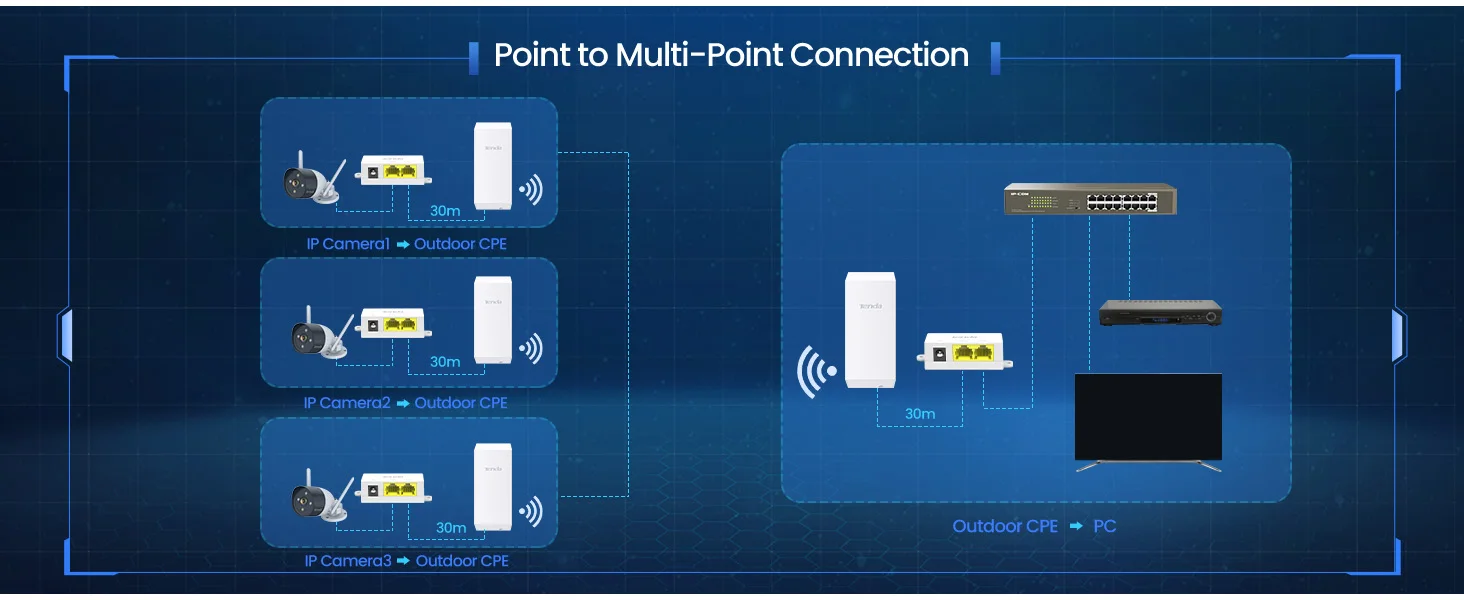

2. It can do 1 to 4, that is, 1 main network bridge and 4 sub-network bridges are used for wireless bridging;

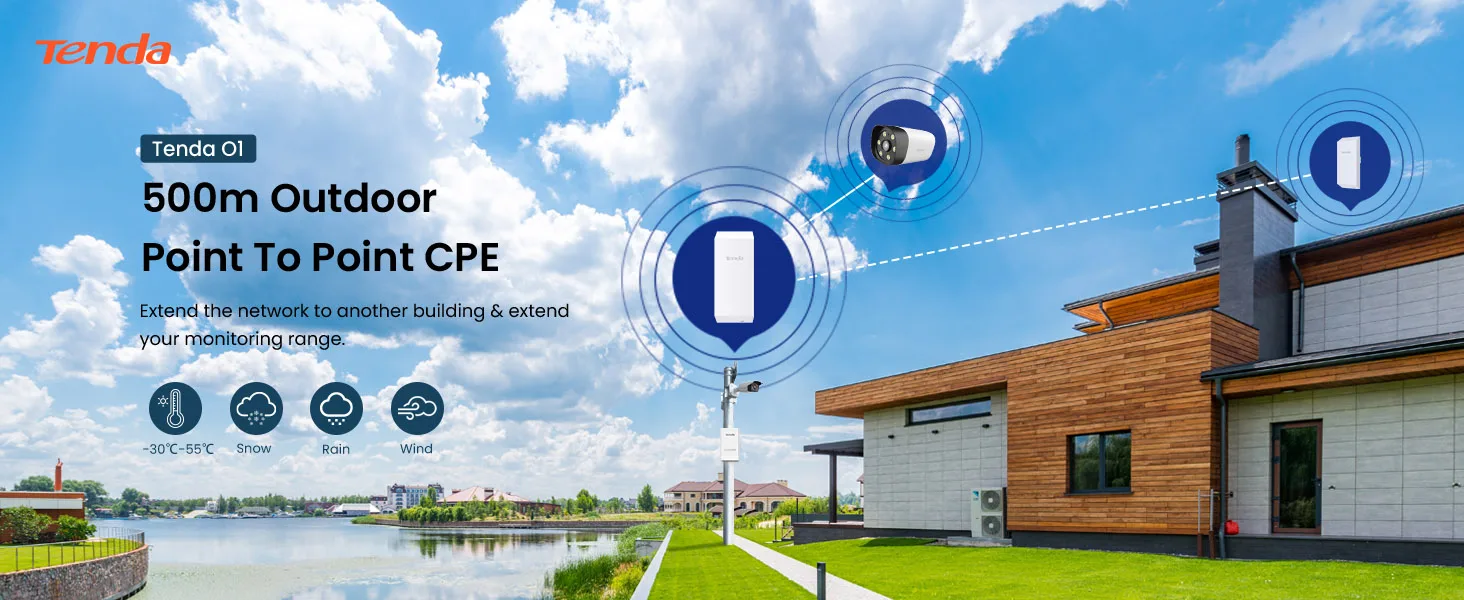

3. It can transmit 500 meters, with a horizontal installation angle of 60 degrees and an upper and lower installation angle of 30 degrees;
4. This product can only be used as a wireless point-to-point bridge, and cannot be used as a wireless AP.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
