- Communication Interface: OBD-II
- Software Update: Yes
- High-concerned chemical: none
- Electronic: No
- Wireless Support: No
- Is Batteries Included: no
- Item Weight: 2kg
- Item Height: 22cm
- Item Width: 5cm
- Item Length: 18cm
- External Testing Certification: ce
- Voltage: 9V-12V-24V-32V
- Model Name: VDIAGTOOL BT500
- Hardware Version: NEWEST
- Brand Name: VDIAGTOOL
- Origin: Mainland China
- Material: Plastics
- Item Type: Battery Testers
- Power (W): W
- VDIAGTOOL BT500 Battery Tester 1: 24V Car Battery Tester / Battery Load Tester
- VDIAGTOOL BT500 Battery Tester 2: Car Battery Analyzer for Automobile/Moto/Truck
- VDIAGTOOL BT500 Battery Tester 3: Automotive Cranking Charging Test Tools / Charging & Cranking Analyzer
- VDIAGTOOL BT500 Battery Tester 4: Car Battery Capacitor Tester / Car Alternator Tester
- VDIAGTOOL BT500 Battery Tester 5: Automotive Alternator Tester / Automotive Alternator Meter Diagnostic Tool
- Battery Capacitance Test Range: 5-3000 CCA
- Voltage Measuring Range: 9V-12V-24V-32V
- Wide Compability: Car / Truck / Motorcycle / SUV / ATV / Boat
- Support battery standards: CCA, BCI, CA, MCA, JIS, DIN, SAE
- 12 Languages: English,Chinese,Japanese,Korean,ltalian,Dutch,German,Russian,Portuguese,Spanish,French,Polish
- BT500 Car Battery Tester Function 1: Battery Load Test
- BT500 Car Battery Tester Function 2: Battery Capacity Test
- BT500 Car Battery Tester Function 3: Battery Resistance Test
- BT500 Car Battery Tester Function 4: Charging Test
- BT500 Car Battery Tester Function 5: Cranking Test
- BT500 Car Battery Tester Function 6: Starter & Alternator Tester
- BT500 Car Battery Tester Function 7: View Battery Healthy
- BT500 Car Battery Tester Function 8: Ripple Analysis
- BT500 Car Battery Tester Function 9: Waveform Data (Save up to 20 entries)
- BT500 Car Battery Tester Function 10: Data Review & Print
- BT500 Car Battery Tester Feature 1: polarity protection
- BT500 Car Battery Tester Feature 2: spark-proof function
- BT500 Car Battery Tester Feature 3: over-voltage protection and over temperature protection
- Screen Type: 2.8 inch TFT colour screen
- Update: Lifetime free upgrade
Welcome to VDIAGTOOL
1. We are an online store opened by the VDIAGTOOL brand! 100% original product, 2-year warranty, and lifetime technical support provided.
2. 1-5 Days Fast Delivery From Overseas Warehouse (ES/FR/PL/RU/US/UK).
3. Support Wholesale Price and Dropshipping.
4. 365 Days Replacement, If your device problem cannot fix after contact the seller, you can send it back for us to repair or exchange the new one.
Attention!
We will choose the nearest overseas warehouse toship based on the address of the order, but insomecountries, if the overseas warehouse is out of stockor unable to deliver, the product can only be shippedfrom China.
Top Reasons to Buy VDIAGTOOL BT500 Automotive Battery Tester:
1.Multiple battery standards:
CCA, BCI, CA, MCA, JIS, DIN, SAE and so on;
2.Wide Battery Coverage:
5-3000CCA regular flooded , AGM flat plate , AGM spiral , GEL , EFB and so on;
3.Wide compatibility:
Suitable for car, light duty truck, SUV, van, motorcycle, RV, ATV, trailer, boat, yacht, mower and even golf cart;
4.Battery Health Test Result:
SOH (state of health), SOC (state of charge), CCA value, voltage, internal resistance, etc.
5.Cranking/Starting Test:
Predict if the battery will fail to crank/start a vehicle.
6.Charging Test:
Helps determine if the output voltage of the generator, the rectifier diode, and the charging current is normal.
7.Plug & Play & Easy To Use：
Show concise suggestions in seconds (Good, Bad, Recharge, Replace), with menu buttons to navigate easily.
8.3-LED Indicators:
Easy to tell if battery’s good (Green), there’s a warning (Orange), or there’s a serious issue (Red).
9.100% Safe Usage:
Reverse polarity protection, short circuit protection, overcurrent protection, anti-spark safe clips;
10.Lifetime free update & 3-Year Warranty & 24/7 Tech Support.
11.Multilingual Menu:
English, Chinese, Japanese, Korean, Italian, Dutch, German, Russian, Portuguese, Spanish, French, Polish
12.Get test results quickly with 99.99% Accuracy; Data Playback & Printing

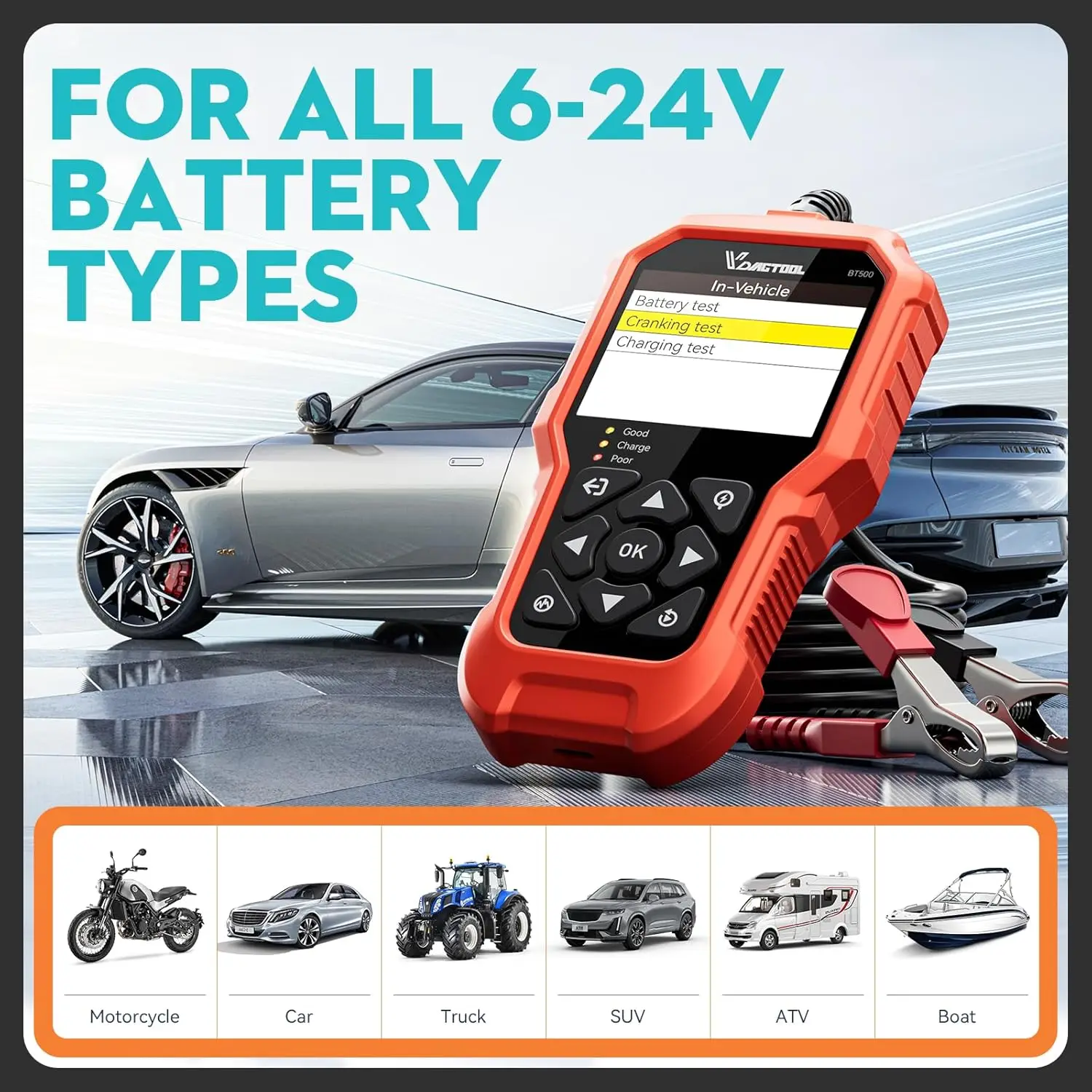

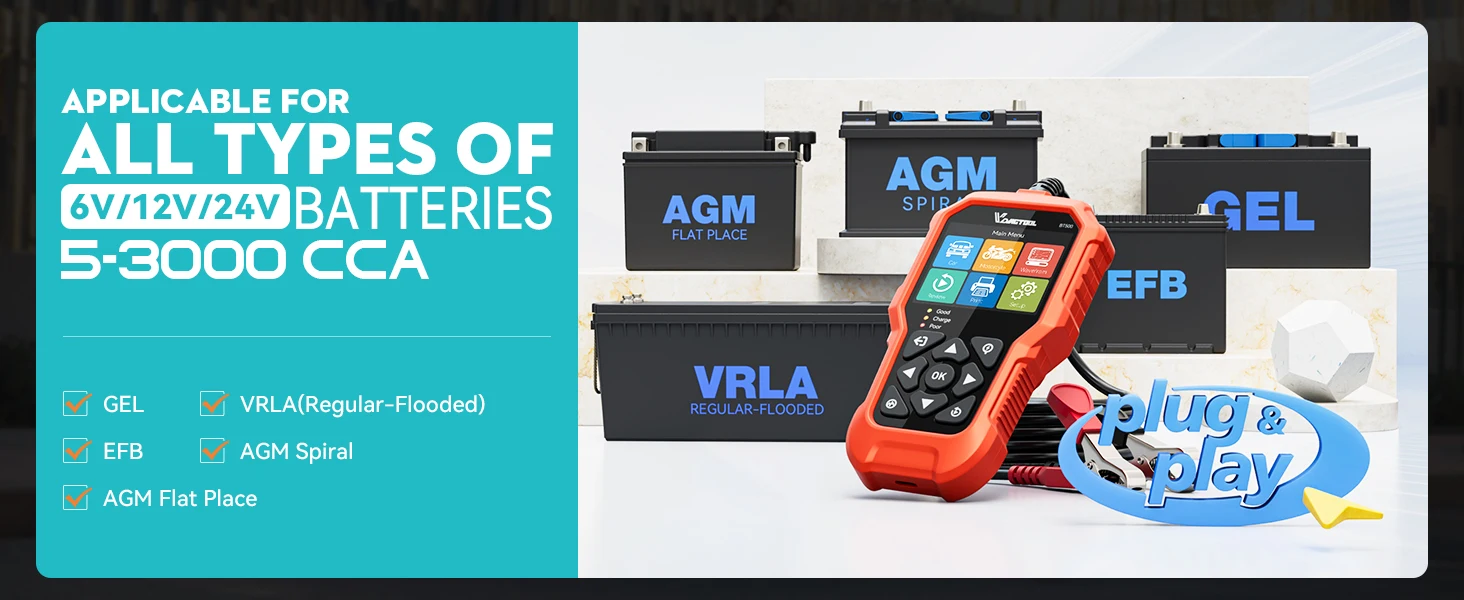

Wide Range of Application of VDIAGTOOL BT500 Auto Battery Analyzer
👉Suitable for all 6-32V batteries rated from 5-3000 CCA
✓Note: 6V/9V Battery Test – Please select via “Motorcycle” menu.
👉Suitable for ordinary submerged, AGM plate, AGM spiral, GEL, EFB battery, ordinary lead acid battery , ect.
👉Suitable for car, light duty truck, SUV, van, motorcycle, RV, ATV, trailer, boat, yacht, mower and even golf cart;
🚩NOTE:
Does NOT work on lithium batteries.
What functions can be bring of VDIAGTOOL BT500 Charging Cranking System Analyzer

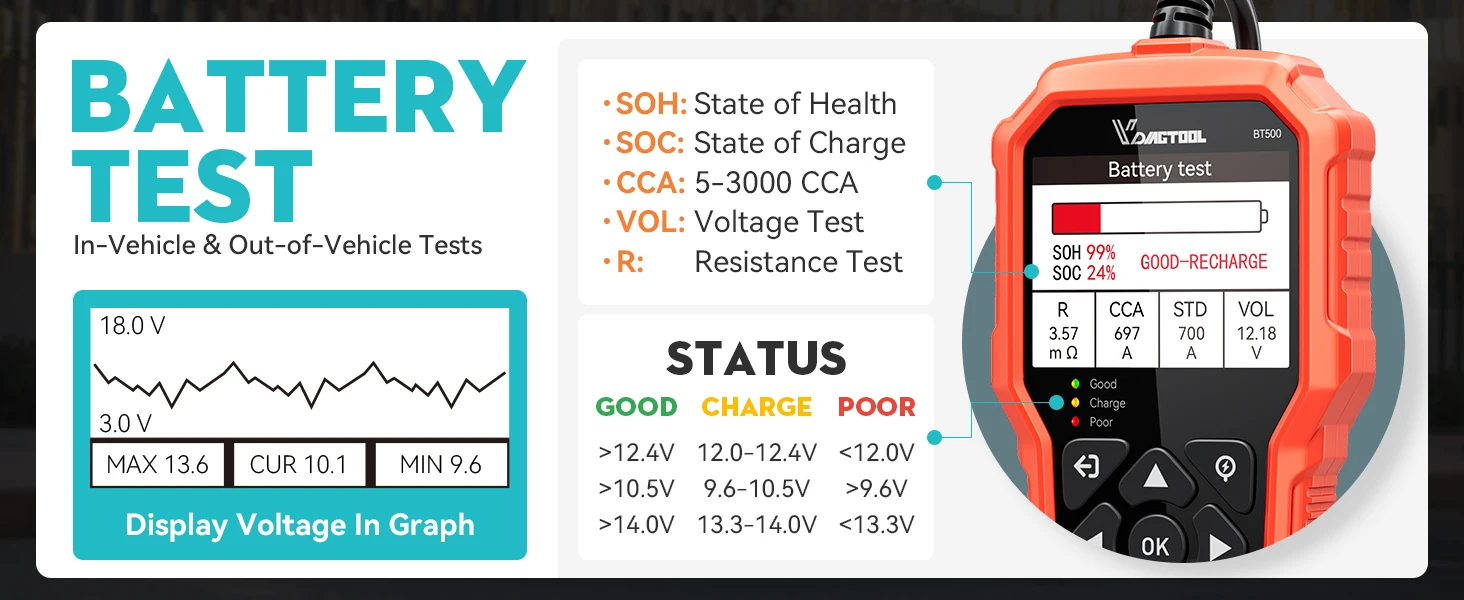

Function 1: One Click Show Battery Health
VDIAGTOOL BT500 Car Battery Health Tester is quick and accurate , it shows detailed battery parameters, with tri-colour lights to indicate the battery condition, helping you to understand the health of the battery, check the service life of the battery, and maintain the safety of the battery;
➤Interface：
SOH: State Of Health
SOC: State Of Charge
CCA: 5-3000 CCA
VOL: Voltage Test
R: Resistance Test
➤Status:
✔️Green Light: Good
✔️Yellow Light: Charging
✔️Red Light: Poor

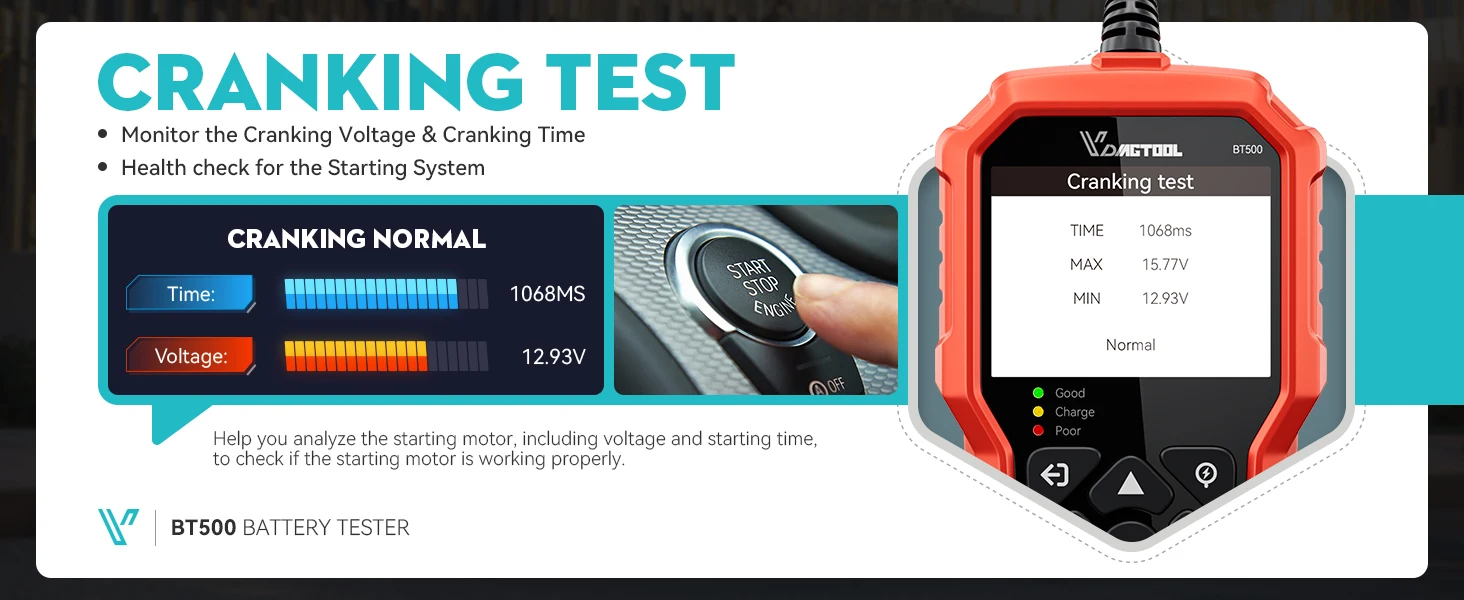

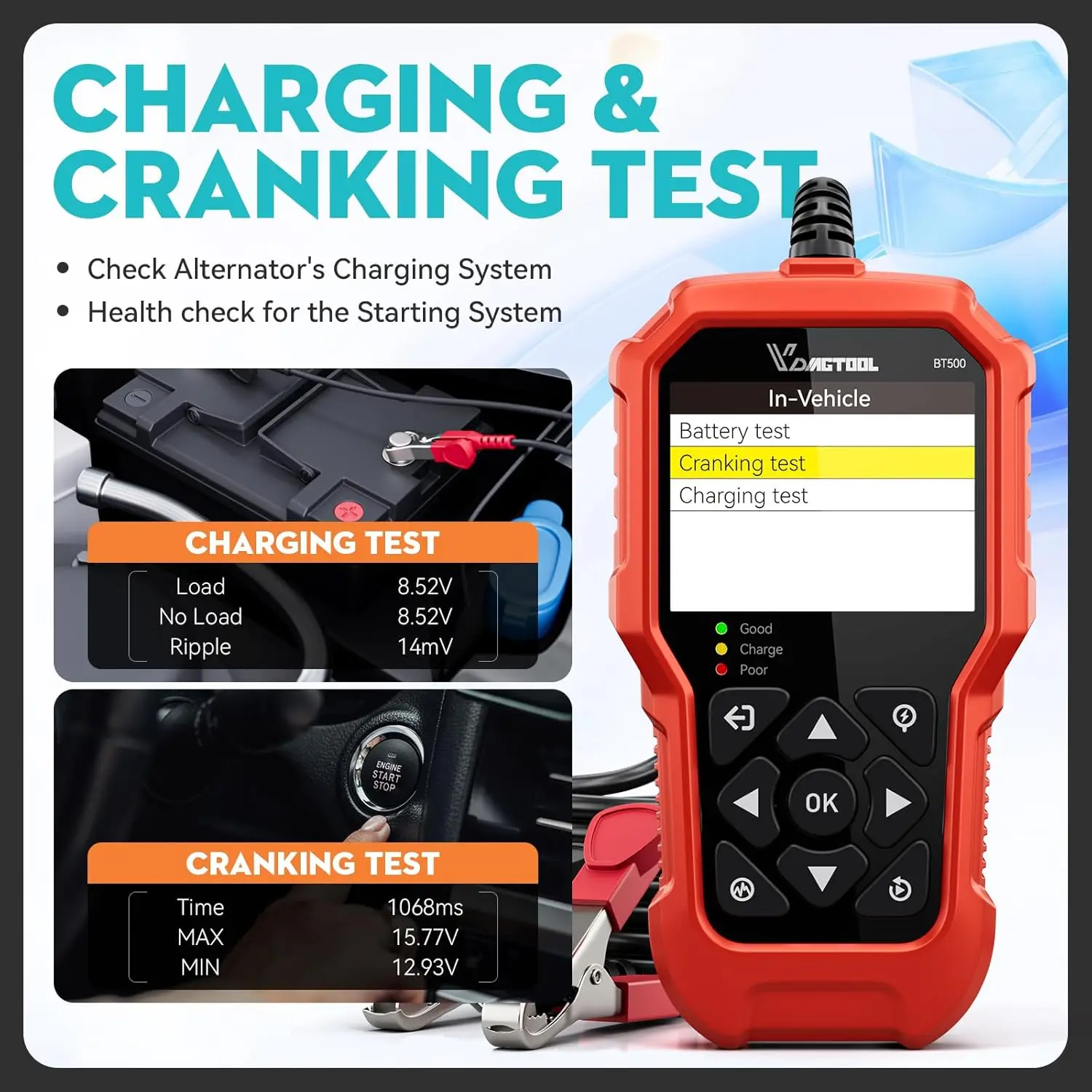

Function 2: Cranking Test
The battery life is usually 3-5 years and if you want to check that the engine starts at normal revs you can use the BT500 alternator tester. It displays the starting voltage and starting time (in milliseconds) to help you predict if the battery will not start the vehicle.
➤Loaded Voltage : the voltage measured when turning on on-board electrical appliances, such as headlights.
➤Unloaded Voltage: the voltage measured when turning off all the on-board electrical appliances.

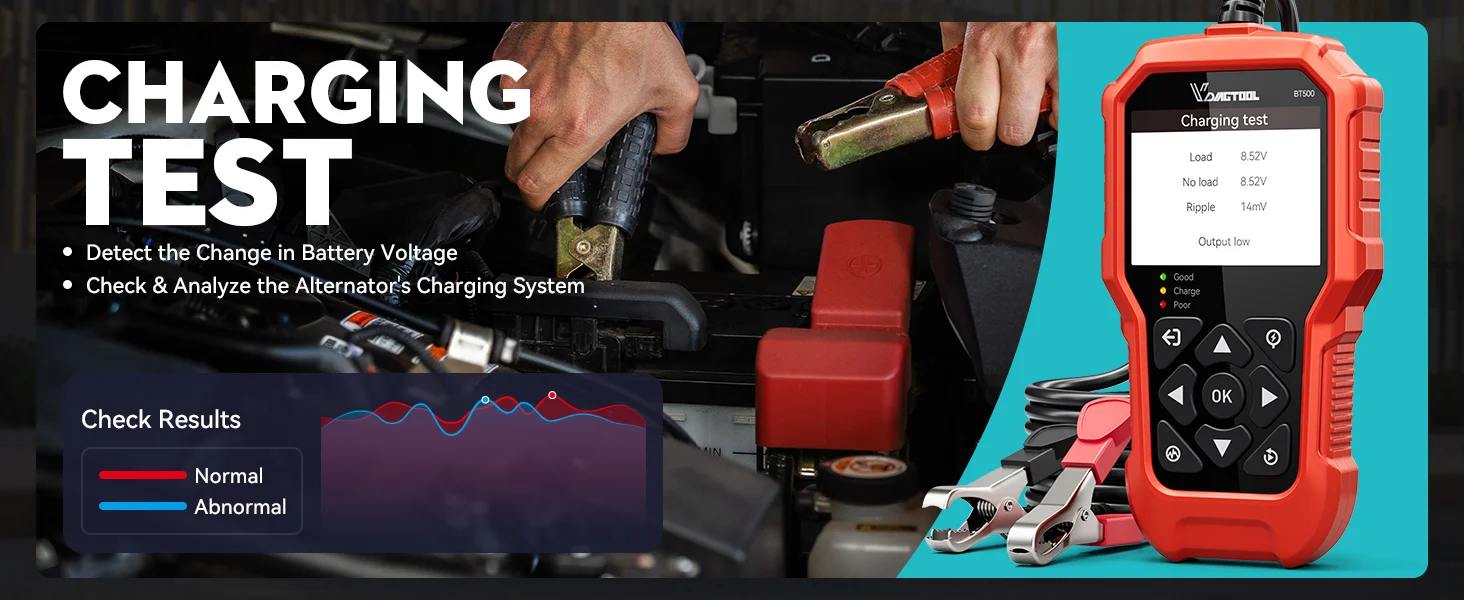

Function 3: Charging Test
Digital battery tester VDIAGTOOL BT500 check performs charging tests on the generator to prevent issues such as overcharging or incomplete charging.
➤Test content:
✔️Detect the Change in Battery Voltage
✔️Check & Analyze the Alternator’s Charging System
✔️More data : CCA value/rating, voltage, internal resistance, state of health (SOH), and state of charge
➤Check Results:
✔️Normal
✔️Abnormal
Advantages of BT500 battery tester 1：Support 12 Kinds of Languages
English,Chinese,Japanese,Korean,ltalian,Dutch,German,Russian,Portuguese,Spanish,French,Polish.
BT500 car battery tester can support 12 kinds of languages, which can help the users Overcome language barriers and improve the diagnostic efficiency.
Unlock more advantages of the BT500 Vehicle Crank Charge Scanner Tool:

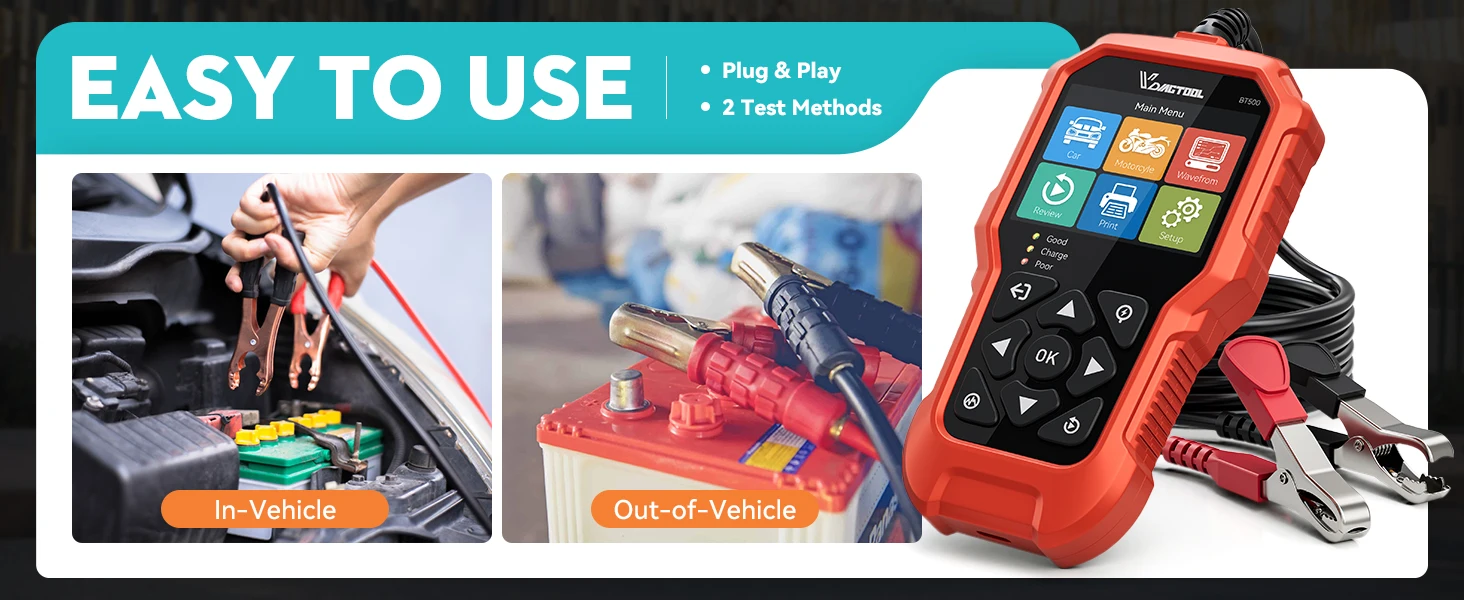

Advantages of BT500 battery tester2: Easy to use
✔️Plug and Play
BT500 entry-level auto battery analyzer is made for newbies, come with extra-large clamps to plug and play; intelligent LED status indicators to test quick ; Intuitive display to view data; sensitive keys to view menus.
✔️2 Test Methods
In Vehicle – no need to remove the battery. You can directly check the vehicle battery under the hood.
Out of Vehicle – can test the independent battery.
Advantages of BT500 battery tester 3：99% Accuracy
BT500 battery checker tester, powered by its advanced intelligent chip, delivers test results with an impressive accuracy of up to 99.99%. These results can be conveniently stored and reviewed directly on the screen.
✔️Fastest Testing Speed
✔️99.99% Testing Accuracy
✔️Better Key Sensitivity
Advantages of BT500 battery tester 4: Data Review and Printing
BT500 battery analyzer can not only store measurement data, but also print measurement data reports by connecting BT500 to a computer via a USB cable. Enjoy lifetime free upgrade services, all of which are considered for you, professionals and DIY.
➤Data Review
➤Data Printing
Advantages of BT500 battery tester 5: 100% Safe to Use
BT500 battery checker tester has powerful safety protection, the risk of causing damage tends towards zero
✔️100% high-quality safety copper clips:
reverse polarity protection ; Anti-spark function ; Overvoltage protection ; Over temperature protection.
✔️Can Work in Hot & Cold：
BT500 Multi-functional Automotive Battery Tester is not affected by the environment and can work in extremely cold and hot environments. (Operating temperature range: -4℉~140℉, -20℃~65℃)
