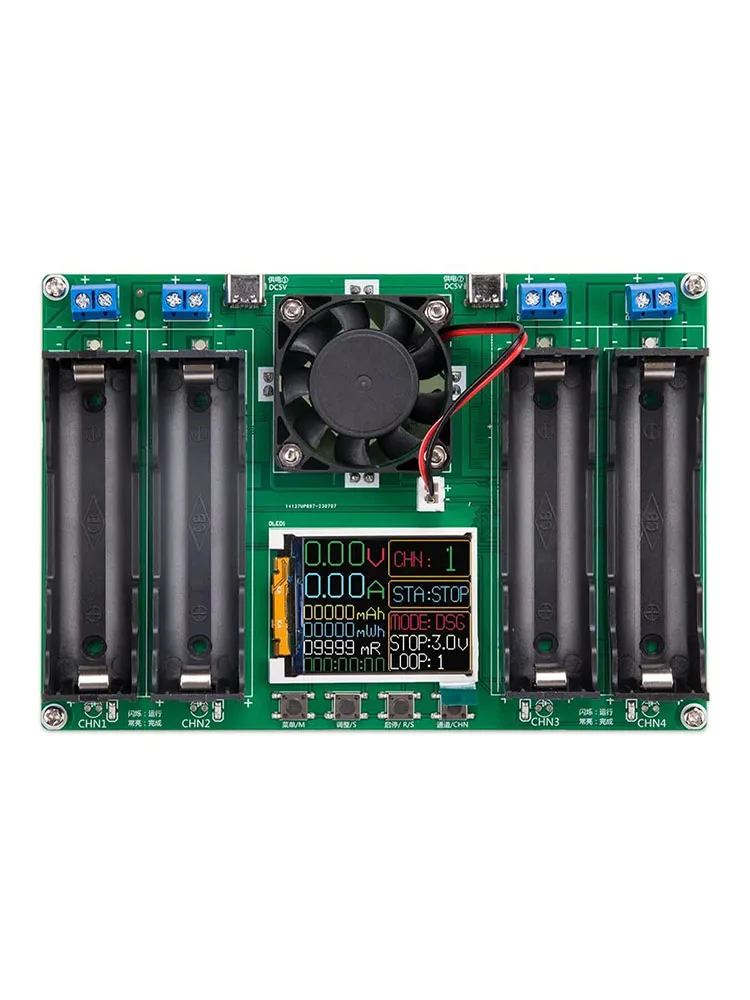

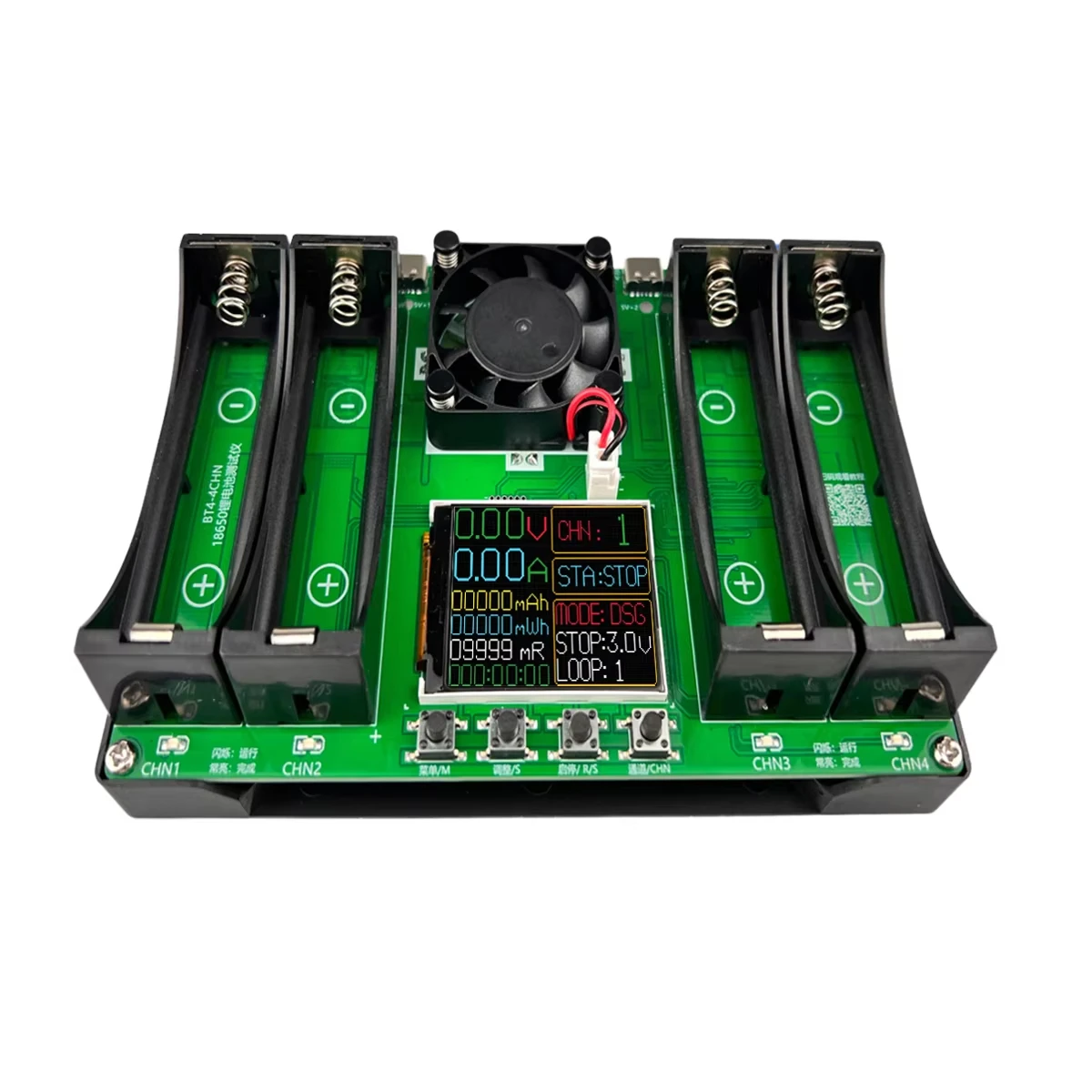

18650 Battery Tester LCD Display Universal Battery Checker

Please note: Due to product updates and iterations, pre – and post upgrade products will be shipped randomly

If you need see instruction , may you see the following link

4 Channel Battery Tester Data link: （English）

https://www.banber.com/banber/6374be9b2ee0e200077ec156

Features:

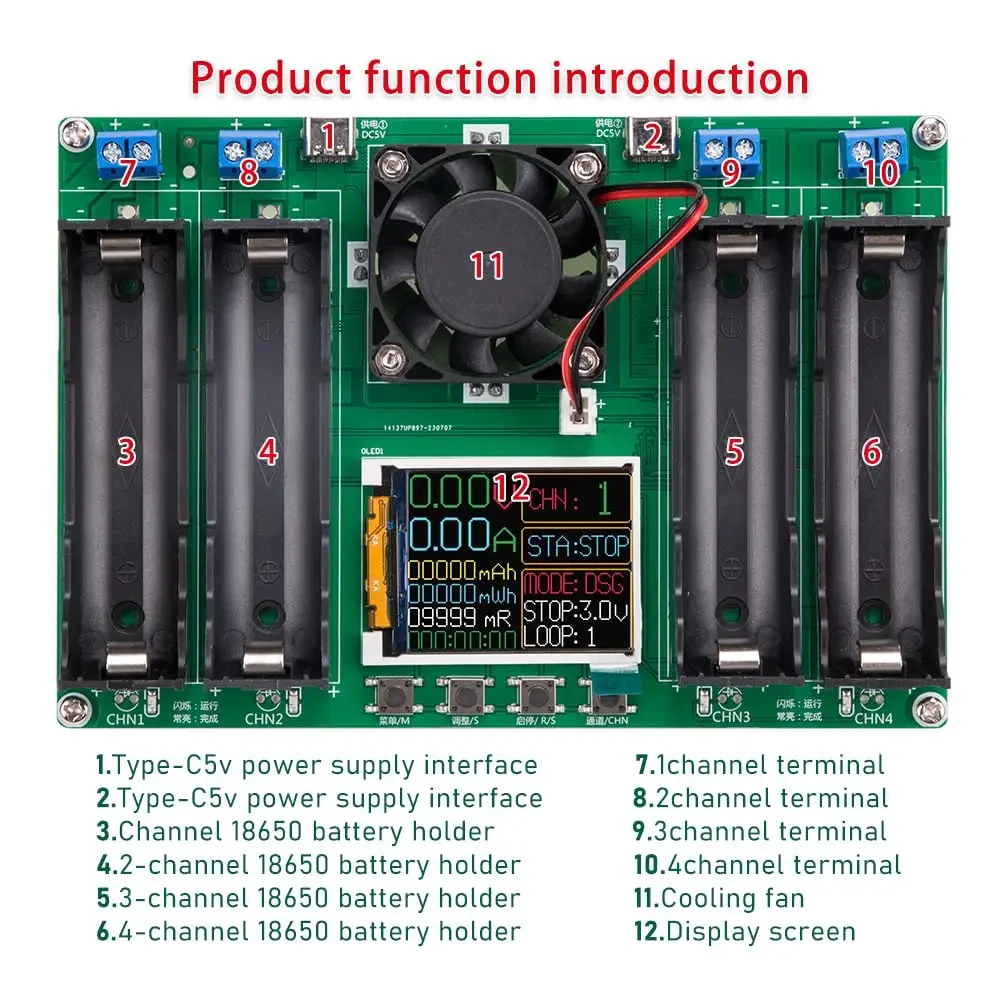

1.The product supports four-channel capacity and internal resistance measurement
2.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode
3.Each channel is independent of each other, set separately, operates independently, and does not interfere with each other
4.18650 battery holder uses compact battery holder, suitable for flat-head battery measurement
5.Active cooling of fan supports overheating protection
6.Using DC two-wire method to measure internal resistance
Note: lithium iron phosphate battery charging is not supported

Parameters:

Working voltage: DC5V
Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V

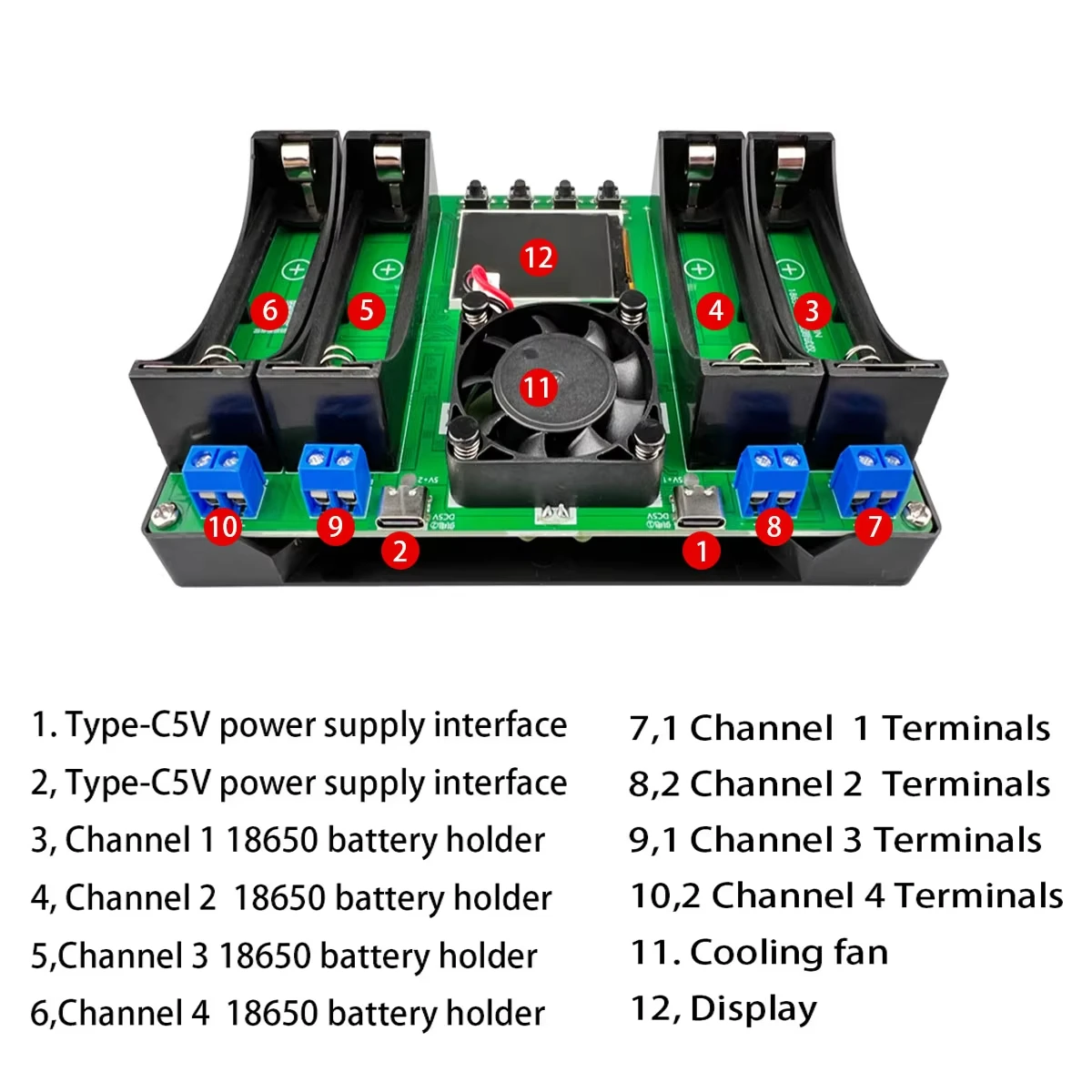

Power supply interface: Two-way Type-C power supply interface (power supply and power cord are provided)

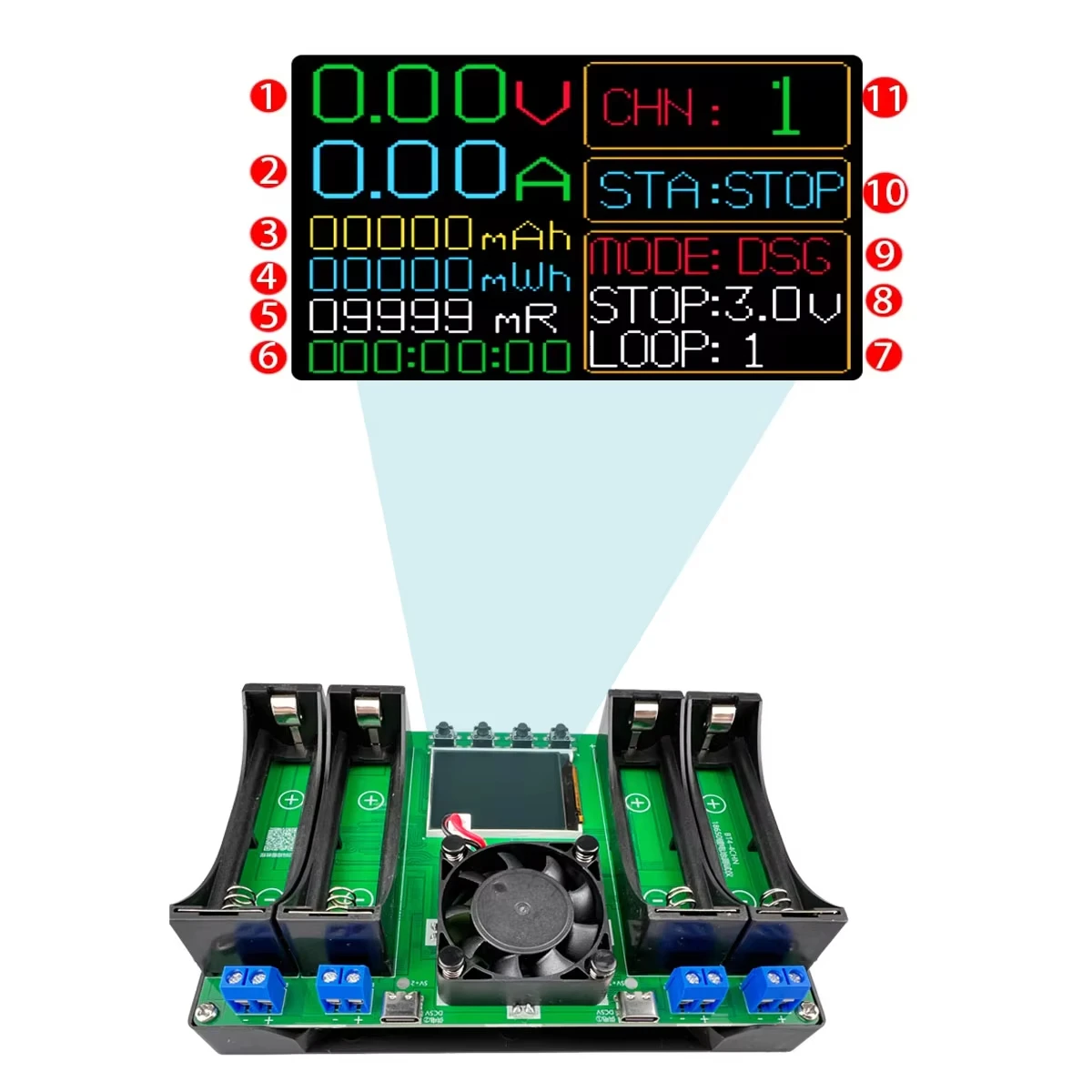

System language: English/Chinese can be switched
Test quantity: 4-way charging and discharging measurement
Internal resistance measurement: support, use DC two-wire method to test internal resistance
Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)
Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable
Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode
Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)

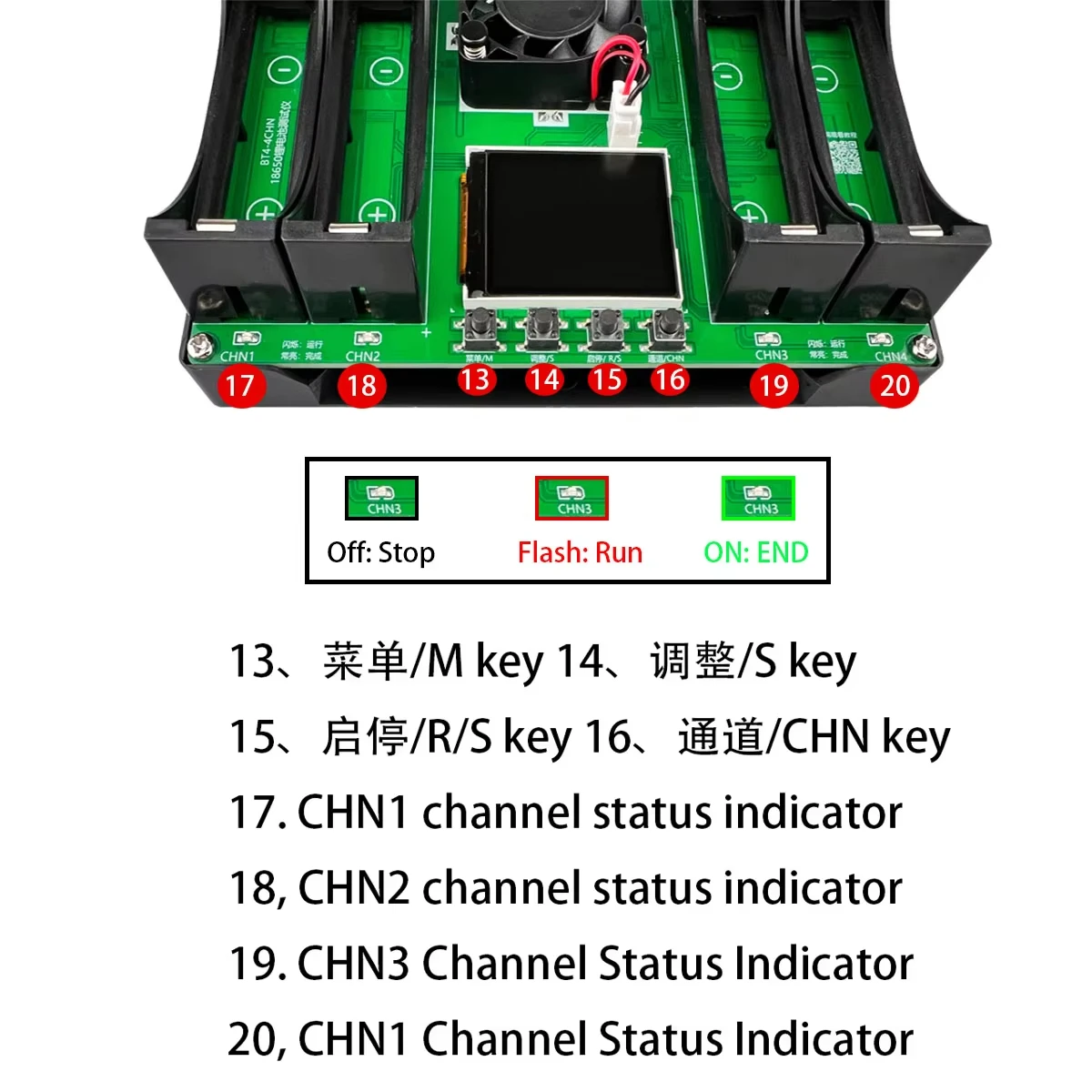

Status prompt: Supported
Cooling mode: fan active cooling
Overheat protection: support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears
Discharge current: the maximum current is about 1A, which is not adjustable, and does not support independent transformation
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V
Power-off saving: only save the set parameters, not the measurement data

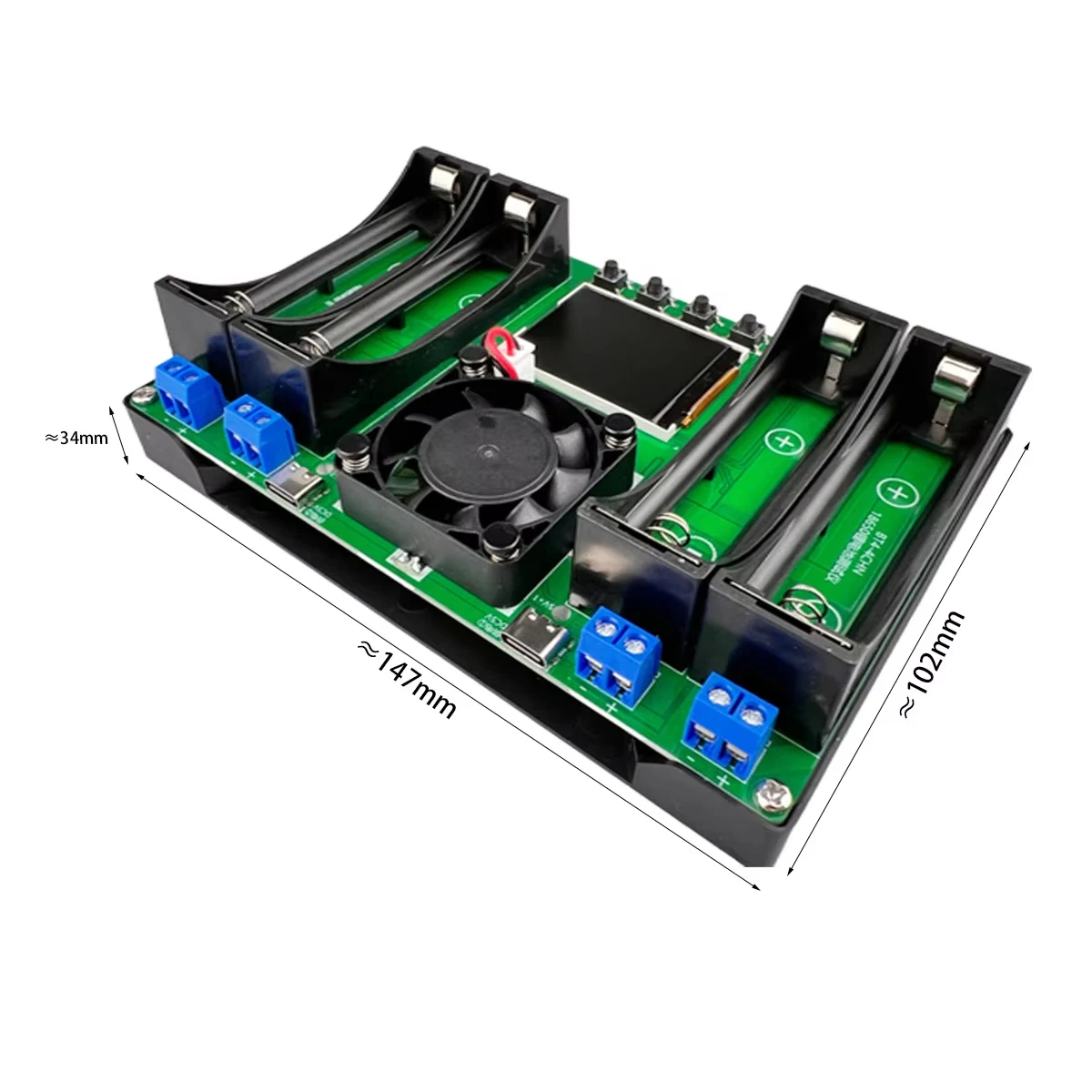

Product size: 150 × one hundred and three × 36mm
Package size: 182 × one hundred and twelve × 50mm

Package include:

18650 battery capacity internal resistance tester X1
