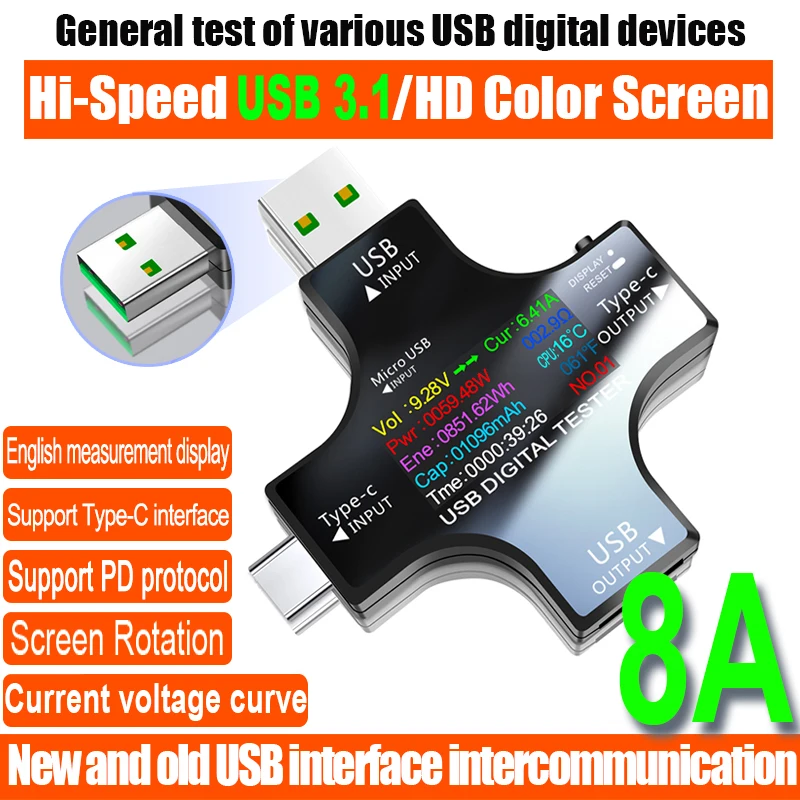

‌USB Tester Type-C PD Digital Capacity Meter 8A

APP Download address

1.http://www.mediafire.com/folder/31bc15uhq8odb/E-meter

2, IOS APP: search E_test on iphone APP store to download

3. Android APP: search E-test at Google play to down load or https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file

Notes:

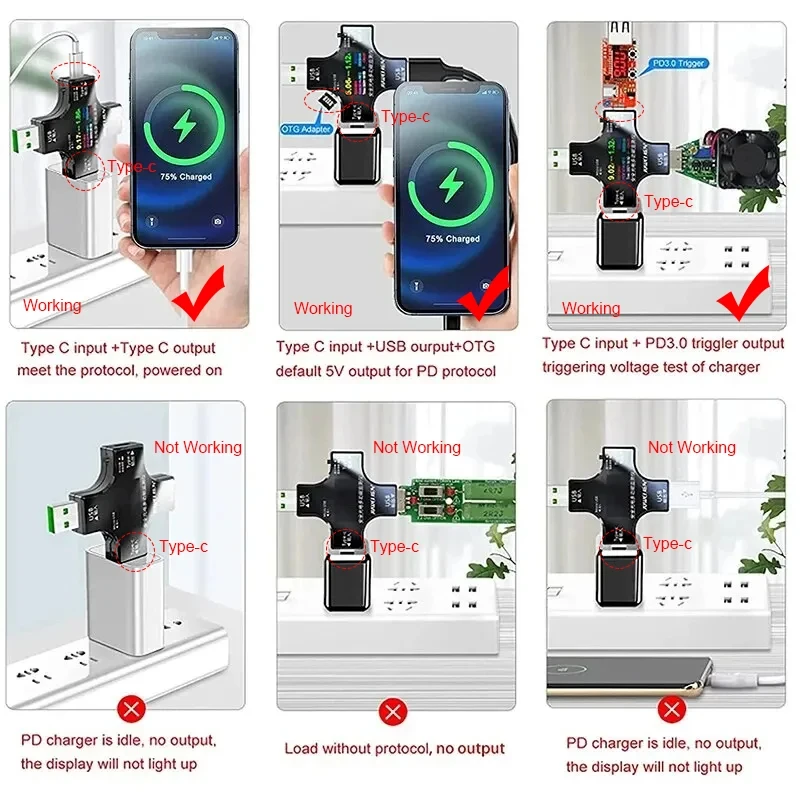

Before use, please read the following instructions carefully. Because the PD charger has a special PD protocol, it will not work until the output is connected. Please connect your mobile phone and it will work normally!

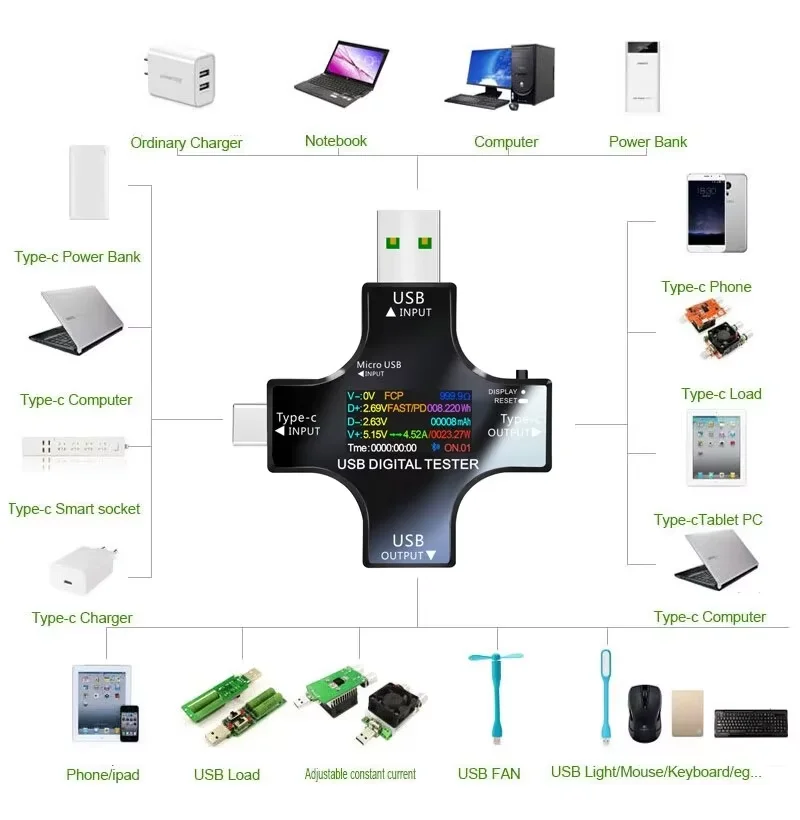

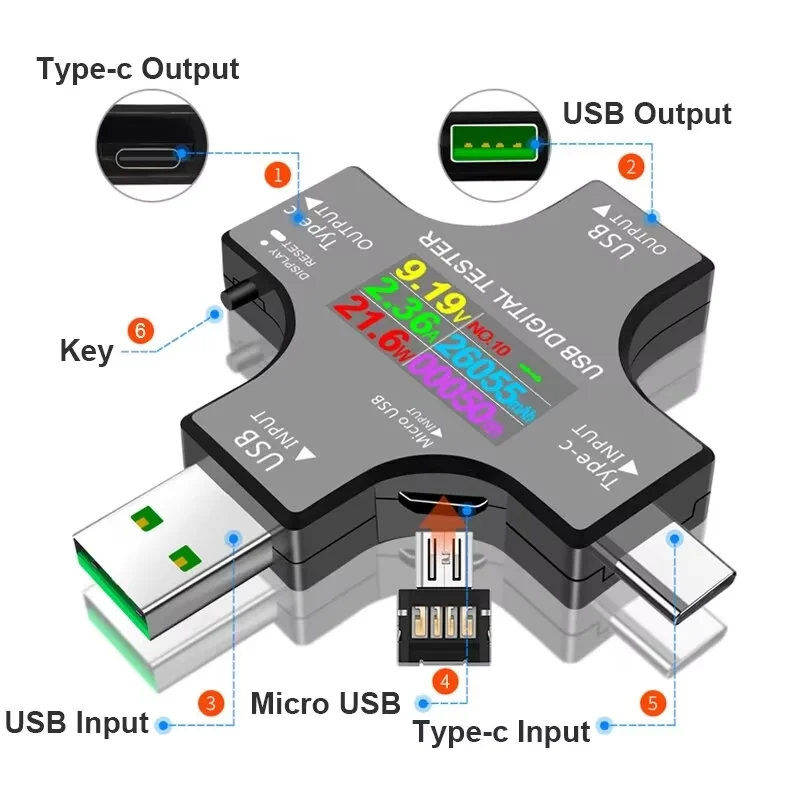

This product is a dual purpose USB and Type-c product. The USB interface is inserted into the USB charger, and the USB tester screen displays. The TYPE-C is inserted into the PD port, but it does not display. Please connect the TYPE-C output to your phone and it will be screen display!

Product specifications：

Voltage measuring range : 3.6V~32.0V Resolution Precision : 0.01V
Current measuring range : 0.00~8.00A Resolution Precision : 0.01A Maximum test current 8.00A
Capacity cumulative range: : 0~99999mAh
Resolution Precision : 0.01Ah
Power cumulative range : 0~99999Wh
Resolution Precision : 0.01Wh
Power metering range : 000.00~150.00 W Resolution Precision : 0.01W
Impedance Measuring range : 1~999.9Ω Resolution Precision : 0.1Ω
Temperature Measuring Range : 0~80℃ Resolution Precision : 1℃ Maximum
Timing Measuring range : 999Hours 59Minutes 59 Seconds Resolution Precision : 1s
USB D+ Voltage Range : 0V~2.99V Resolution Precision : 0.01V
USB D- Voltage Range : 0V~2.99V Resolution Precision : 0.01V
Time to refresh : 500mS/ times
Measurement rate : 0.5 times/s
Alarm Mode : Display Hints

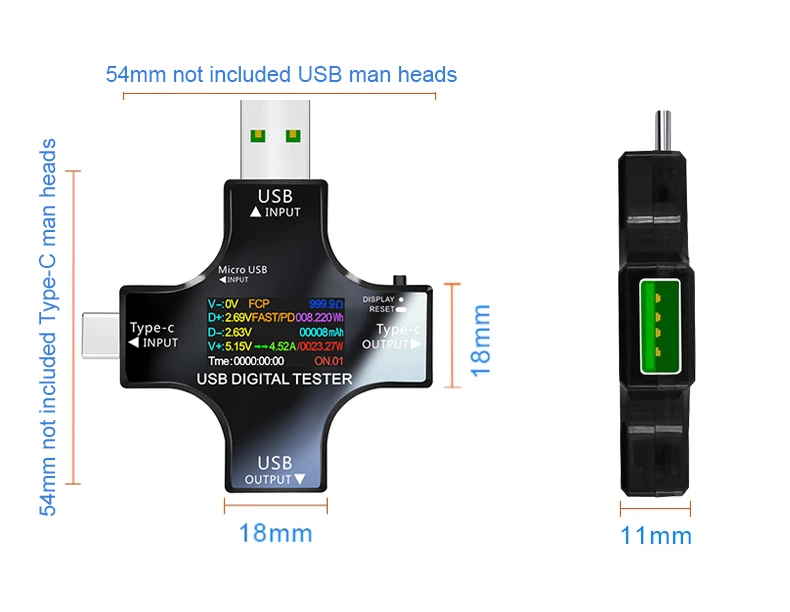

Product size : 61mm x 68mm x 10.8mm
Self-consumable flow : <0.02A
Working temperature : -10~+60℃
Working humidity: : 10~80(no doubt)
Pressure of work : 80~106kPa
Certificate: RoHS, CE
