FOXWELL BT705 Professional Battery Tester 12v 24v

Professional Grade Car Battery Tester with Low Cost & High Maintenance Efficiency!

The automotive FOXWELL battery tester is designed to analyze battery state and battery-rated system issues. BT705 battery analyzer is professional for testing 12v 24V regular flooded, AGM/EFB flat plate, AGM/EFB spiral and gel batteries, start-stop AGM/EFB battery with a capacity of 100-2000 CCA. It detects the failure of the starting and charging systems in 12V & 24V cars, ATV, SUVs, Sedans, RV, electric mower, Mini-Vans, light duty trucks, pickup trucks, marines, boats, motorcycles and even lawnmowers etc. Most devices issues caused by the batteries can be detected with FOXWELL BT705. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system. It is a professional battery tester for enthusiasts, DIYers, small garages, auto repair shop, independent repairs etc.

Suit for everyone, you won’t miss

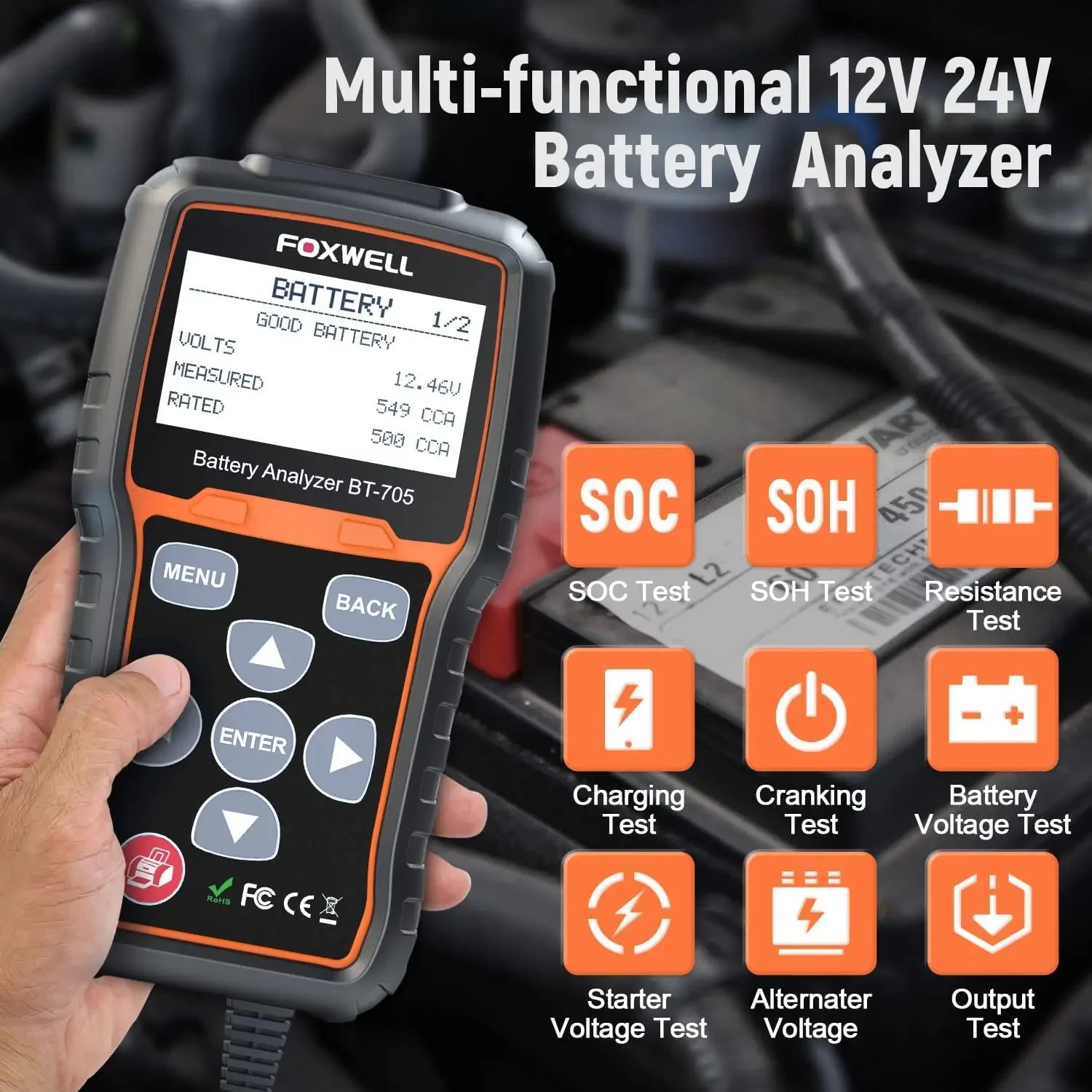

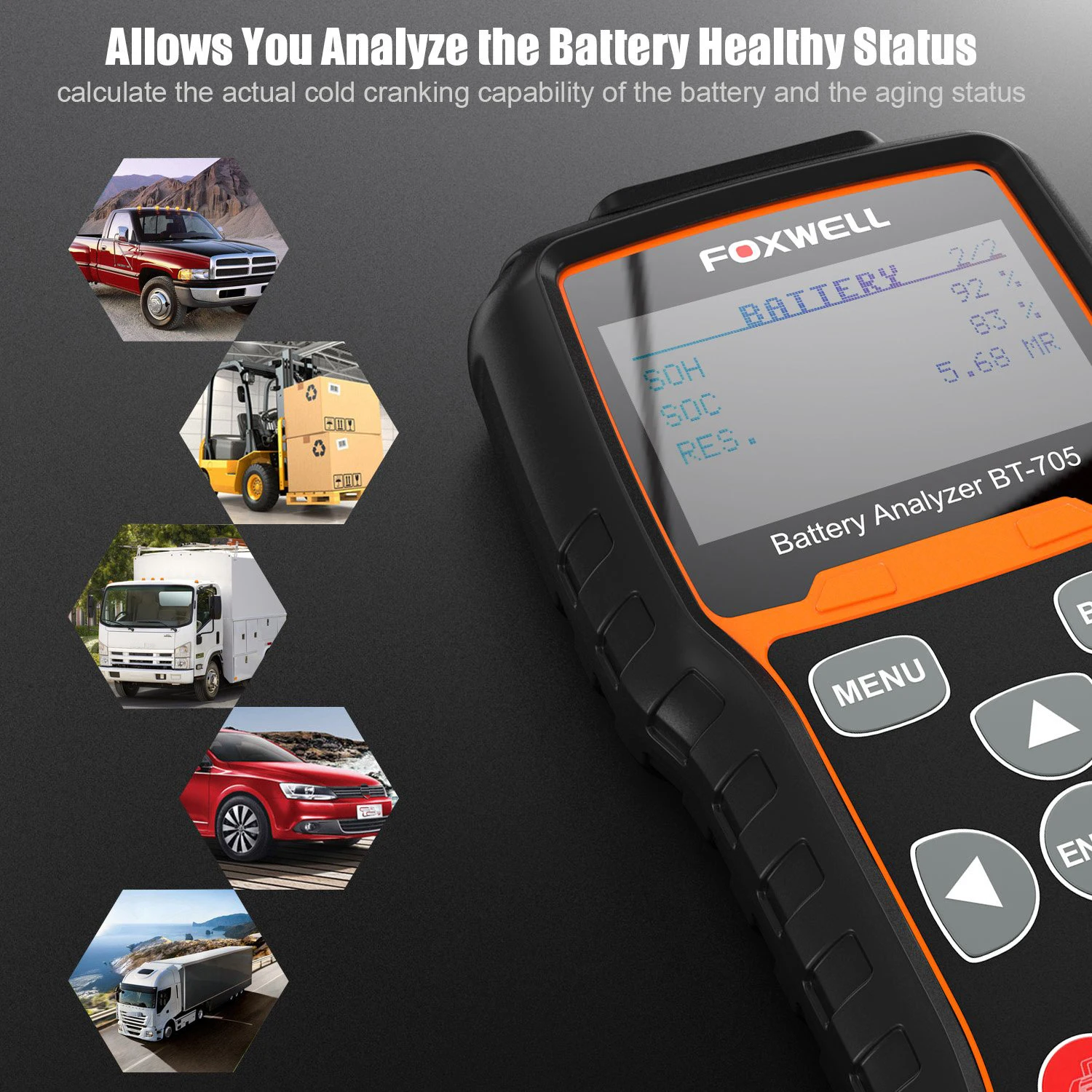

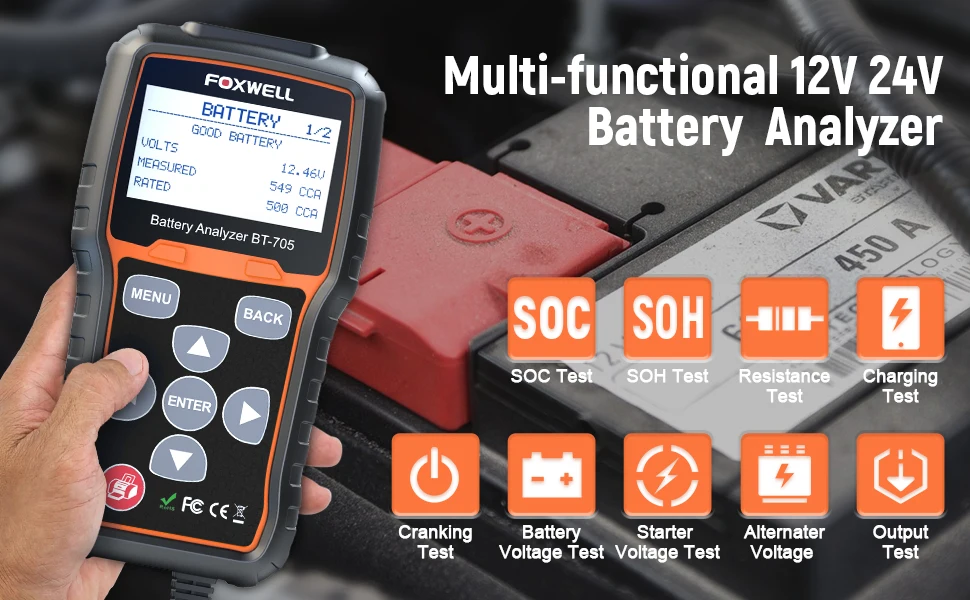

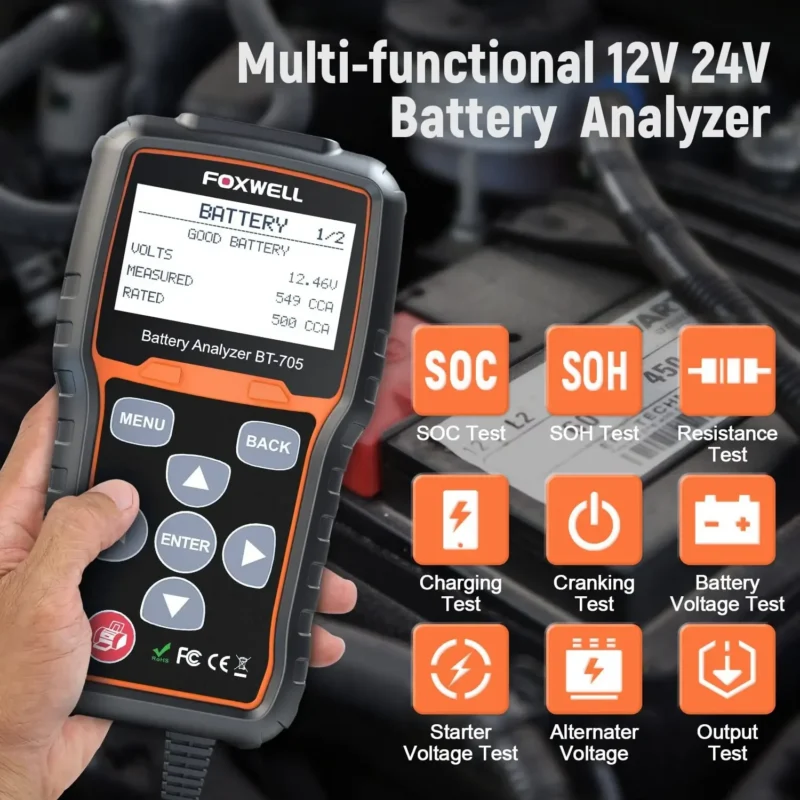

●Check the battery’s healthy staus but limited to SOC, SOH, Resistance and etc.
●Tests 12&24 volt charging system.
●Tests 12&24 volt cranking system.

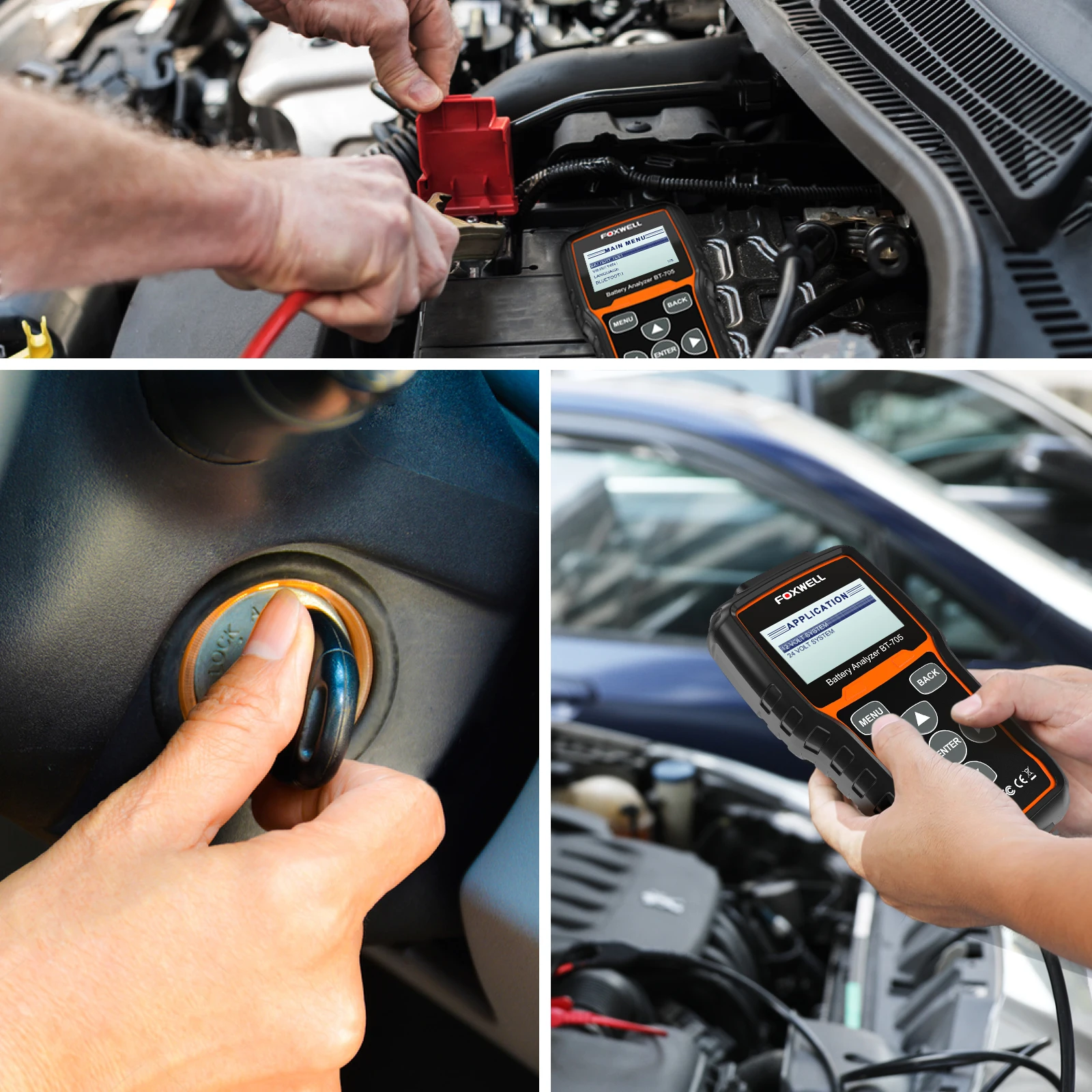

●Tests the batteries on the car directly- no need to remove the battery.
●Quick and accurate test result display in just 3 seconds, detects bad cells directly.
●Quick starter analysis without disabling the ignition.
●Does not emit light, heat or spark ,or discharge battery-keeps operation safe for all levels of users.
●Automatic temperature compensation.
●Ripple voltage test for easy and intuitive check of faults.

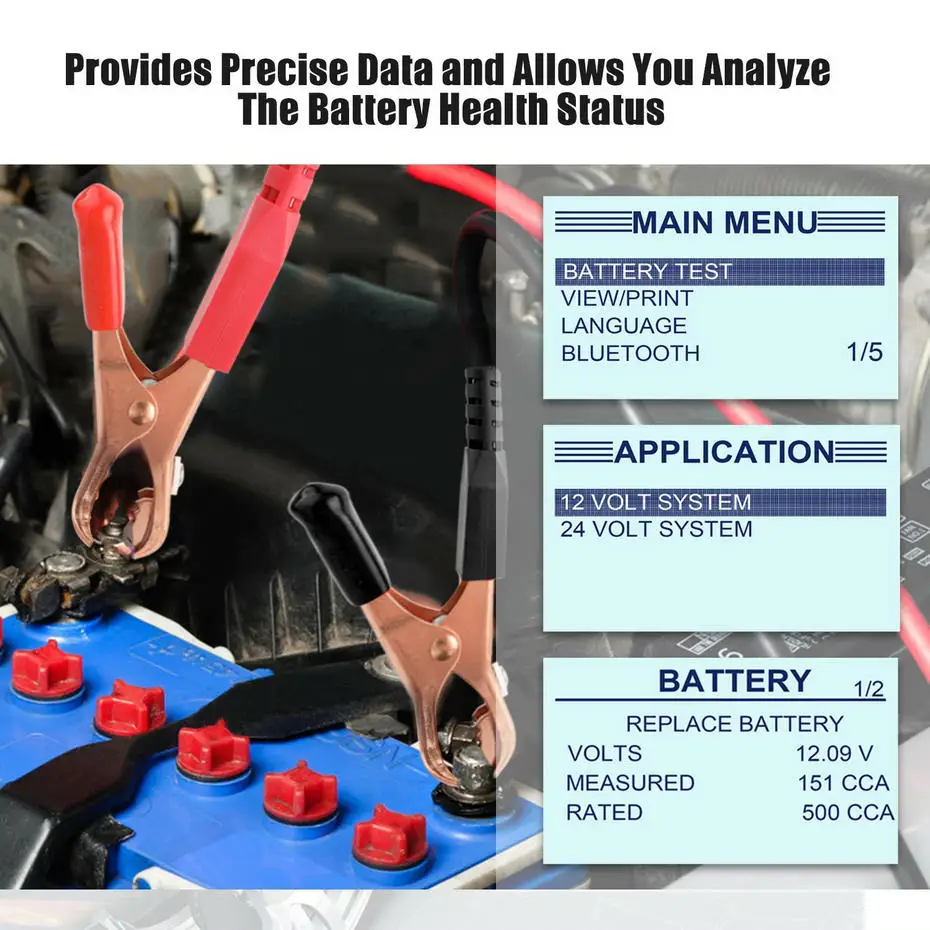

●Extremely easy to use with large backlight LCD display and menu-driven operation.

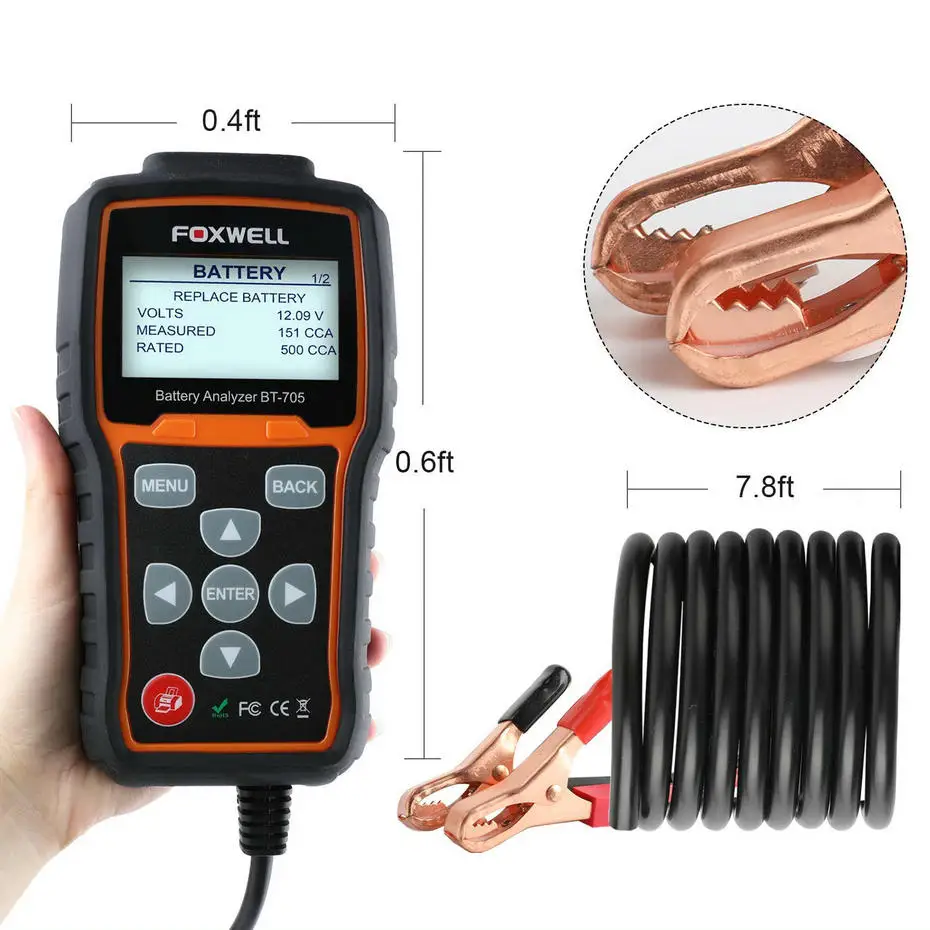

●Rubberized sleeve protects, 7.8ft tester cable with metal alligator clips.

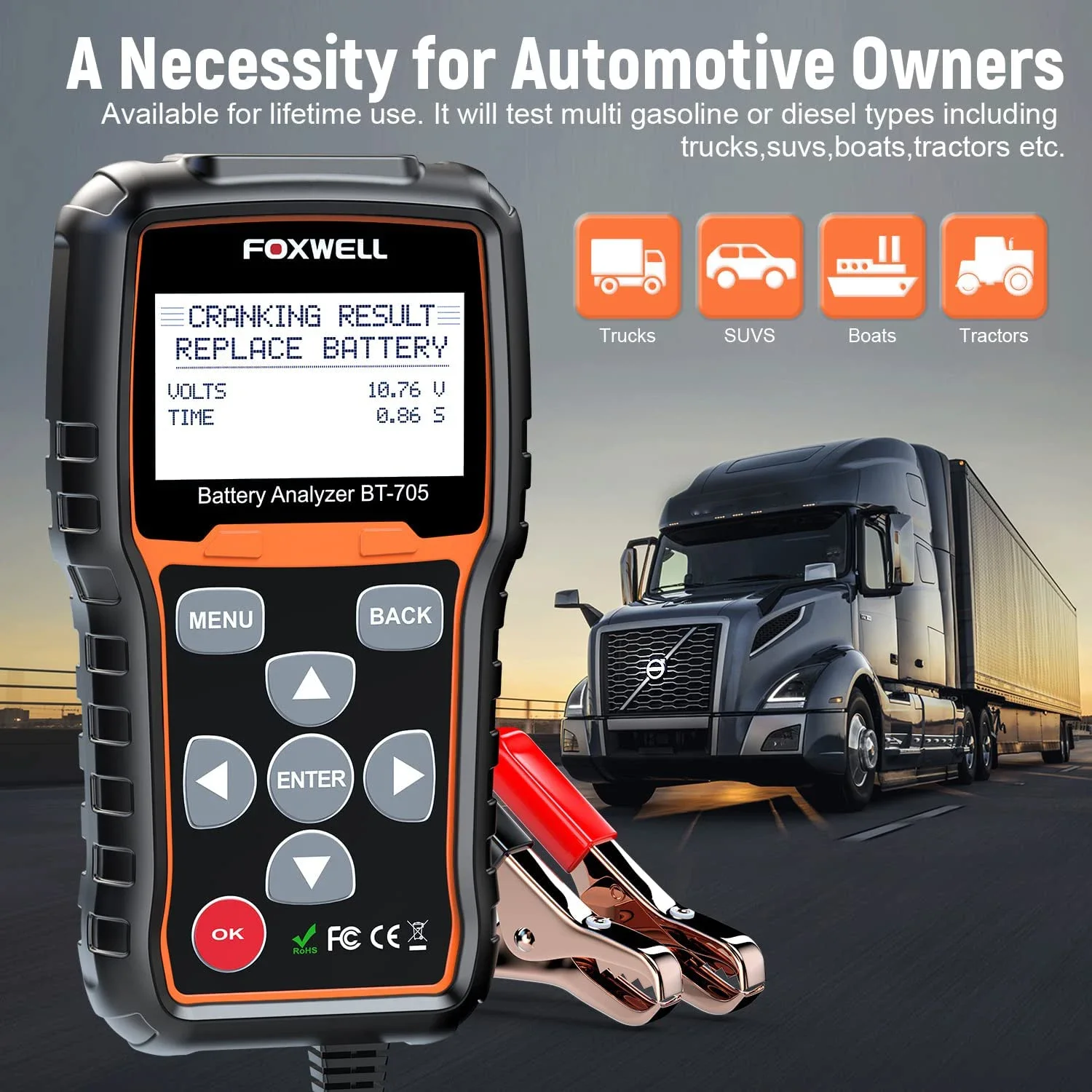

●Multiple automotive applications

passenger cars, suvs, mini-vans, heavy duty trucks etc.

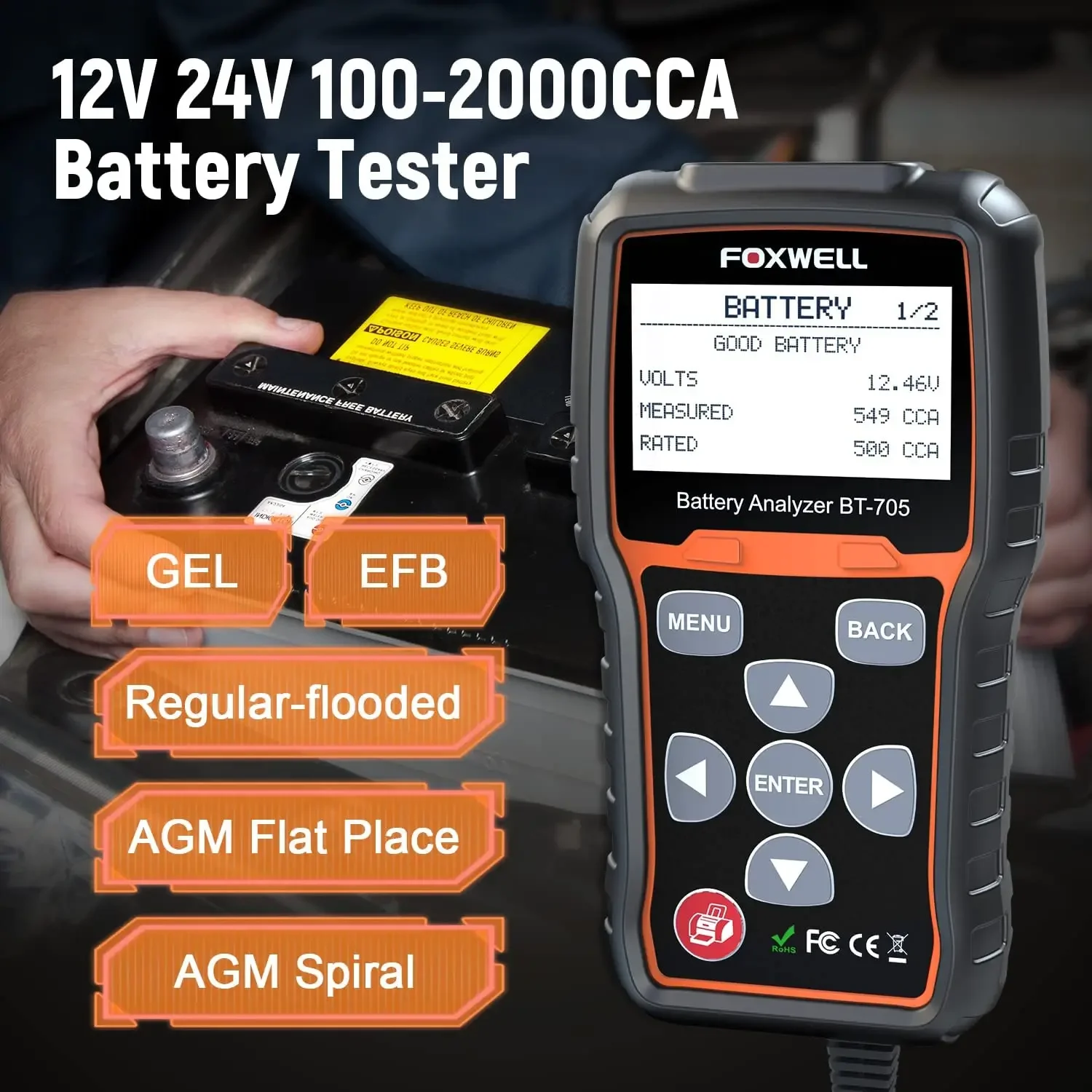

MULTIPLE BATTERY TYPES TEST

work for regular flooded, AGM flat plate, AGM spiral and gel

VEHICLE BATTERY ANALYSIS

•GOOD BATTERY:Battery is in good condition.
•GOOD-RECHARGE:Battery is in good condition but low current.
•CHARGE & RETEST:Fully charge the battery and retest. If you still get CHARGE & RETEST after fully charge the battery, replace it.
•REPLACE BATTERY:The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test.
•BAD CELL-REPLACE:The battery may be damaged.

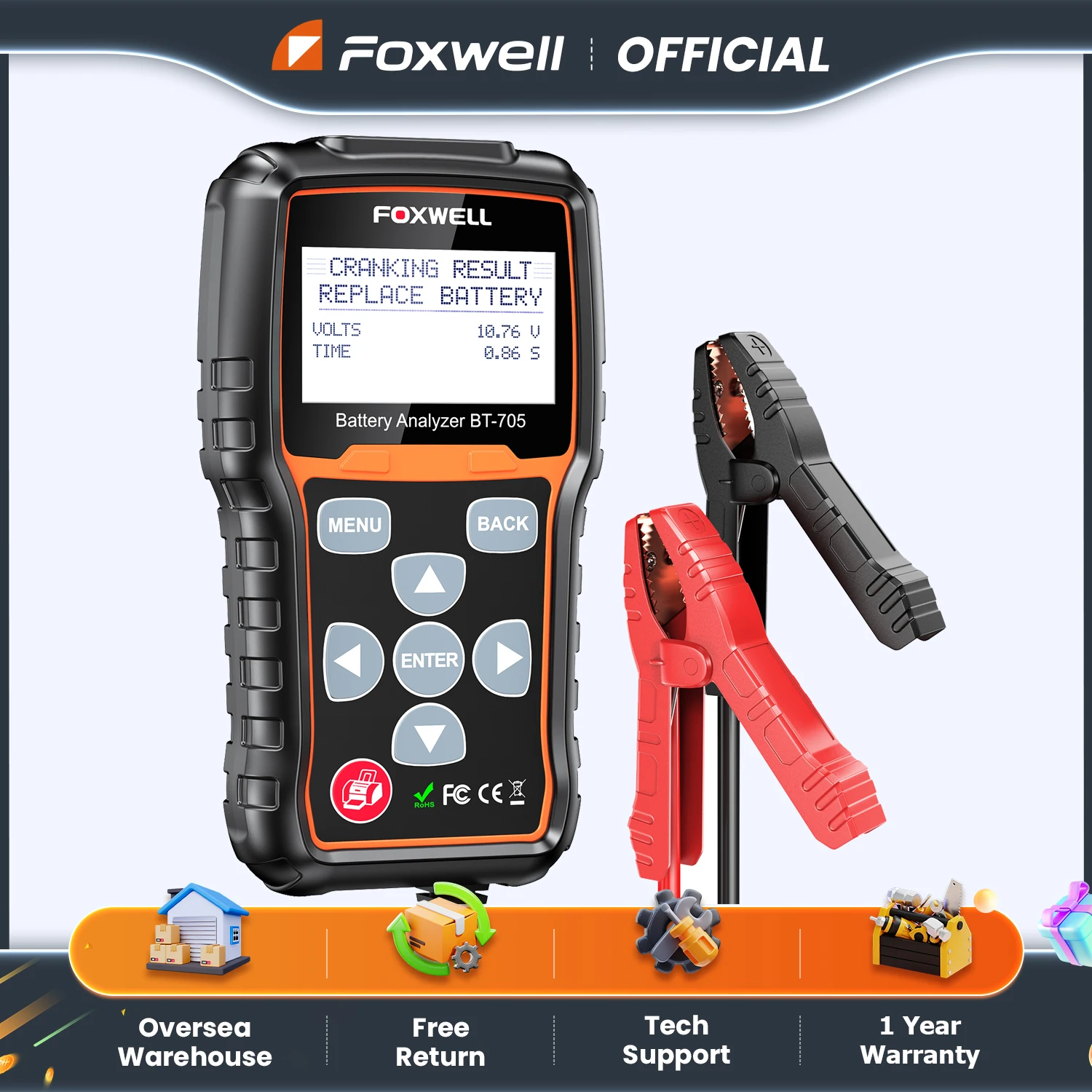

VEHICLE CRANKING ANALYSIS

•CRANKING NORMAL: The starter voltage is normal and the battery is fully charged.
•LOW VOLTAGE: The starter voltage is low and the battery is fully charged.
•CHARGE BATTERY: The starter voltage is low and the battery is discharged. Fully charge the battery and repeat the starter system test.
•REPLACE BATTERY: Battery must be replaced before the starting system can be tested.
•NO START: No vehicle start detected.
•CRANKING SKIPPED: A start was not detected.

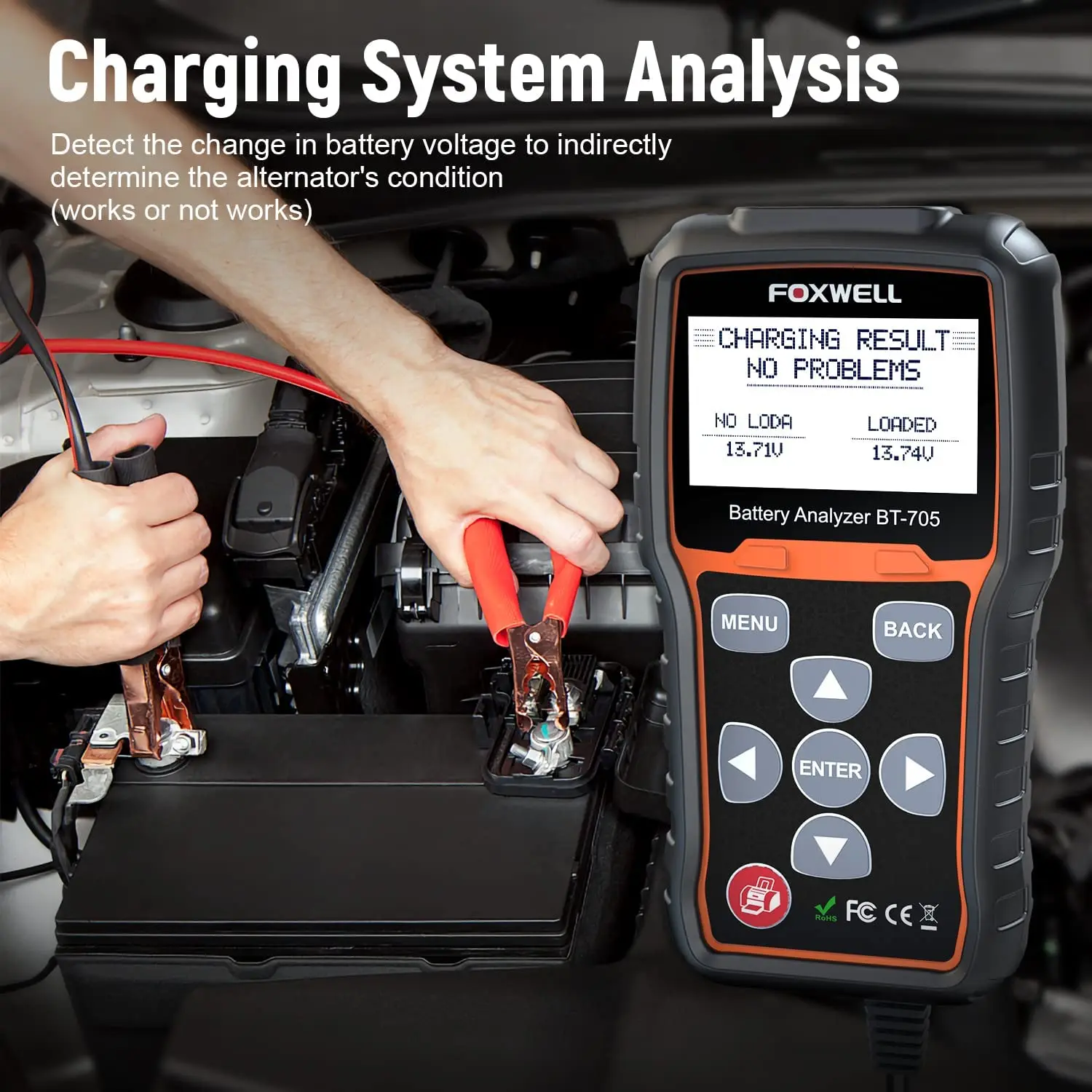

VEHICLE ALTERNATOR CHARGING SYSTEM ANALYSIS

•NO PROBLEMS: System is showing normal output from the alternator.
•NO OUTPUT: No alternator output detected. Check connections to and from the alternator, especially the connection to the battery.L
•OW OUTPUT: Alternator not providing sufficient to power the system’s electrical loads and charge the battery. H
•IGH OUTPUT: Alternator voltage output exceeds the normal limits.E
•EXCESSIVE RIPPLE: Excessive AC ripple detected. One or more diodes in the alternator are not working or there is stator damage.

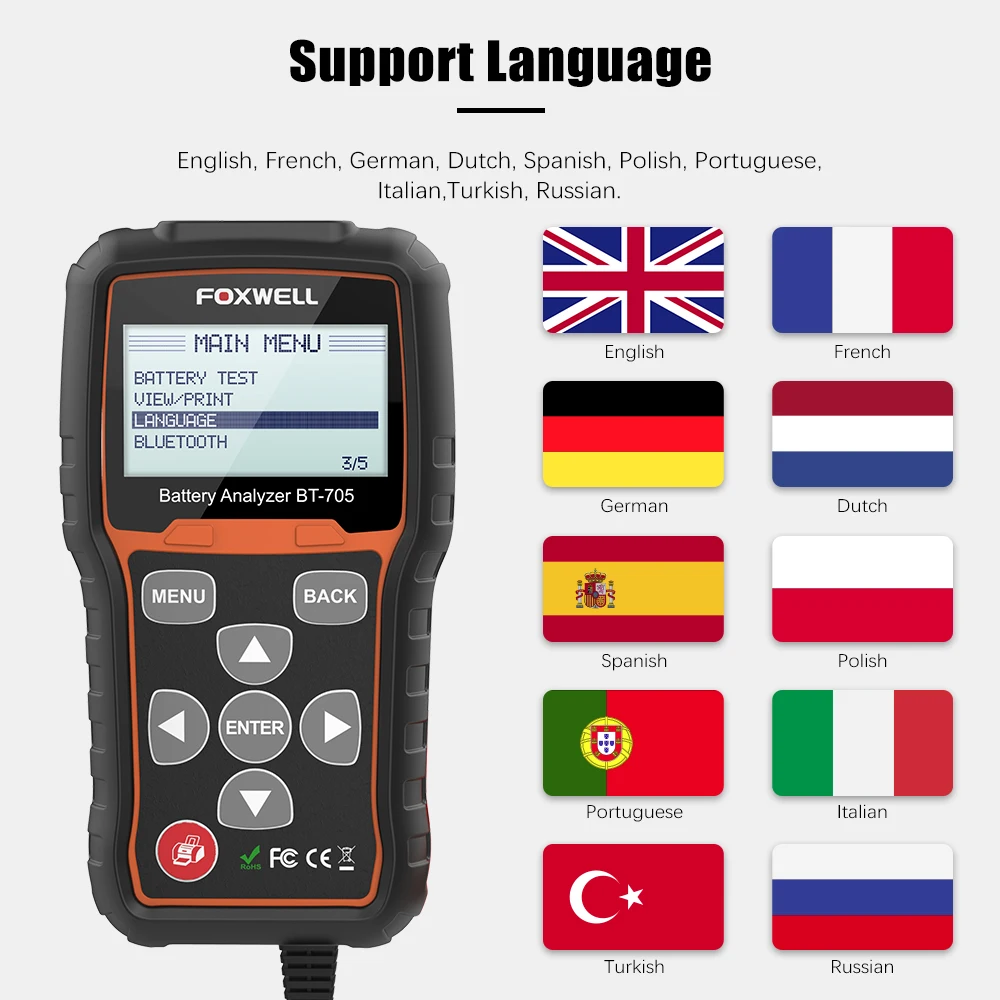

Foxwell BT705 Support Functions

English, French, German, Dutch, Spanish, Polish, Portuguese, Italian,Turkish, Russian

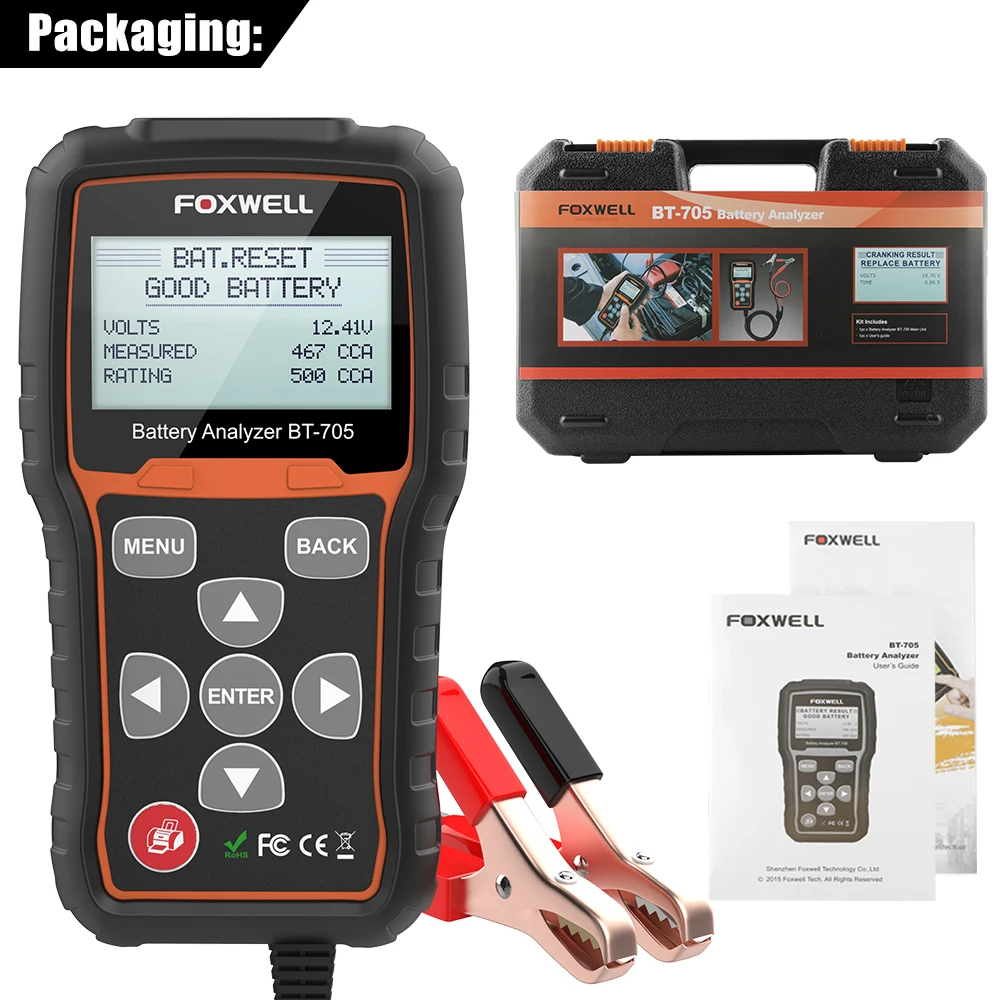

Package including:
1pc X Car Battery Analyzer Foxwell BT705 Main Unit
1pc X User’s Guide
1pc X Carry Pouch
